Toyota Highlander

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

8 part groups · 2 illustrations

Illustrations

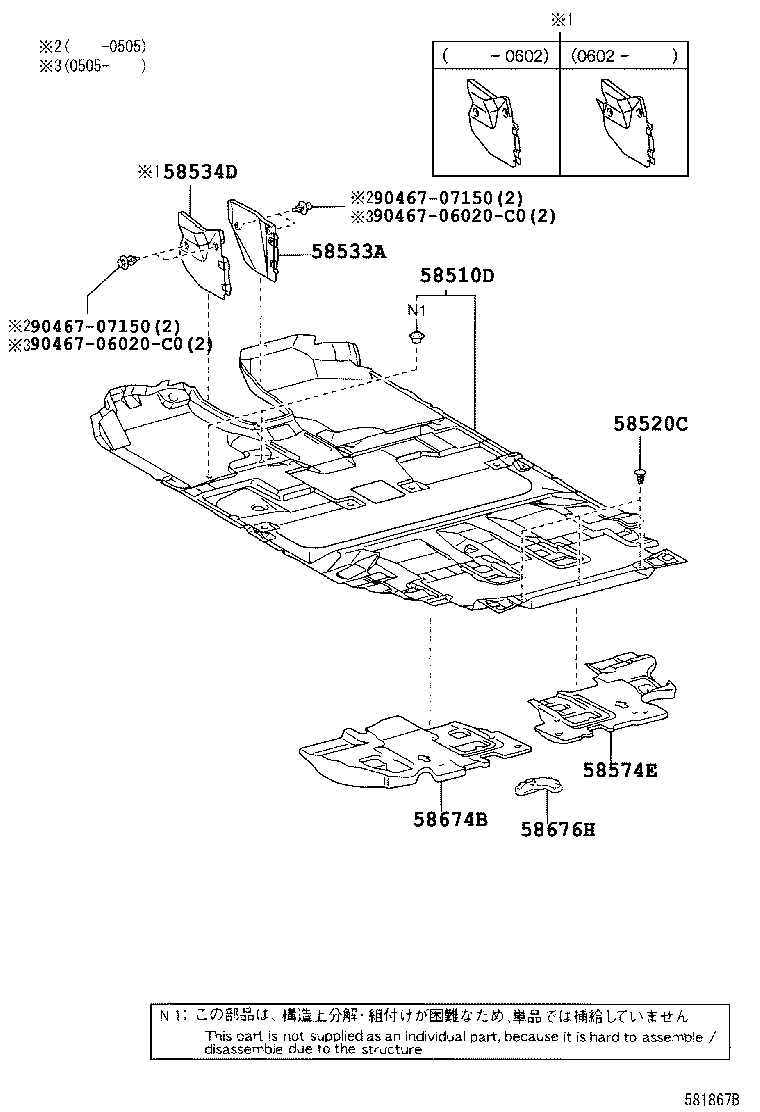

Figure 581294E 581294E 2000-11 → — Figure 581867B 581867B 2003-08 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58517C Pad, Front Floor Mat
58520C Clip(FOR FRONT FLOOR CARPET)
58533A Cover, Floor Carpet, Center RH
58534D Cover, Floor Carpet, Center LH
58574E Pad, Rear Floor Silencer, NO.1
58674B Pad, Rear Floor Silencer, NO.2
58676H Pad, Rear Floor Silencer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
