Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10

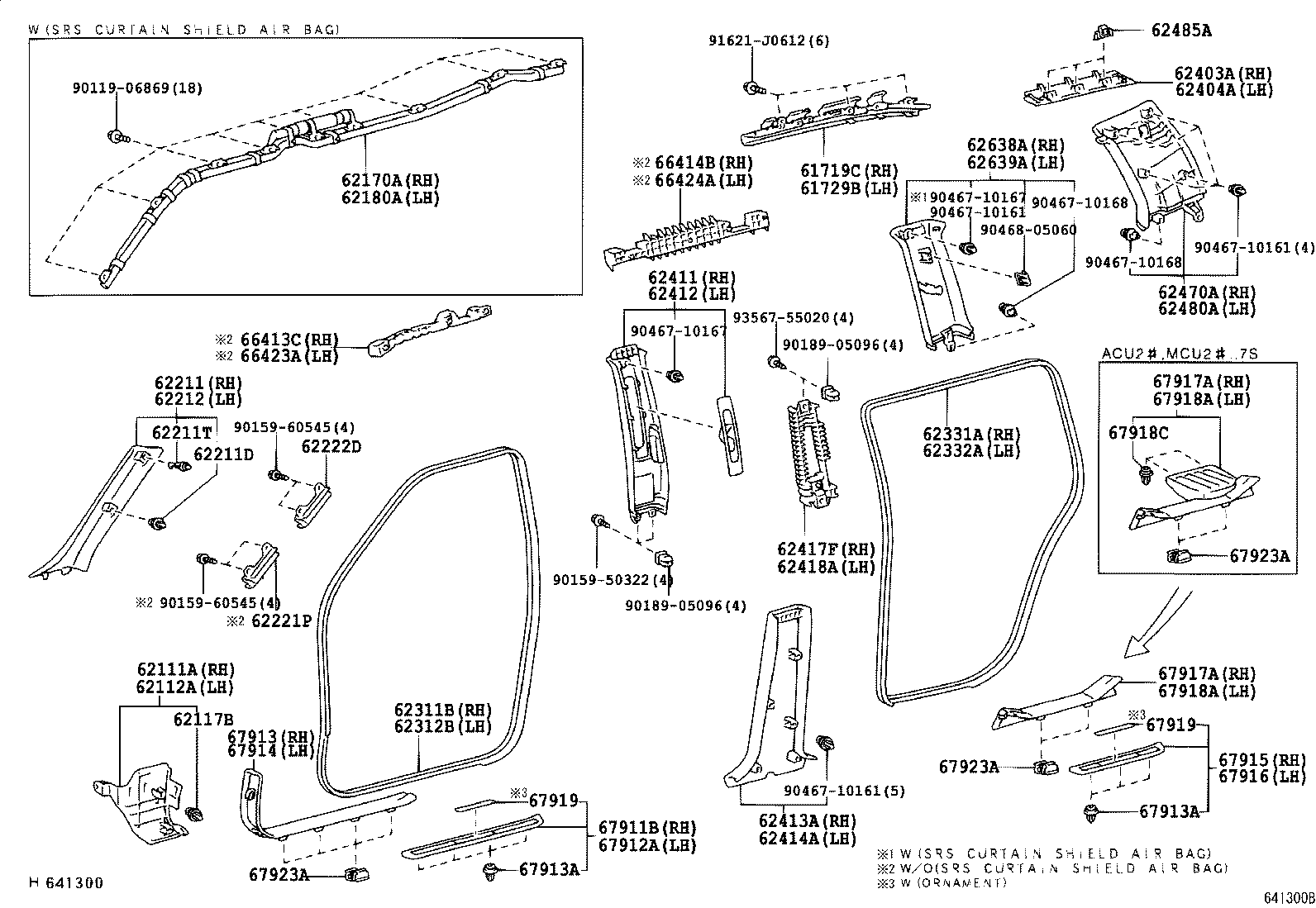

Inside Trim Board & Door Opening Trim Moulding
50 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61719C | Bracket, Roof Side Rail, RH |
| 61729B | Bracket, Roof Side Rail, LH |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62221C | Screw, Pillar Joint Setting |
| 62221D | Cover, Front Pillar Garnish, RH |
| 62221P | Spacer, Front Pillar, NO.1 RH |
| 62222B | Cover, Front Pillar Garnish, LH |
| 62222D | Spacer, Front Pillar, NO.2 RH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62403A | Garnish Sub-assy, Roof Side Rail, RH |
| 62404A | Garnish Sub-assy, Roof Side Rail, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62417F | Pad, Center Pillar Garnish, RH |
| 62418A | Pad, Center Pillar Garnish, LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62485A | Retainer, Roof Side Inner Garnish |
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
| 66413C | Spacer, Side Rail, Front RH |
| 66414B | Spacer, Side Rail, Rear RH |
| 66423A | Spacer, Side Rail, Front LH |
| 66424A | Spacer, Side Rail, Rear LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67918C | Clip(FOR REAR SCUFF PLATE) |
| 67919 | Ornament, Door Scuff |
| 67923A | Clamp, Door Scuff Plate, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
