Toyota Highlander

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

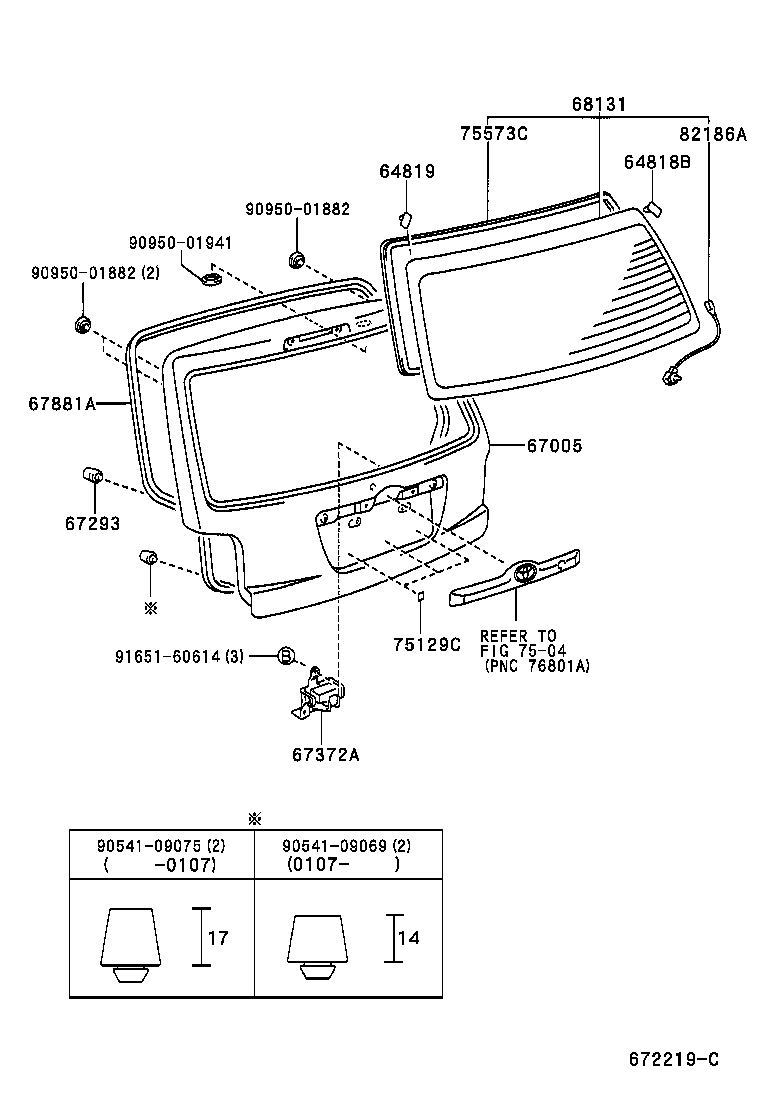

Figure 672212D 672212D 2000-11 → — Figure 672219C 672219C 2000-11 → —

Part groups

PNCDescription
64276A Bracket, Back Panel Trim, Upper
64780A Panel Assy, Back Door Trim
64783A Trim, Back Window Panel, Upper
64791C Cover, Back Door Trim, RH
64792 Cover, Back Door Trim, LH
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67293 Cushion, Back Door Lower Stopper
67372A Weight, Back Door
67881A Weatherstrip, Back Door
68131 Glass, Back Door
74629B Cover, Assist Strap Hole
74650C Strap Assy, Assist, RH
75129C Cushion, Rear Licence Plate
75573C Moulding, Back Window, Outside
82186A Wire, Rear Window, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
