Toyota Highlander

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

90 part groups · 11 illustrations

Illustrations

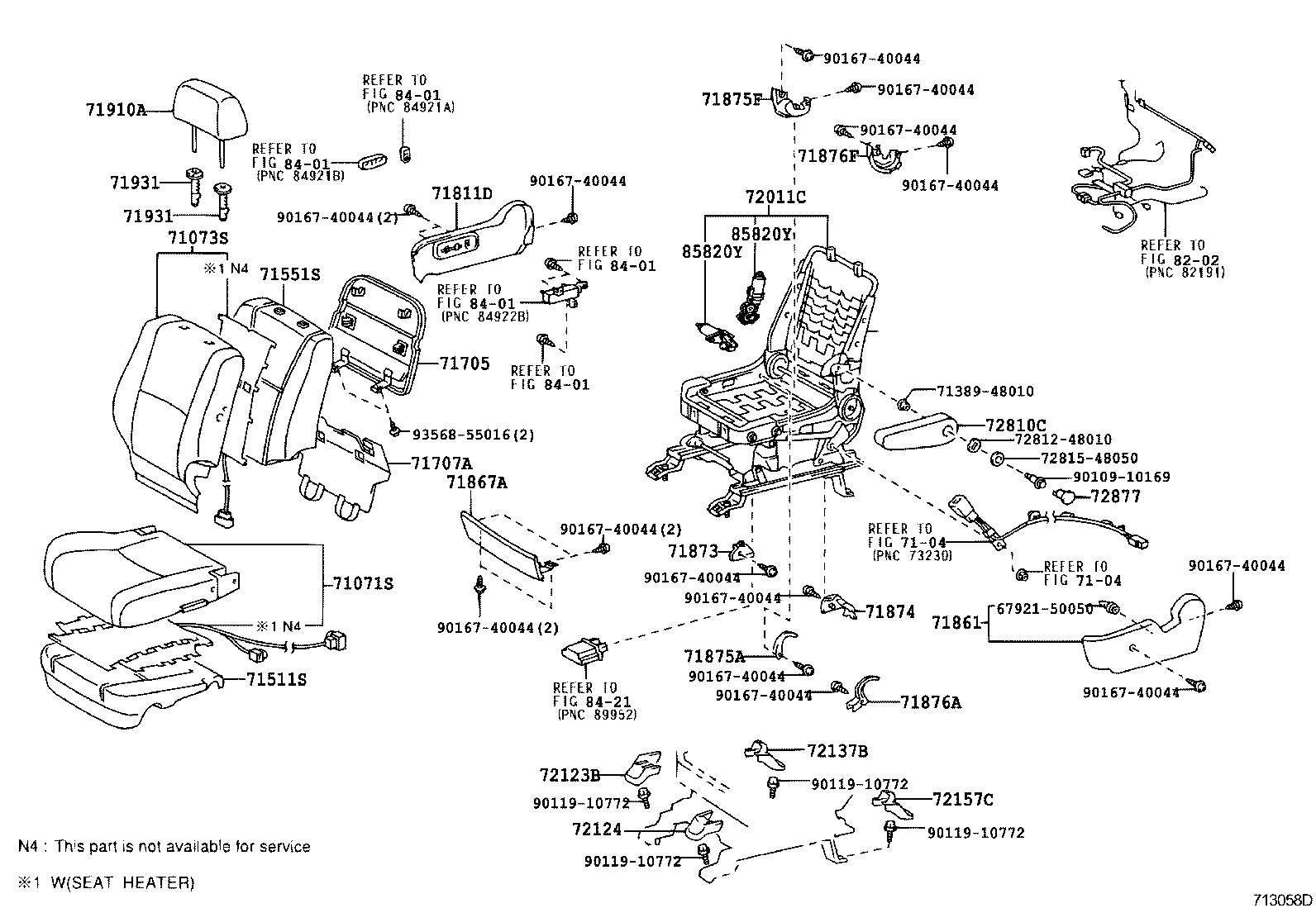

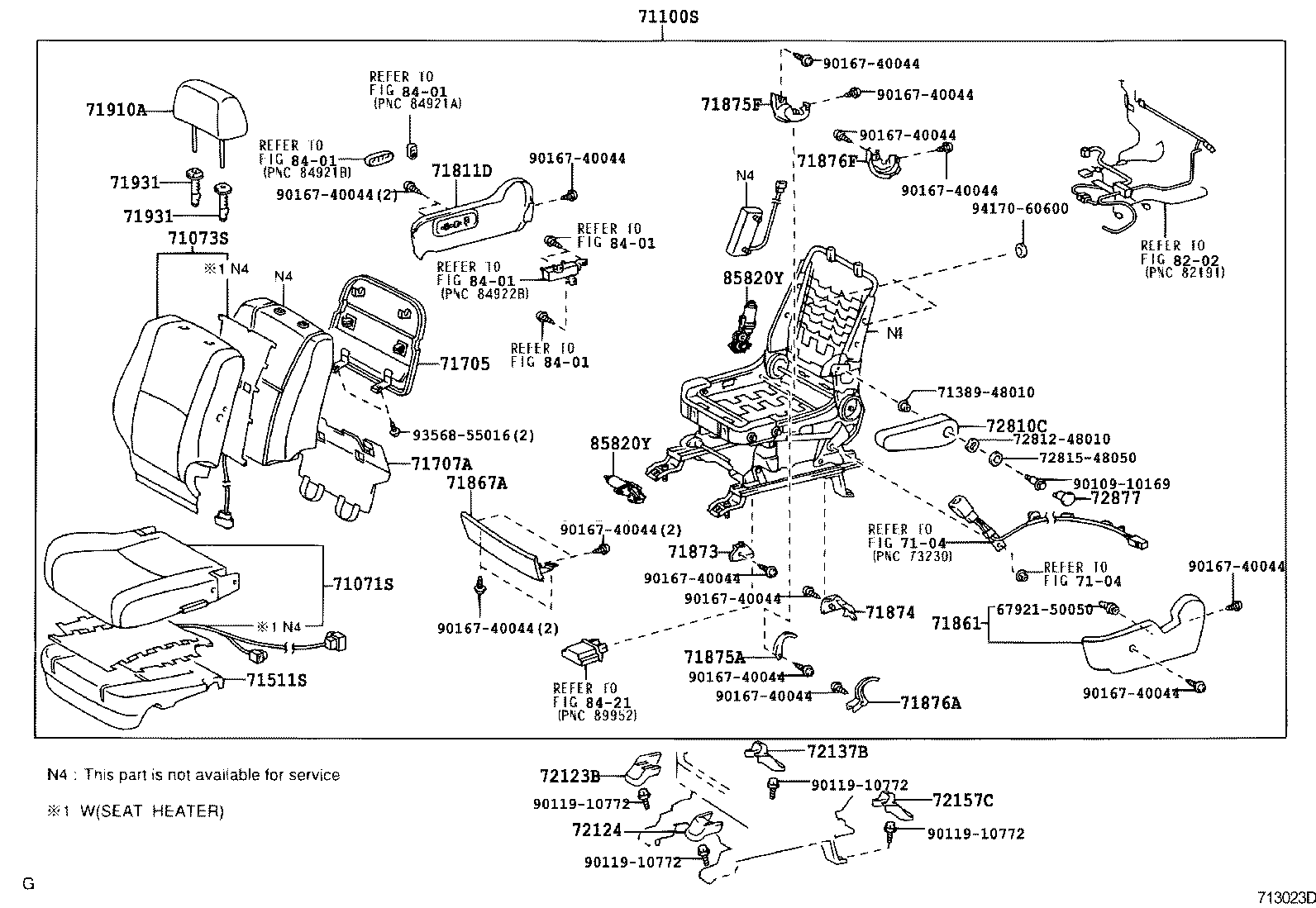

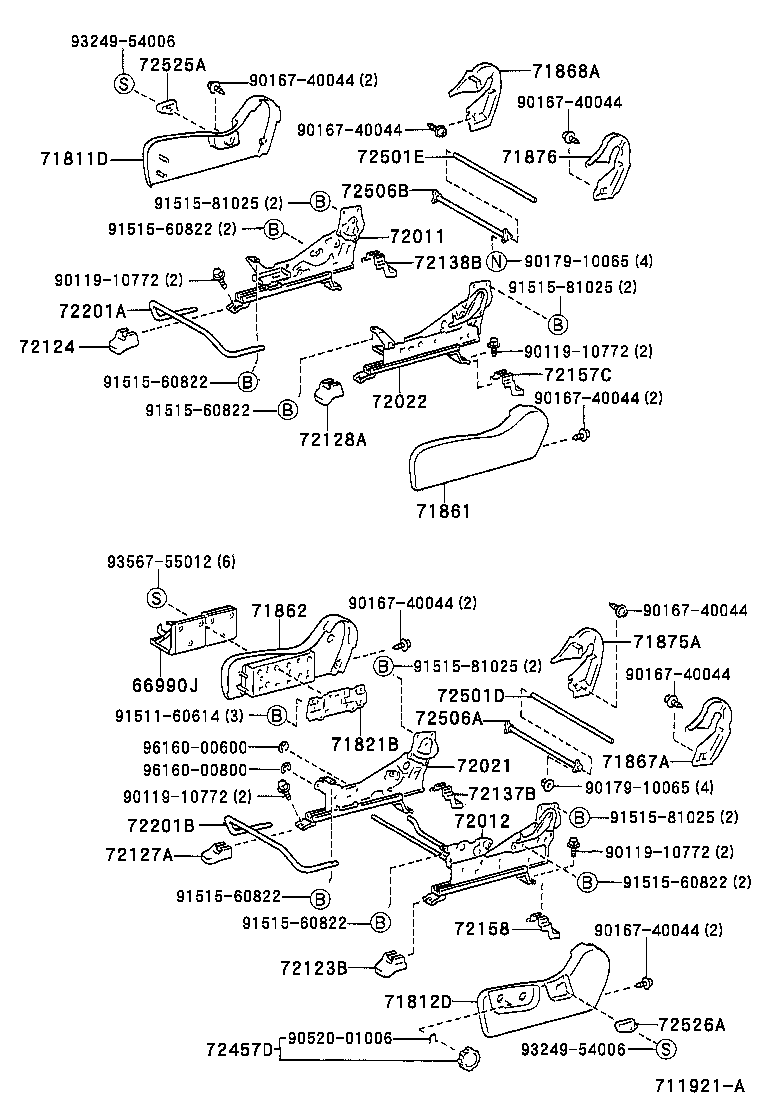

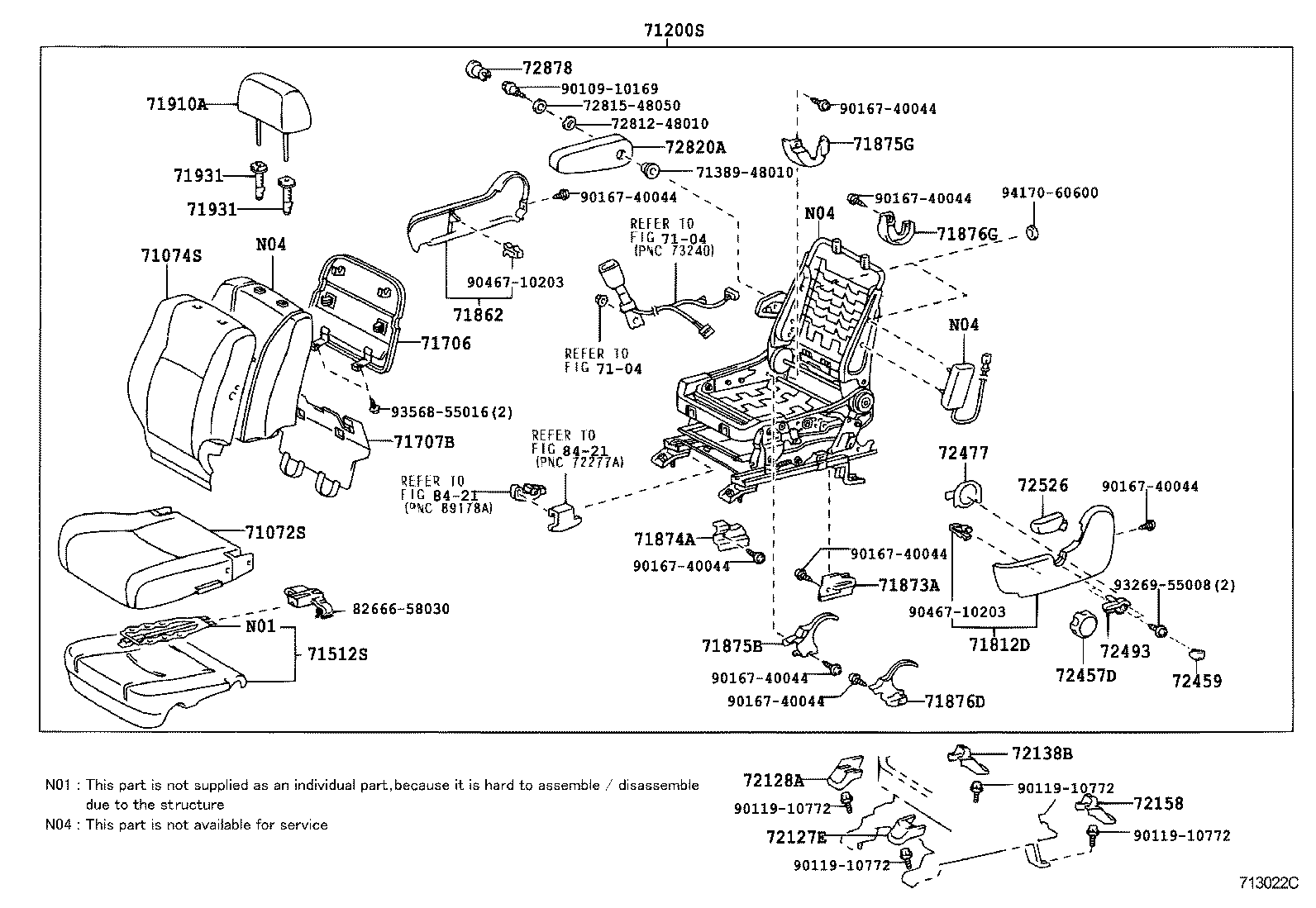

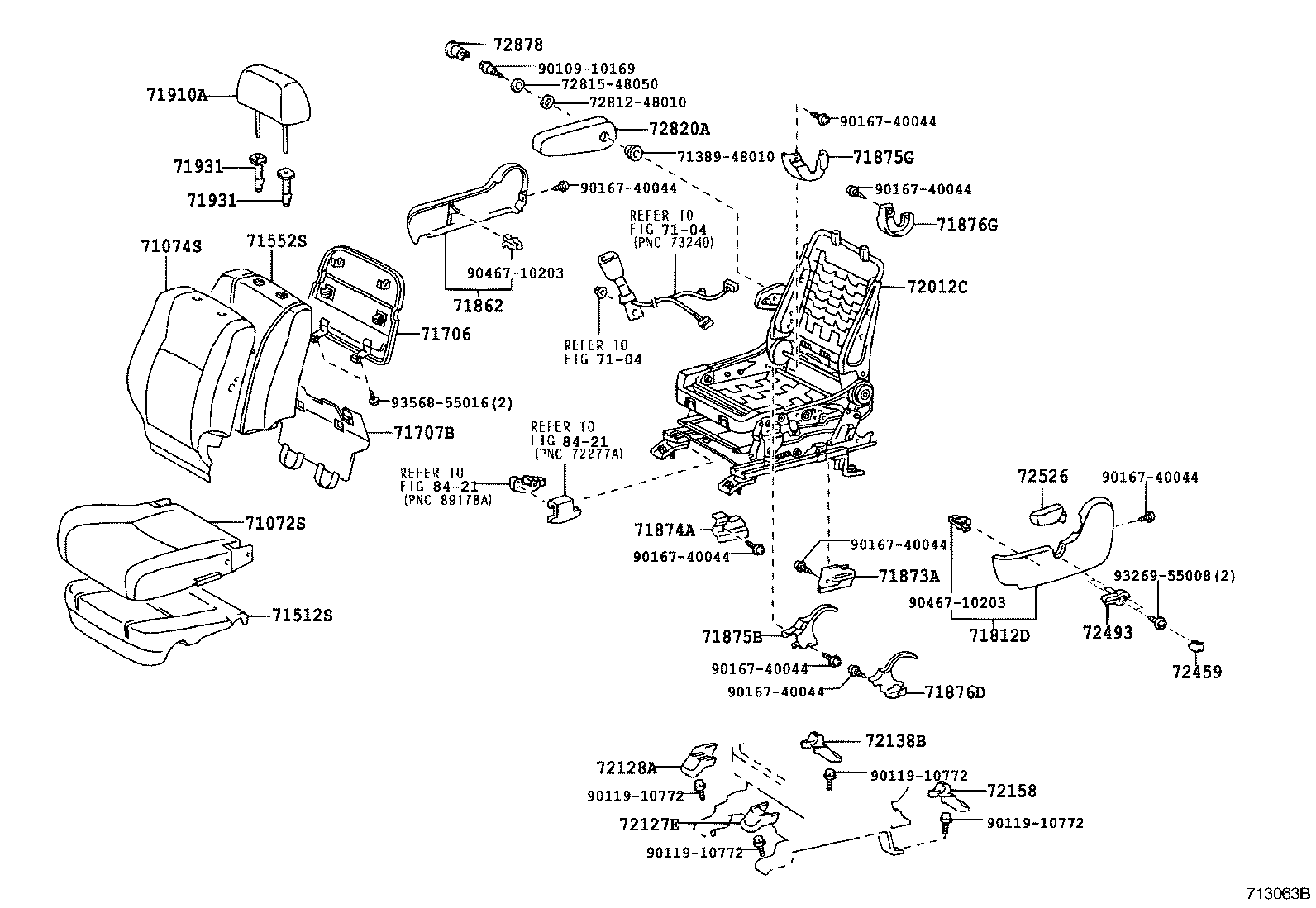

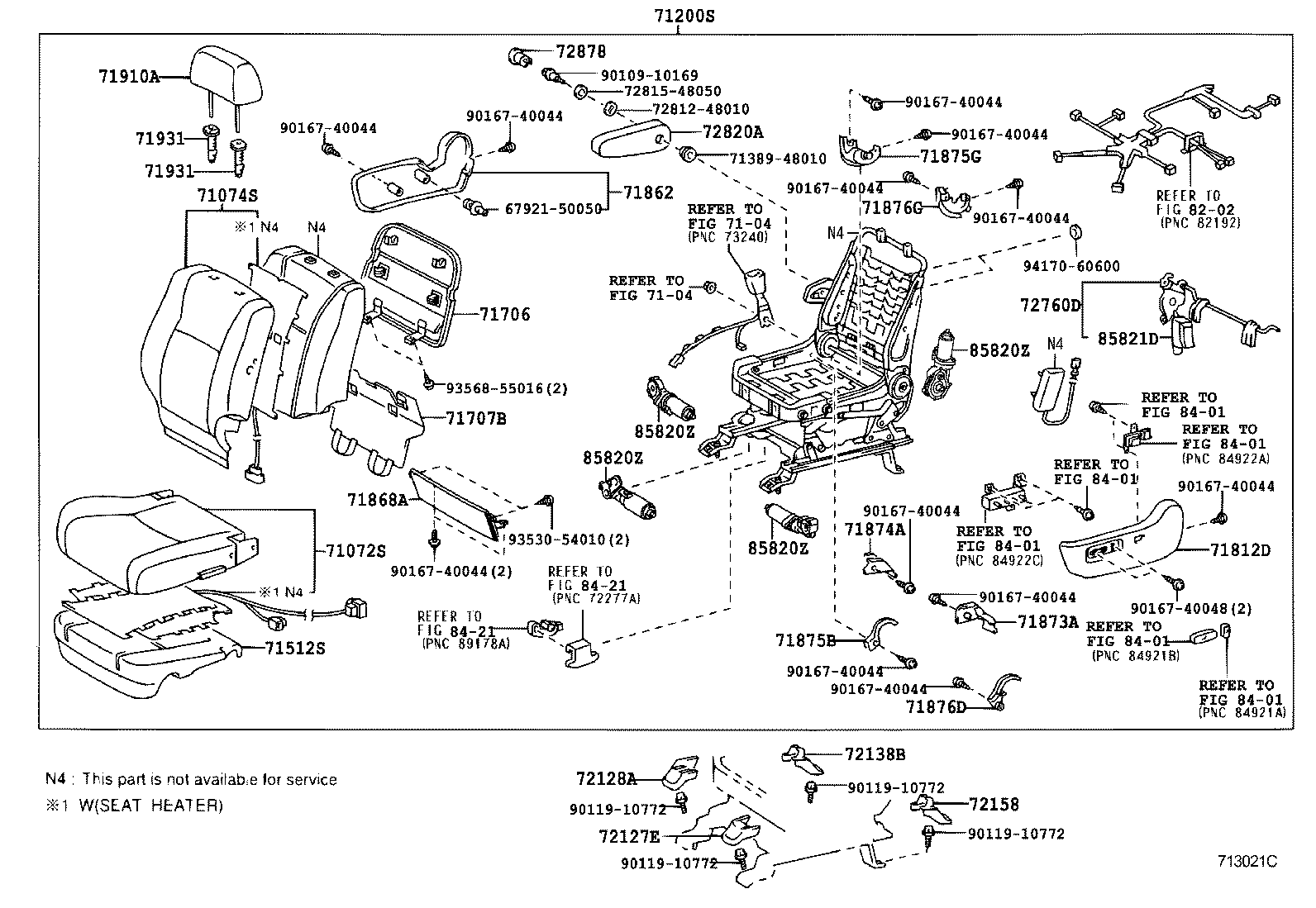

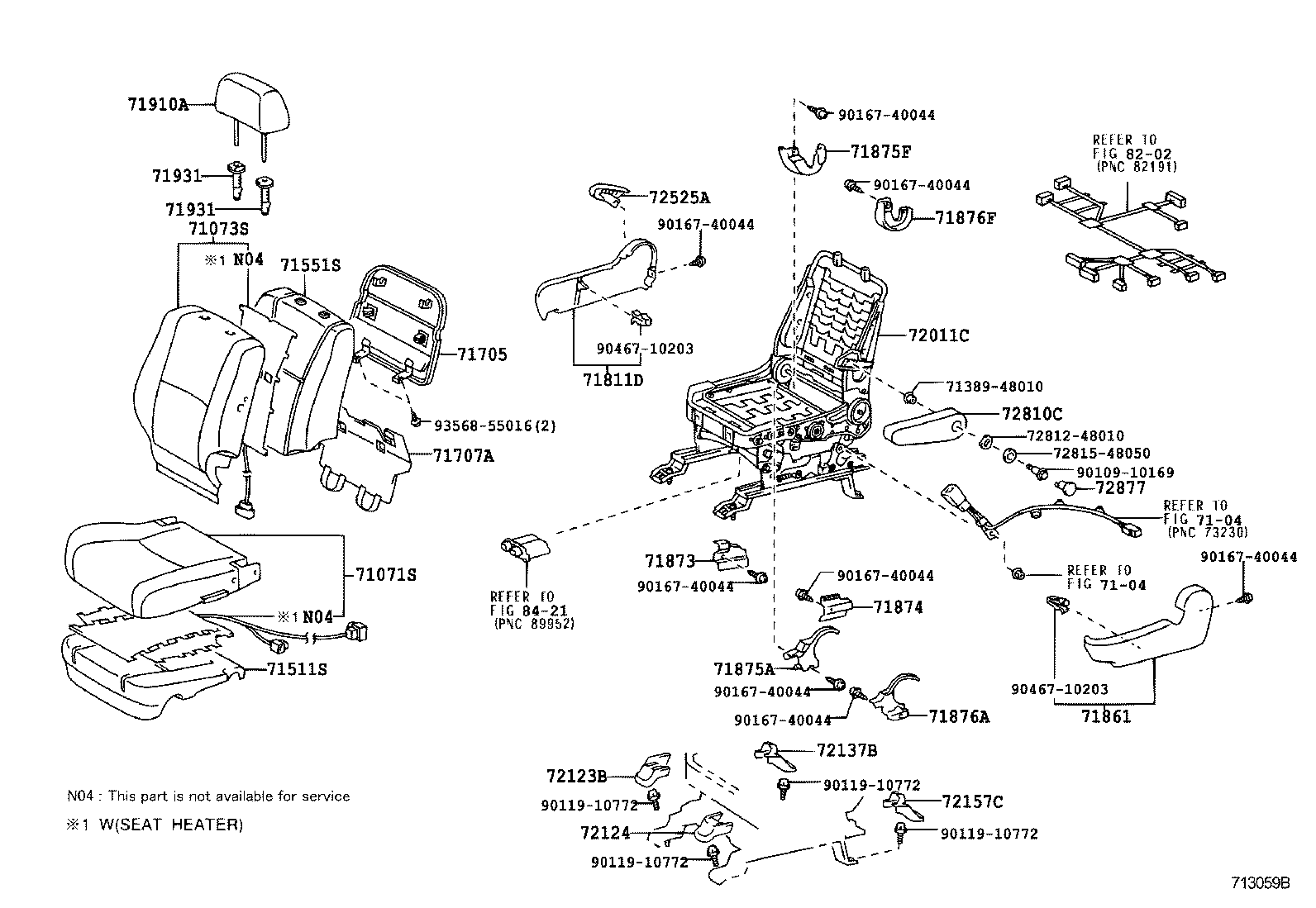

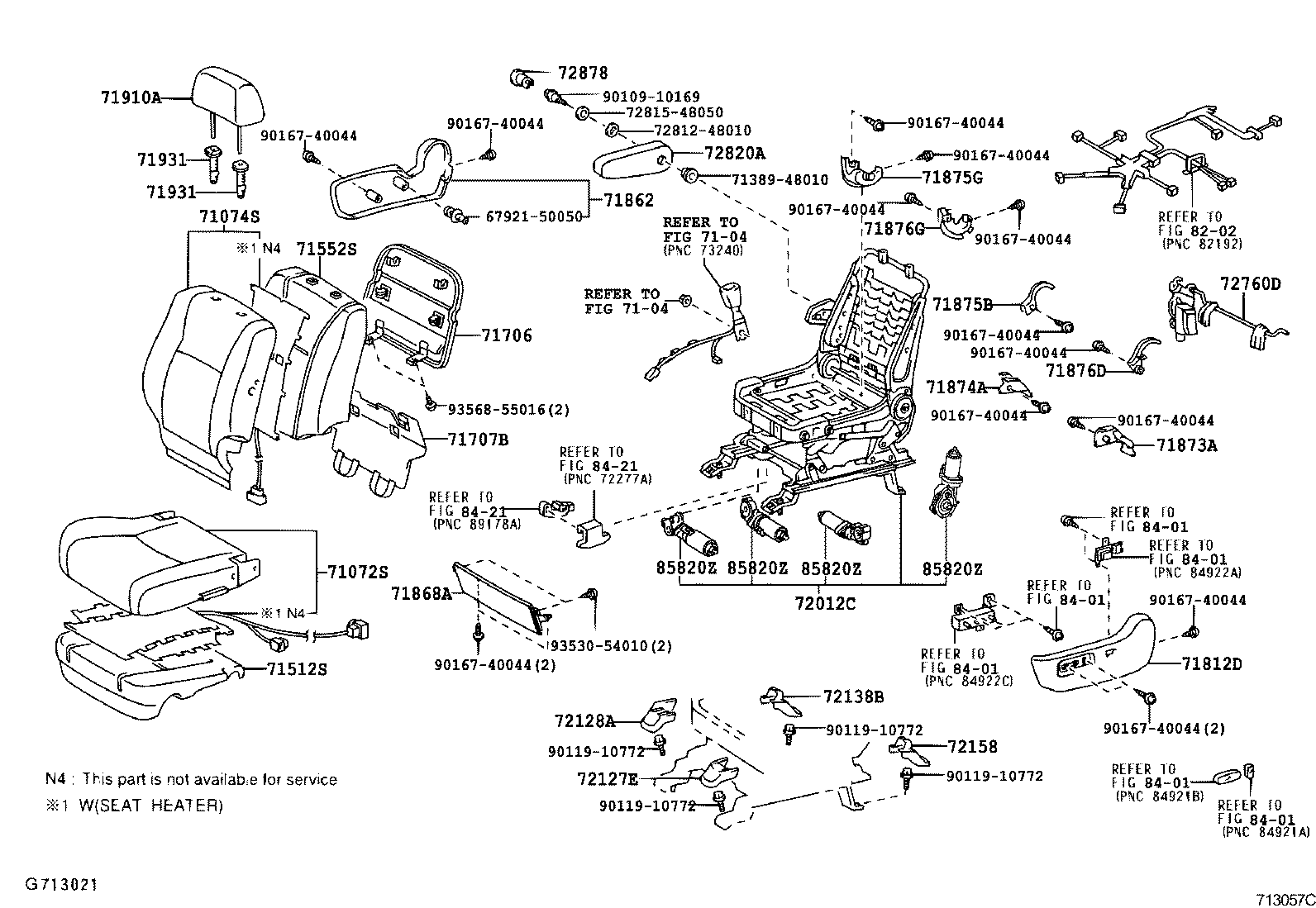

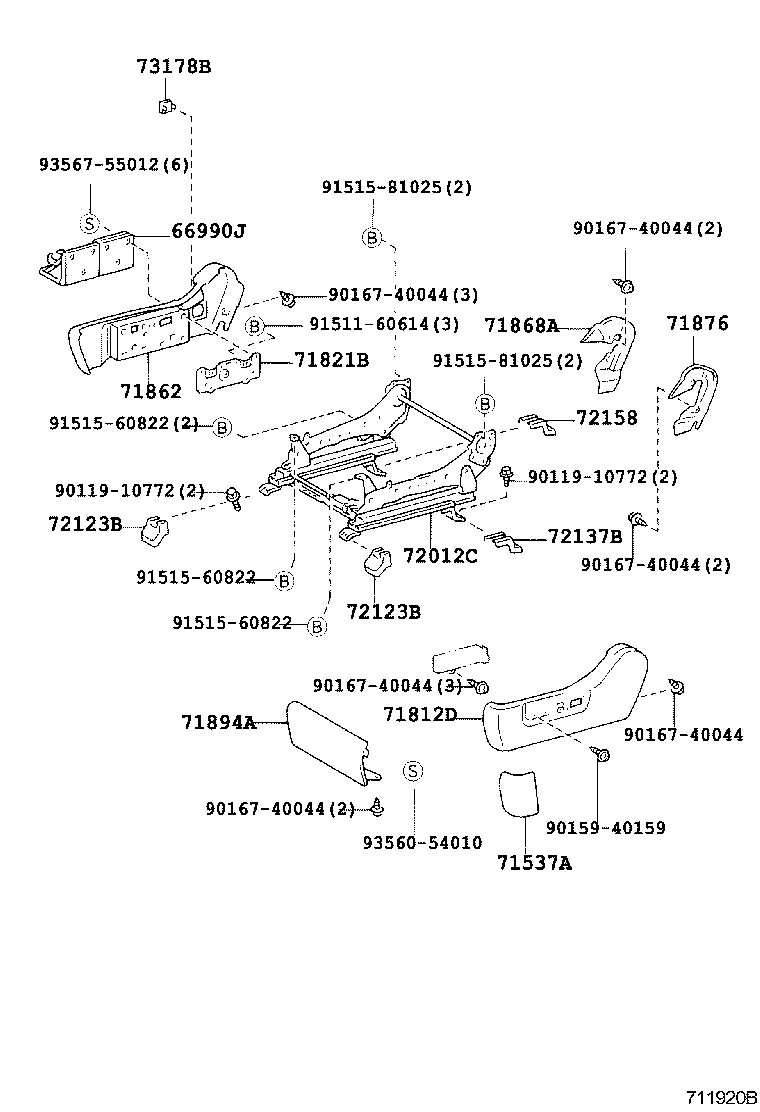

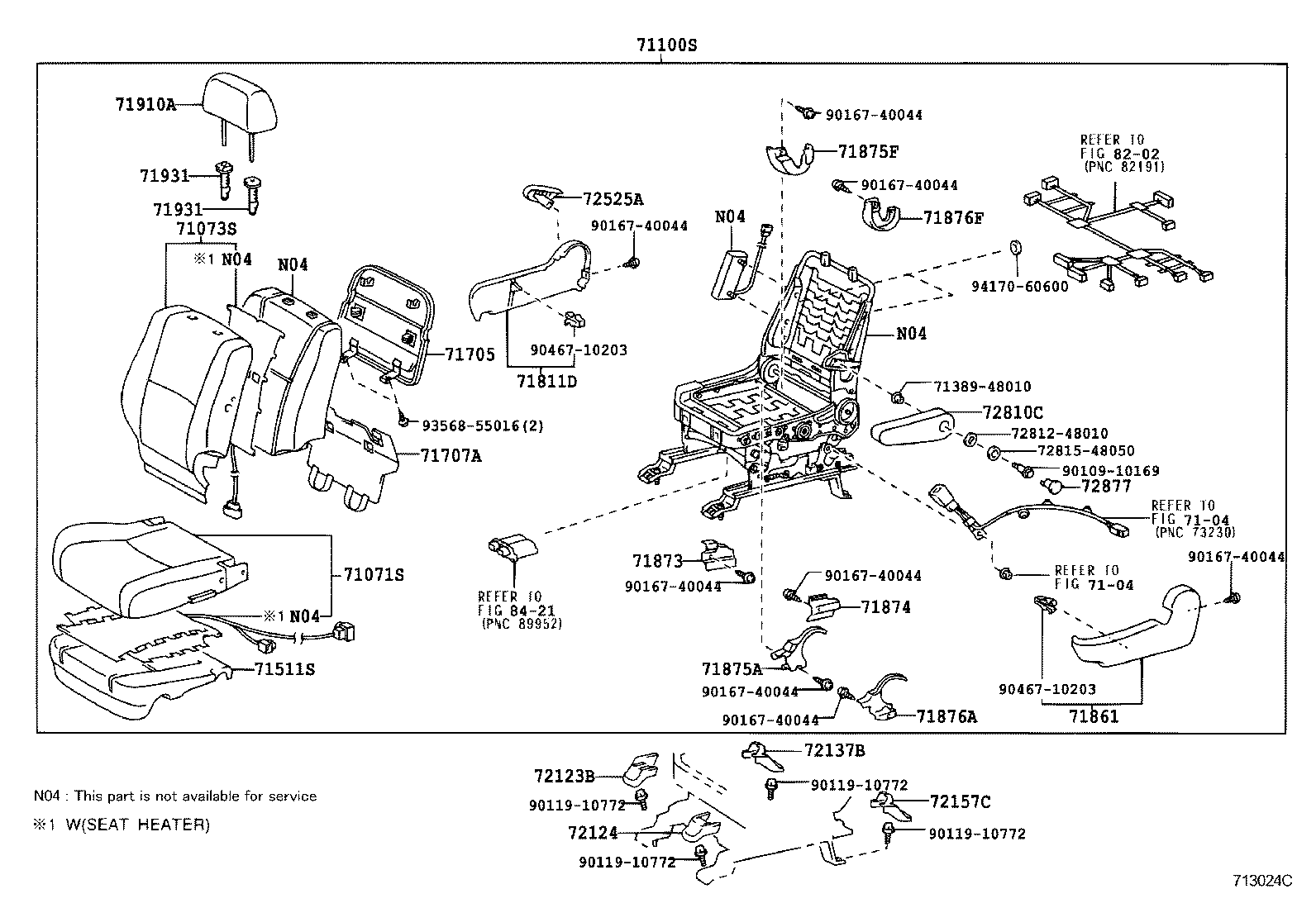

Figure 711919E 711919E 2000-11 → 2003-08 Figure 711920B 711920B 2000-11 → 2003-08 Figure 711921A 711921A 2000-11 → 2003-08 Figure 713021C 713021C 2003-08 → — Figure 713022C 713022C 2003-08 → — Figure 713057C 713057C 2003-08 → — Figure 713063B 713063B 2003-08 → — Figure 713023D 713023D 2003-08 → — Figure 713024C 713024C 2003-08 → — Figure 713058D 713058D 2003-08 → — Figure 713059B 713059B 2003-08 → —

Part groups

PNCDescription
66990J Holder Assy, Cup, NO.1 LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71200S Seat Assy, Front LH
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71706B Clip, Front Seatback Board
71707A Cover Sub-assy, Front Seatback Board
71707B Cover Sub-assy, Front Seatback Board
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71821B Bracket, Front Seat Shield Set, NO.1
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876D Cover, Reclining Adjuster Outside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71894A Shield, Power Adjuster, Front LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72011 Adjuster Sub-assy, Front Seat, Outer RH
72011C Adjuster Sub-assy, Front Seat, RH
72012 Adjuster Sub-assy, Front Seat, Outer LH
72012C Adjuster Sub-assy, Front Seat, LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72022 Adjuster Sub-assy, Front Seat, Inner LH
72123B Cover, Seat Track Bracket, Outer Front
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72127E Cover, Seat Track Bracket, Inner Front
72128A Cover, Seat Track Bracket, Inner Front LH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72157C Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72457D Knob, Vertical Seat Adjuster, LH
72459 Cap, Vertical Seat Adjuster Knob
72477 Spacer, Vertical Adjuster
72493 Handle, Vertical Adjusting, NO.2
72501D Pipe Sub-assy, Reclining Connecting, RH
72501E Pipe Sub-assy, Reclining Connecting, LH
72506A Rod Sub-assy, Reclining Connecting, RH
72506B Rod Sub-assy, Reclining Connecting, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72760D Adjuster Assy, Lumbar Support, LH
72797A Spacer, Lumbar Support
72810C Armrest Assy, Front Seat, Center
72820A Armrest Assy, Seat, LH
72877 Cover, Seat Armrest, RH
72878 Cover, Seat Armrest, LH
73178B Cap, Seat Belt Anchor Cover
85820Y Motor Assy, Power Seat
85820Z Motor Assy, Power Seat
85821D Motor Assy, Power Seat
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
