Toyota Highlander

2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

22 part groups · 5 illustrations

Illustrations

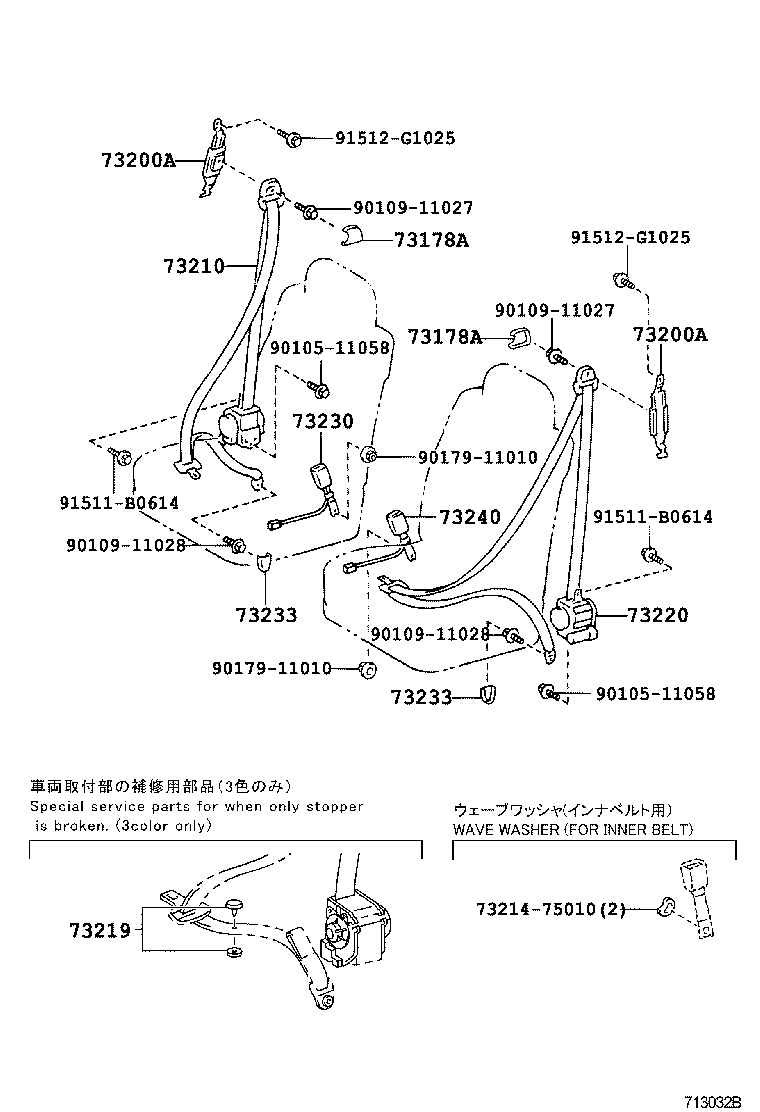

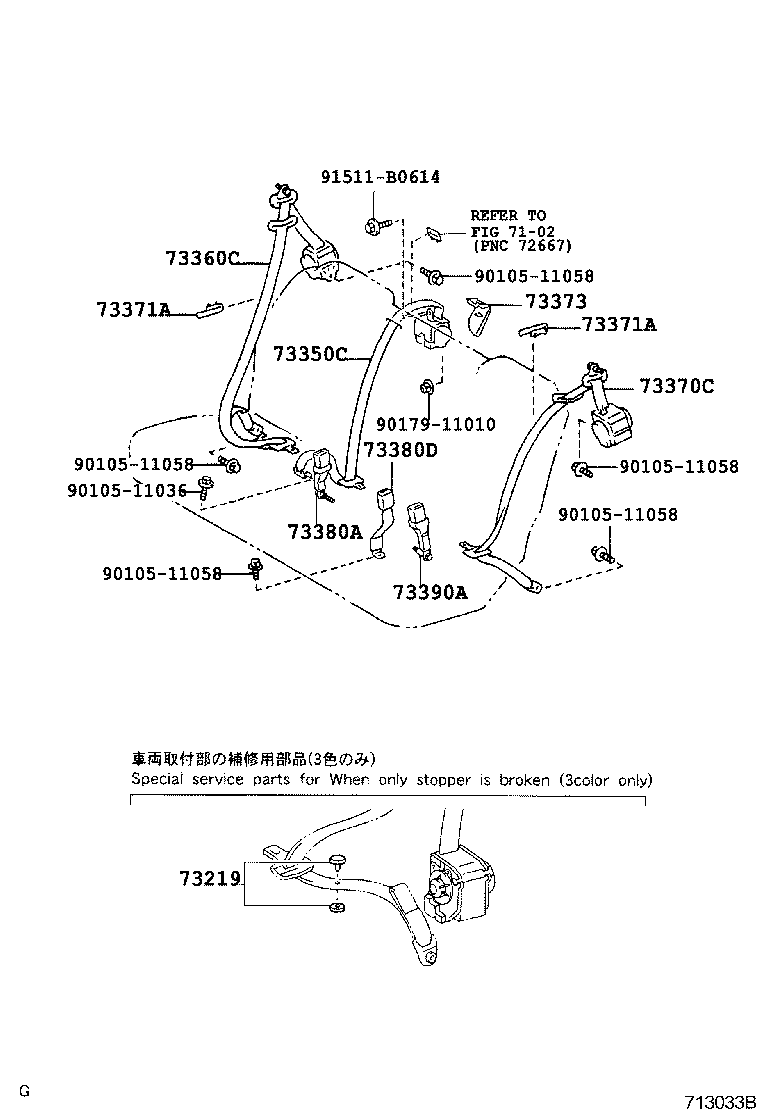

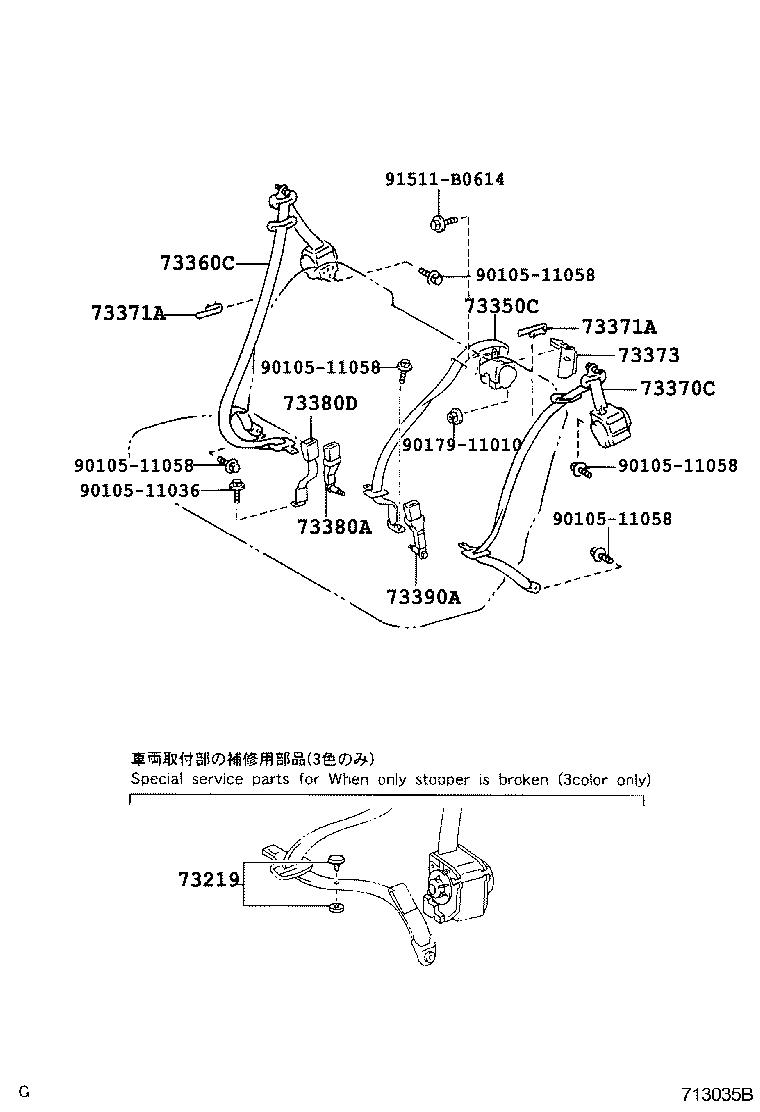

Figure 711906B 711906B 2000-11 → 2003-08 Figure 713032B 713032B 2003-08 → — Figure 713033B 713033B 2003-08 → — Figure 713035C 713035C 2003-08 → — Figure 713034A 713034A 2003-08 → —

Part groups

PNCDescription
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73237A Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73373 Cover, Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73380D Belt Assy, Rear Seat, Inner
73390A Belt Assy, Rear Seat, Inner
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
