Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10

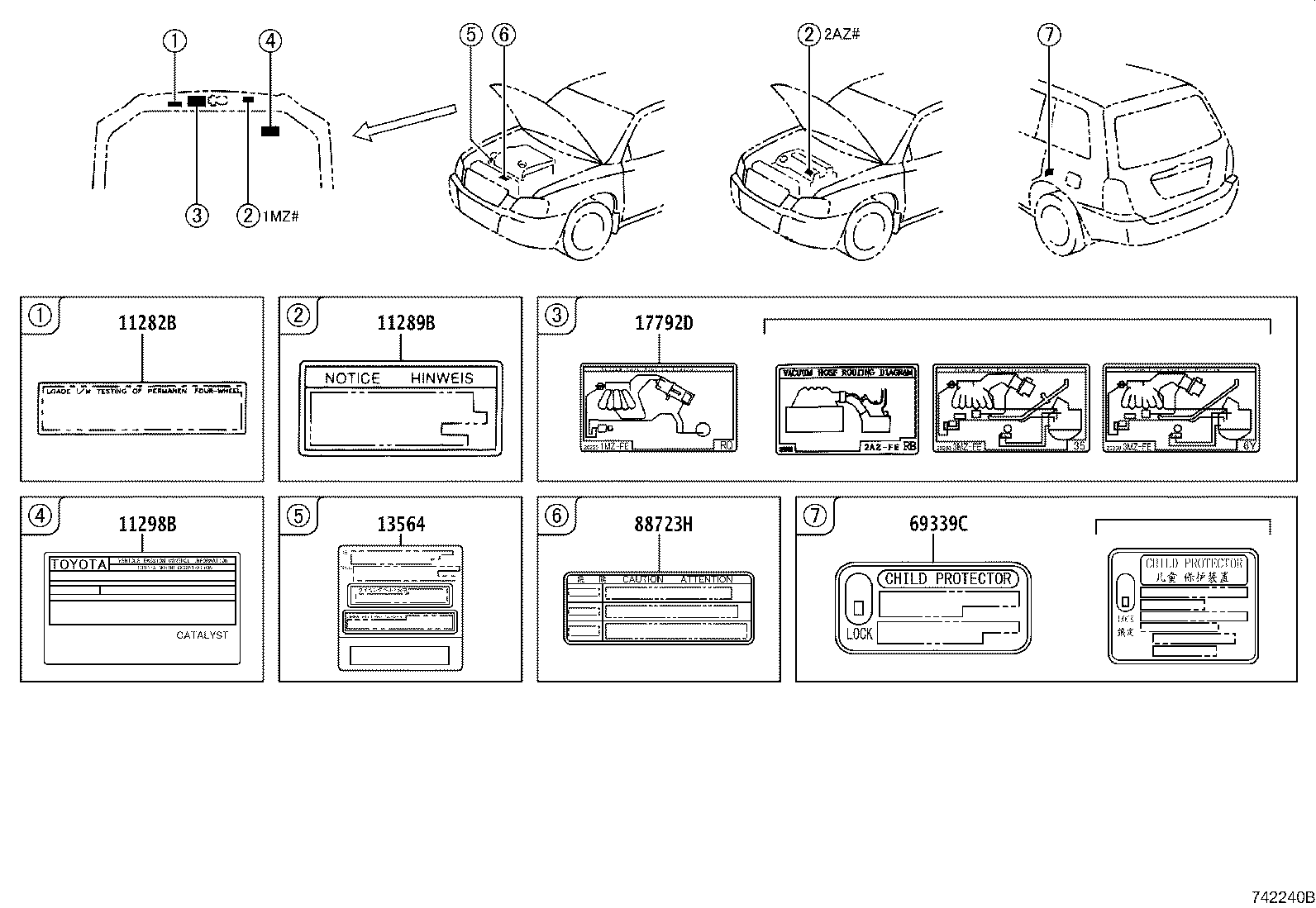

Caution Plate (EXTERIOR & INTERIOR)
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11283B | Label, Leak Detection Pump Information |
| 11289B | Label, Spark Plug Notice |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 13564 | Label, Timing Belt Replacement Information |
| 17792C | Label, Engine Vacuum Hose Information |
| 17792D | Label, Emission Control Device Information |
| 41992 | Label, Differential Notice |
| 63297E | Label, Sliding Roof Caution |
| 69339C | Label, Child Protector Information |
| 74515A | Plate, Theft Warning |
| 74571A | Film, Label Cover |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 85254 | Label, Rear Wiper Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
