Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10
Abs & Vsc

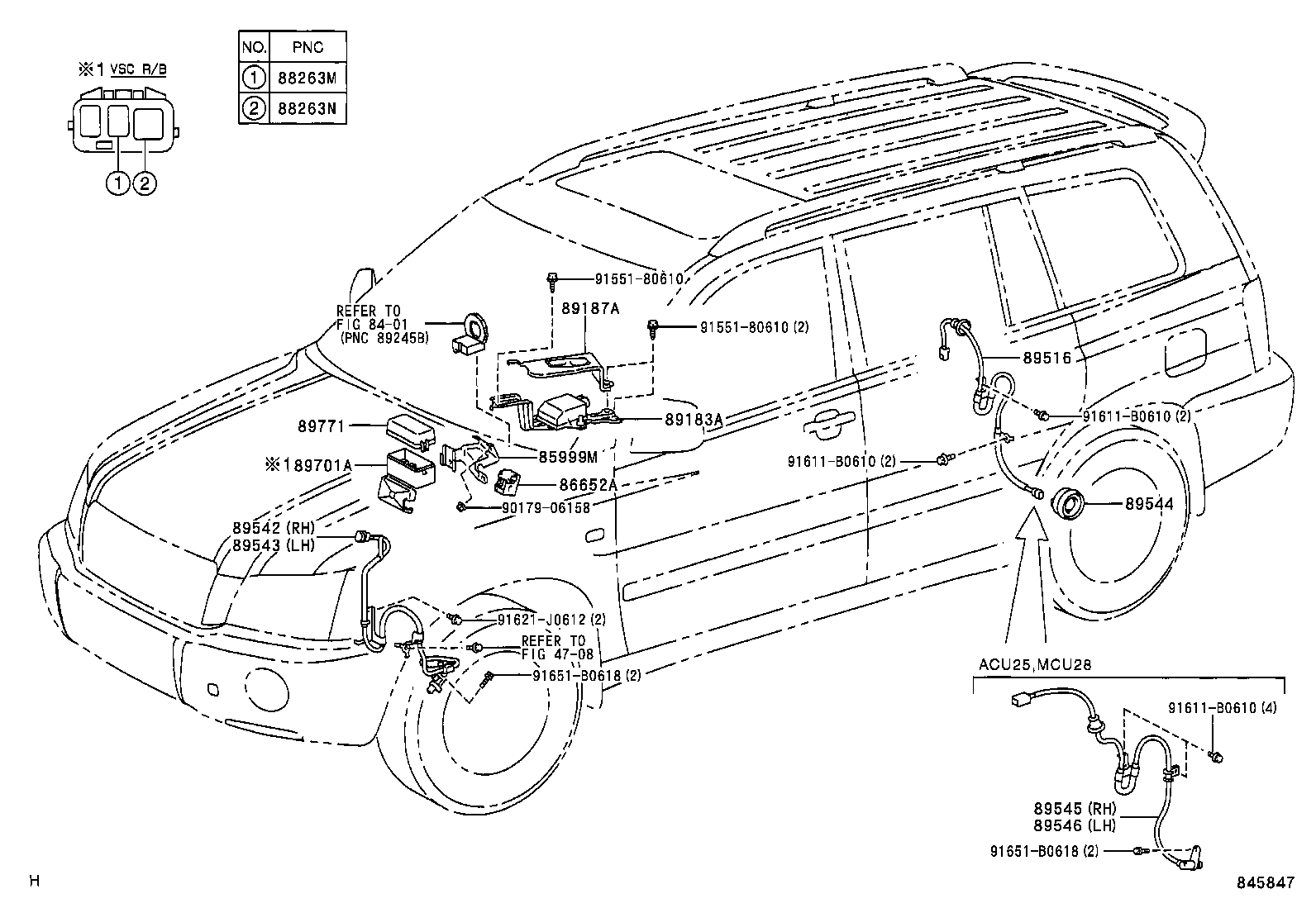

19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 86652A | Buzzer Assy, Skid Control |
| 88263M | Relay, Abs Solenoid |
| 88263N | Relay, Abs Motor |
| 89183A | Sensor, Yawrate |
| 89187A | Protector, Yawrate Sensor |
| 89189B | Bracket, Yawrate Sensor |
| 89439B | Bracket, Sensor |
| 89441A | Sensor, Deceleration |
| 89516 | Wire, Skid Control Sensor |
| 89539G | Bracket, Computer |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89701A | Block Sub-assy, Abs Relay |
| 89771 | Cover, Abs Relay Block, Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
