Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10

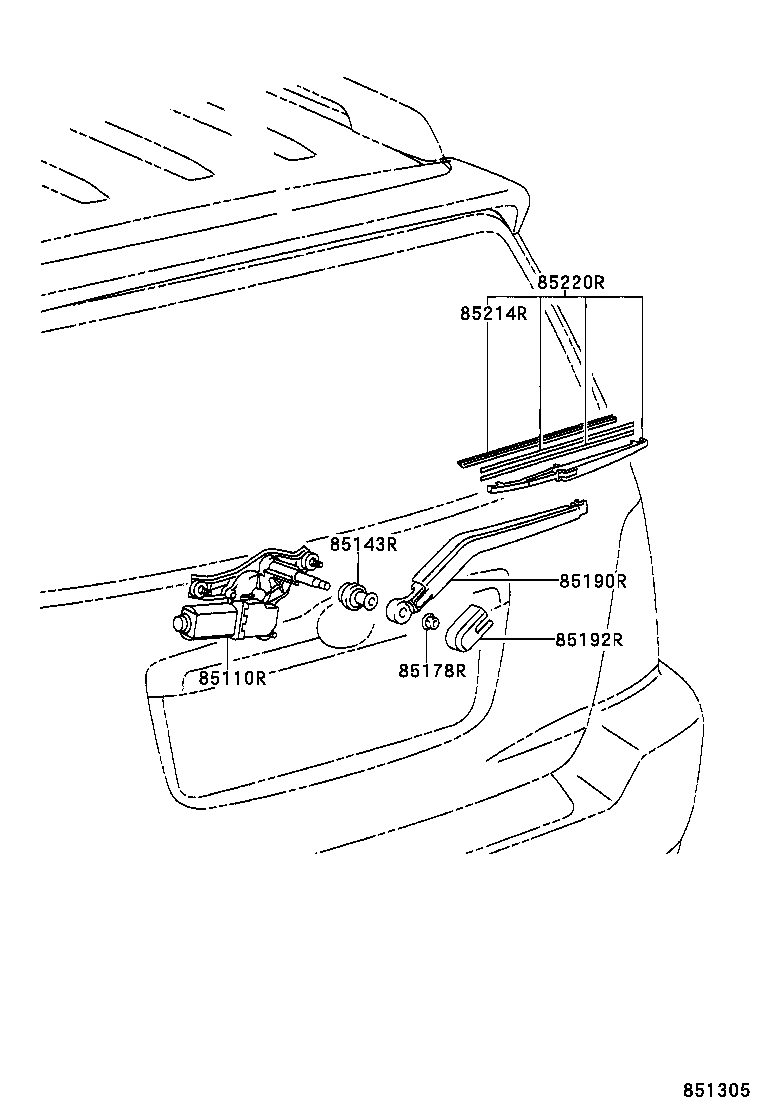

Rear Wiper
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110R | Motor Assy, Rear Wiper |
| 85143R | Grommet, Rear Wiper Motor |
| 85178R | Nut (FOR REAR WIPER ARM SETTING) |
| 85190R | Arm Assy, Rear Wiper |
| 85192R | Cover, Rear Wiper Arm |
| 85214R | Rubber, Rear Wiper |
| 85220R | Blade Assy, Rear Wiper |
| 85291R | Blade,Rear Wiper, Winter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
