Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10
Radio Receiver & Amplifier & Condenser
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

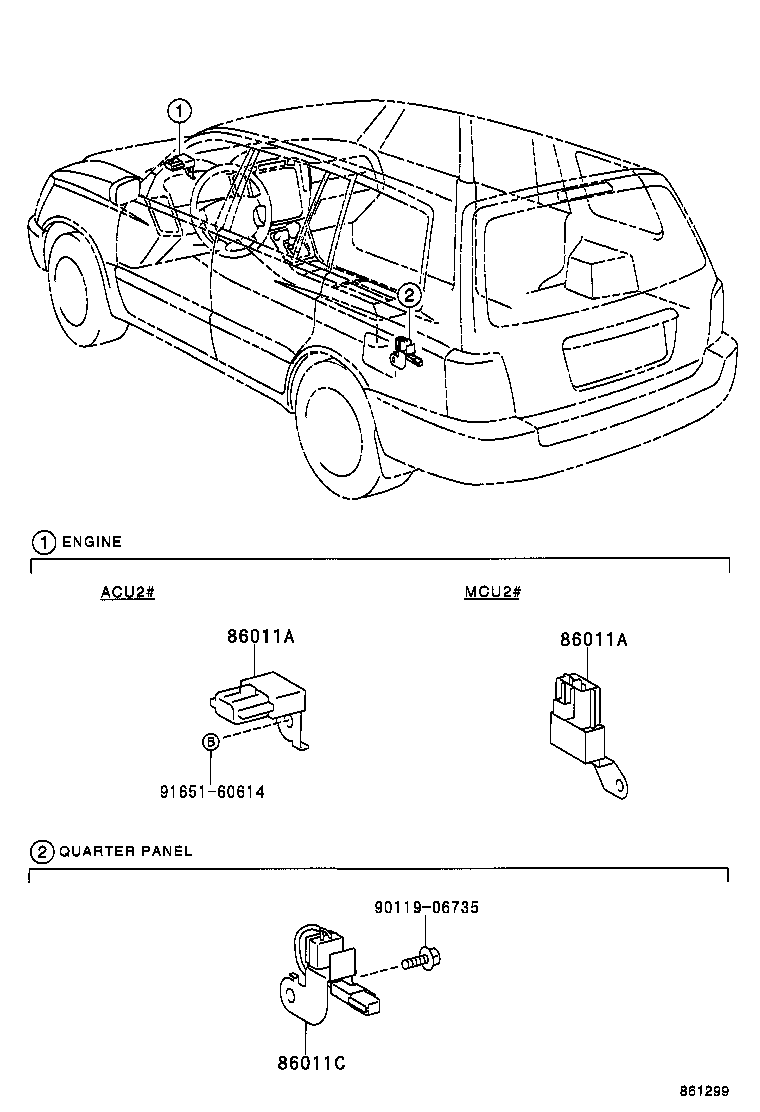

| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86100B | Amplifier Assy |

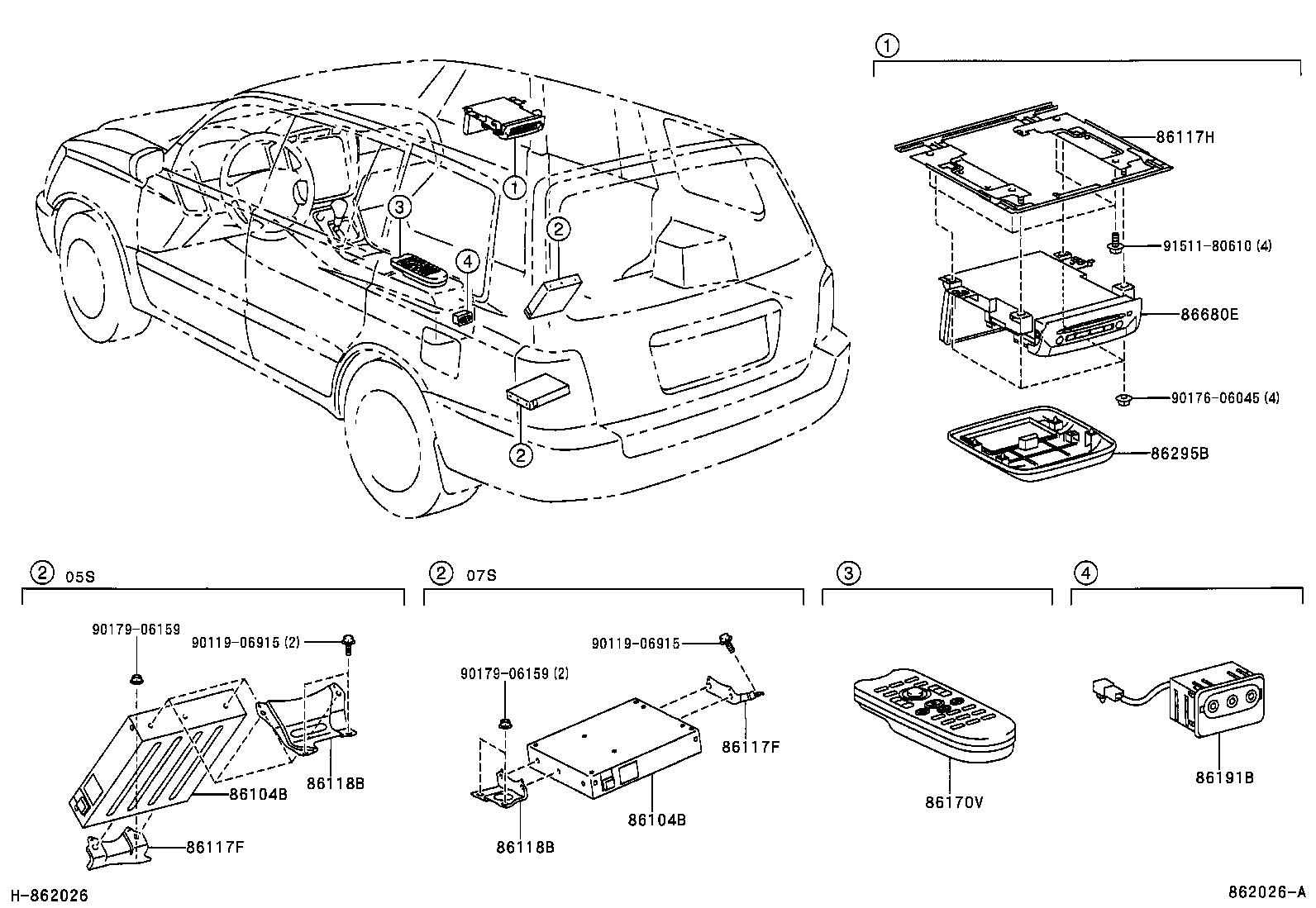

| 86104B | Controller Sub-assy, Multi-display |
| 86117F | Bracket, Multi-display Controller, A |
| 86117H | Bracket, Multi-display Controller, A |
| 86118B | Bracket, Multi-display Controller, B |

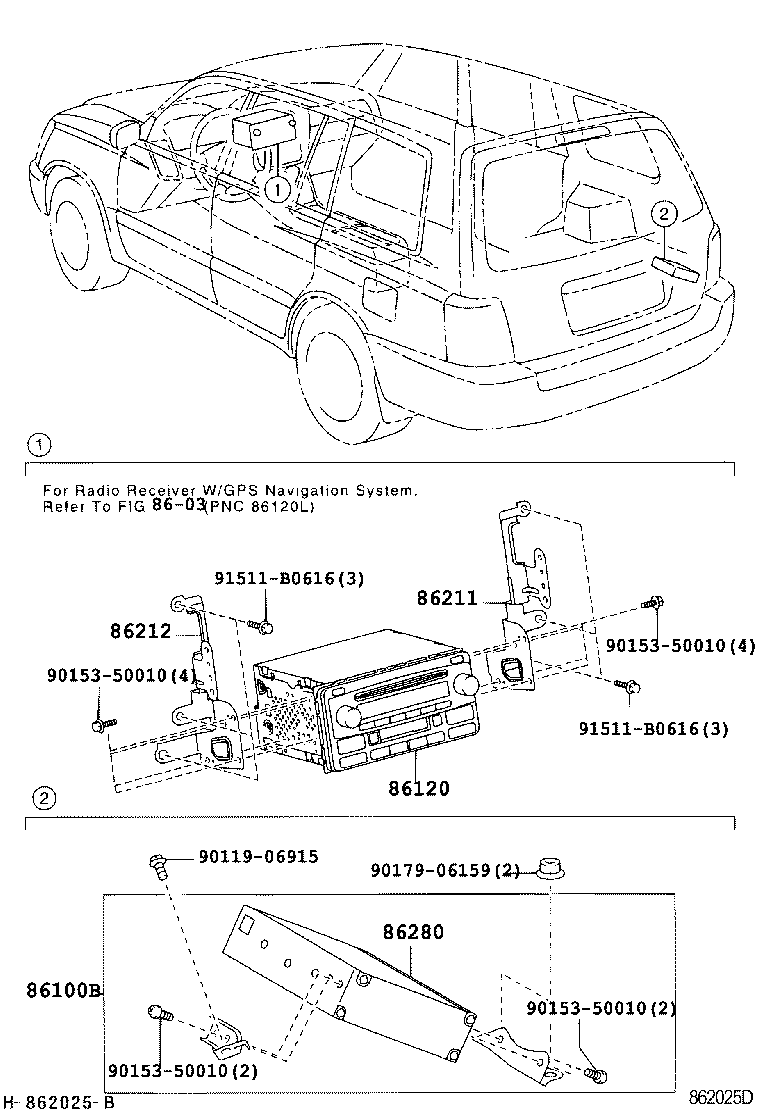

| 86120 | Receiver Assy, Radio |
| 86170V | Controller Assy, Remote |
| 86191B | Terminal, Video(VIDEO ADAPTER) |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
| 86295B | Base, Television |
| 86680E | Display Assy, Television |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
