Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10
Heating & Air Conditioning - Cooler Unit

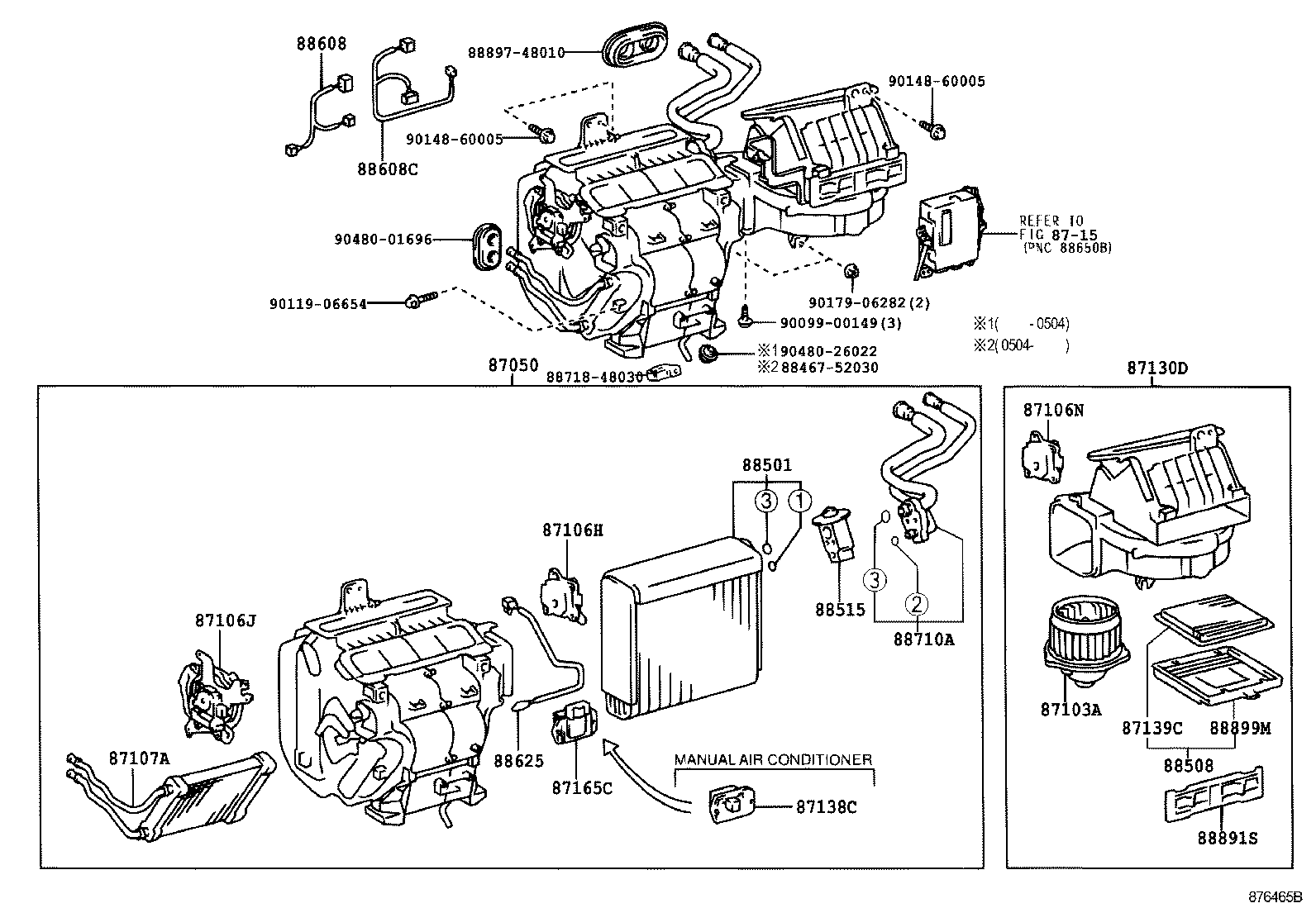

19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87103A | Motor Sub-assy, Cooling Unit, W/Fan |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106N | Servo Sub-assy, Damper(FOR RECIRCULATION) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88508 | Filter Sub-assy, Clean Air |
| 88515 | Valve, Cooler Expansion |
| 88608 | Harness Sub-assy, Wiring Air Conditioner |
| 88608C | Harness Sub-assy, Wiring Air Indicator, NO.2 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88710A | Tube Assy, Air Conditioner |
| 88891S | Cover, Cooler, NO.1 |
| 88899M | Plate, Cover(FOR AIR FILTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
