Toyota Highlander
2000-11 → 2007-05 · chassis ACU2#,MCU2# · catalogue 522410 · United States
Discontinued model
Data version 2007-10

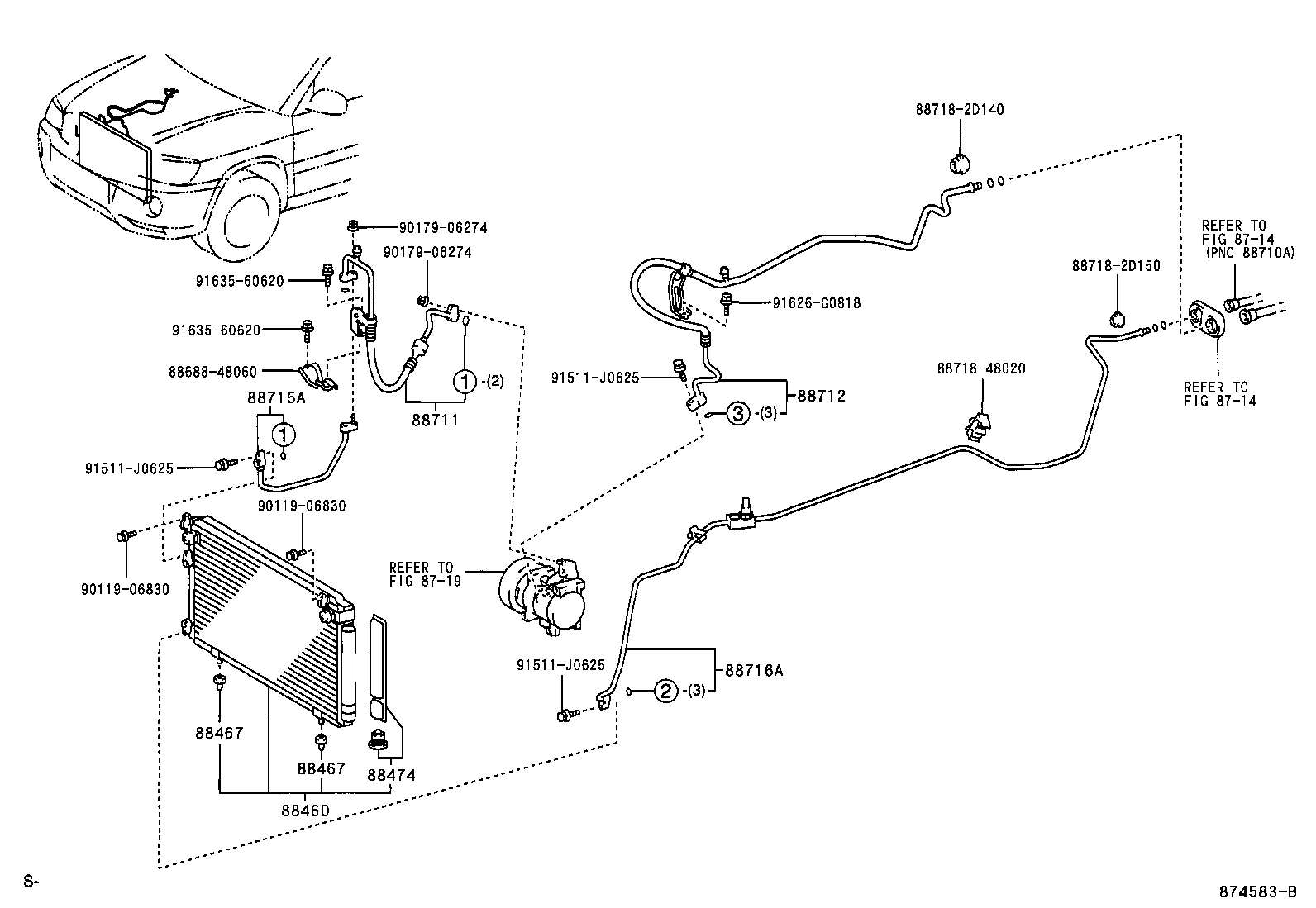

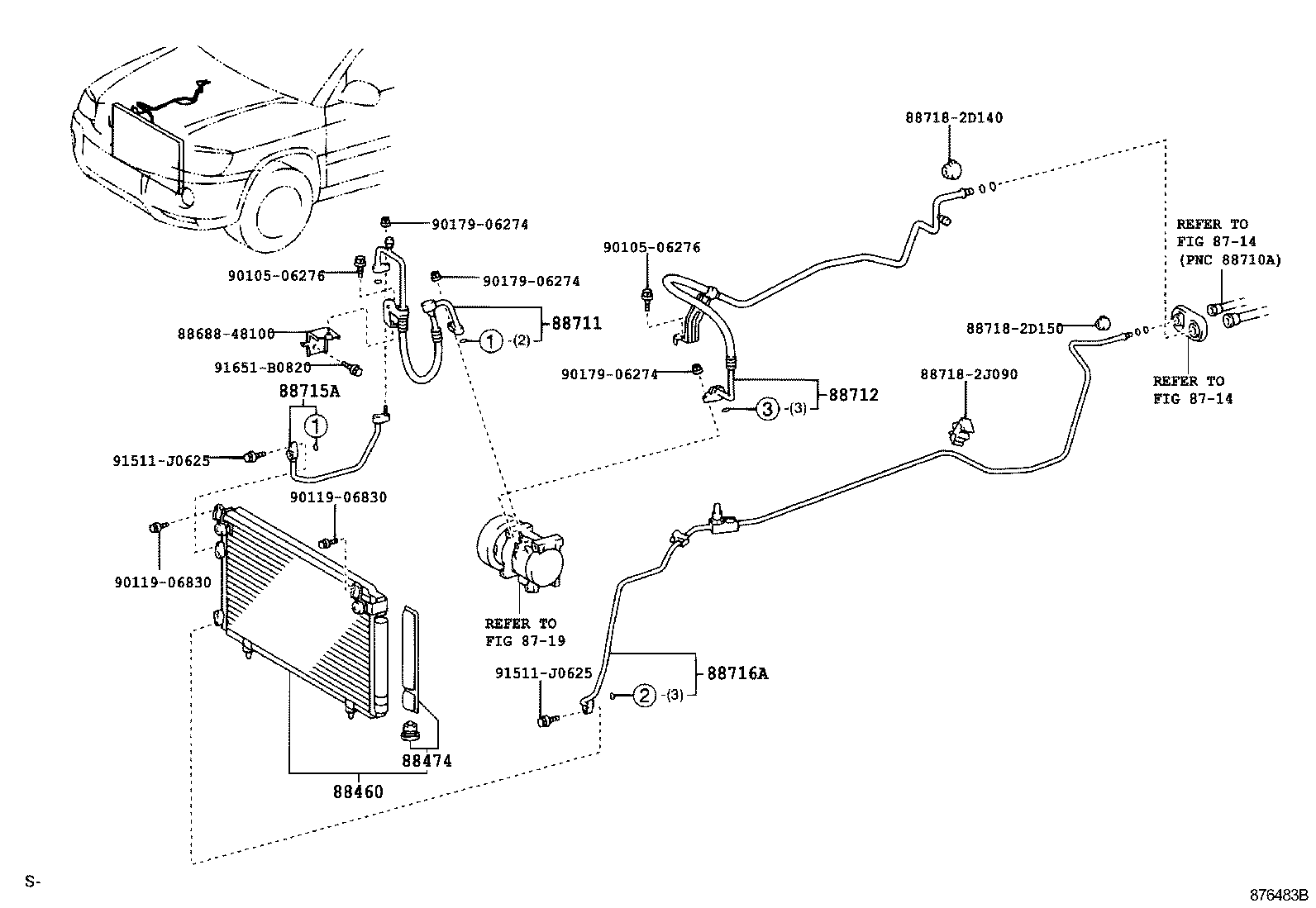

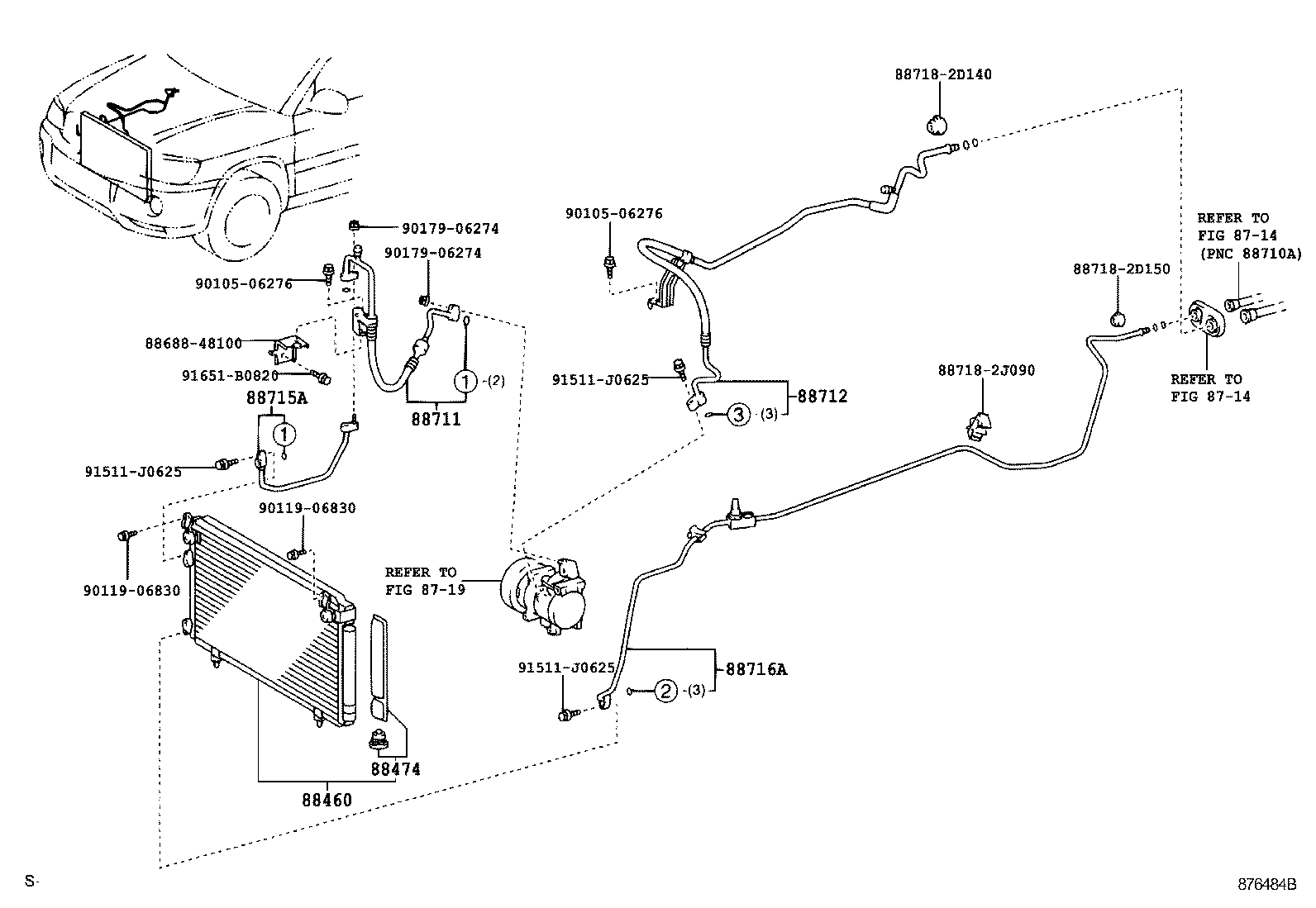

Heating & Air Conditioning - Cooler Piping
7 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88474 | Dryer, Cooler |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
