Toyota Highlander (JPP)
2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States
Supported model
Data version 2014-08

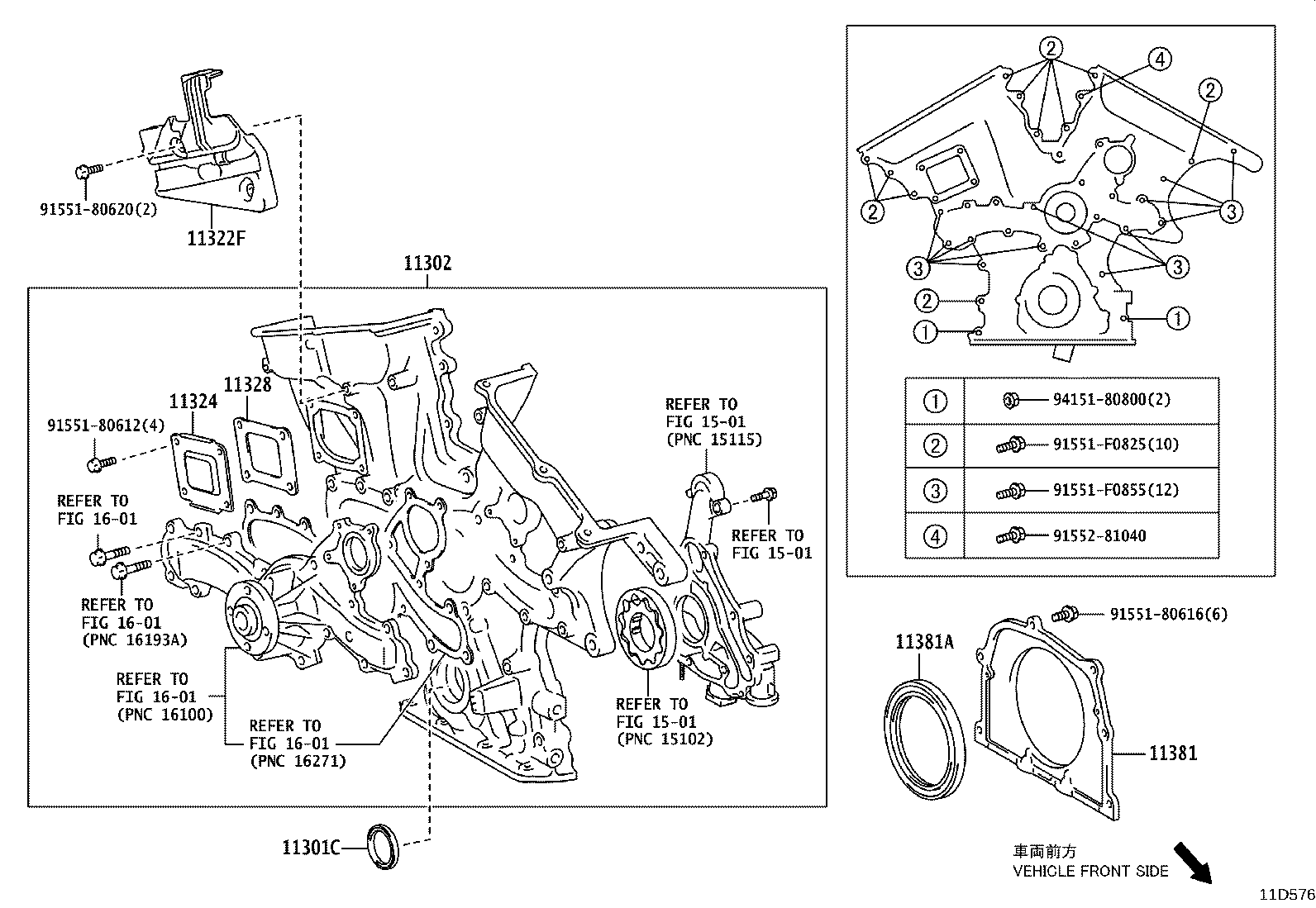

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-42037 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2007-05 → 2009-04
ended
|
2GRFE GSU4# | — | |
| 90311-42043 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2008-11 → —
|
1ARFE ASU40 | — | |
| 90311-42045 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2009-04 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 90311-42045 |
Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2010-08 → —
|
2GRFXE GVU48 | — | |
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11310-31020 |
Cover Sub-assy, Timing Chain OR Belt
2007-05 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 11310-36020 |
Cover Sub-assy, Timing Chain OR Belt
2008-11 → —
|
1ARFE ASU40 | — | |
| 11310-31020 |
Cover Sub-assy, Timing Chain OR Belt
2010-08 → —
|
2GRFXE GVU48 | — | |
| 11322F — Cover, Timing Gear, NO.2 | ||||
| 11322-31021 |
Cover, Timing Gear, NO.2
2007-05 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 11322-31021 |
Cover, Timing Gear, NO.2
2010-08 → —
|
2GRFXE GVU48 | — | |
| 11324 — Plate, Timing Chain Cover | ||||
| 11324-31020 |
Plate, Timing Chain Cover
2007-05 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 11324-36010 |
Plate, Timing Chain Cover
2008-11 → —
|
1ARFE ASU40 | — | |
| 11324-31020 |
Plate, Timing Chain Cover
2010-08 → —
|
2GRFXE GVU48 | — | |
| 11328 — Gasket, Timing Gear OR Chain Cover | ||||
| 11328-31030 |
Gasket, Timing Gear OR Chain Cover
2007-05 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 11328-36020 |
Gasket, Timing Gear OR Chain Cover
2008-11 → —
|
1ARFE ASU40 | — | |
| 11328-31030 |
Gasket, Timing Gear OR Chain Cover
2010-08 → —
|
2GRFXE GVU48 | — | |
| 11381 — Retainer, Engine Rear Oil Seal | ||||
| 11381-20010 |
Retainer, Engine Rear Oil Seal
2007-08 → —
|
3MZFE MHU48 | — | |
| 11381-31021 |
Retainer, Engine Rear Oil Seal
2007-05 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 11381-31021 |
Retainer, Engine Rear Oil Seal
2010-08 → —
|
2GRFXE GVU48 | — | |
| 11381A — Seal, Engine Rear Oil | ||||
| 90311-92006 |
Seal, Engine Rear Oil
2007-05 → 2008-04
ended
|
2GRFE GSU4# | — | |
| 90311-92008 |
Seal, Engine Rear Oil
2007-08 → —
|
3MZFE MHU48 | — | |
| 90311-92009 |
Seal, Engine Rear Oil
2008-04 → 2010-07
ended
|
2GRFE GSU4# | — | |
| 90311-92009 |
Seal, Engine Rear Oil
2010-08 → 2010-09
ended
|
2GRFXE GVU48 | — | |
| 90311-92010 |
Seal, Engine Rear Oil
2010-09 → —
|
2GRFXE GVU48 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
