Toyota Highlander (JPP)
2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States
Supported model
Data version 2014-08

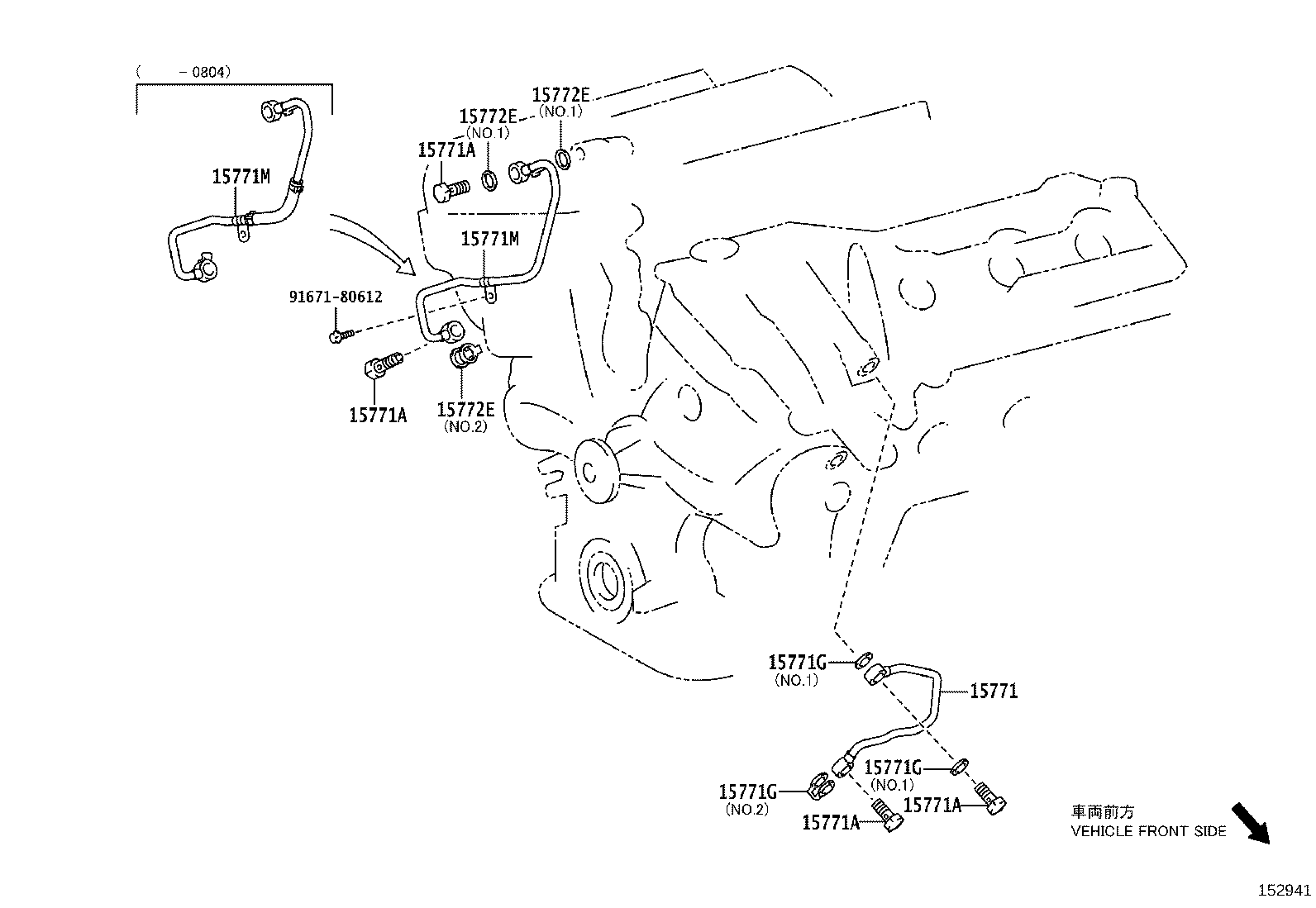

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15771 — Pipe, Oil, NO.1 | ||||
| 15771-31010 |
Pipe, Oil, NO.1
2007-05 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 15771-31010 |
Pipe, Oil, NO.1
2010-08 → —
|
2GRFXE GVU48 | — | |
| 15771A — Union(FOR OIL PIPE) | ||||
| 90401-16043 |
Union(FOR OIL PIPE)
2007-05 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 90401-16043 |
Union(FOR OIL PIPE)
2010-08 → —
|
2GRFXE GVU48 | — | |
| 15771G — Gasket | ||||
| 90430-16012 note |
Gasket
2007-05 → 2008-03
ended
|
2GRFE GSU4# | — | |
| 90430-16016 note |
Gasket
2007-05 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 90430-16017 note |
Gasket
2008-03 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 90430-16016 note |
Gasket
2010-08 → —
|
2GRFXE GVU48 | — | |
| 90430-16017 note |
Gasket
2010-08 → —
|
2GRFXE GVU48 | — | |
| 15771M — Pipe, Oil | ||||
| 15707-31012 |
Pipe, Oil
2007-05 → 2008-04
ended
|
2GRFE GSU4# | — | |
| 15772-31030 |
Pipe, Oil
2008-04 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 15772-31030 |
Pipe, Oil
2010-08 → —
|
2GRFXE GVU48 | — | |
| 15772E — Gasket(FOR OIL PIPE) | ||||
| 90430-16012 note |
Gasket(FOR OIL PIPE)
2007-05 → 2008-03
ended
|
2GRFE GSU4# | — | |
| 90430-16016 note |
Gasket(FOR OIL PIPE)
2007-05 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 90430-16017 note |
Gasket(FOR OIL PIPE)
2008-03 → 2010-08
ended
|
2GRFE GSU4# | — | |
| 90430-16016 note |
Gasket(FOR OIL PIPE)
2010-08 → —
|
2GRFXE GVU48 | — | |
| 90430-16017 note |
Gasket(FOR OIL PIPE)
2010-08 → —
|
2GRFXE GVU48 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
