Toyota Highlander (JPP)
2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States
Supported model
Data version 2014-08

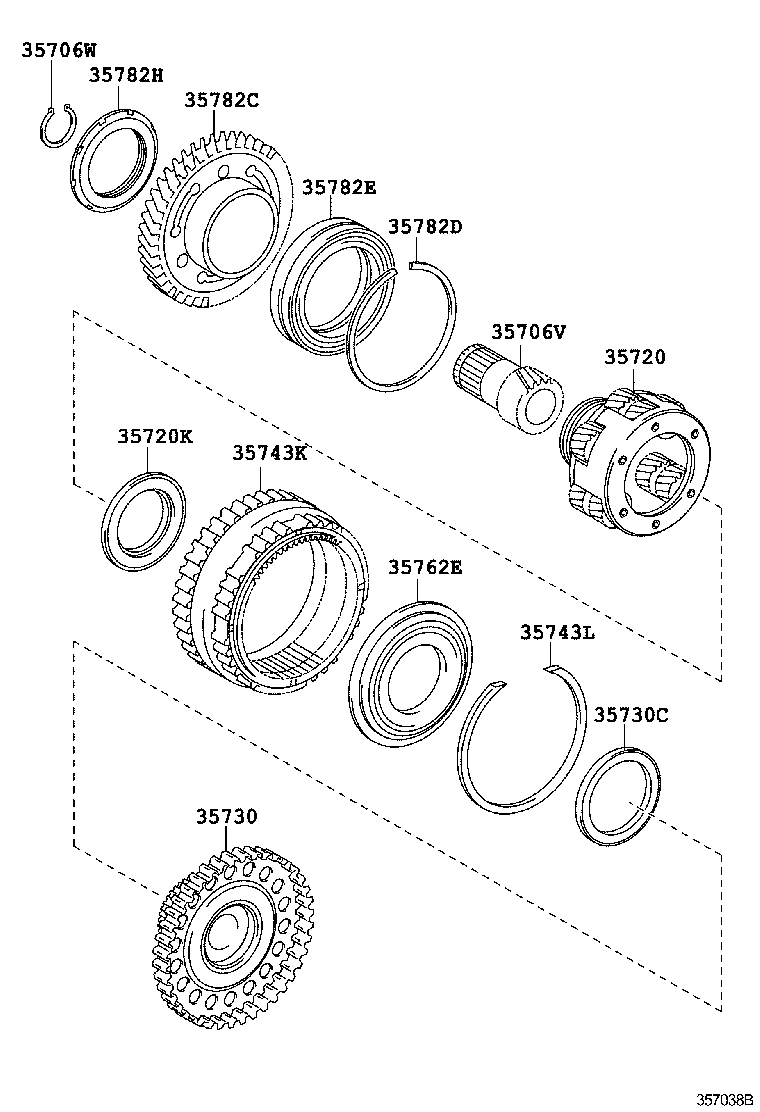

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35706V — Gear Sub Assy, Planetary Sun | ||||
| 35706-73010 |
Gear Sub Assy, Planetary Sun
2008-11 → —
|
ASU40 | — | |
| 35706W — Ring, Snap (FOR PLANETARY SUN GEAR) | ||||
| 90520-34032 |
Ring, Snap (FOR PLANETARY SUN GEAR)
2008-11 → —
|
ASU40 | — | |
| 35720 — Gear Assy, Front Planetary | ||||
| 35720-07010 note |
Gear Assy, Front Planetary
2008-01 → —
|
GSU4# | — | |
| 35720-28070 note |
Gear Assy, Front Planetary
2007-05 → —
|
GSU4# | — | |
| 35720-73010 |
Gear Assy, Front Planetary
2008-11 → —
|
ASU40 | — | |
| 35720K — Bearing, Thrust Needle Roller(FOR PLANETARY GEAR REAR) | ||||
| 90374-62004 |
Bearing, Thrust Needle Roller(FOR PLANETARY GEAR REAR)
2008-11 → —
|
ASU40 | — | |
| 35730 — Gear Assy, Rear Planetary Sun | ||||
| 35730-07010 note |
Gear Assy, Rear Planetary Sun
2008-01 → —
|
GSU4# | — | |
| 35730-33011 note |
Gear Assy, Rear Planetary Sun
2007-05 → —
|
GSU4# | — | |
| 35730-73010 |
Gear Assy, Rear Planetary Sun
2008-11 → —
|
ASU40 | — | |
| 35730C — Bearing, Thrust Needle(FOR REAR PLANETARY SUN GEAR, NO.2) | ||||
| 90374-61001 |
Bearing, Thrust Needle(FOR REAR PLANETARY SUN GEAR, NO.2)
2008-11 → —
|
ASU40 | — | |
| 35743K — Gear, Planetary Ring | ||||
| 35743-73010 |
Gear, Planetary Ring
2008-11 → —
|
ASU40 | — | |
| 35743L — Ring, Snap (FOR PLANETARY RING GEAR) | ||||
| 90520-99108 |
Ring, Snap (FOR PLANETARY RING GEAR)
2008-11 → —
|
ASU40 | — | |
| 35762E — Flange, Planetary Ring Gear | ||||
| 35762-73010 |
Flange, Planetary Ring Gear
2008-11 → —
|
ASU40 | — | |
| 35782C — Gear, Counter Drive | ||||
| 35782-07010 note |
Gear, Counter Drive
2008-01 → —
|
GSU4# | — | |
| 35782-33020 note |
Gear, Counter Drive
2007-05 → —
|
GSU4# | — | |
| 35782-45010 note |
Gear, Counter Drive
2008-01 → —
|
GSU4# | — | |
| 35782-73010 |
Gear, Counter Drive
2008-11 → —
|
ASU40 | — | |
| 35782D — Ring, Hole Snap(FOR COUNTER DRIVE GEAR) | ||||
| 90080-52128 note |
Ring, Hole Snap(FOR COUNTER DRIVE GEAR)
2008-01 → —
|
GSU4# | — | |
| 90080-52134 note |
Ring, Hole Snap(FOR COUNTER DRIVE GEAR)
2008-01 → —
|
GSU4# | — | |
| 90520-84001 note |
Ring, Hole Snap(FOR COUNTER DRIVE GEAR)
2008-01 → —
|
GSU4# | — | |
| 90520-87004 note |
Ring, Hole Snap(FOR COUNTER DRIVE GEAR)
2007-05 → —
|
GSU4# | — | |
| 90520-89004 note |
Ring, Hole Snap(FOR COUNTER DRIVE GEAR)
2007-05 → —
|
GSU4# | — | |
| 90520-99110 |
Ring, Hole Snap(FOR COUNTER DRIVE GEAR)
2008-11 → —
|
ASU40 | — | |
| 35782E — Bearing(FOR COUNTER DRIVE GEAR) | ||||
| 90080-36121 note |
Bearing(FOR COUNTER DRIVE GEAR)
2008-01 → —
|
GSU4# | — | |
| 90366-59001 note |
Bearing(FOR COUNTER DRIVE GEAR)
2007-05 → —
|
GSU4# | — | |
| 90369-72001 |
Bearing(FOR COUNTER DRIVE GEAR)
2008-11 → —
|
ASU40 | — | |
| 35782H — Nut(FOR COUNTER DRIVE GEAR) | ||||
| 90179-60001 |
Nut(FOR COUNTER DRIVE GEAR)
2008-11 → —
|
ASU40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
