Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

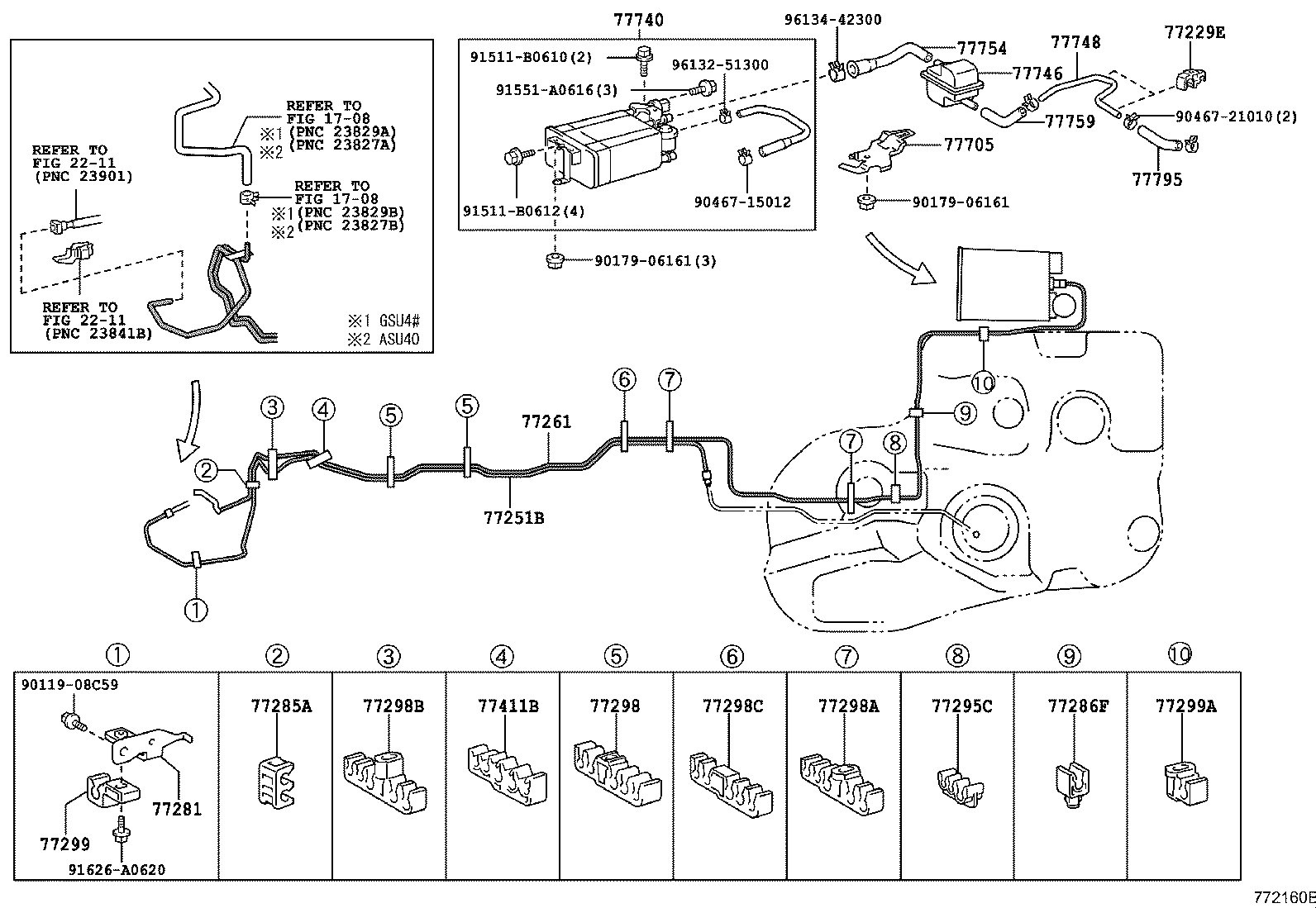

Exploded illustration 772160B 77229E — CLAMP, BREATHER TUBE (2 parts) 77251B — TUBE, FUEL MAIN (4 parts) 77261 — TUBE SUB-ASSY, FUEL EMISSION (3 parts) 77281 — BRACKET, FUEL MAIN TUBE, NO.1 (2 parts) 77285A — SUPPORT, FUEL RETURN AND MAIN TUBE (3 parts) 77286F — CLAMP, FUEL TUBE, NO.2 (2 parts) 77295C — GROMMET, FUEL TUBE (1 parts) 77298 — CLAMP, FUEL TUBE W/GROMMET, NO.4 (1 parts) 77298A — CLAMP, FUEL TUBE, NO.4 (3 parts) 77298B — CLAMP, FUEL TUBE, NO.4 (2 parts) 77298C — CLAMP, FUEL TUBE, NO.4 (2 parts) 77299 — CLAMP, FUEL TUBE W/GROMMET, NO.5 (1 parts) 77299A — CLAMP, FUEL TUBE, NO.5 (1 parts) 77411B — SUPPORT, FUEL TUBE GROMMET, NO.1 (3 parts) 77705 — BRACKET SUB-ASSY, CHARCOAL CANISTER (1 parts) 77740 — CANISTER ASSY, CHARCOAL (3 parts) 77746 — FILTER, CHARCOAL CANISTER, NO.2 (1 parts) 77748 — PIPE, CHARCOAL CANISTER, NO.2 (3 parts) 77754 — HOSE, CHARCOAL CANISTER OUTLET, NO.1 (1 parts) 77759 — HOSE, CHARCOAL CANISTER (3 parts) 77795 — HOSE, CHARCOAL CANISTER OUTLET, NO.2 (3 parts) 9011908C59 — not listed in this catalogue 9017906161 — not listed in this catalogue 9017906161 — not listed in this catalogue 9046715012 — not listed in this catalogue 9046721010 — not listed in this catalogue 91511B0610 — not listed in this catalogue 91511B0612 — not listed in this catalogue 91551A0616 — not listed in this catalogue 91626A0620 — not listed in this catalogue 9613251300 — not listed in this catalogue 9613442300 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue
772160B · 21 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
77229E — Clamp, Breather Tube
77229-48040 Clamp, Breather Tube
2007-05 → 2010-08 ended
ASU40,GSU4#,MHU48 —
77229-48040 Clamp, Breather Tube
2010-08 → —
GVU48 —
77251B — Tube, Fuel Main
77251-48160 Tube, Fuel Main
2007-08 → 2010-08 ended
MHU48 —
77251-48180 Tube, Fuel Main
2007-05 → 2010-08 ended
GSU4# —
77251-48190 Tube, Fuel Main
2008-11 → 2010-08 ended
ASU40 —
77251-48230 Tube, Fuel Main
2010-08 → —
GVU48 —
77261 — Tube Sub-assy, Fuel Emission
77261-48150 Tube Sub-assy, Fuel Emission
2007-08 → 2010-08 ended
MHU48 —
77261-48160 Tube Sub-assy, Fuel Emission
2007-05 → 2010-08 ended
ASU40,GSU4# —
77261-48220 Tube Sub-assy, Fuel Emission
2010-08 → —
GVU48 —
77281 — Bracket, Fuel Main Tube, NO.1
77281-48010 Bracket, Fuel Main Tube, NO.1
2007-05 → 2010-08 ended
ASU40,GSU4# —
77281-48050 Bracket, Fuel Main Tube, NO.1
2007-08 → 2010-08 ended
MHU48 —
77285A — Support, Fuel Return And Main Tube
77285-42110 Support, Fuel Return And Main Tube
2007-05 → 2010-07 ended
ASU40,GSU4# —
77285-48030 Support, Fuel Return And Main Tube
2007-08 → 2010-08 ended
MHU48 —
77285-42110 Support, Fuel Return And Main Tube
2010-08 → —
GVU48 —
77286F — Clamp, Fuel Tube, NO.2
77286-48040 Clamp, Fuel Tube, NO.2
2007-05 → 2010-08 ended
ASU40,GSU4# —
77286-48060 Clamp, Fuel Tube, NO.2
2007-08 → 2010-08 ended
MHU48 —
77295C — Grommet, Fuel Tube
77295-42030 Grommet, Fuel Tube
2007-05 → 2010-07 ended
ASU40,GSU4# —
77298 — Clamp, Fuel Tube W/Grommet, NO.4
77298-48050 Clamp, Fuel Tube W/Grommet, NO.4
2007-05 → 2010-08 ended
ASU40,GSU4#,MHU48 —
77298A — Clamp, Fuel Tube, NO.4
77298-48020 Clamp, Fuel Tube, NO.4
2007-05 → 2010-07 ended
ASU40,GSU4# —
77298-48020 Clamp, Fuel Tube, NO.4
2007-08 → 2010-08 ended
MHU48 —
77298-48020 Clamp, Fuel Tube, NO.4
2010-08 → 2014-02 ended
GVU48 —
77298B — Clamp, Fuel Tube, NO.4
77298-48060 Clamp, Fuel Tube, NO.4
2007-05 → 2010-08 ended
ASU40,GSU4#,MHU48 —
77298-48040 Clamp, Fuel Tube, NO.4
2010-08 → 2014-02 ended
GVU48 —
77298C — Clamp, Fuel Tube, NO.4
77298-68030 Clamp, Fuel Tube, NO.4
2007-05 → 2010-08 ended
ASU40,GSU4#,MHU48 —
77298-68030 Clamp, Fuel Tube, NO.4
2010-08 → 2014-02 ended
GVU48 —
77299 — Clamp, Fuel Tube W/Grommet, NO.5
77299-48010 Clamp, Fuel Tube W/Grommet, NO.5
2007-05 → 2010-08 ended
ASU40,GSU4#,MHU48 —
77299A — Clamp, Fuel Tube, NO.5
77299-48020 Clamp, Fuel Tube, NO.5
2007-05 → 2010-08 ended
ASU40,GSU4# —
77411B — Support, Fuel Tube Grommet, NO.1
77411-48030 Support, Fuel Tube Grommet, NO.1
2007-08 → 2010-08 ended
MHU48 —
77411-48040 Support, Fuel Tube Grommet, NO.1
2007-05 → 2010-07 ended
ASU40,GSU4# —
77411-48030 Support, Fuel Tube Grommet, NO.1
2010-08 → 2014-02 ended
GVU48 —
77705 — Bracket Sub-assy, Charcoal Canister
77705-48010 Bracket Sub-assy, Charcoal Canister
2007-05 → 2010-08 ended
ASU40,GSU4# —
77740 — Canister Assy, Charcoal
77740-48121 Canister Assy, Charcoal
2007-05 → 2010-07 ended
ASU40,GSU4# —
77740-48140 Canister Assy, Charcoal
2007-08 → 2010-08 ended
MHU48 —
77740-48140 Canister Assy, Charcoal
2010-08 → 2014-02 ended
GVU48 —
77746 — Filter, Charcoal Canister, NO.2
77746-48010 Filter, Charcoal Canister, NO.2
2007-05 → 2010-08 ended
ASU40,GSU4# —
77748 — Pipe, Charcoal Canister, NO.2
77748-48010 Pipe, Charcoal Canister, NO.2
2007-05 → 2010-08 ended
ASU40,GSU4# —
77748-48030 Pipe, Charcoal Canister, NO.2
2007-08 → 2010-08 ended
MHU48 —
77748-48030 Pipe, Charcoal Canister, NO.2
2010-08 → —
GVU48 —
77754 — Hose, Charcoal Canister Outlet, NO.1
77754-48050 Hose, Charcoal Canister Outlet, NO.1
2007-05 → 2010-08 ended
ASU40,GSU4# —
77759 — Hose, Charcoal Canister
77759-48010 Hose, Charcoal Canister
2007-05 → 2010-08 ended
ASU40,GSU4# —
77759-48040 Hose, Charcoal Canister
2007-08 → 2010-08 ended
MHU48 —
77759-48040 Hose, Charcoal Canister
2010-08 → —
GVU48 —
77795 — Hose, Charcoal Canister Outlet, NO.2
77795-48010 Hose, Charcoal Canister Outlet, NO.2
2007-05 → 2010-08 ended
ASU40,GSU4# —
77795-48030 Hose, Charcoal Canister Outlet, NO.2
2007-08 → 2010-08 ended
MHU48 —
77795-48030 Hose, Charcoal Canister Outlet, NO.2
2010-08 → —
GVU48 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
