Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

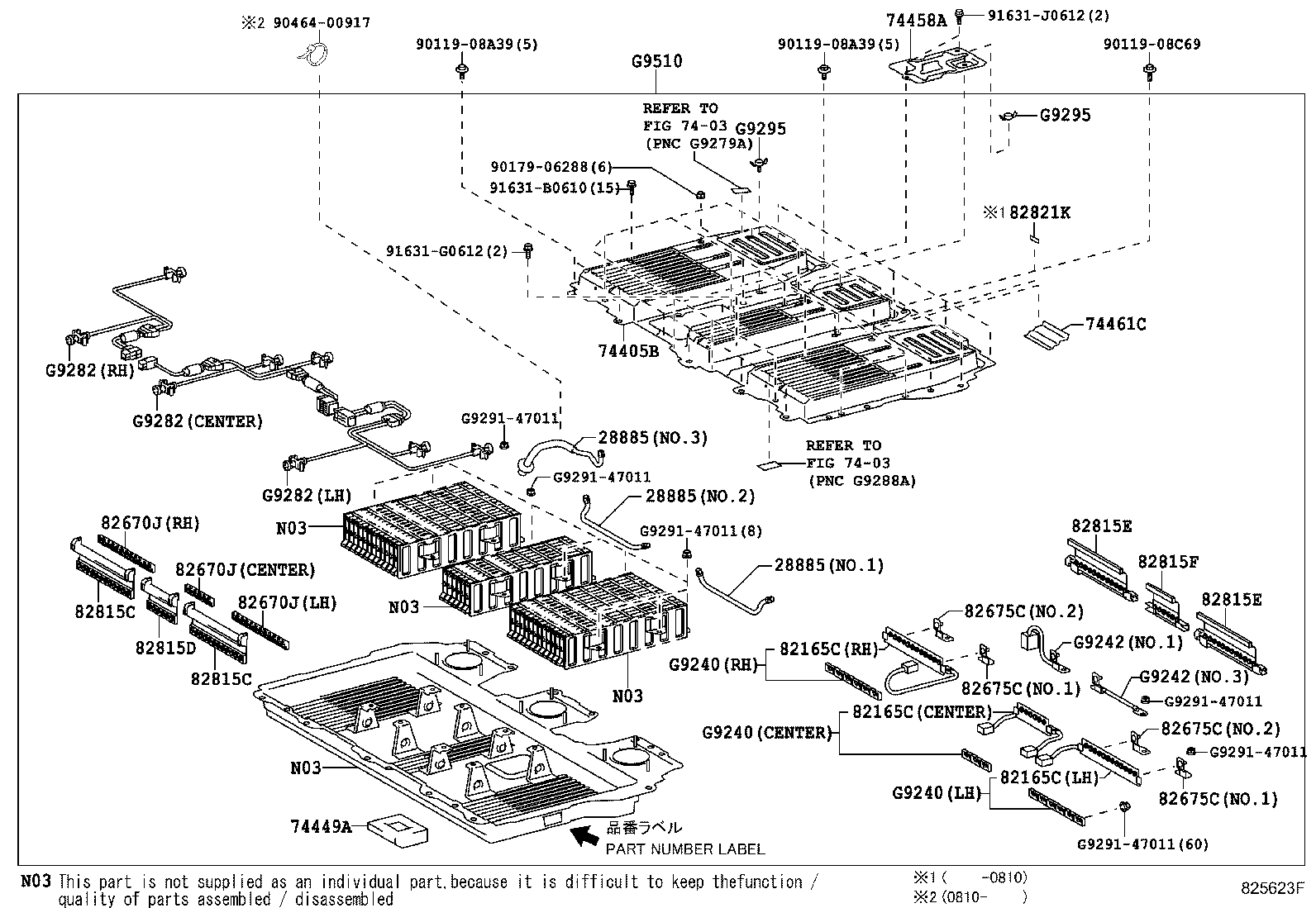

Exploded illustration 825623F 74405B — COVER SUB-ASSY, BATTERY (2 parts) 82815E — COVER, WIRING HARNESS PROTECTOR, NO.3 (2 parts) 82815E — COVER, WIRING HARNESS PROTECTOR, NO.3 (2 parts) 82815F — COVER, WIRING HARNESS PROTECTOR, NO.4 (2 parts) G9295 — BRACKET, EV BATTERY WATER TANK (2 parts) 74458A — LID, BATTERY COVER, NO.1 (2 parts) 9011908A39 — not listed in this catalogue 9011908C69 — not listed in this catalogue 9011908A39 — not listed in this catalogue 91631B0610 — not listed in this catalogue 91631J0612 — not listed in this catalogue G929147011 — not listed in this catalogue 9017906288 — not listed in this catalogue 74449A — PACKING, BATTERY, NO.2 (2 parts) 74461C — COVER, BATTERY (1 parts) G9295 — BRACKET, EV BATTERY WATER TANK (2 parts) G9240 — JUNCTION BLOCK ASSY, BATTERY W/CABLE (3 parts) 82675C — TERMINAL, JUNCTION (4 parts) G9242 — CABLE, MAIN BATTERY (5 parts) G9242 — CABLE, MAIN BATTERY (5 parts) 82675C — TERMINAL, JUNCTION (4 parts) 82675C — TERMINAL, JUNCTION (4 parts) 82675C — TERMINAL, JUNCTION (4 parts) 82165C — WIRE, FRAME, NO.2 (3 parts) G9240 — JUNCTION BLOCK ASSY, BATTERY W/CABLE (3 parts) 82165C — WIRE, FRAME, NO.2 (3 parts) G9240 — JUNCTION BLOCK ASSY, BATTERY W/CABLE (3 parts) 82165C — WIRE, FRAME, NO.2 (3 parts) 82670J — BLOCK ASSY, JUNCTION (4 parts) G9282 — THERMISTOR, HYBRID BATTERY (6 parts) G9510 — BATTERY ASSY, HV SUPPLY (4 parts) G9282 — THERMISTOR, HYBRID BATTERY (6 parts) G9282 — THERMISTOR, HYBRID BATTERY (6 parts) 82670J — BLOCK ASSY, JUNCTION (4 parts) 82670J — BLOCK ASSY, JUNCTION (4 parts) 82815C — COVER, WIRING HARNESS PROTECTOR, NO.1 (2 parts) 82815D — COVER, WIRING HARNESS PROTECTOR, NO.2 (2 parts) 82815C — COVER, WIRING HARNESS PROTECTOR, NO.1 (2 parts) 28885 — HOSE, BATTERY ROOM VENTILATION (6 parts) 28885 — HOSE, BATTERY ROOM VENTILATION (6 parts) 28885 — HOSE, BATTERY ROOM VENTILATION (6 parts) 7403 — not listed in this catalogue 7403 — not listed in this catalogue G929147011 — not listed in this catalogue 91631G0612 — not listed in this catalogue G929147011 — not listed in this catalogue G929147011 — not listed in this catalogue G929147011 — not listed in this catalogue G929147011 — not listed in this catalogue 9046400917 — not listed in this catalogue 82821K — COVER, CONNECTOR (1 parts)
825623F · 35 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
28885 — Hose, Battery Room Ventilation
28885-20010 note Hose, Battery Room Ventilation
2007-08 → 2010-08 ended
3MZFE MHU48 —
28885-20020 note Hose, Battery Room Ventilation
2007-08 → 2010-08 ended
3MZFE MHU48 —
28885-20030 note Hose, Battery Room Ventilation
2007-08 → 2010-08 ended
3MZFE MHU48 —
28885-20010 note Hose, Battery Room Ventilation
2010-08 → —
2GRFXE GVU48 —
28885-20020 note Hose, Battery Room Ventilation
2010-08 → —
2GRFXE GVU48 —
28885-20030 note Hose, Battery Room Ventilation
2010-08 → —
2GRFXE GVU48 —
74405B — Cover Sub-assy, Battery
74405-48030 Cover Sub-assy, Battery
2007-08 → 2010-08 ended
MHU48 —
74405-48030 Cover Sub-assy, Battery
2010-08 → —
GVU48 —
74449A — Packing, Battery, NO.2
74448-48010 Packing, Battery, NO.2
2007-08 → 2010-08 ended
MHU48 —
74448-48010 Packing, Battery, NO.2
2010-08 → —
GVU48 —
74458A — Lid, Battery Cover, NO.1
74458-48010 Lid, Battery Cover, NO.1
2007-08 → 2010-08 ended
MHU48 —
74458-48010 Lid, Battery Cover, NO.1
2010-08 → —
GVU48 —
74461C — Cover, Battery
74461-48030 Cover, Battery
2007-08 → 2010-08 ended
MHU48 —
82165C — Wire, Frame, NO.2
82165-48051 note Wire, Frame, NO.2
2007-08 → 2010-08 ended
MHU48 —
82165-48061 note Wire, Frame, NO.2
2007-08 → 2010-08 ended
MHU48 —
82165-48071 note Wire, Frame, NO.2
2007-08 → 2010-08 ended
MHU48 —
82670J — Block Assy, Junction
82670-48071 note Block Assy, Junction
2007-08 → 2010-08 ended
MHU48 —
82670-48081 note Block Assy, Junction
2007-08 → 2010-08 ended
MHU48 —
82670-48071 note Block Assy, Junction
2010-08 → —
GVU48 —
82670-48081 note Block Assy, Junction
2010-08 → —
GVU48 —
82675C — Terminal, Junction
82675-48060 note Terminal, Junction
2007-08 → 2010-08 ended
MHU48 —
82675-48070 note Terminal, Junction
2007-08 → 2010-08 ended
MHU48 —
82675-48060 note Terminal, Junction
2010-08 → —
GVU48 —
82675-48070 note Terminal, Junction
2010-08 → —
GVU48 —
82815C — Cover, Wiring Harness Protector, NO.1
82815-48311 Cover, Wiring Harness Protector, NO.1
2007-08 → 2010-08 ended
MHU48 —
82815-48311 Cover, Wiring Harness Protector, NO.1
2010-08 → —
GVU48 —
82815D — Cover, Wiring Harness Protector, NO.2
82815-48321 Cover, Wiring Harness Protector, NO.2
2007-08 → 2010-08 ended
MHU48 —
82815-48321 Cover, Wiring Harness Protector, NO.2
2010-08 → —
GVU48 —
82815E — Cover, Wiring Harness Protector, NO.3
82815-48331 Cover, Wiring Harness Protector, NO.3
2007-08 → 2010-08 ended
MHU48 —
82815-48331 Cover, Wiring Harness Protector, NO.3
2010-08 → —
GVU48 —
82815F — Cover, Wiring Harness Protector, NO.4
82815-48341 Cover, Wiring Harness Protector, NO.4
2007-08 → 2010-08 ended
MHU48 —
82815-48341 Cover, Wiring Harness Protector, NO.4
2010-08 → —
GVU48 —
82821K — Cover, Connector
82821-48120 Cover, Connector
2007-08 → 2010-08 ended
MHU48 —
G9240 — Junction Block Assy, Battery W/Cable
G9240-48011 note Junction Block Assy, Battery W/Cable
2007-08 → 2010-08 ended
MHU48 —
G9240-48021 note Junction Block Assy, Battery W/Cable
2007-08 → 2010-08 ended
MHU48 —
G9240-48031 note Junction Block Assy, Battery W/Cable
2007-08 → 2010-08 ended
MHU48 —
G9242 — Cable, Main Battery
G9242-48010 note Cable, Main Battery
2007-08 → 2010-08 ended
MHU48 —
G9242-48020 note Cable, Main Battery
2007-08 → 2010-08 ended
MHU48 —
G9242-48030 note Cable, Main Battery
2007-08 → 2010-08 ended
MHU48 —
G9242-48040 note Cable, Main Battery
2007-08 → 2010-08 ended
MHU48 —
G9242-48030 Cable, Main Battery
2010-08 → —
GVU48 —
G9282 — Thermistor, Hybrid Battery
G9282-48010 note Thermistor, Hybrid Battery
2007-08 → 2010-08 ended
MHU48 —
G9282-48020 note Thermistor, Hybrid Battery
2007-08 → 2010-08 ended
MHU48 —
G9282-48030 note Thermistor, Hybrid Battery
2007-08 → 2010-08 ended
MHU48 —
G9282-48070 note Thermistor, Hybrid Battery
2010-08 → —
GVU48 —
G9282-48080 note Thermistor, Hybrid Battery
2010-08 → —
GVU48 —
G9282-48090 note Thermistor, Hybrid Battery
2010-08 → —
GVU48 —
G9295 — Bracket, EV Battery Water Tank
G9295-28030 Bracket, EV Battery Water Tank
2007-08 → 2010-08 ended
MHU48 —
G9295-28030 Bracket, EV Battery Water Tank
2010-08 → —
GVU48 —
G9510 — Battery Assy, HV Supply
G9510-48030 Battery Assy, HV Supply
2007-08 → 2007-09 ended
MHU48 —
G9510-48031 note Battery Assy, HV Supply
2007-09 → 2008-10 ended
MHU48 —
G9510-48032 note Battery Assy, HV Supply
2008-10 → 2010-08 ended
MHU48 —
G9510-48060 Battery Assy, HV Supply
2010-08 → —
GVU48 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
