Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 14 illustrations

Illustrations

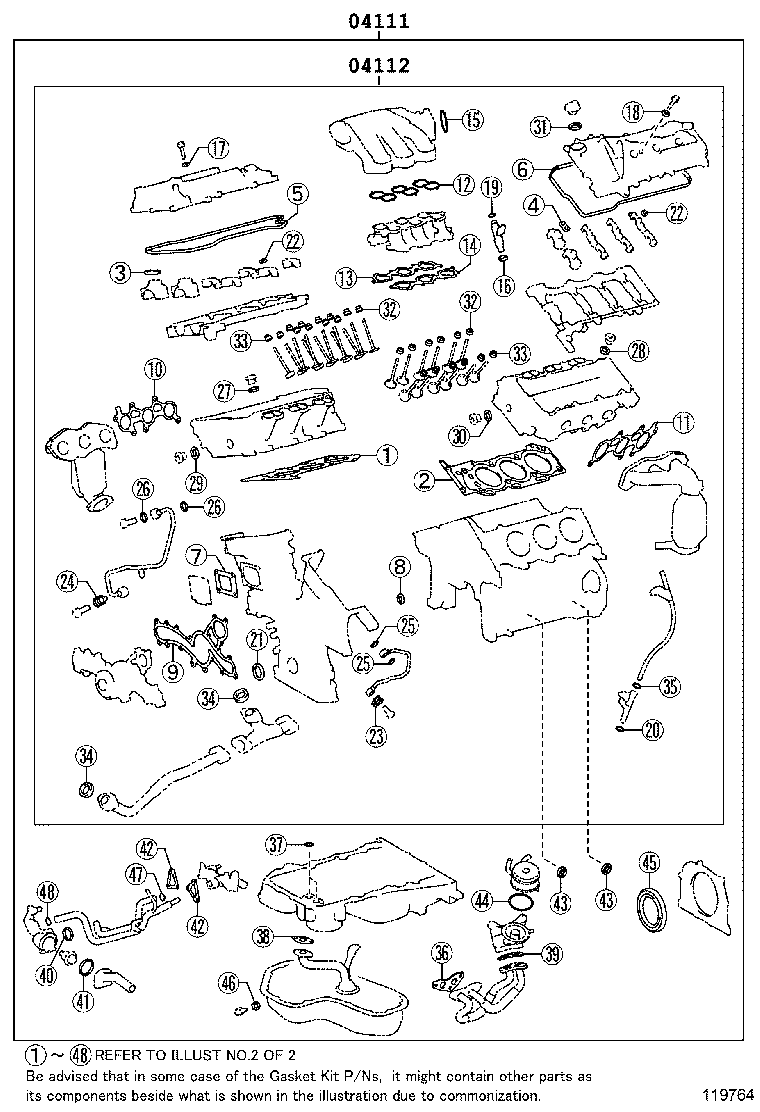

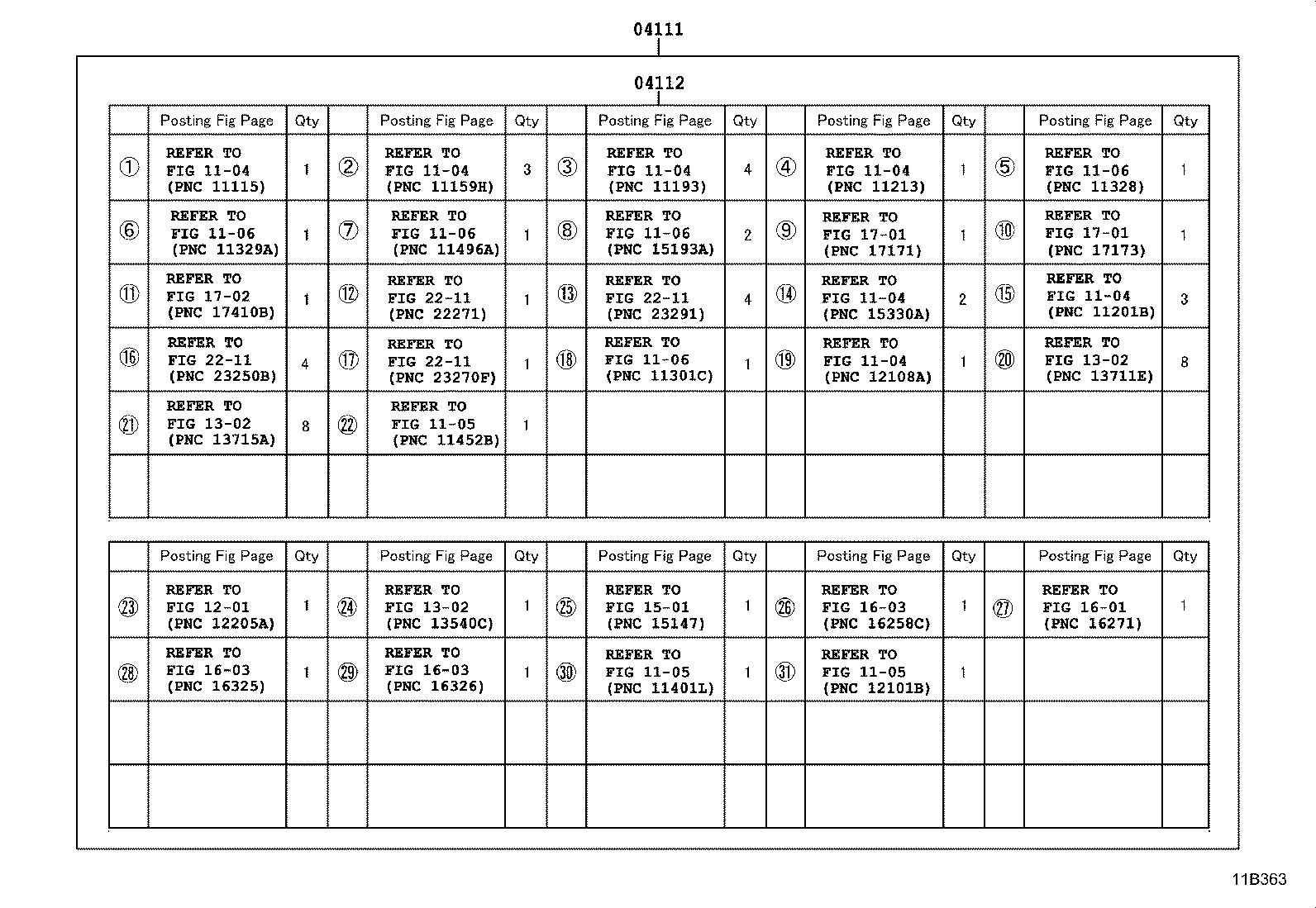

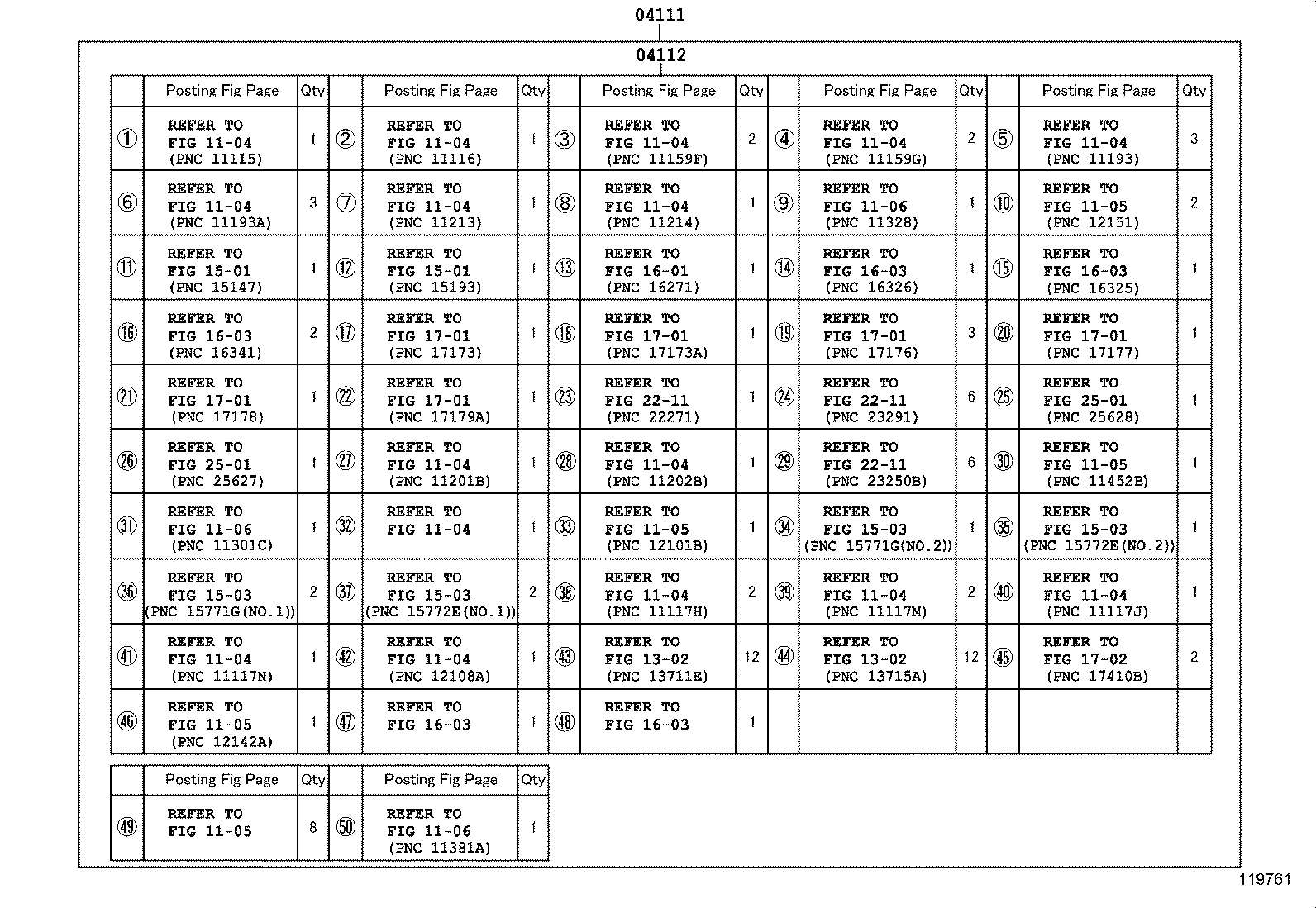

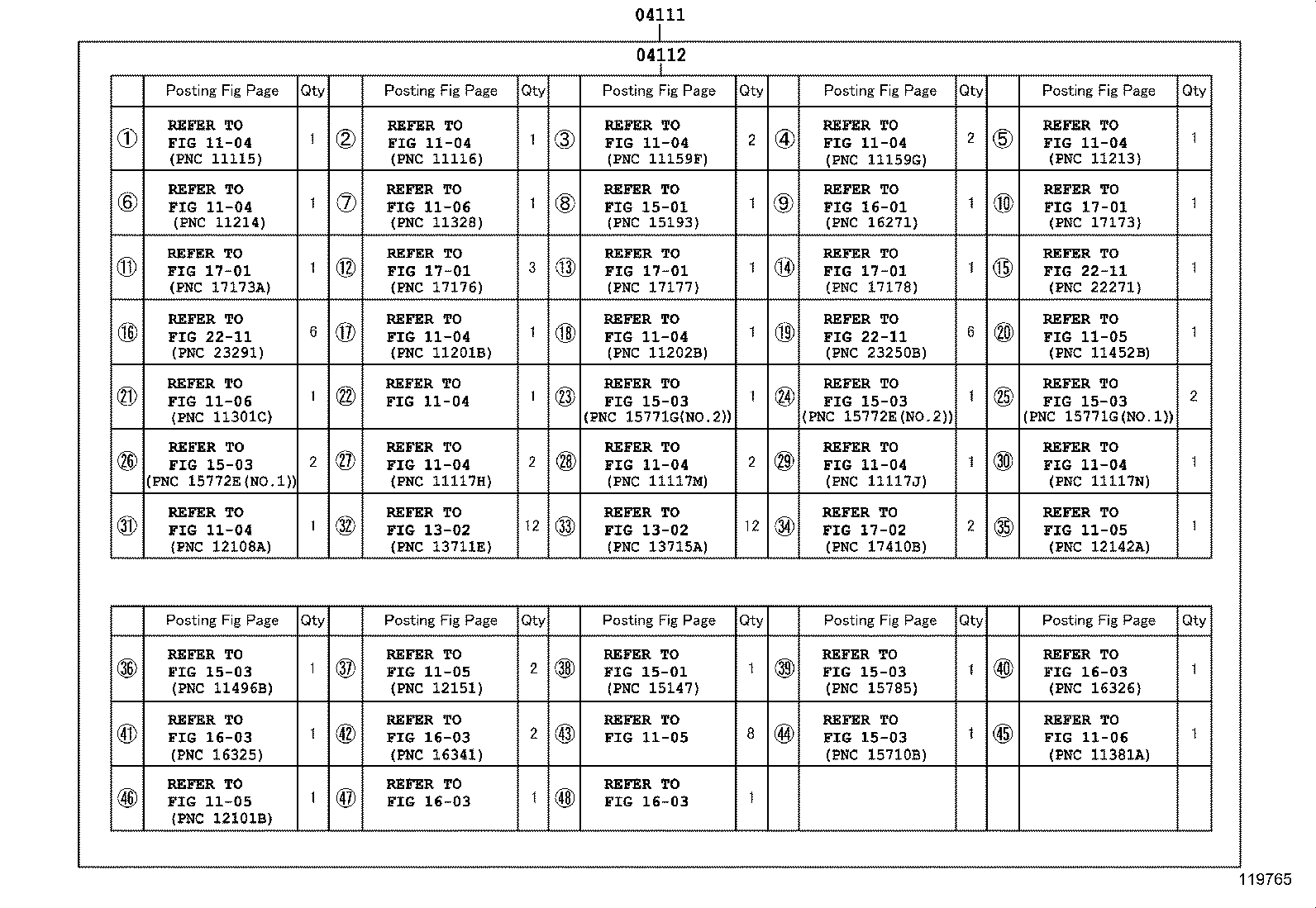

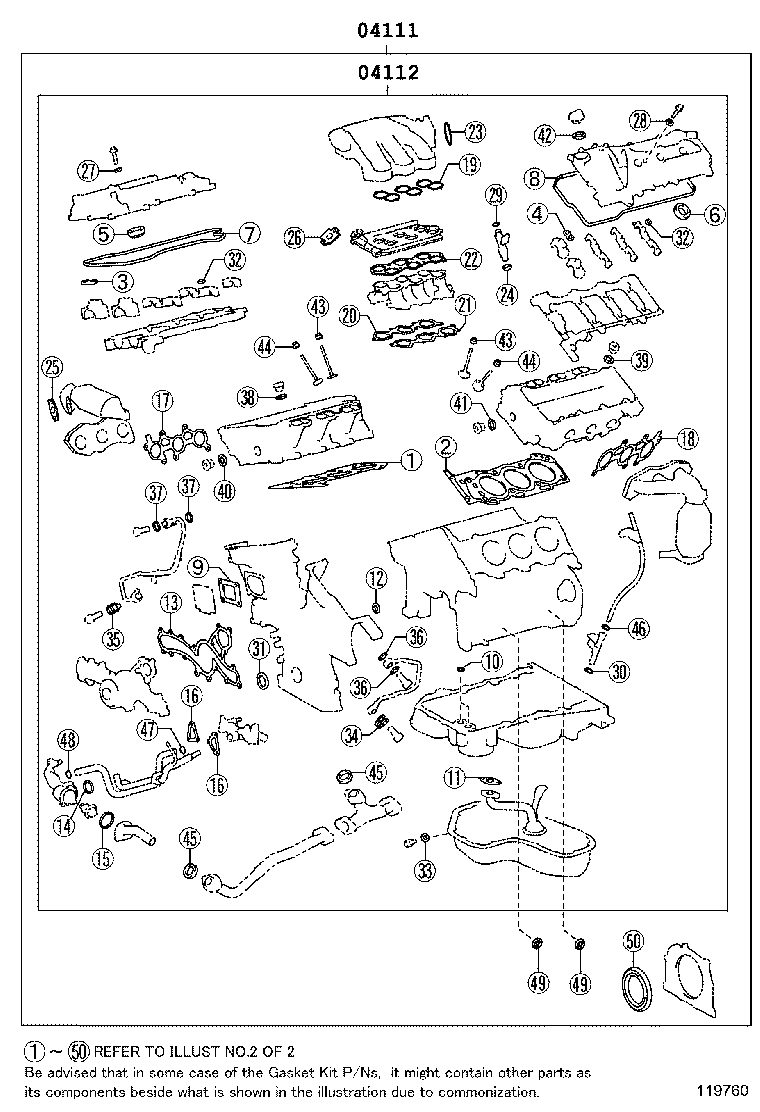

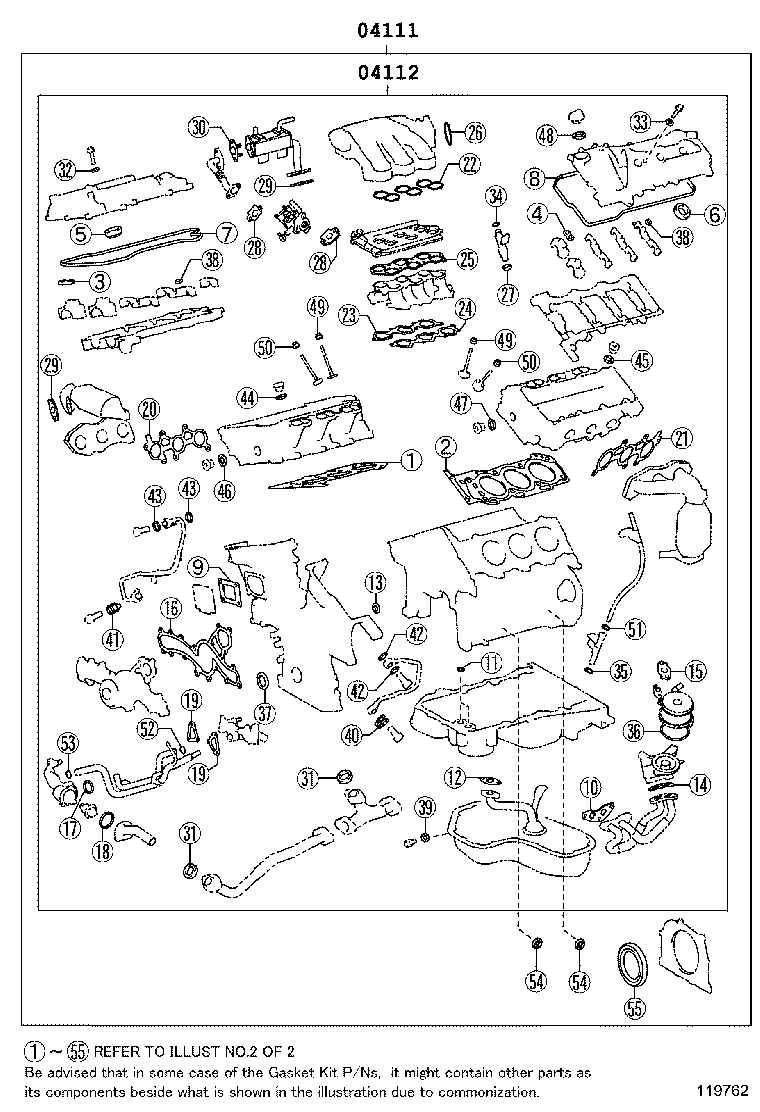

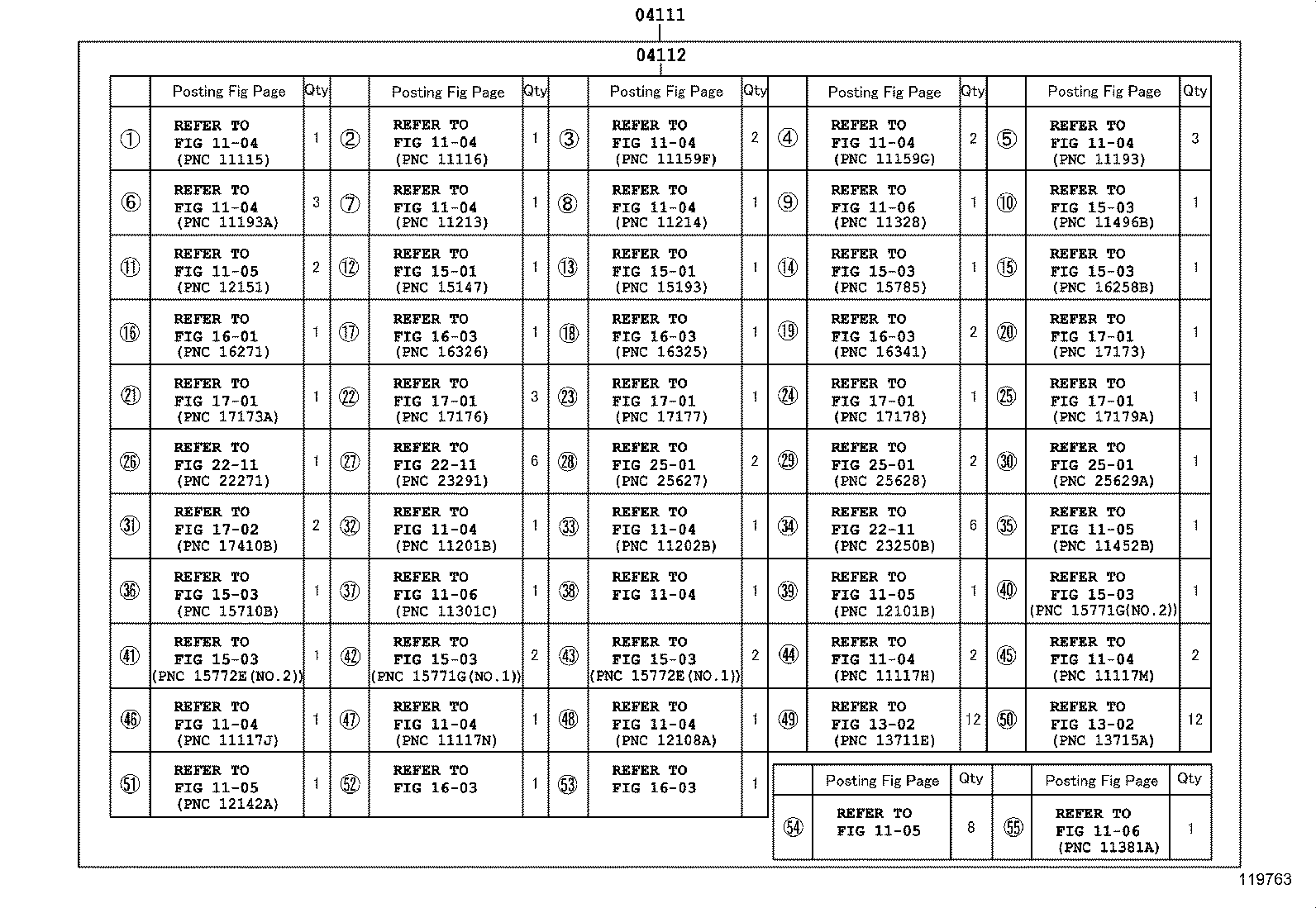

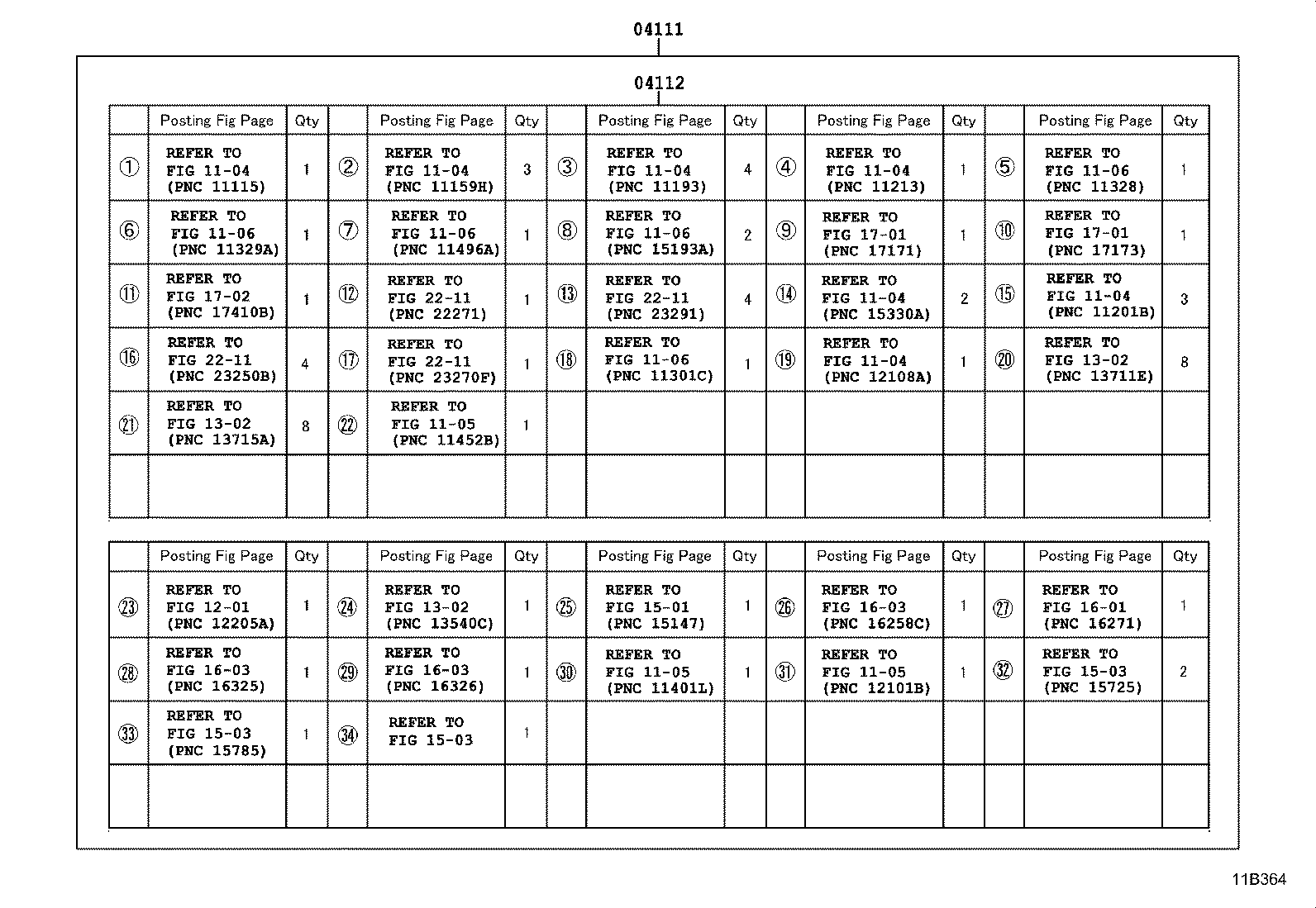

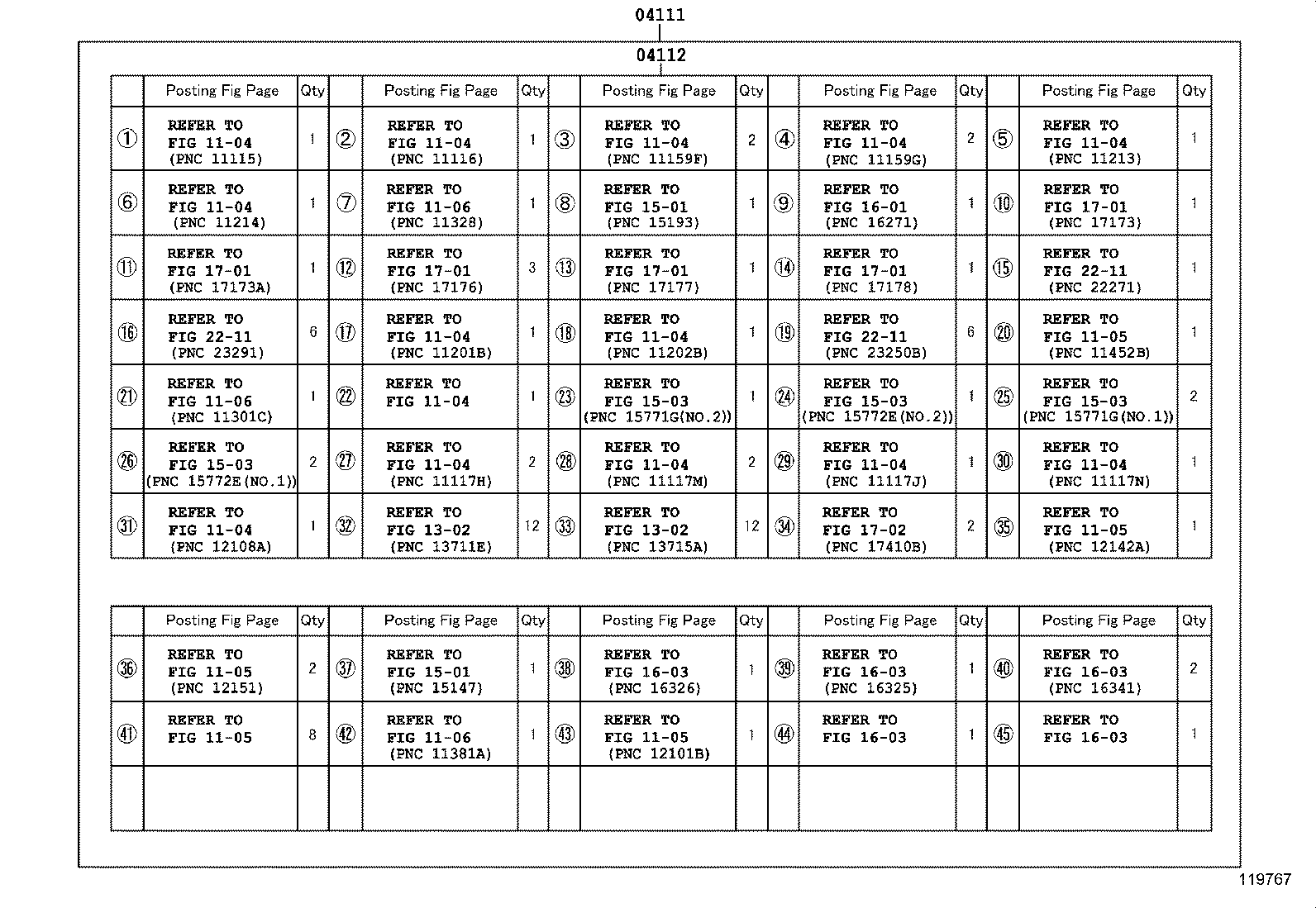

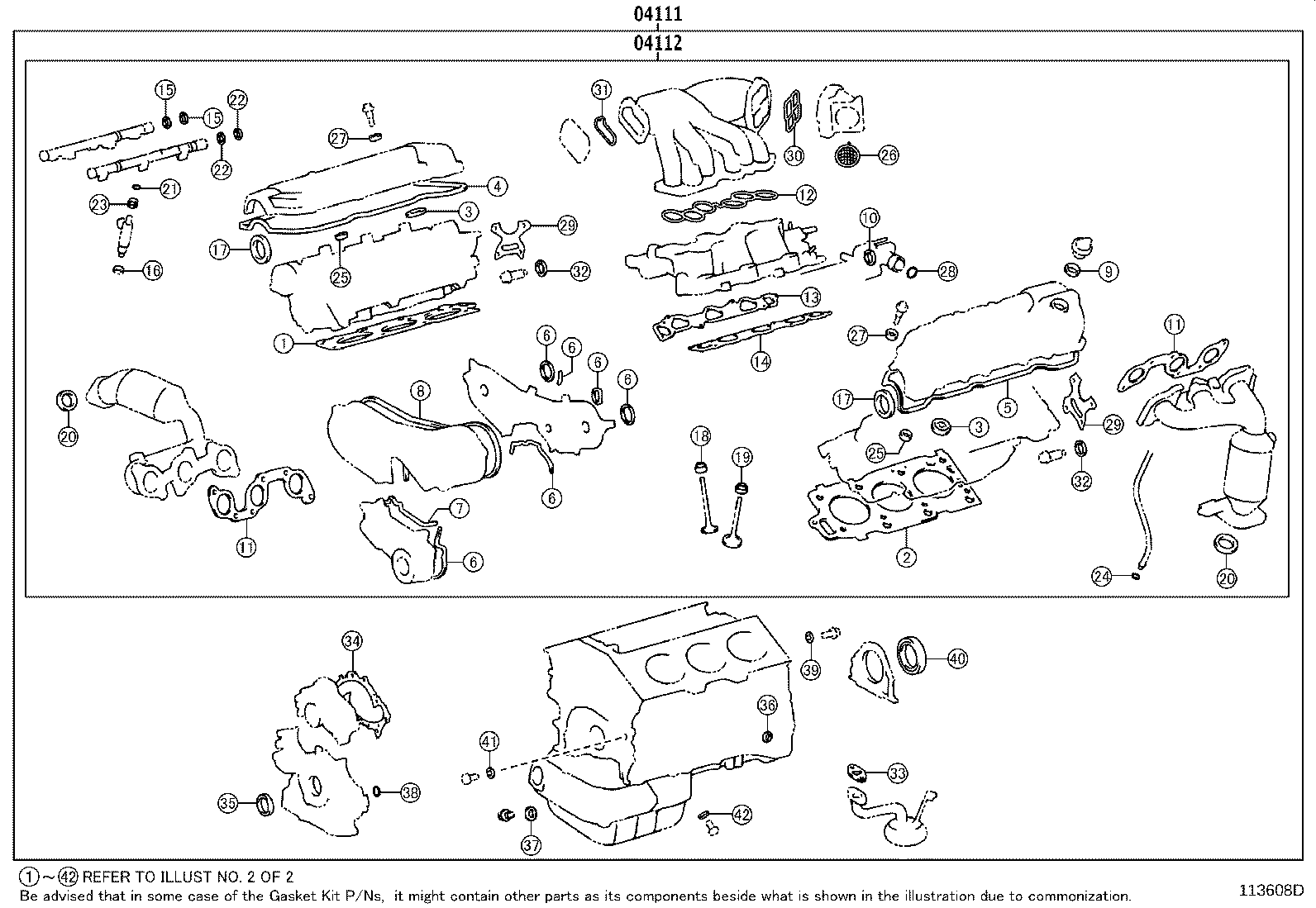

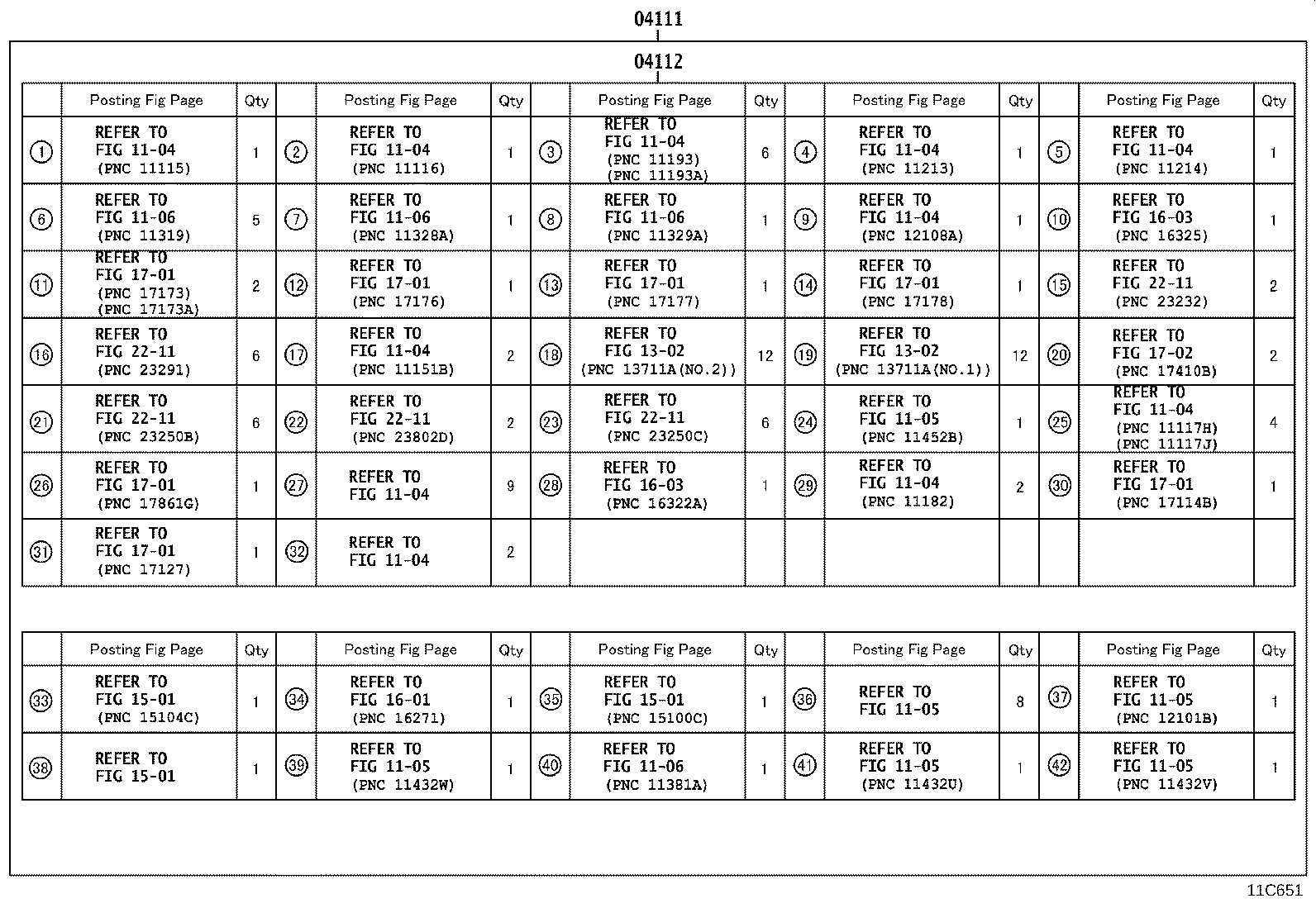

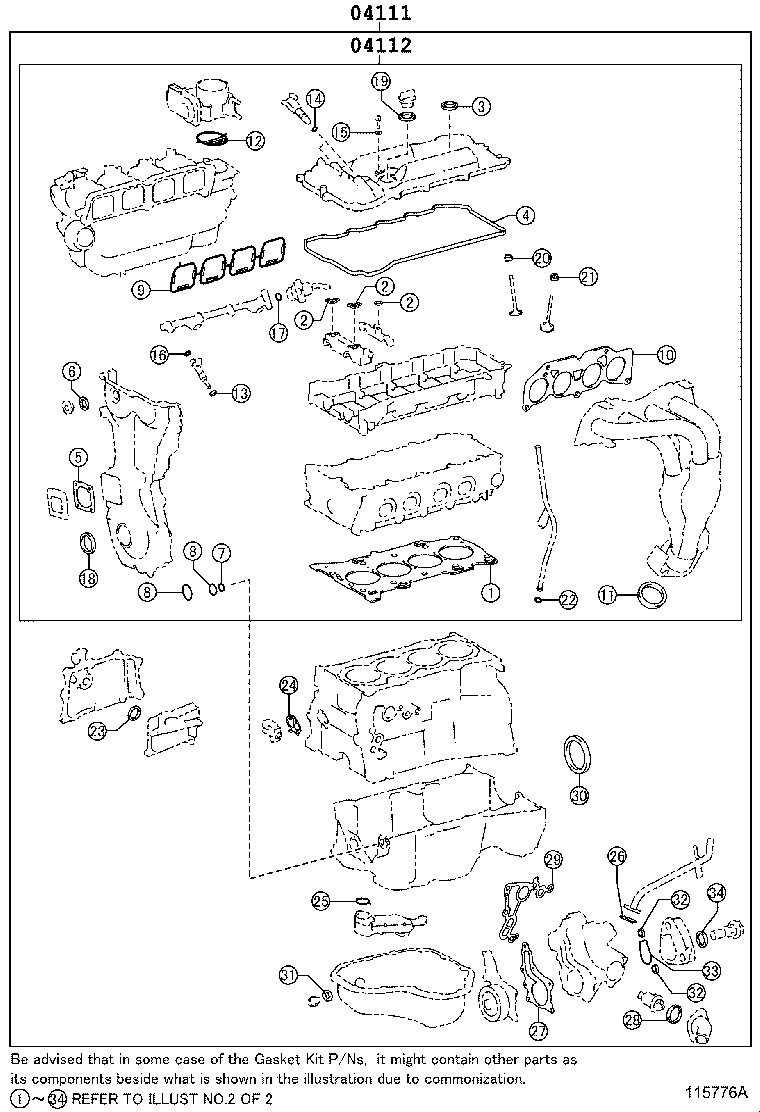

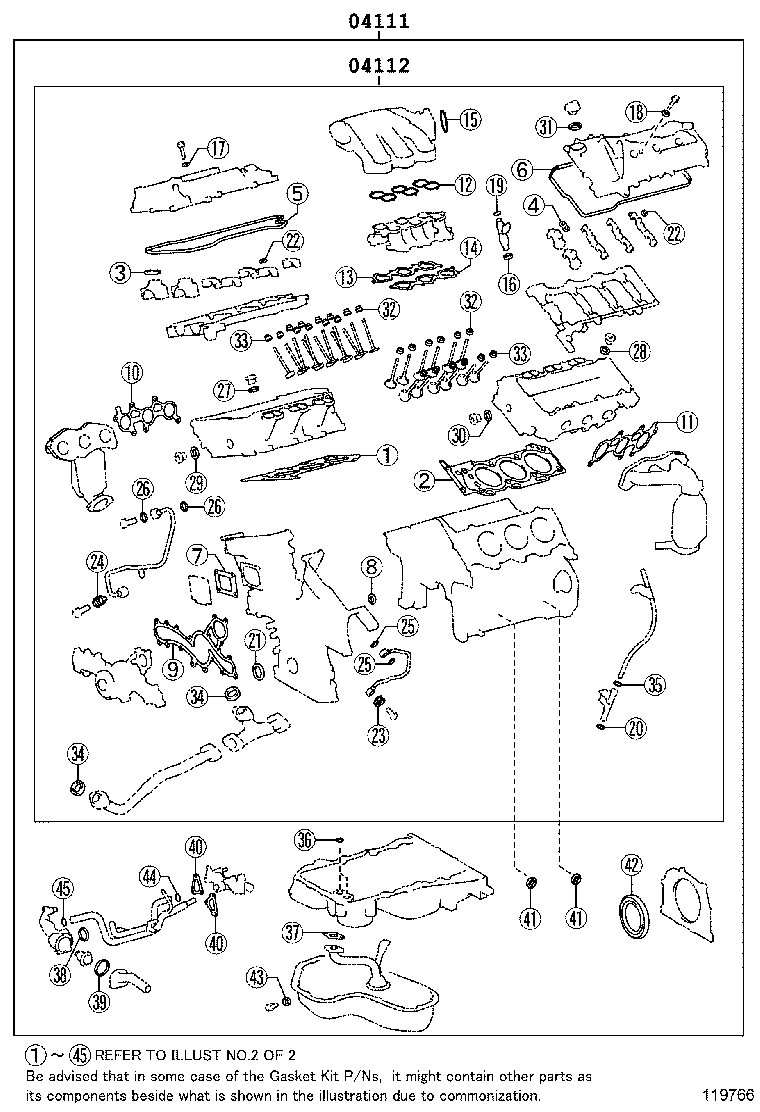

Figure 115775A 115775A 2008-11 → — Figure 11B363 11B363 2008-11 → — Figure 115776A 115776A 2008-11 → — Figure 11B364 11B364 2008-11 → — Figure 119766 119766 2007-05 → 2010-08 Figure 119767 119767 2007-05 → 2010-08 Figure 119764 119764 2007-05 → 2010-08 Figure 119765 119765 2007-05 → 2010-08 Figure 119762 119762 2010-08 → — Figure 119763 119763 2010-08 → — Figure 119760 119760 2011-07 → — Figure 119761 119761 2011-07 → — Figure 113608D 113608D 2007-08 → — Figure 11C651 11C651 2007-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
