Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

21 part groups · 5 illustrations

Illustrations

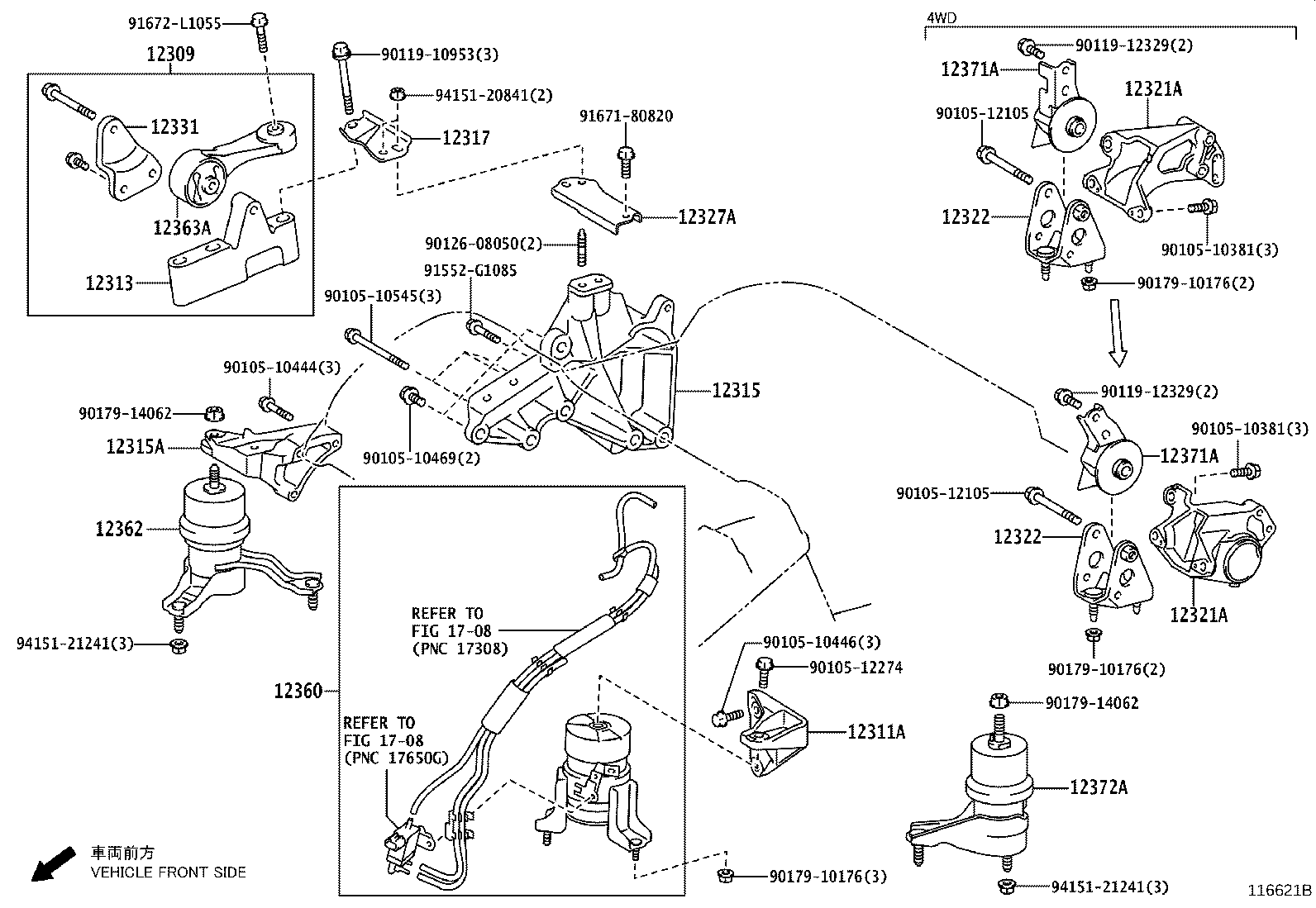

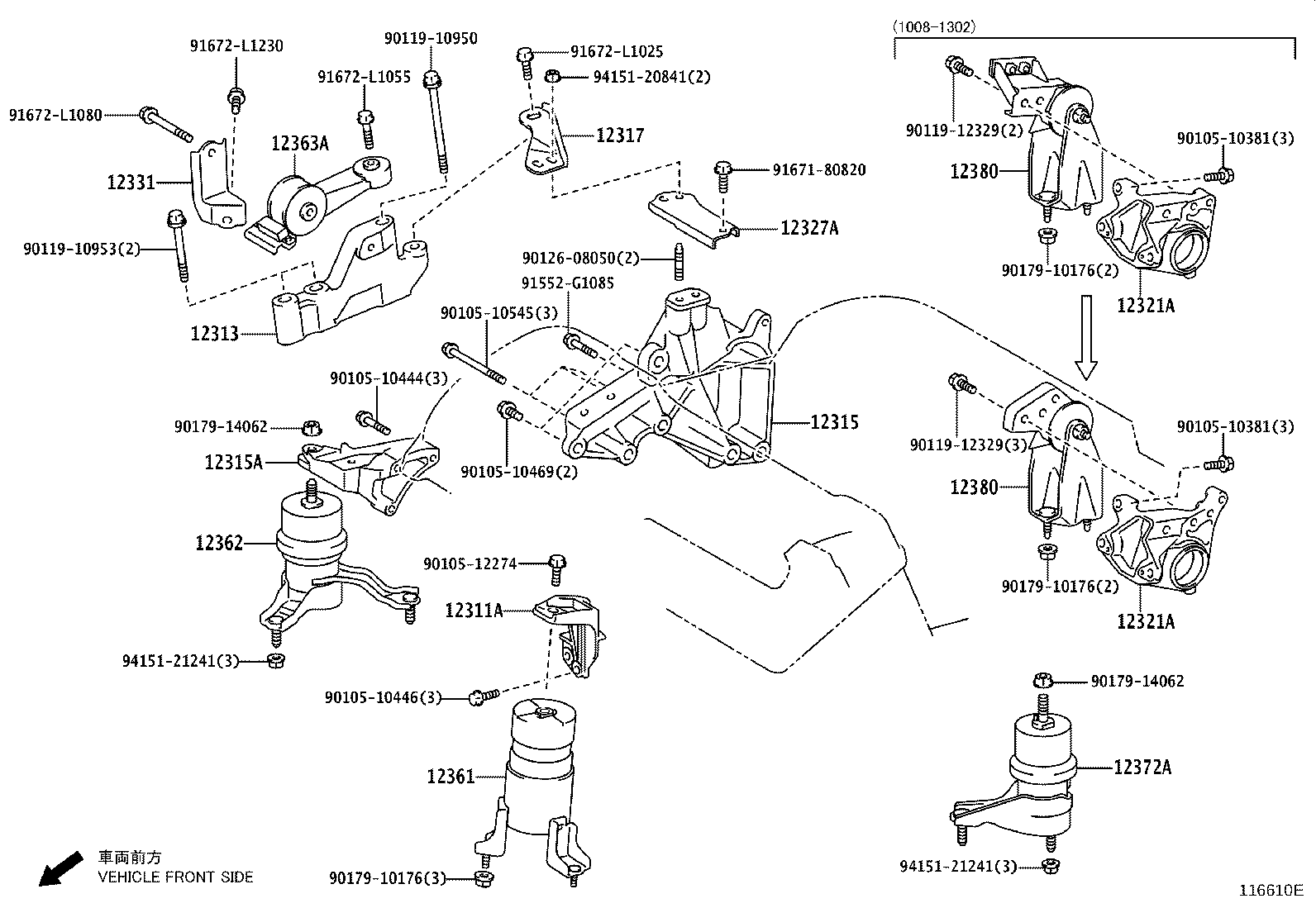

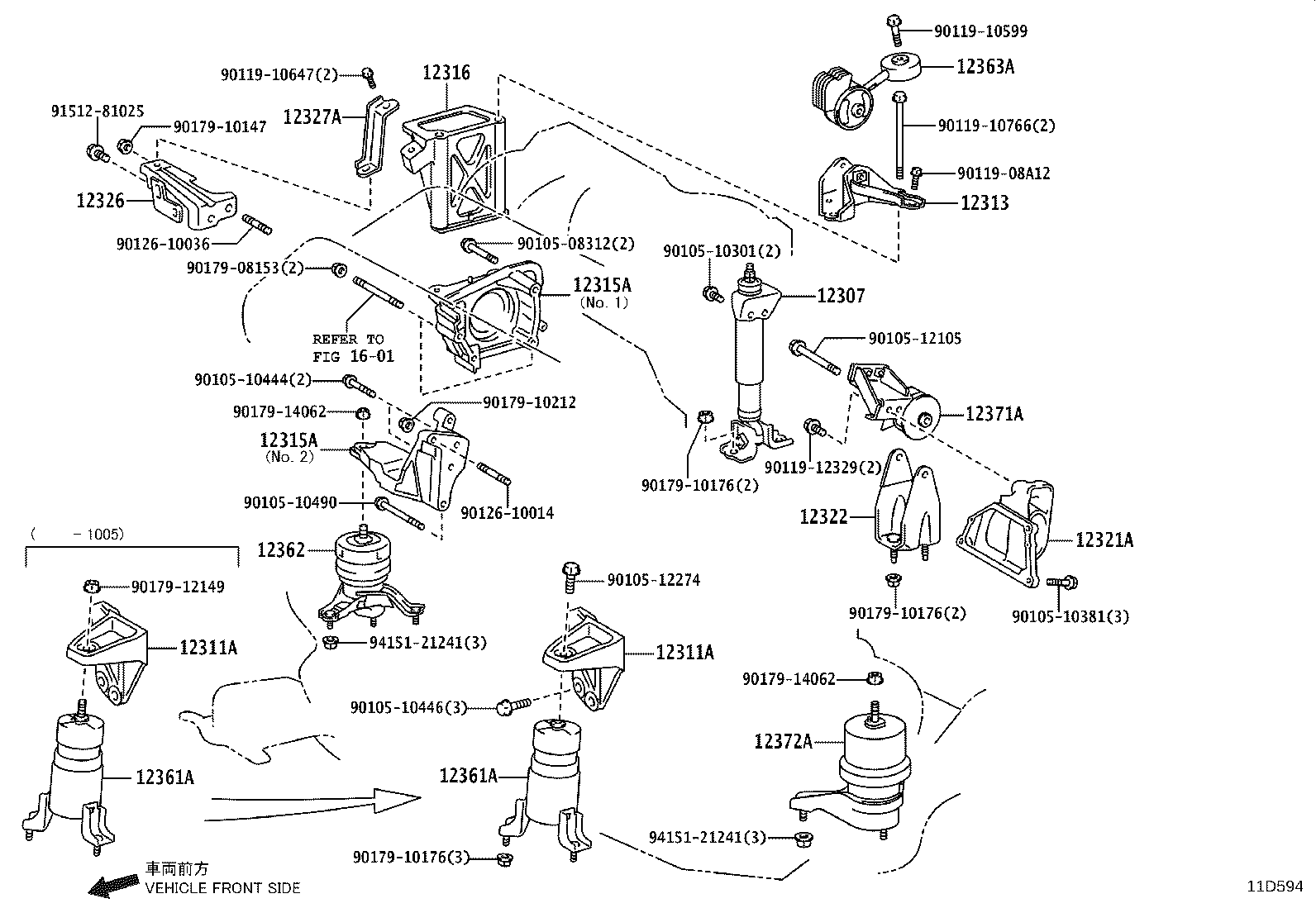

Figure 115766E 115766E 2008-11 → — Figure 116620B 116620B 2007-05 → 2010-05 Figure 116621B 116621B 2010-05 → 2010-08 Figure 116610E 116610E 2010-08 → — Figure 11D594 11D594 2007-08 → —

Part groups

PNCDescription
12307 Absorber Sub-assy, Engine Mounting
12309 Rod Sub-assy, Engine Moving Control
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12317 Stay, Engine Mounting, RH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12326 Bracket, Engine Mounting Stay
12327A Stay, Engine Mounting, NO.2 RH
12331 Stay, Engine Mounting, NO.3 RH
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363A Rod, Engine Moving Control
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12380 Insulator Assy, Engine Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
