Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

22 part groups · 5 illustrations

Illustrations

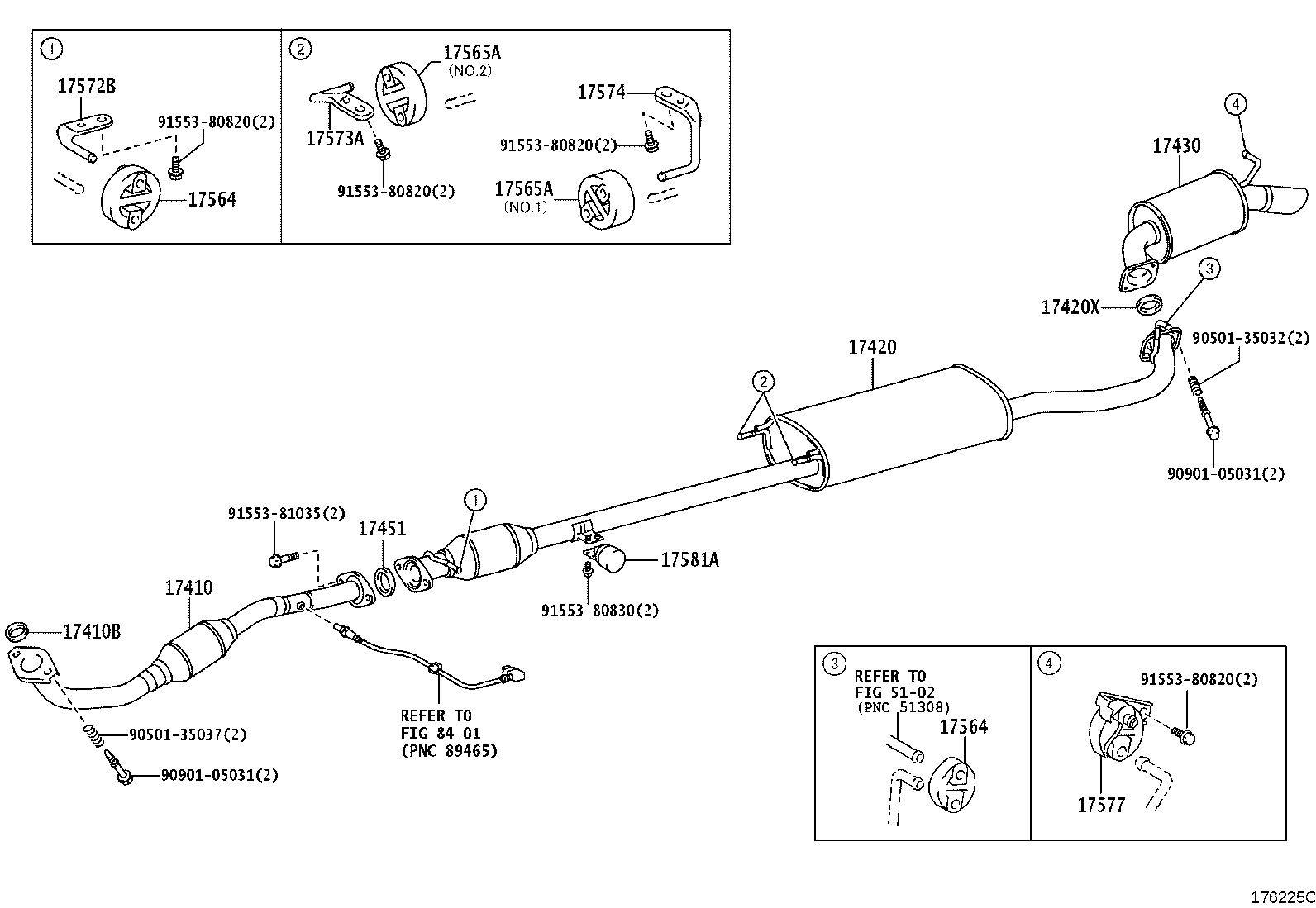

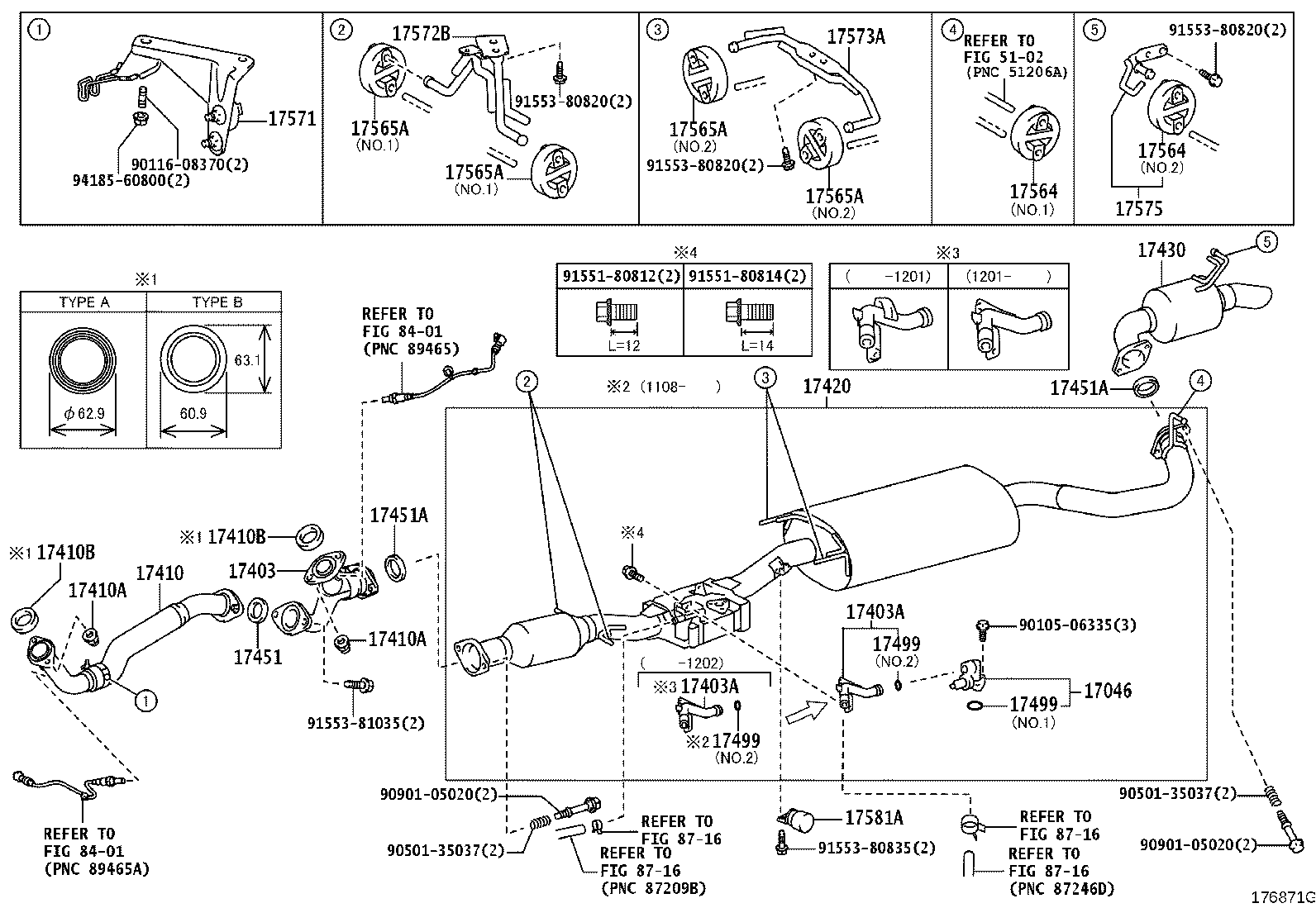

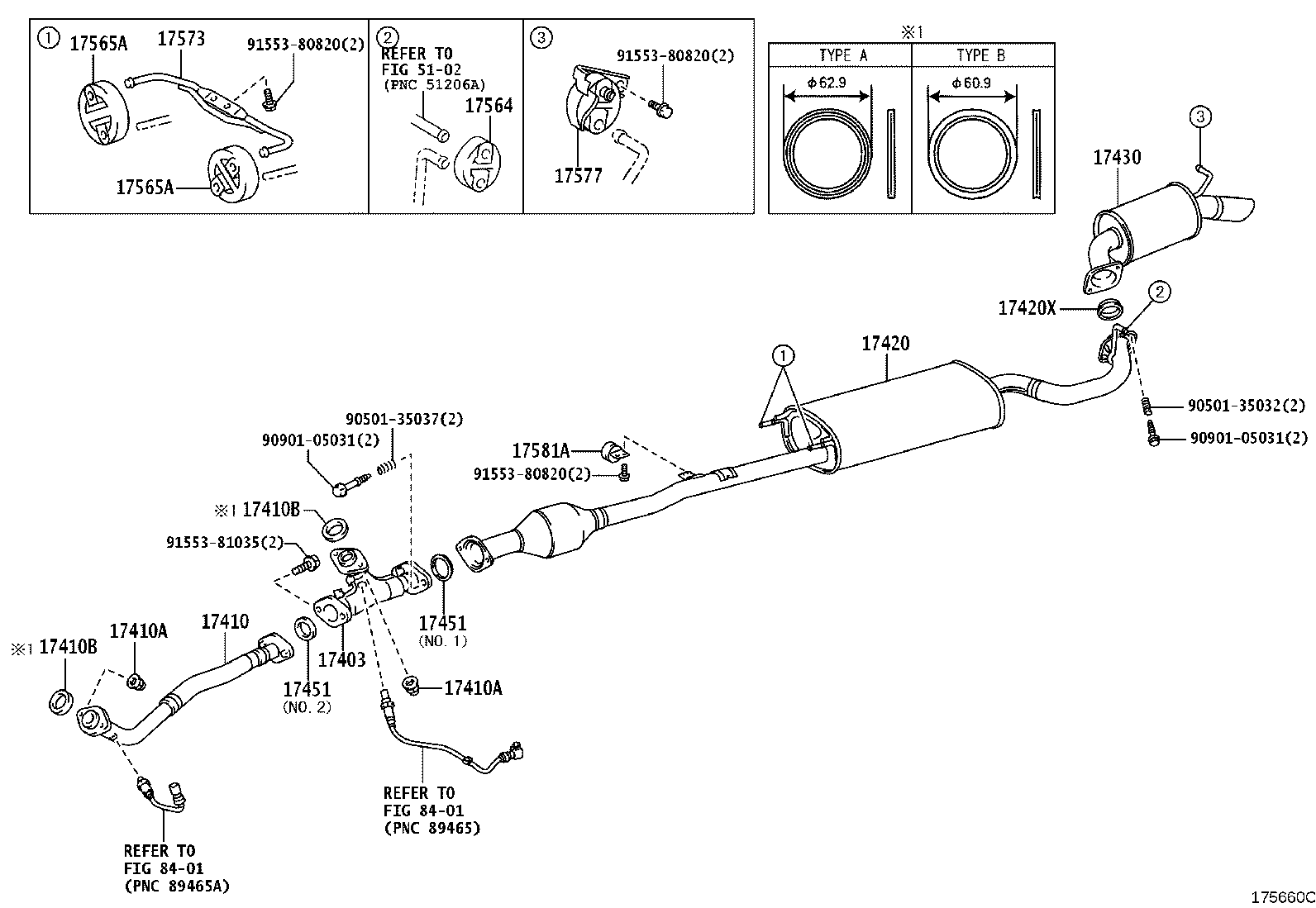

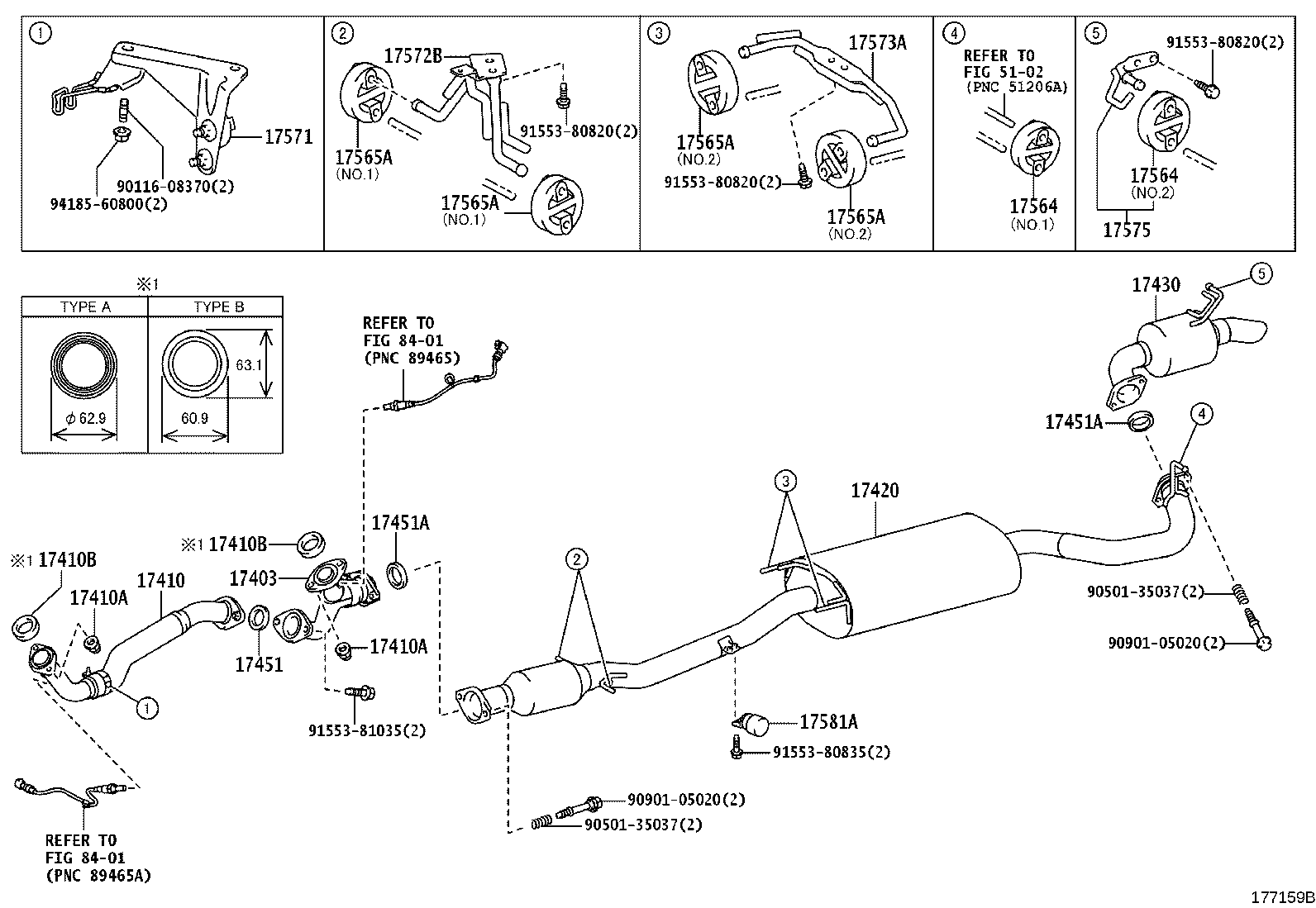

Figure 175541E 175541E 2007-05 → — Figure 175660C 175660C 2007-08 → — Figure 176225C 176225C 2008-11 → — Figure 176871G 176871G 2010-08 → — Figure 177159B 177159B 2011-07 → —

Part groups

PNCDescription
17046 Actuator Sub-assy, Exhaust Pipe Gas Control
17403 Pipe Sub-assy, Exhaust, Front NO.3
17403A Pipe Sub-assy, Exhaust, Center NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17499 Gasket, Exhaust Pipe Gas Control Actuator
17564 Support,Exhaust Pipe, NO.4
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17577 Bracket, Exhaust Pipe Support, NO.7
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
