Toyota Highlander (JPP)
2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States
Supported model
Data version 2014-08

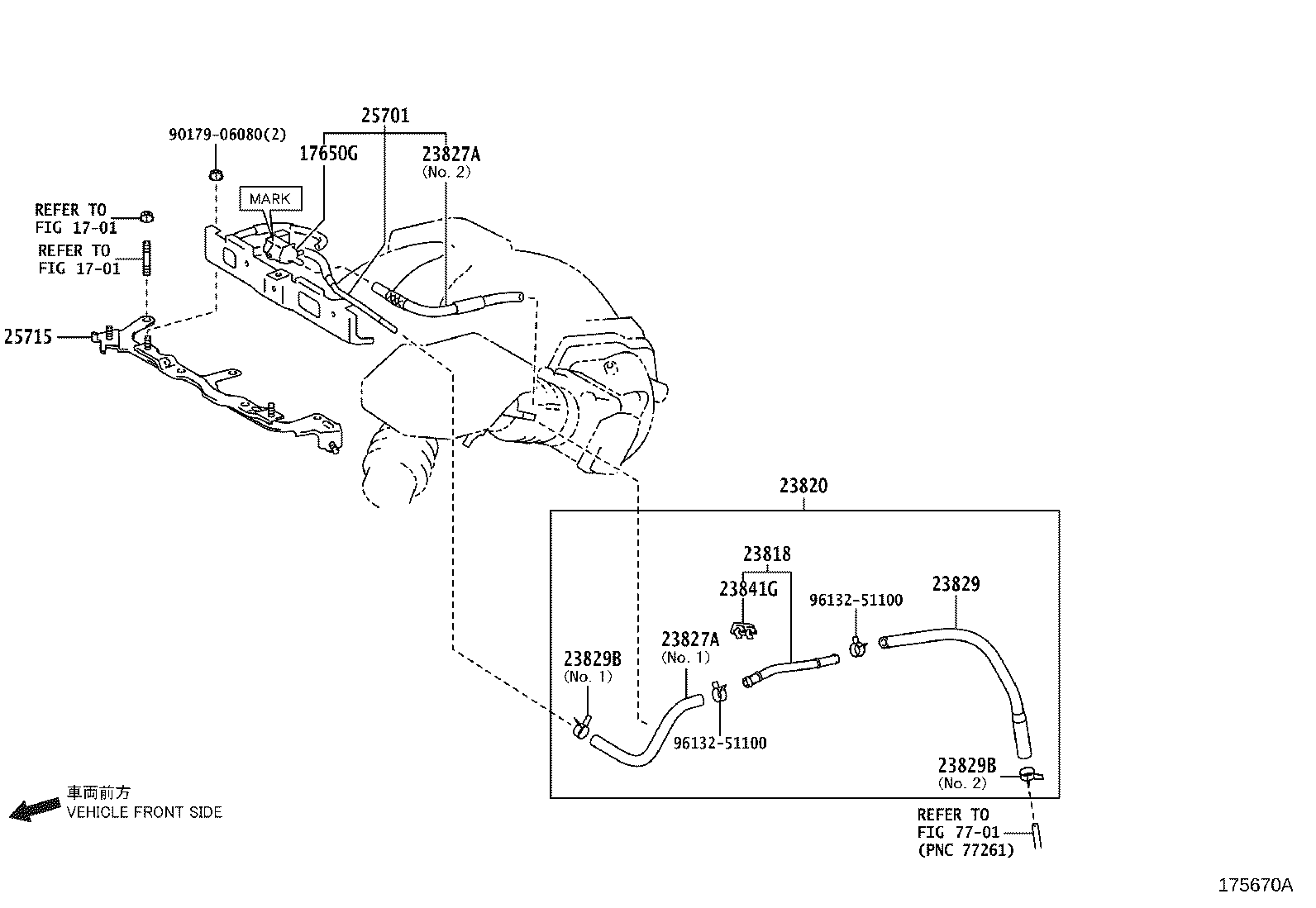

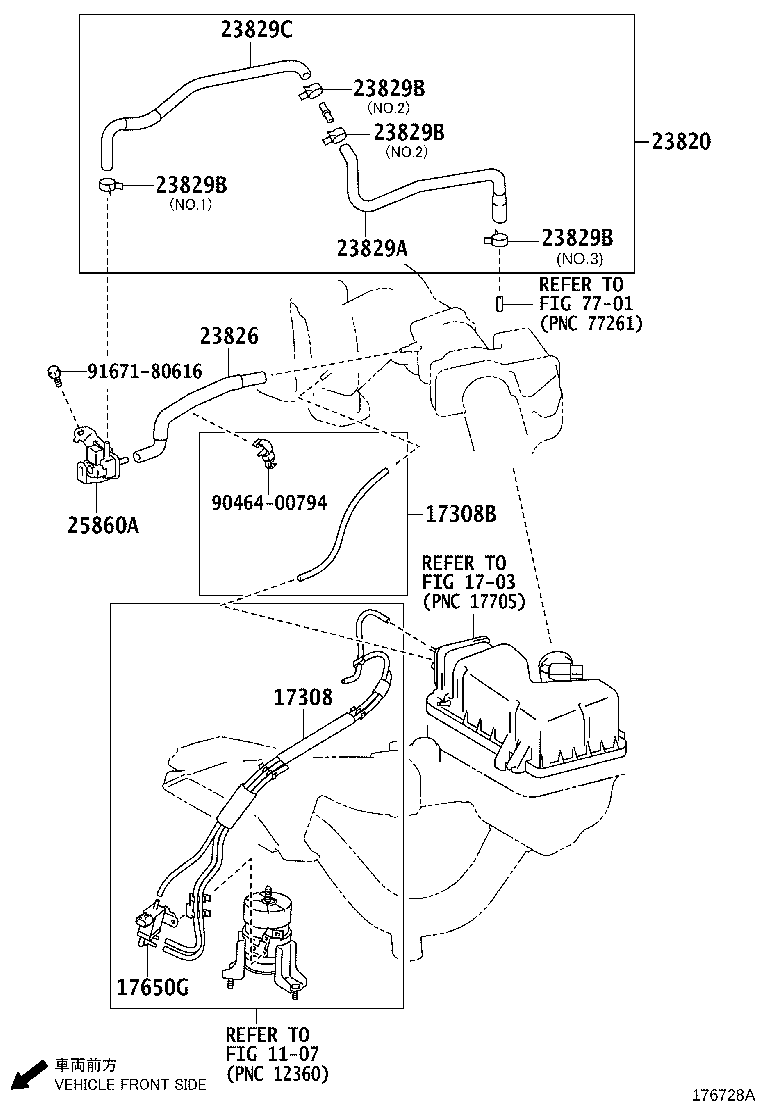

Vacuum Piping
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17308B | Hose Sub-assy, Vacuum |
| 17340 | Hose Assy, Vacuum Switching Valve |
| 17341T | Hose, Air, NO.1 |
| 17342L | Hose, Air, NO.2 |
| 17343F | Hose, Air, NO.3 |
| 17578B | Clamp, Pipe |
| 17650 | Valve Assy, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23285A | Valve, Check, NO.1 |
| 23818 | Pipe, Fuel Vapor Feed |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829 | Hose, Fuel Vapor Feed, NO.3 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23829C | Hose, Fuel Vapor Feed, NO.2 |
| 23841G | Clamp, Fuel Hose |
| 23849E | Support, Fuel Hose Clamp |
| 25701 | Valve Set, Emission Control |
| 25715 | Bracket, Emission Control Valve |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860A | Valve, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
