Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 2 illustrations

Illustrations

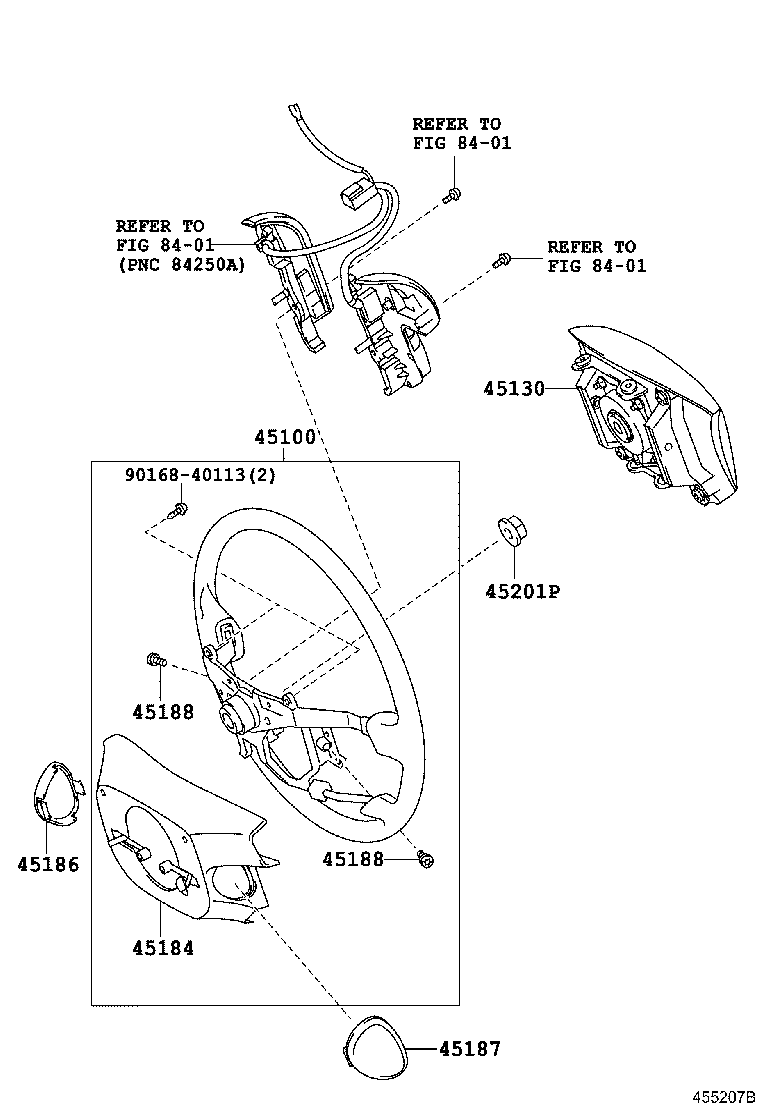

Figure 454918D 454918D 2007-05 → — Figure 455207B 455207B 2007-05 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
