Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

36 part groups · 4 illustrations

Illustrations

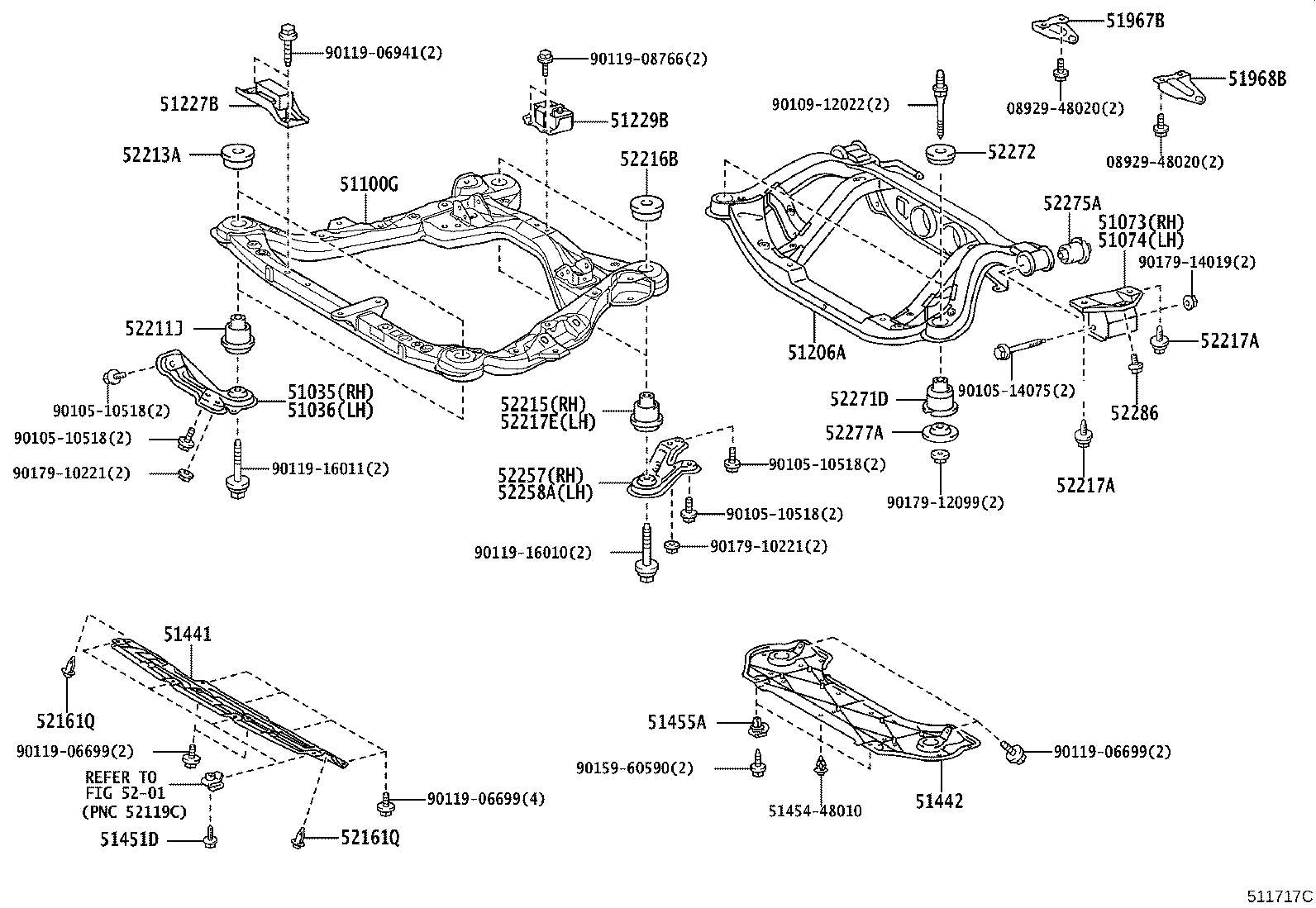

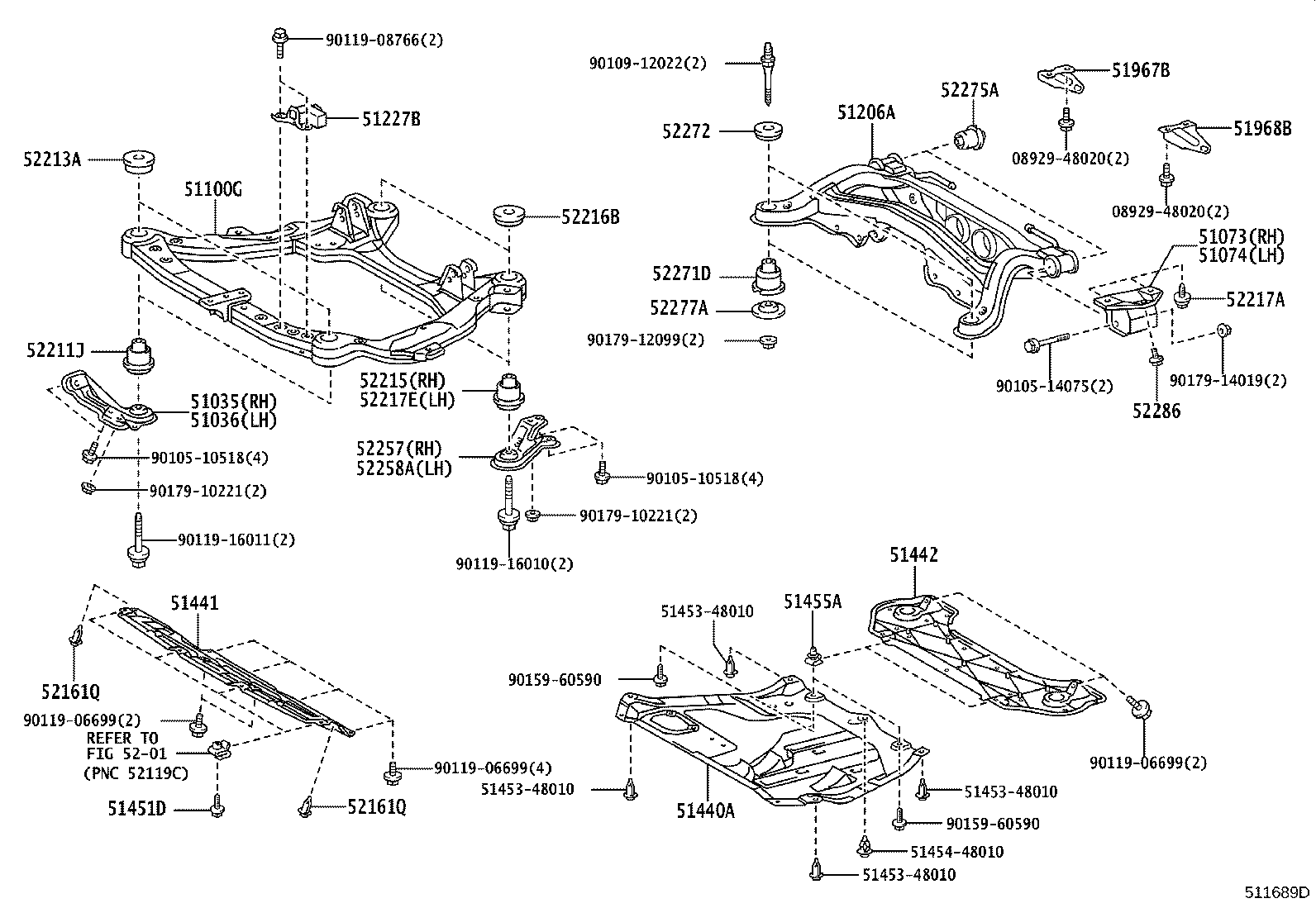

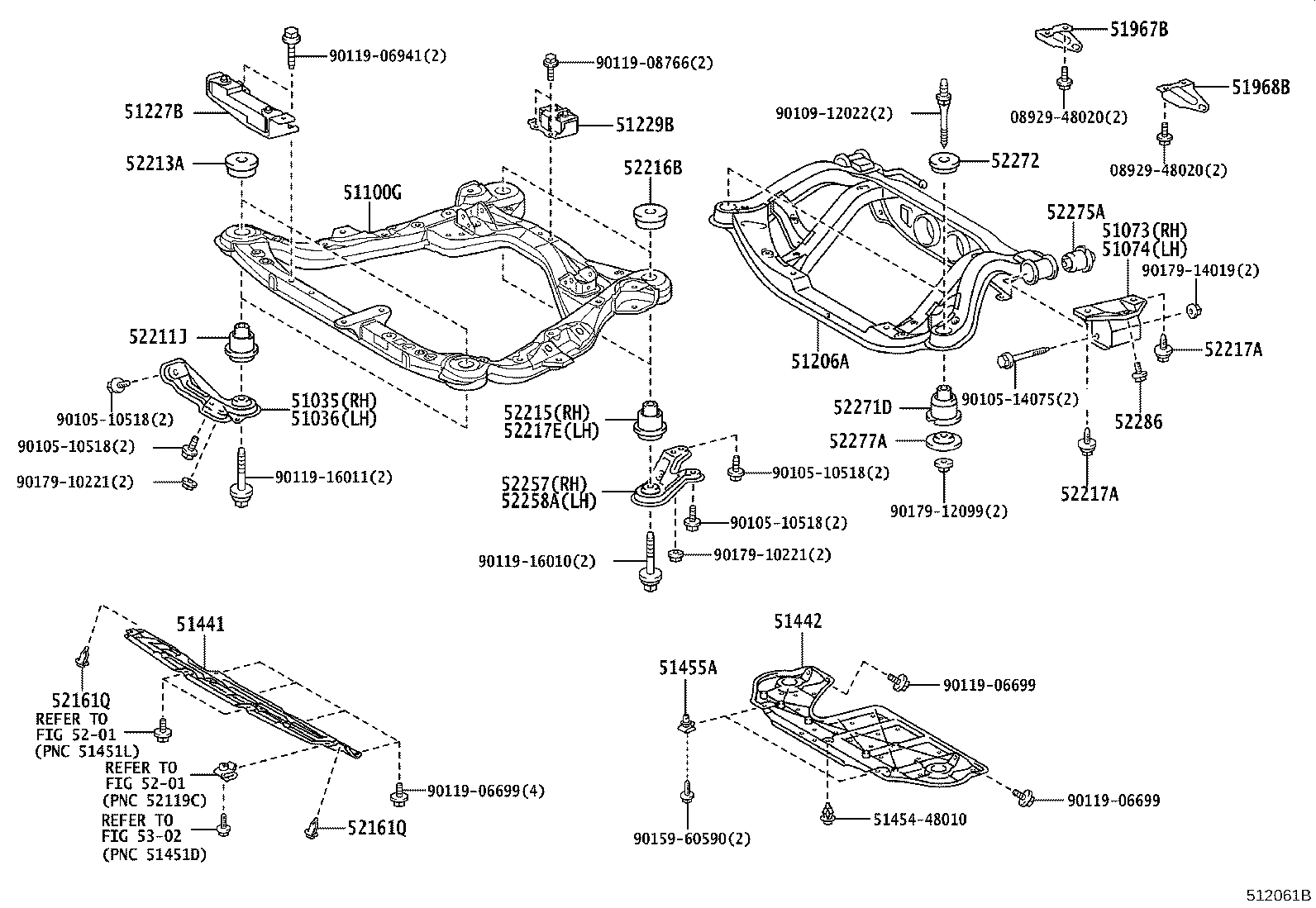

Figure 511693D 511693D 2007-05 → 2010-07 Figure 511689D 511689D 2007-05 → 2010-07 Figure 511717C 511717C 2007-08 → 2010-08 Figure 512061B 512061B 2010-08 → —

Part groups

PNCDescription
51035 Plate Sub-assy, Frame Side Rail, RH
51036 Plate Sub-assy, Frame Side Rail, LH
51073 Bracket Sub-assy, Rear Body Mounting, NO.2 RH
51074 Bracket Sub-assy, Rear Body Mounting, NO.2 LH
51100G Frame Assy, Front
51206A Member Sub-assy, Rear Suspension
51227B Damper, Front Suspension Member Dynamic
51229B Dumper, NO.2 Frame Crossmember Dynamic
51308 Bracket Sub-assy, Exhaust Pipe Clamp
51440A Cover Assy, Engine Under
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51451D Screw, NO.1
51455A Seal, Engine Under Cover, NO.1
51456A Seal, Engine Under Cover, Rear
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
52161Q Piece, Front Bumper
52211J Cushion, Front Suspension Member Body Mounting, Front
52213A Stopper, Front Suspension Member Body Mounting, Front
52215 Cushion, Front Suspension Member Body Mounting, Rear
52216B Stopper, Front Suspension Member Body Mounting, Rear
52217A Bolt, Body Mounting
52217E Cushion, Front Suspension Member Body Mounting, Rear LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52271E Cushion, Rear Suspension Member Body Mounting, Front RH
52272 Stopper, Rear Suspension Member, Upper
52272A Cushion, Rear Suspension Member Body Mounting, Front LH
52273 Stopper, Rear Suspension Member, Lower
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52277A Retainer, Rear Suspension Member Lower Stopper, RH
52286 Bolt, Differential Support Member Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
