Toyota Highlander (JPP)
2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States
Supported model
Data version 2014-08

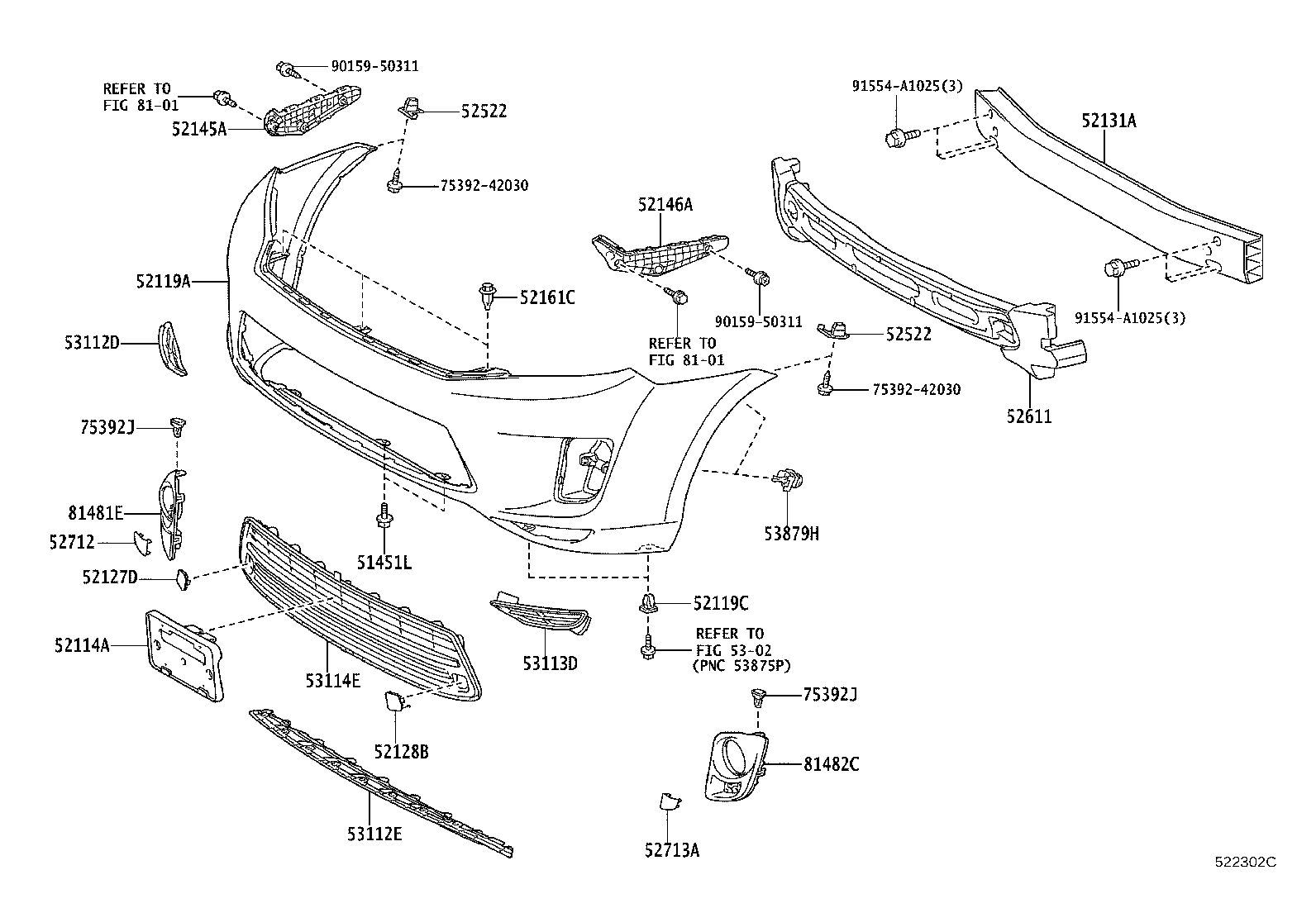

Front Bumper & Bumper Stay
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51451L | Bolt, NO.1 |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52119C | Clip, Front Bumper Cover |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52131A | Reinforcement, Front Bumper |
| 52145A | Stay, Front Bumper, NO.2 RH |
| 52146A | Stay, Front Bumper, NO.2 LH |
| 52161C | Piece, Front Bumper |
| 52522 | Retainer, Front Bumper Upper Side |
| 52611 | Absorber, Front Bumper Energy |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53112D | Grille, Radiator, Lower RH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53113D | Grille, Radiator, Lower LH |
| 53114E | Grille, Radiator, Upper |
| 53879H | Retainer, Front Fender Liner |
| 75392J | Retainer, Outside Moulding |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
