Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

76 part groups · 26 illustrations

Illustrations

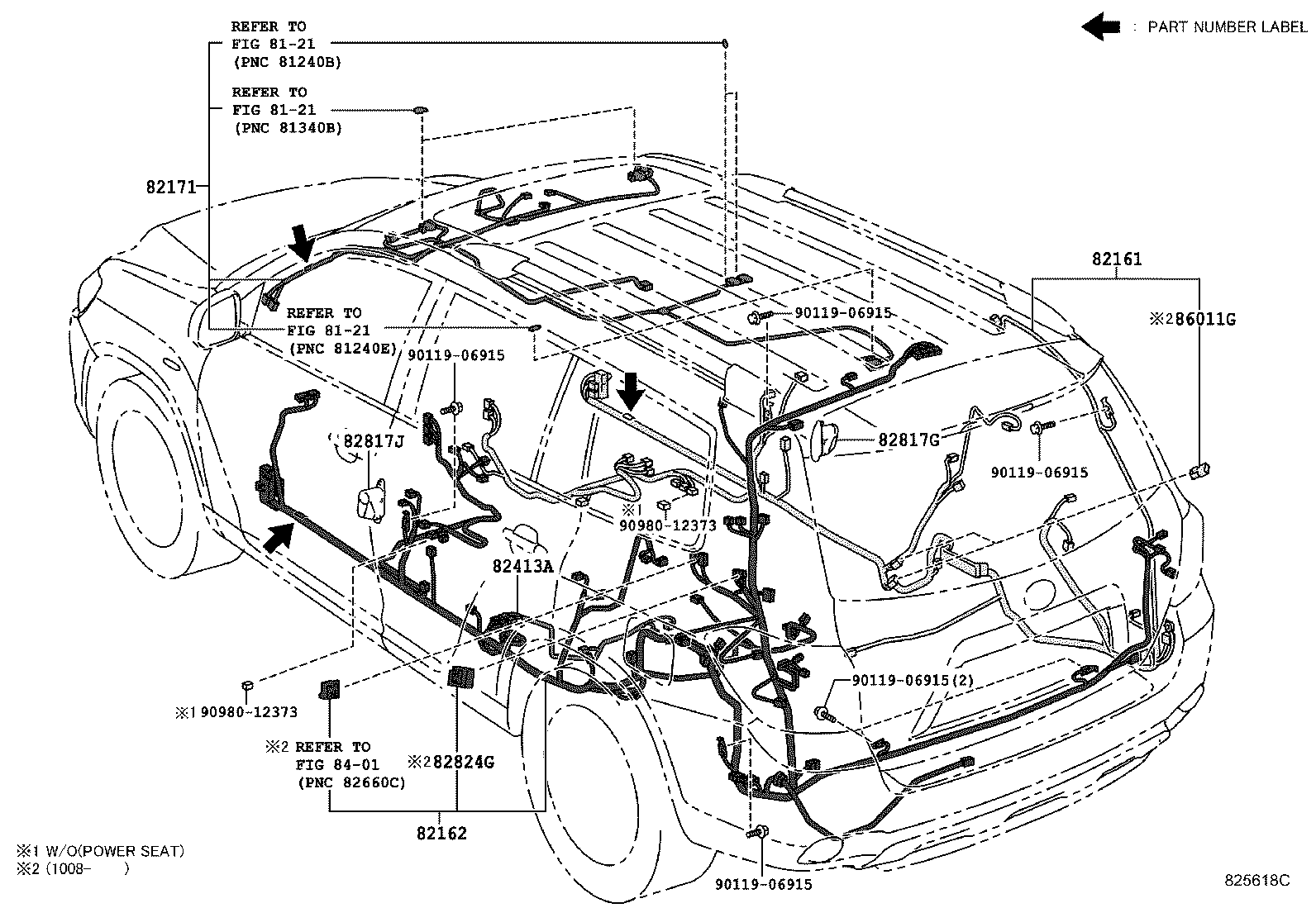

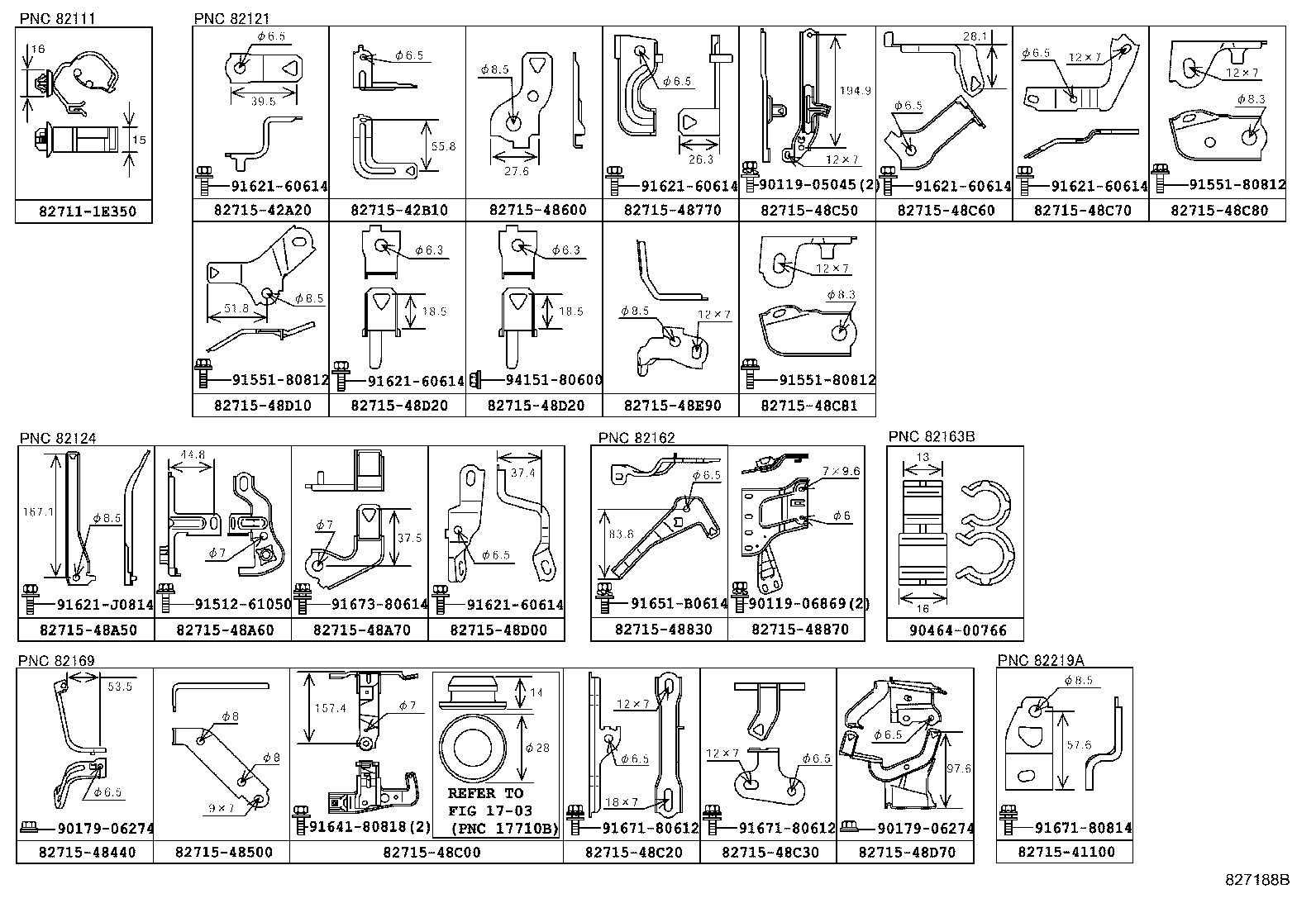

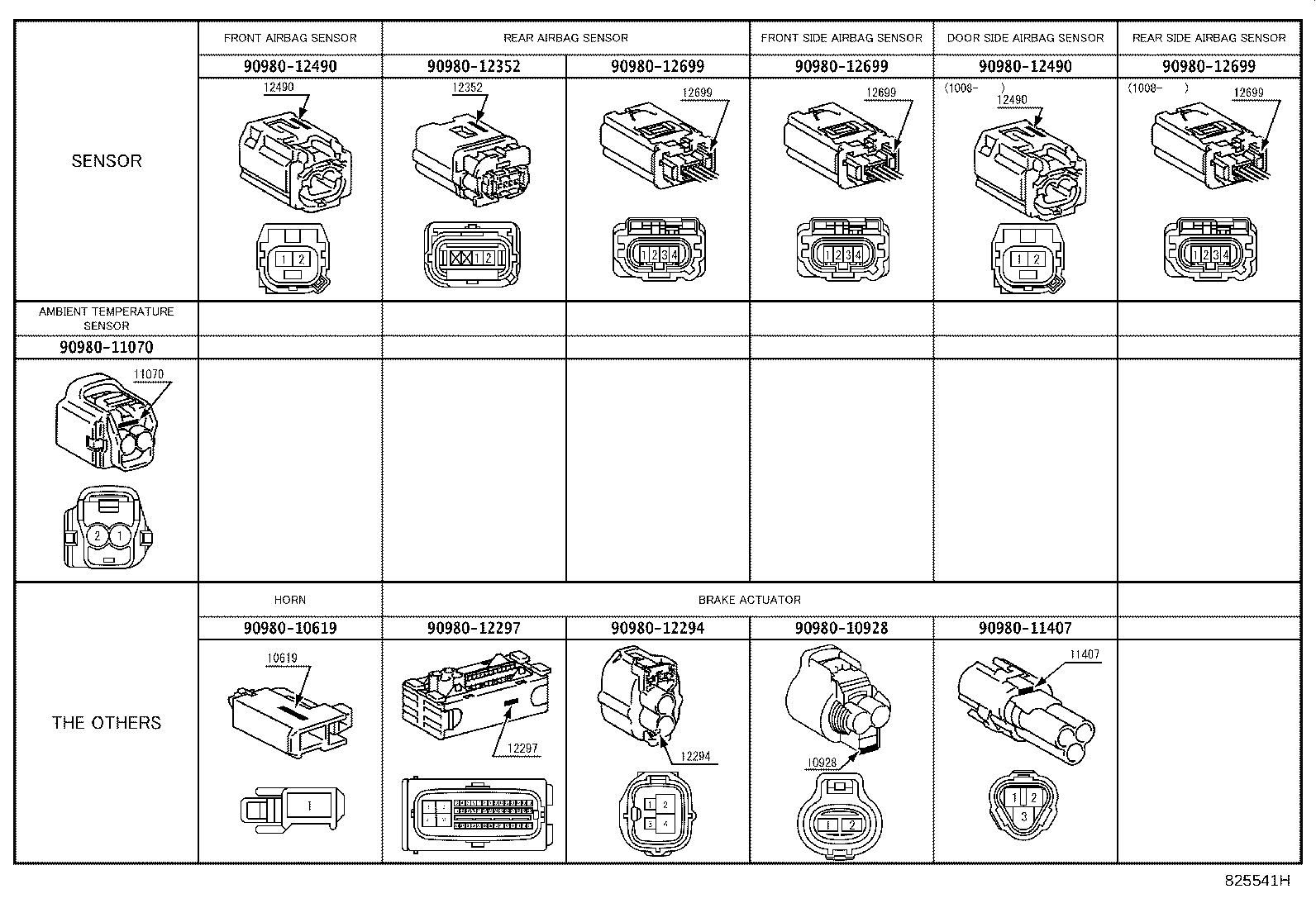

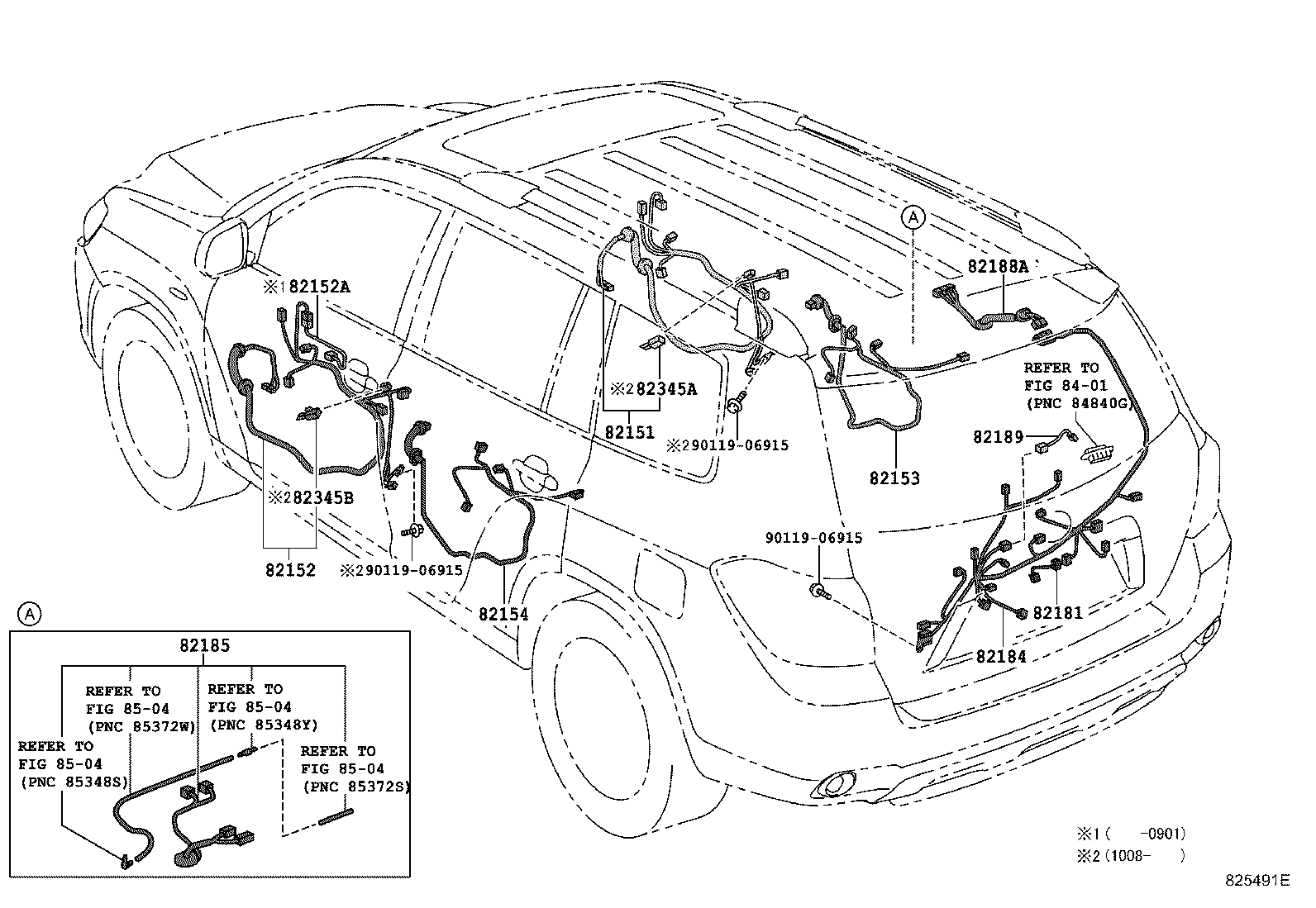

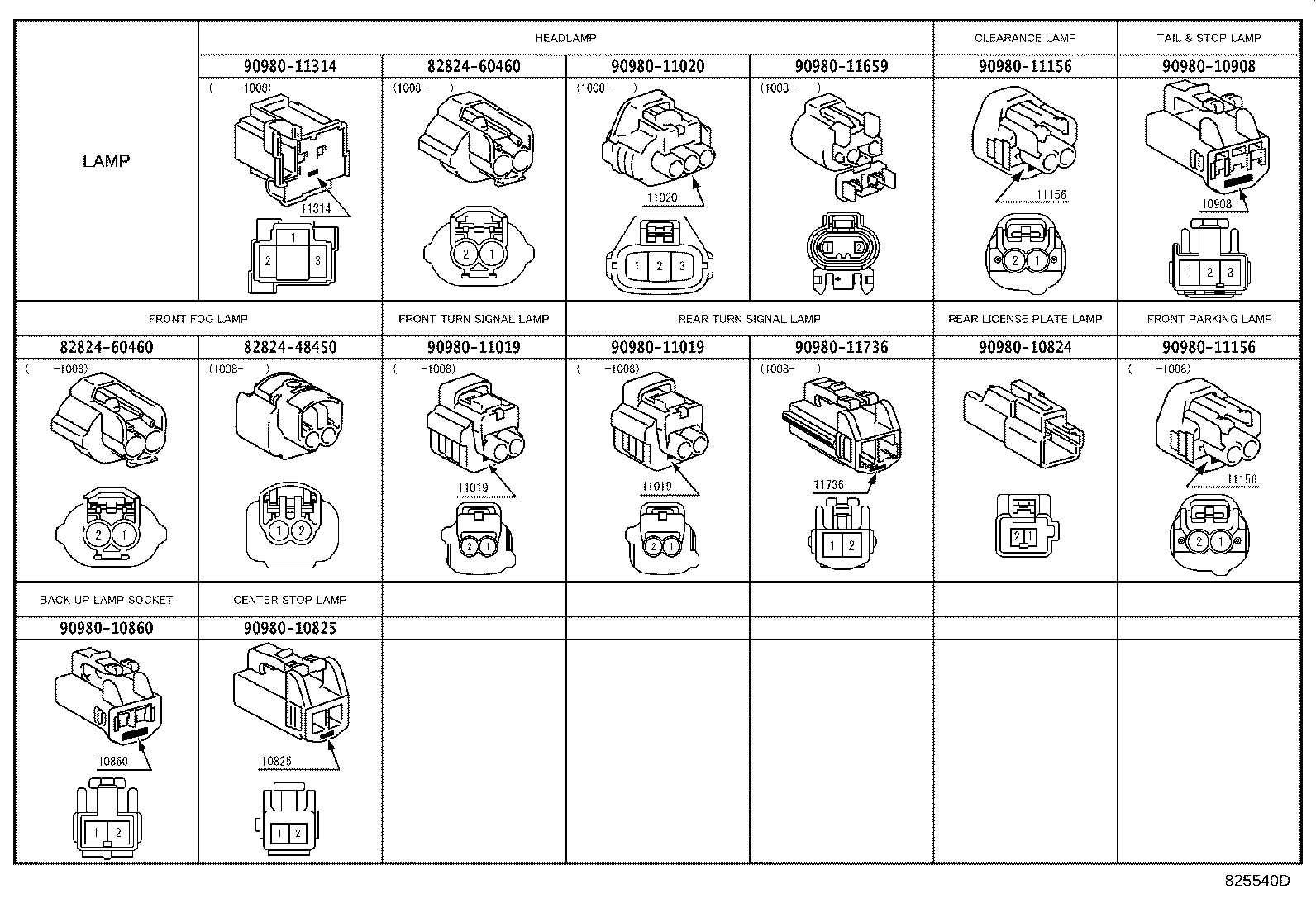

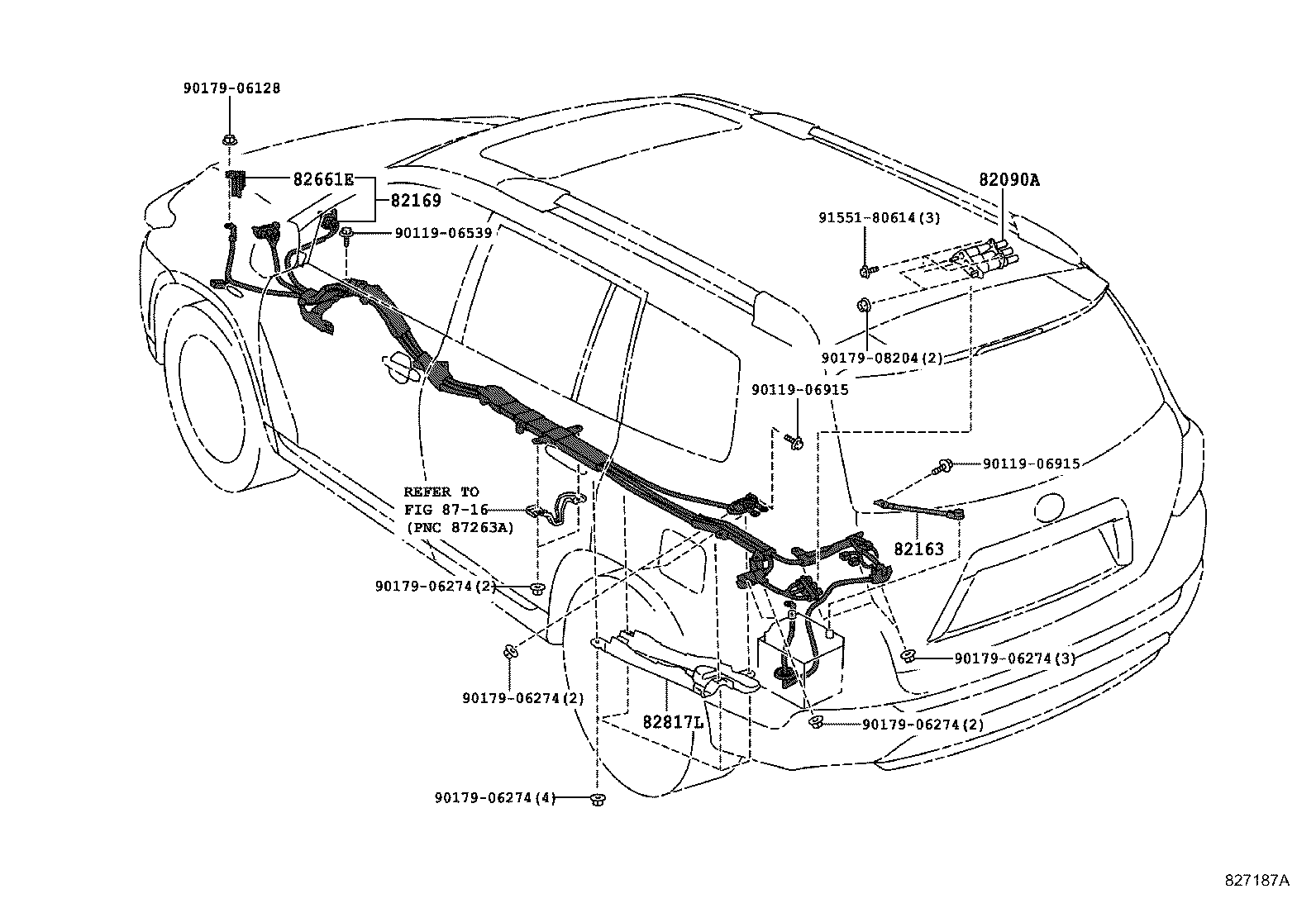

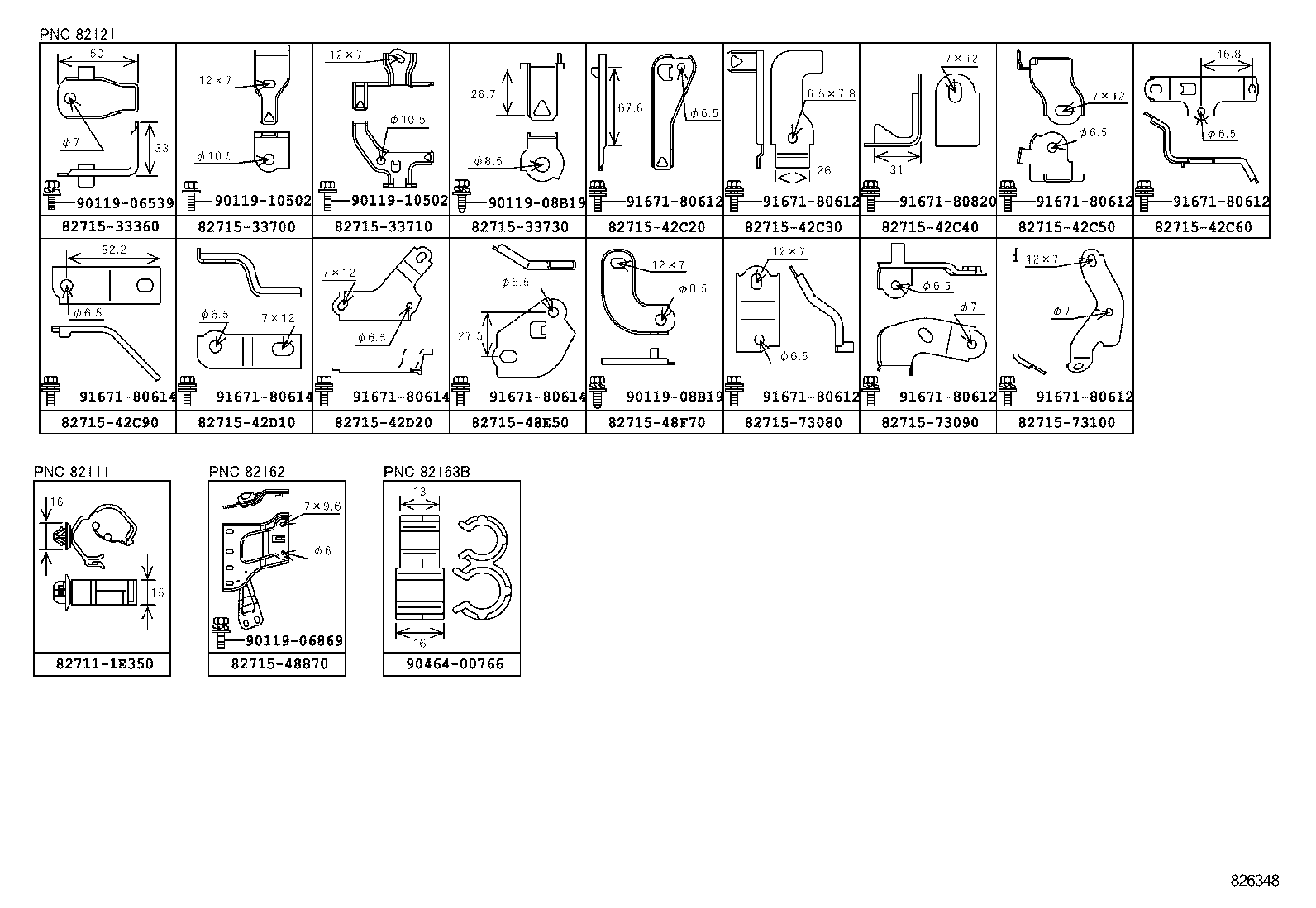

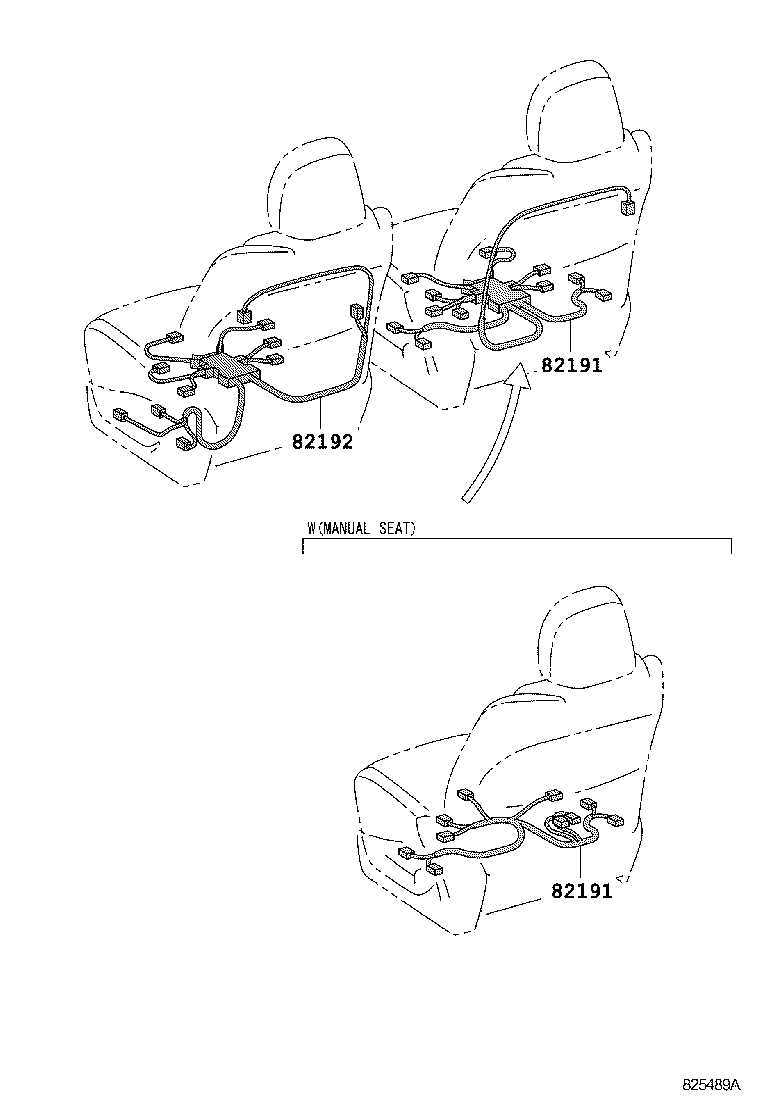

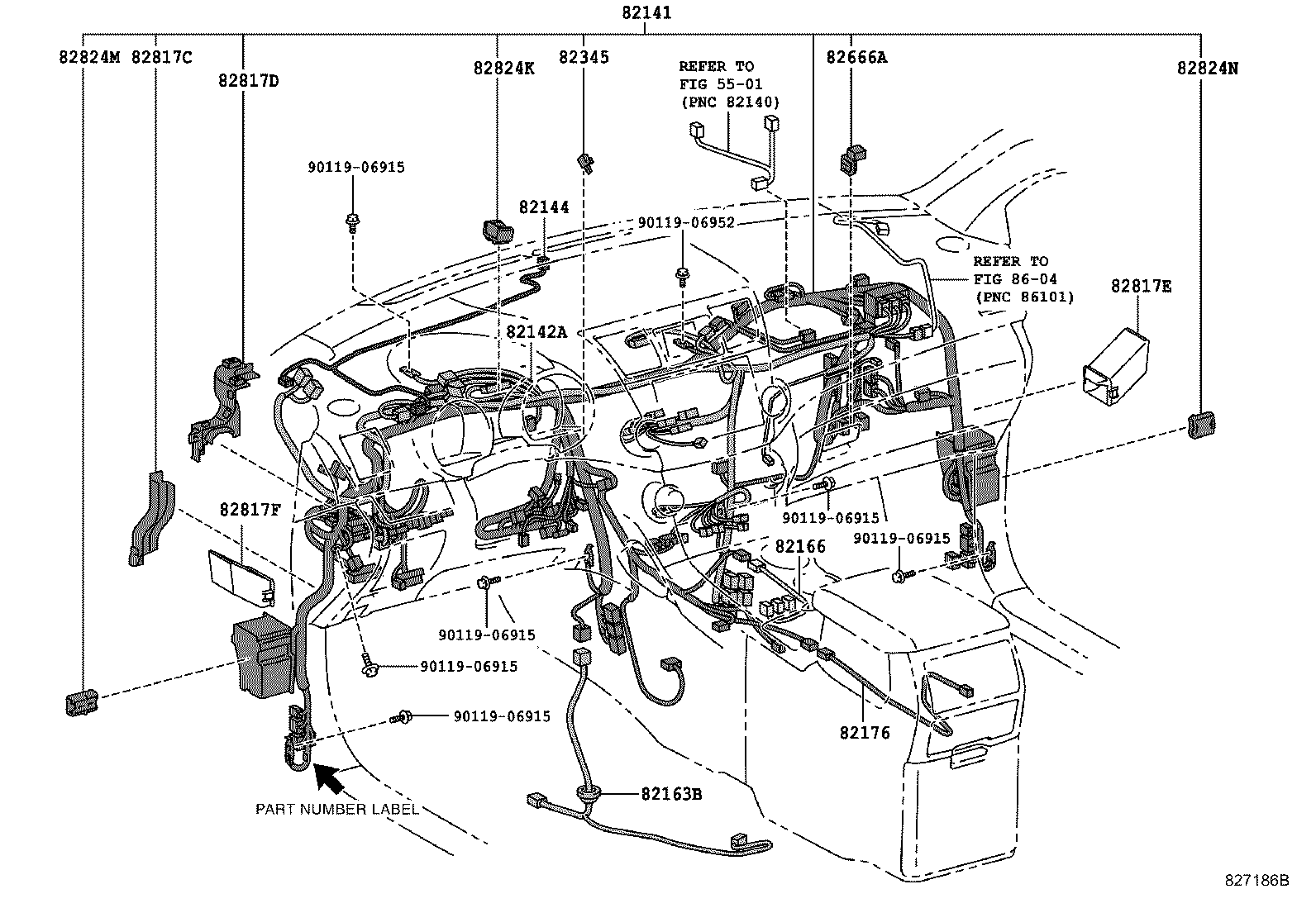

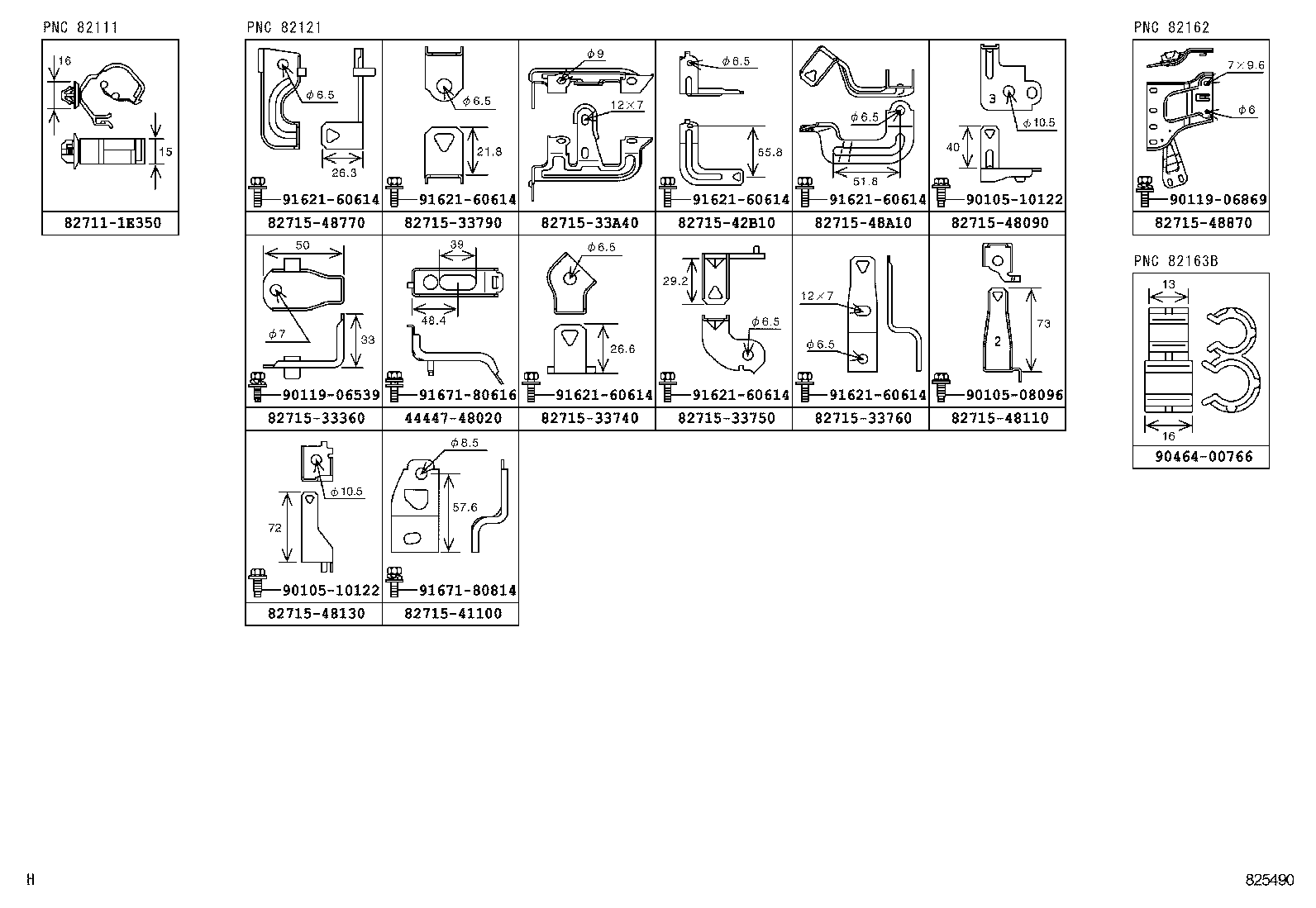

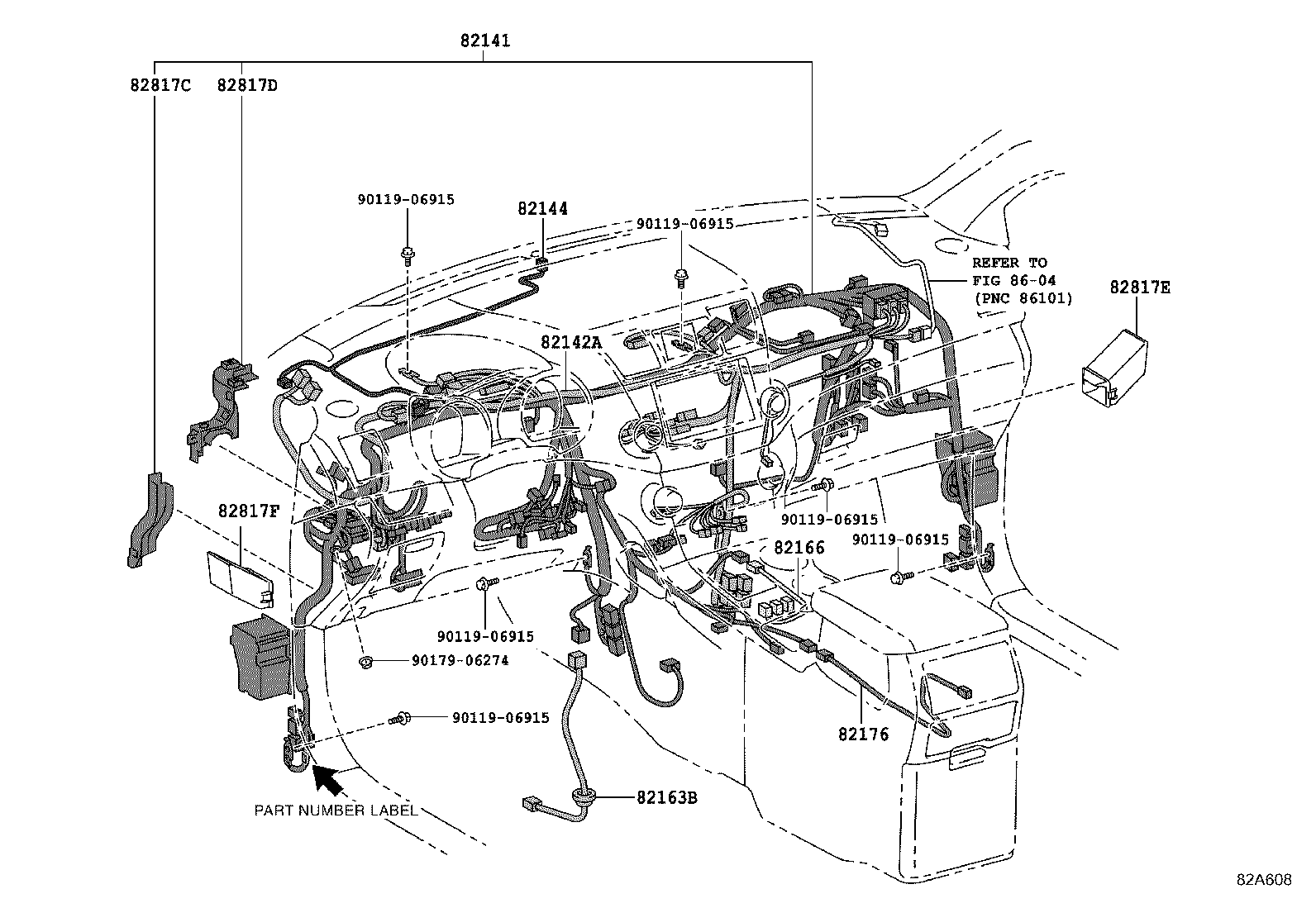

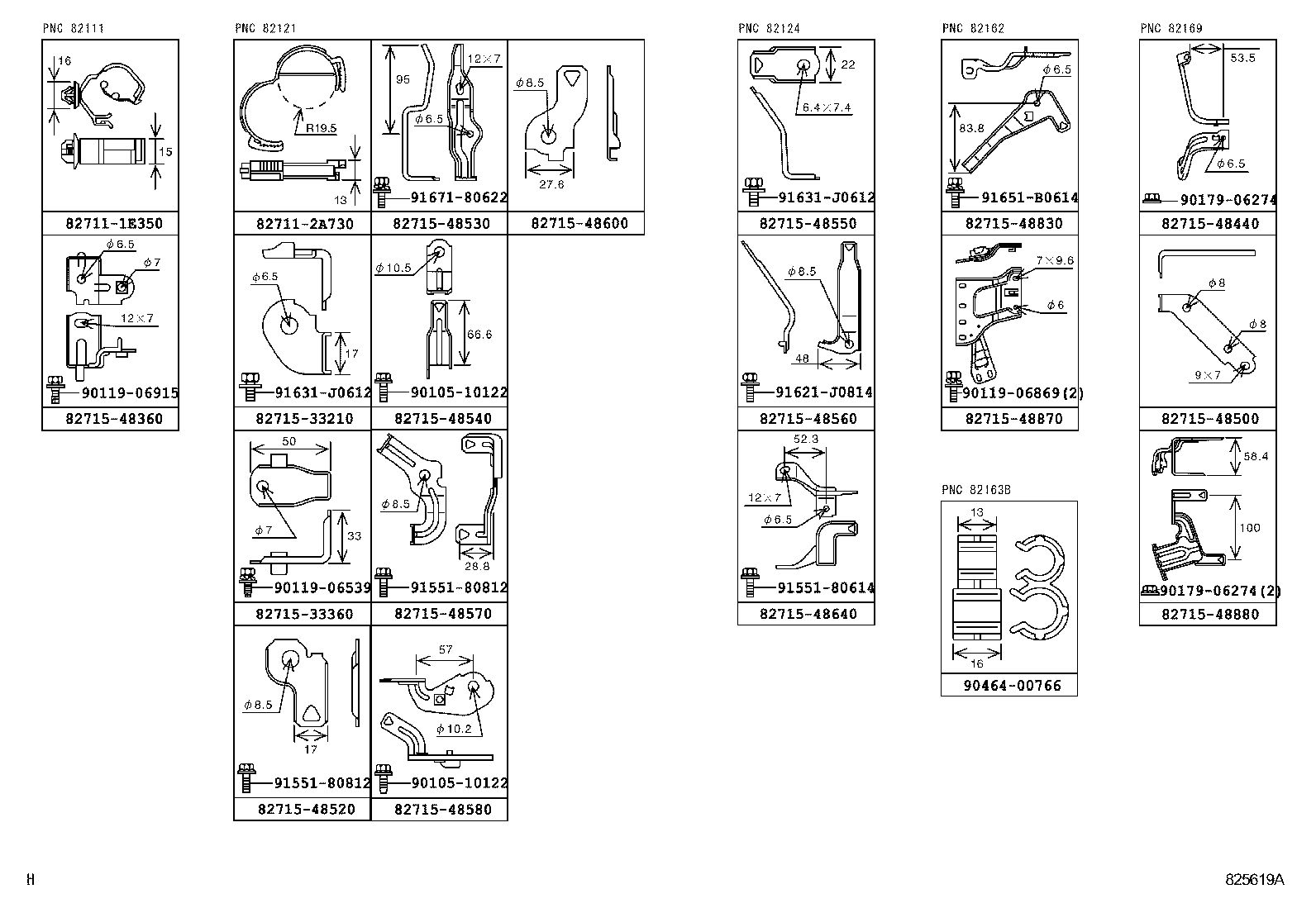

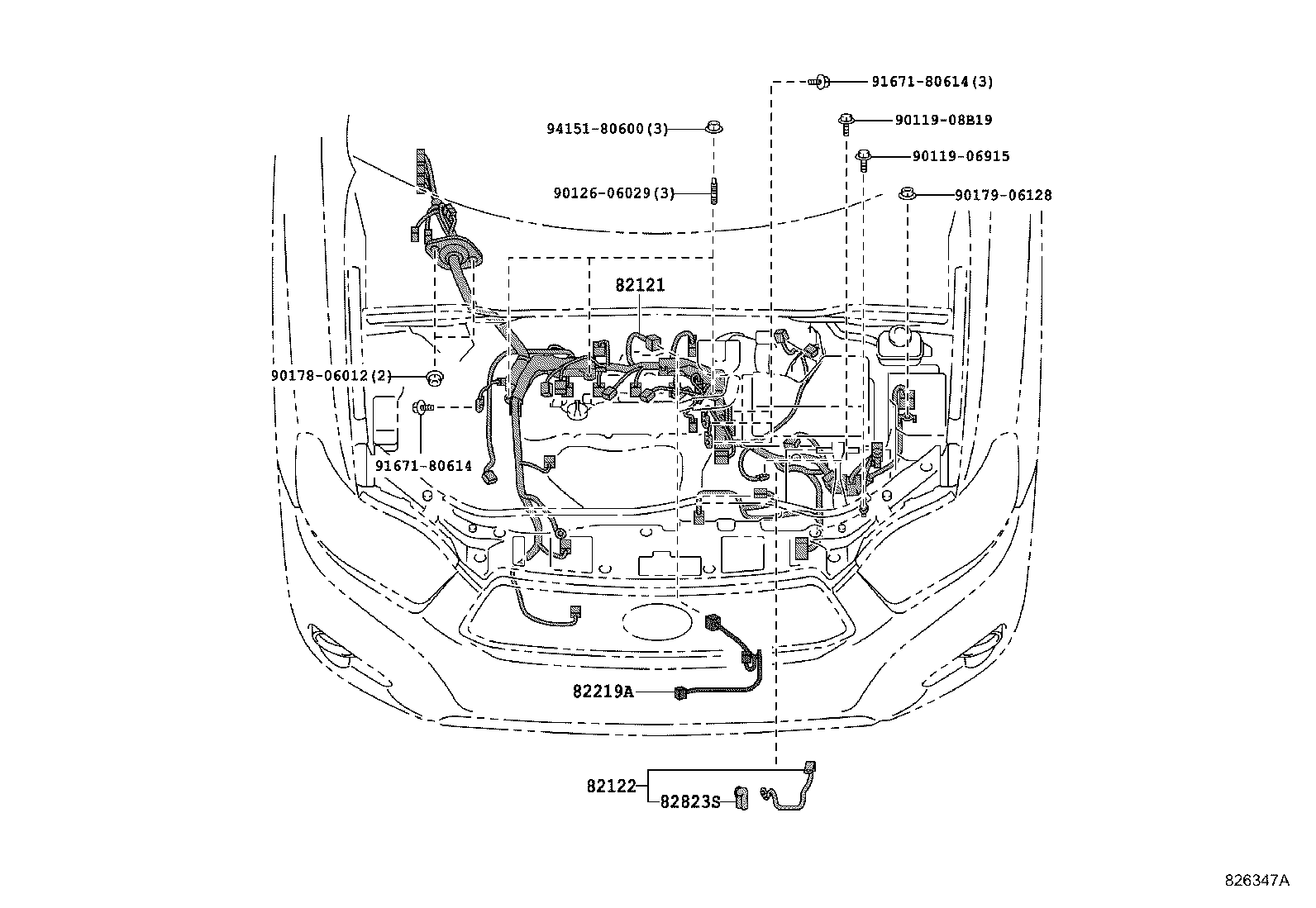

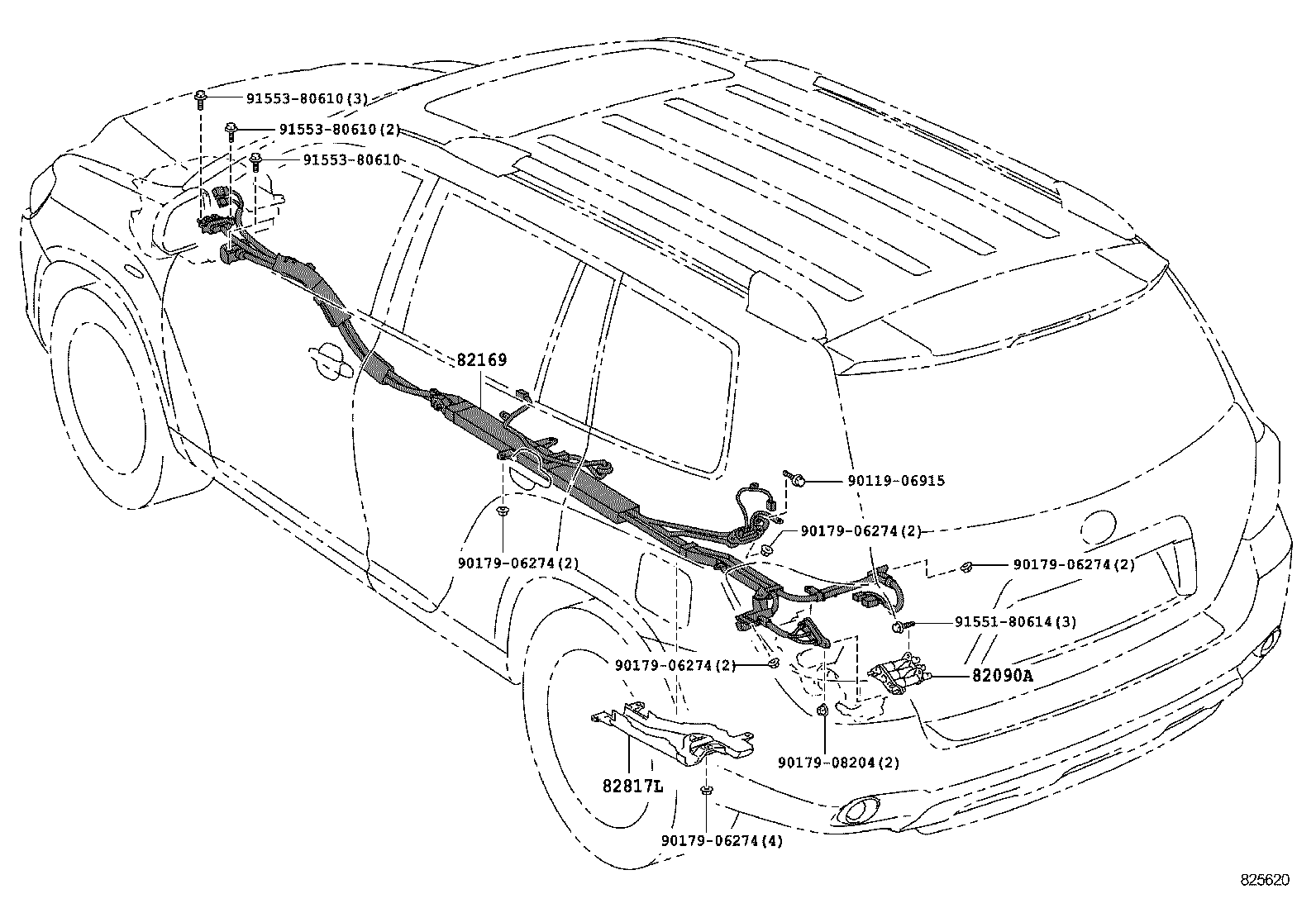

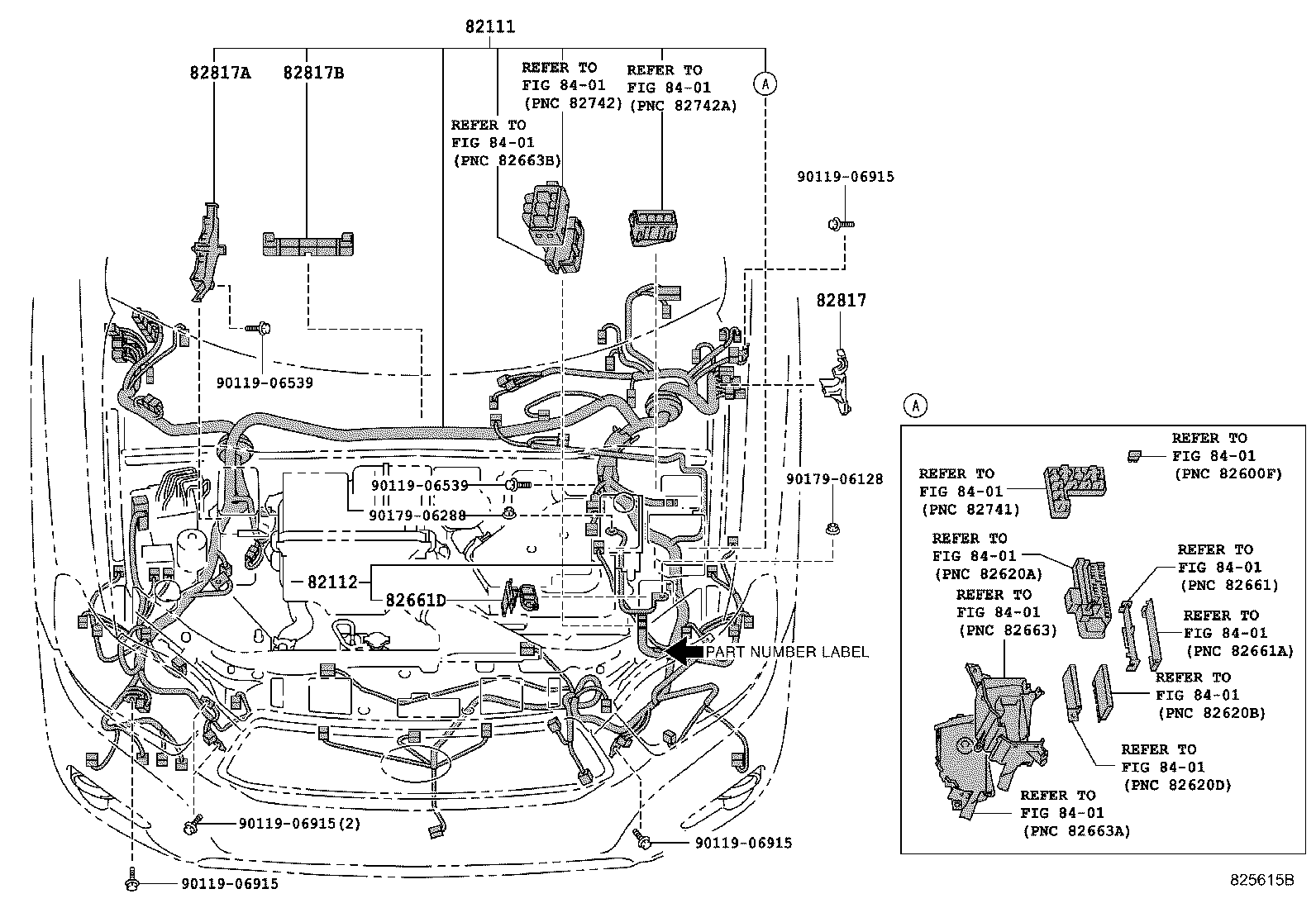

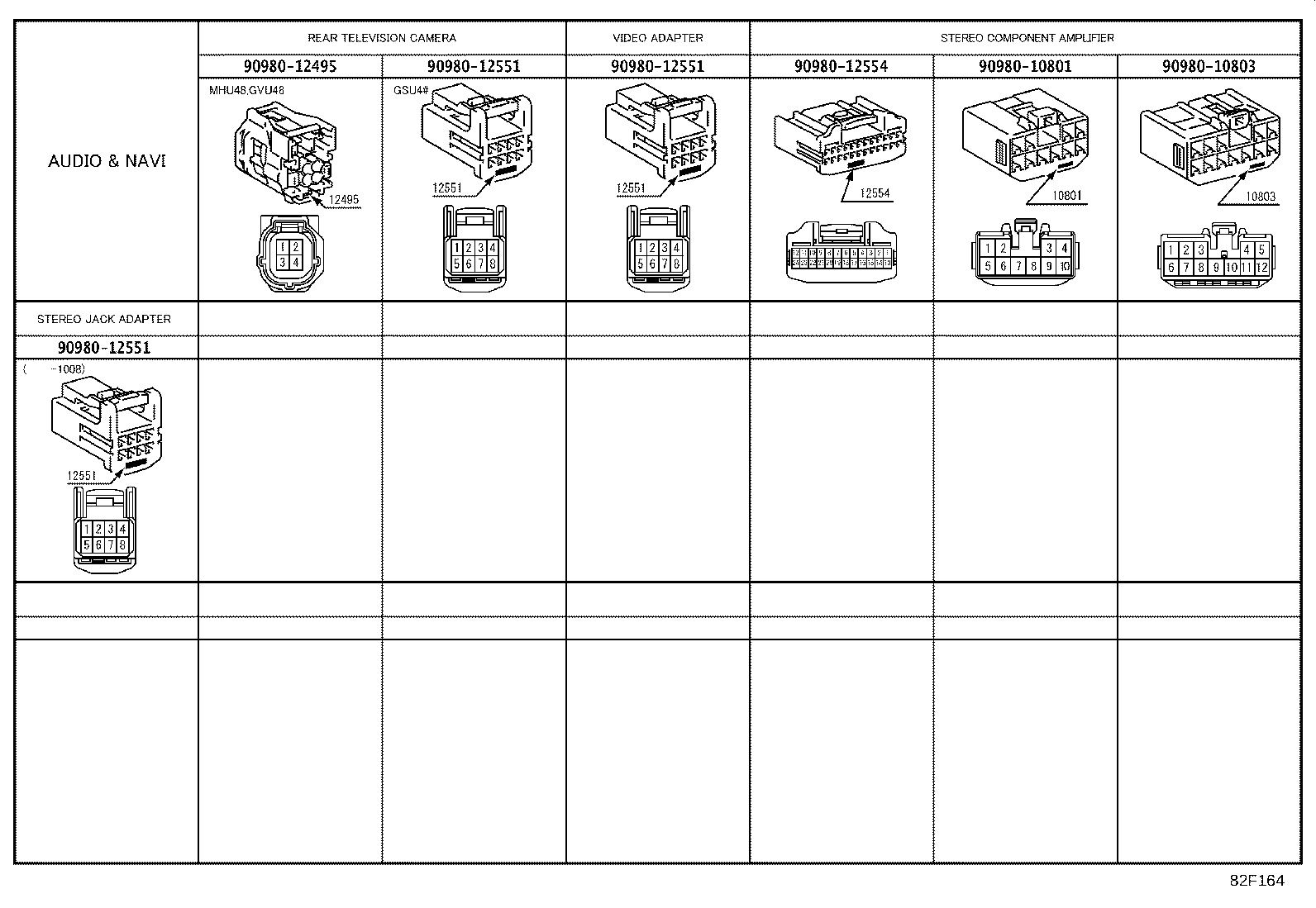

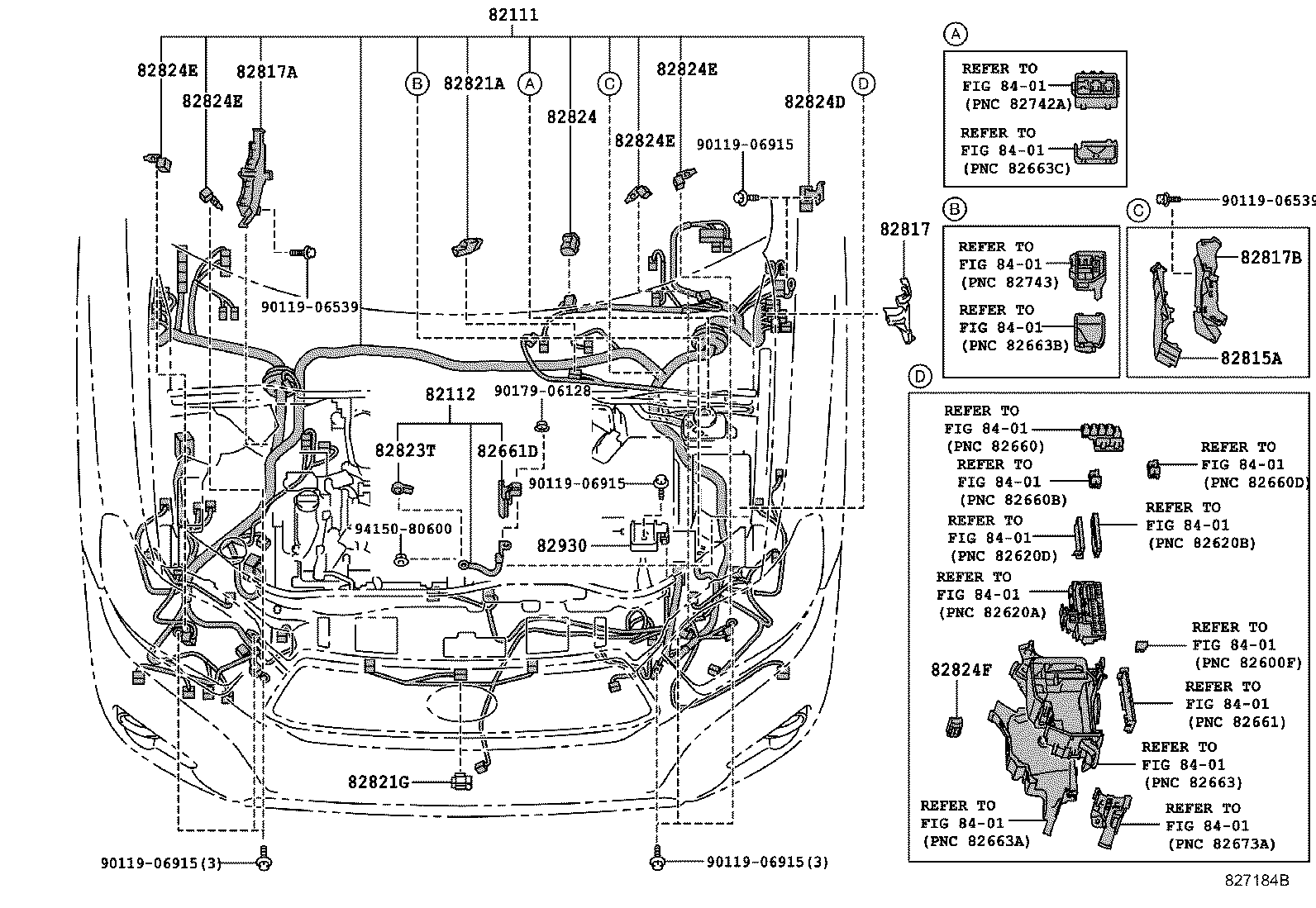

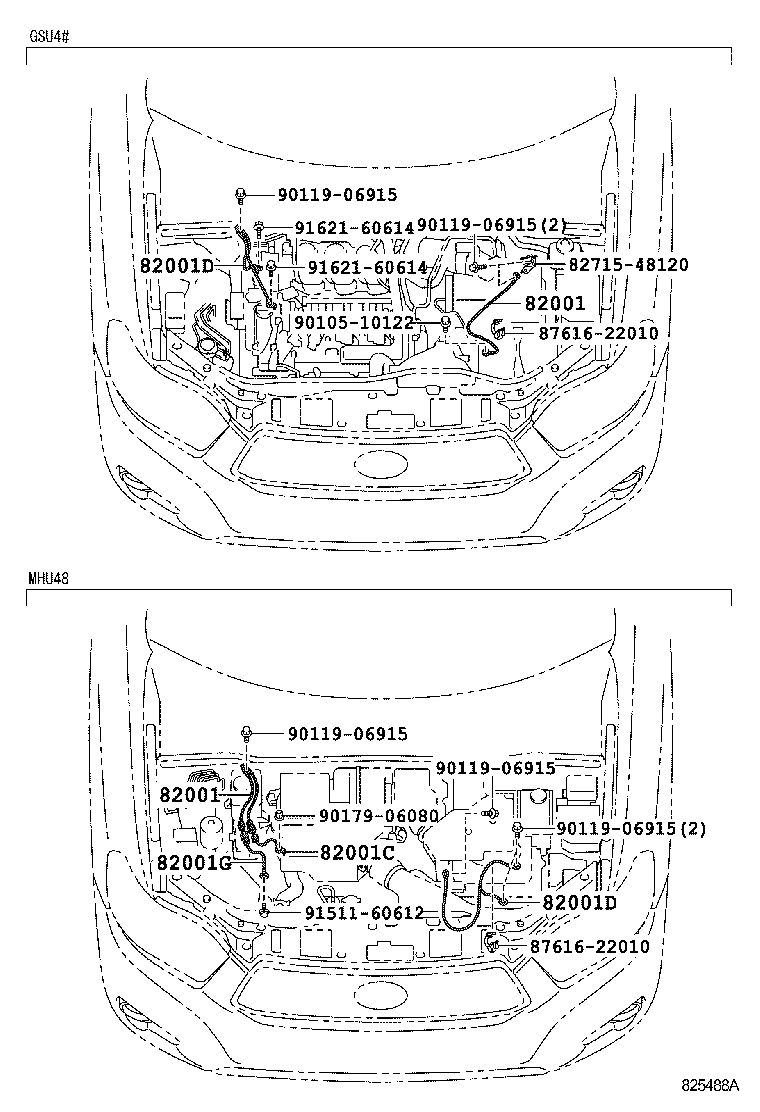

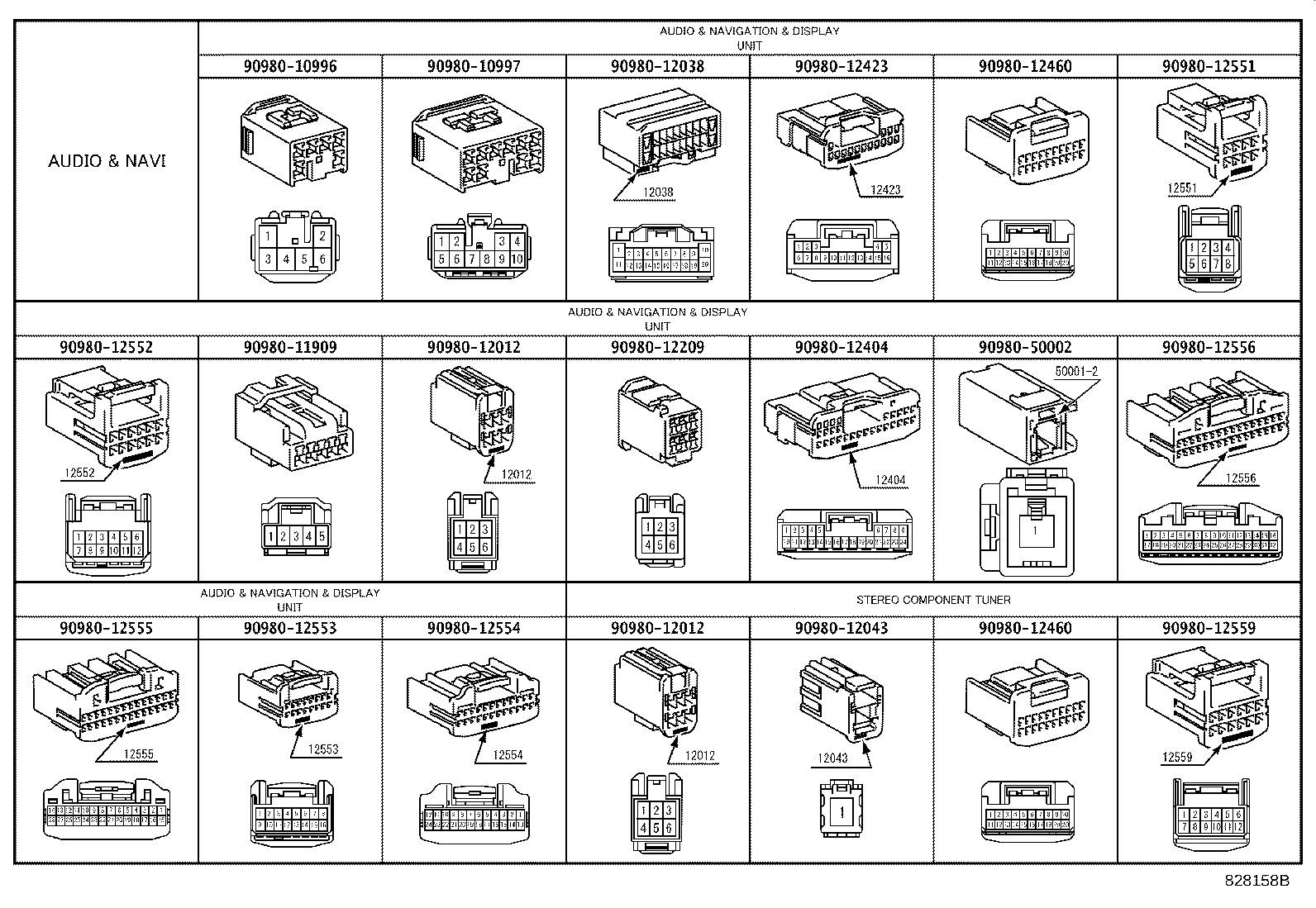

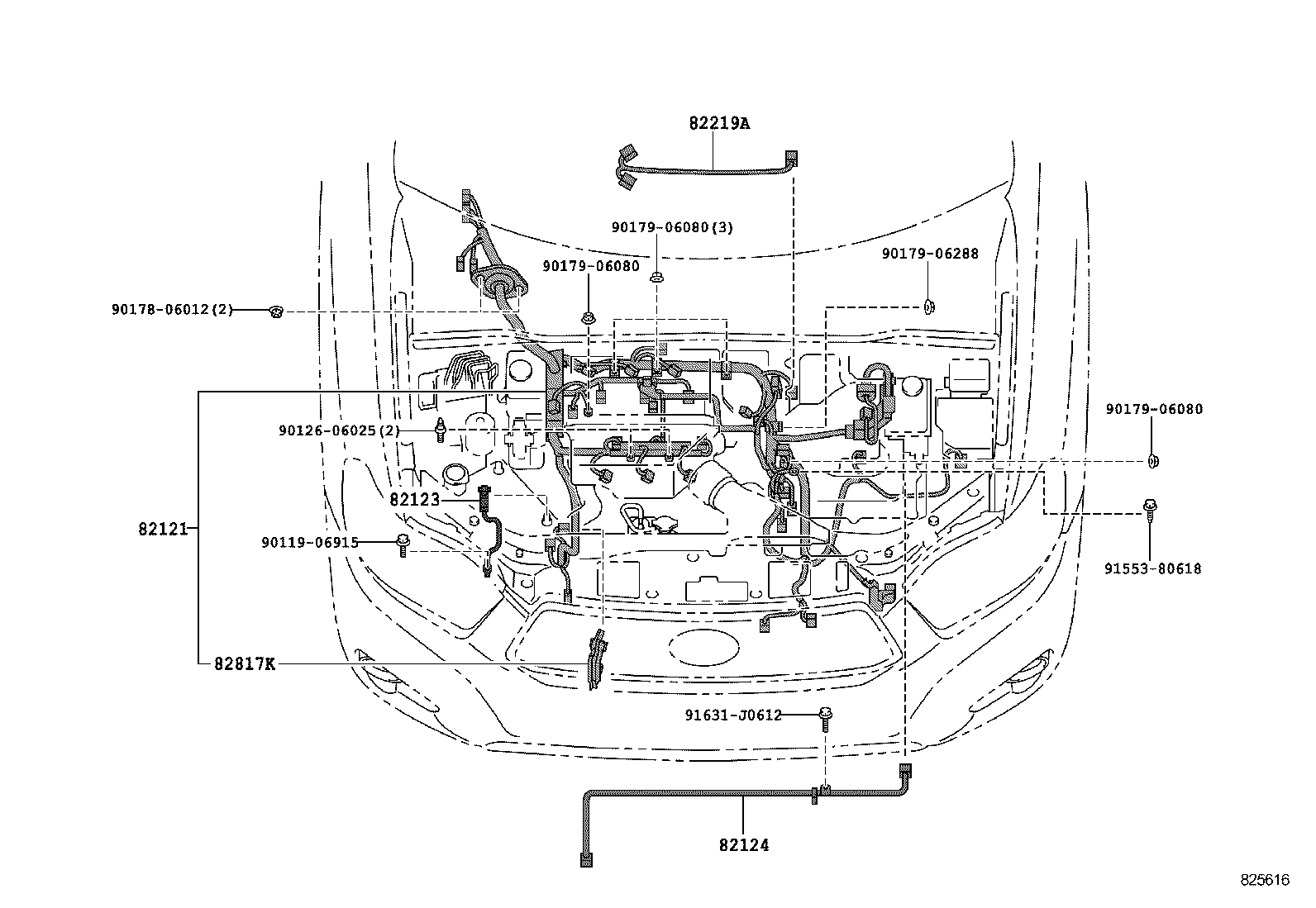

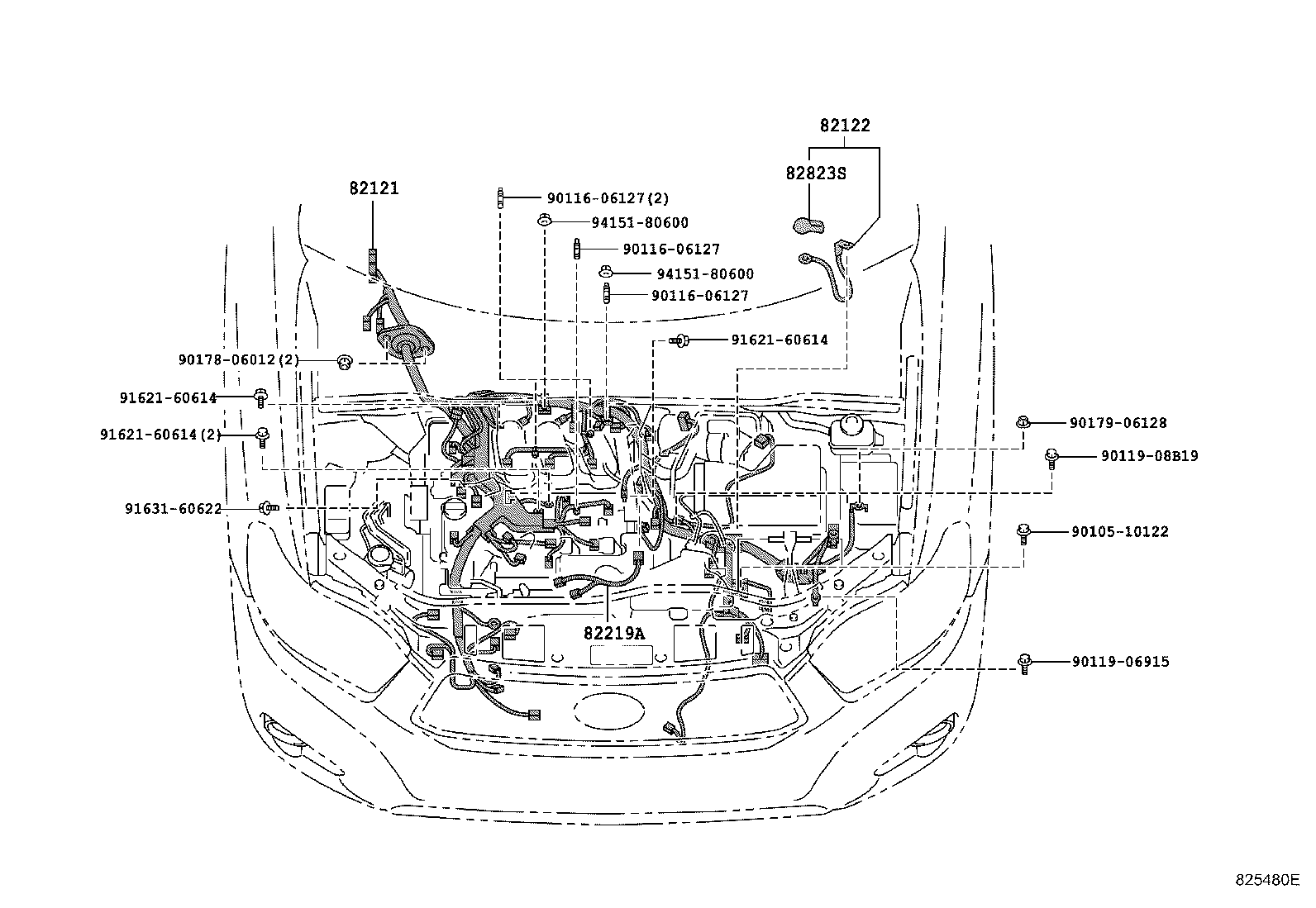

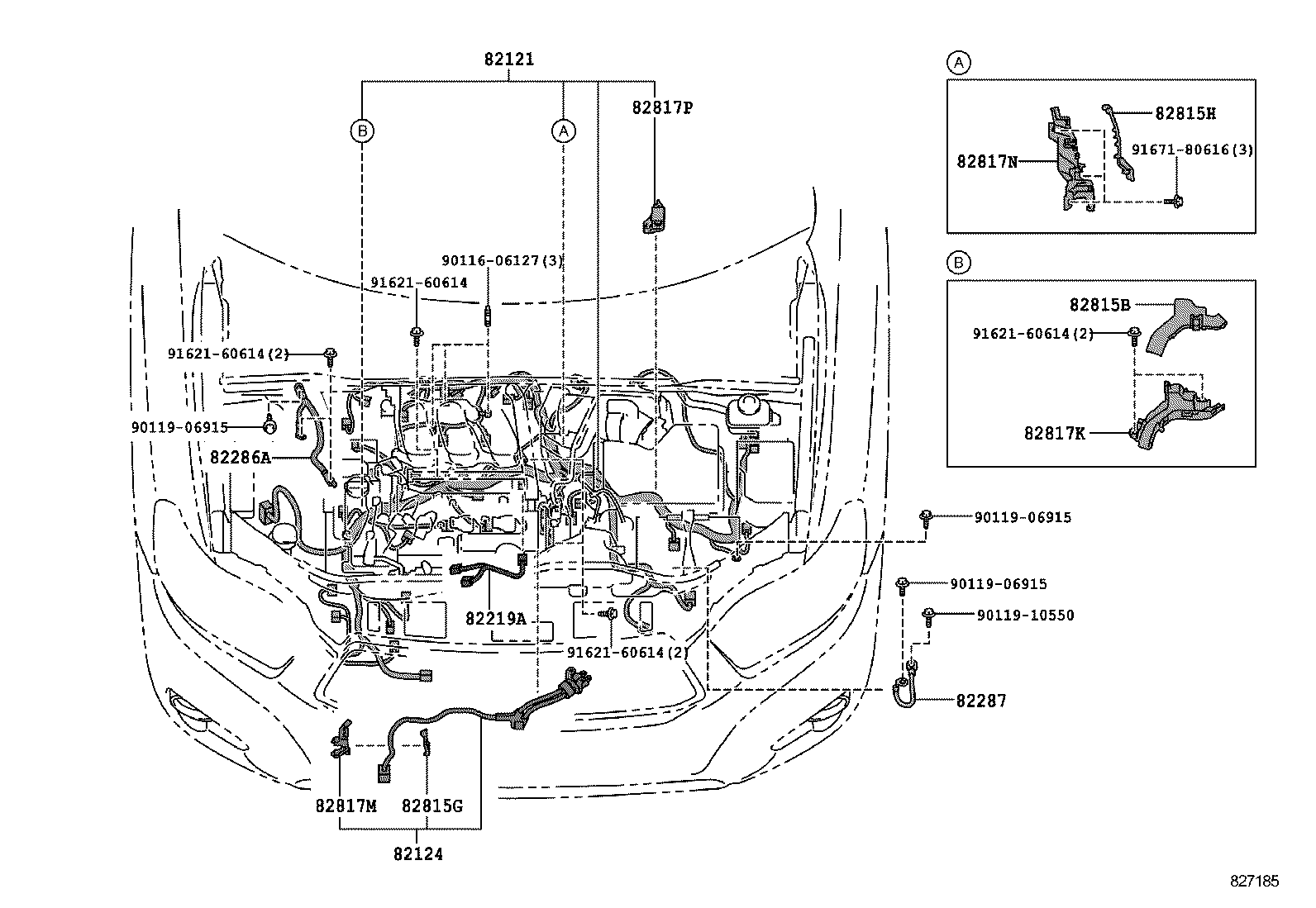

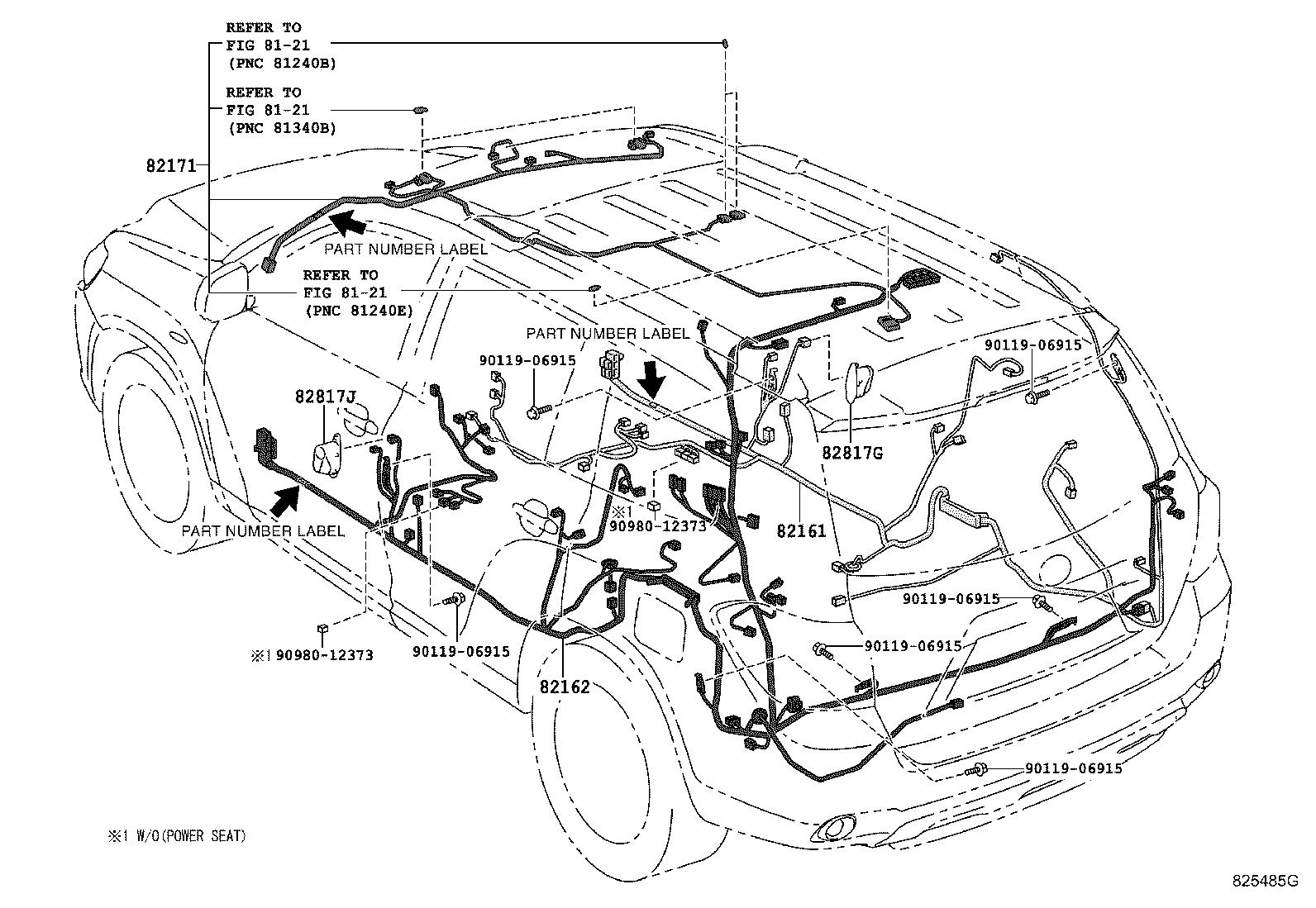

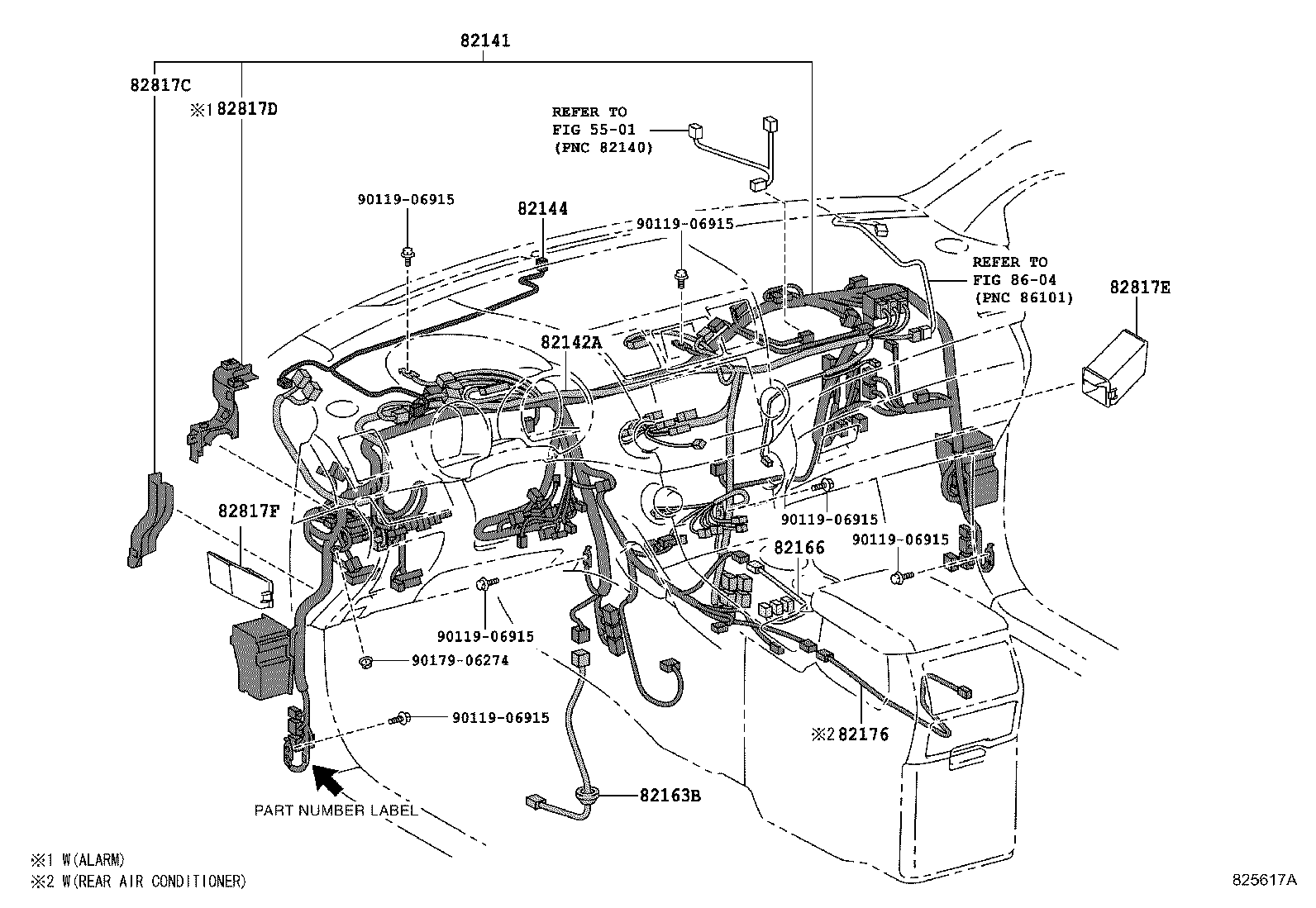

Figure 825478G 825478G 2007-05 → — Figure 825615B 825615B 2007-08 → 2010-08 Figure 827184B 827184B 2010-08 → — Figure 825480E 825480E 2007-05 → — Figure 825616 825616 2007-08 → 2010-08 Figure 826347A 826347A 2008-11 → — Figure 827185 827185 2010-08 → — Figure 82A608 82A608 2007-05 → — Figure 825617A 825617A 2007-08 → 2010-08 Figure 827186B 827186B 2010-08 → — Figure 825491E 825491E 2007-05 → — Figure 825485G 825485G 2007-05 → — Figure 825618C 825618C 2007-08 → — Figure 825620 825620 2007-08 → 2010-08 Figure 827187A 827187A 2010-08 → — Figure 825489A 825489A 2007-05 → — Figure 825490 825490 2007-05 → — Figure 825619A 825619A 2007-08 → 2010-08 Figure 826348 826348 2008-11 → — Figure 827188B 827188B 2010-08 → — Figure 825488A 825488A 2007-05 → 2010-08 Figure 826349 826349 2008-11 → — Figure 825540D 825540D 2007-05 → — Figure 825541H 825541H 2007-05 → — Figure 828158B 828158B 2007-05 → — Figure 82F164 82F164 2007-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82166 Wire, Console Box
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82286A Wire, Earth, NO.2
82287 Wire, Earth, NO.3
82345 Diode
82345A Diode
82345B Diode
82413A Wire, Fuel Tank
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82666A Holder, Connector NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82821A Cover, Connector
82821G Cover, Connector(FOR DIAGNOSIS)
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
86011G Condenser
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
