Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

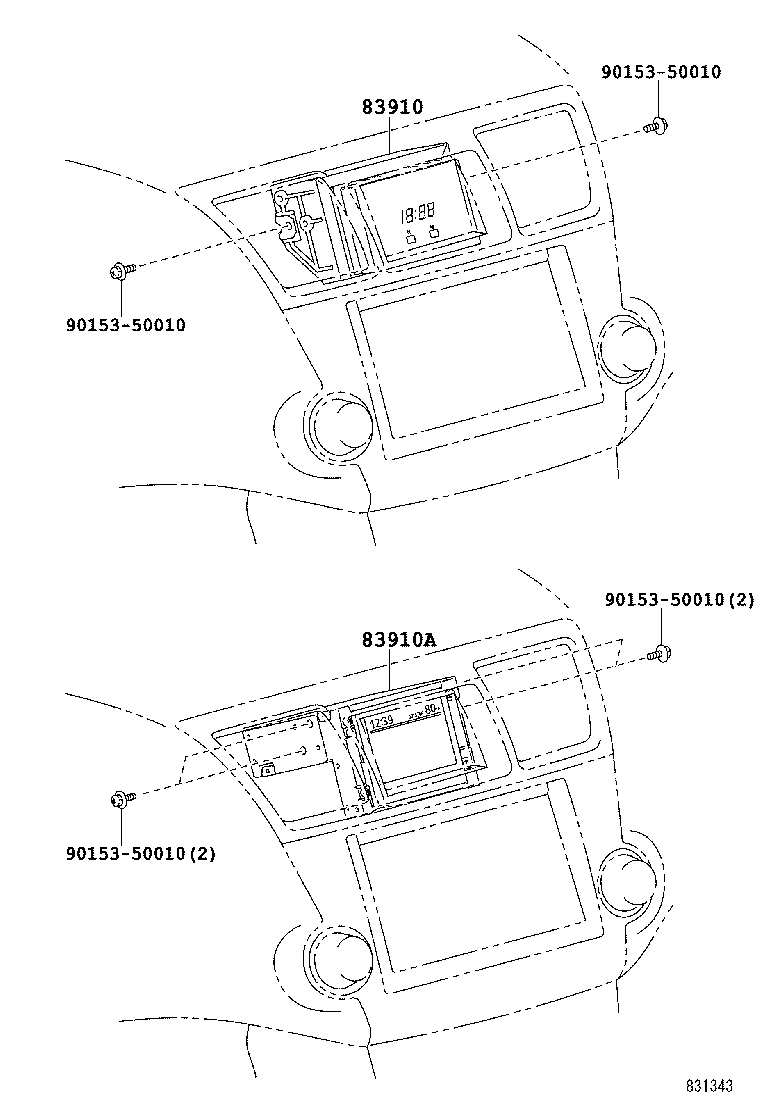

Figure 831342 831342 2007-05 → — Figure 831343 831343 2007-05 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83138G Glass, Combination Meter
83910 Clock Assy
83910A Clock Assy, W/Multi Information Display
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
