Toyota Highlander (JPP)
2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States
Supported model
Data version 2014-08

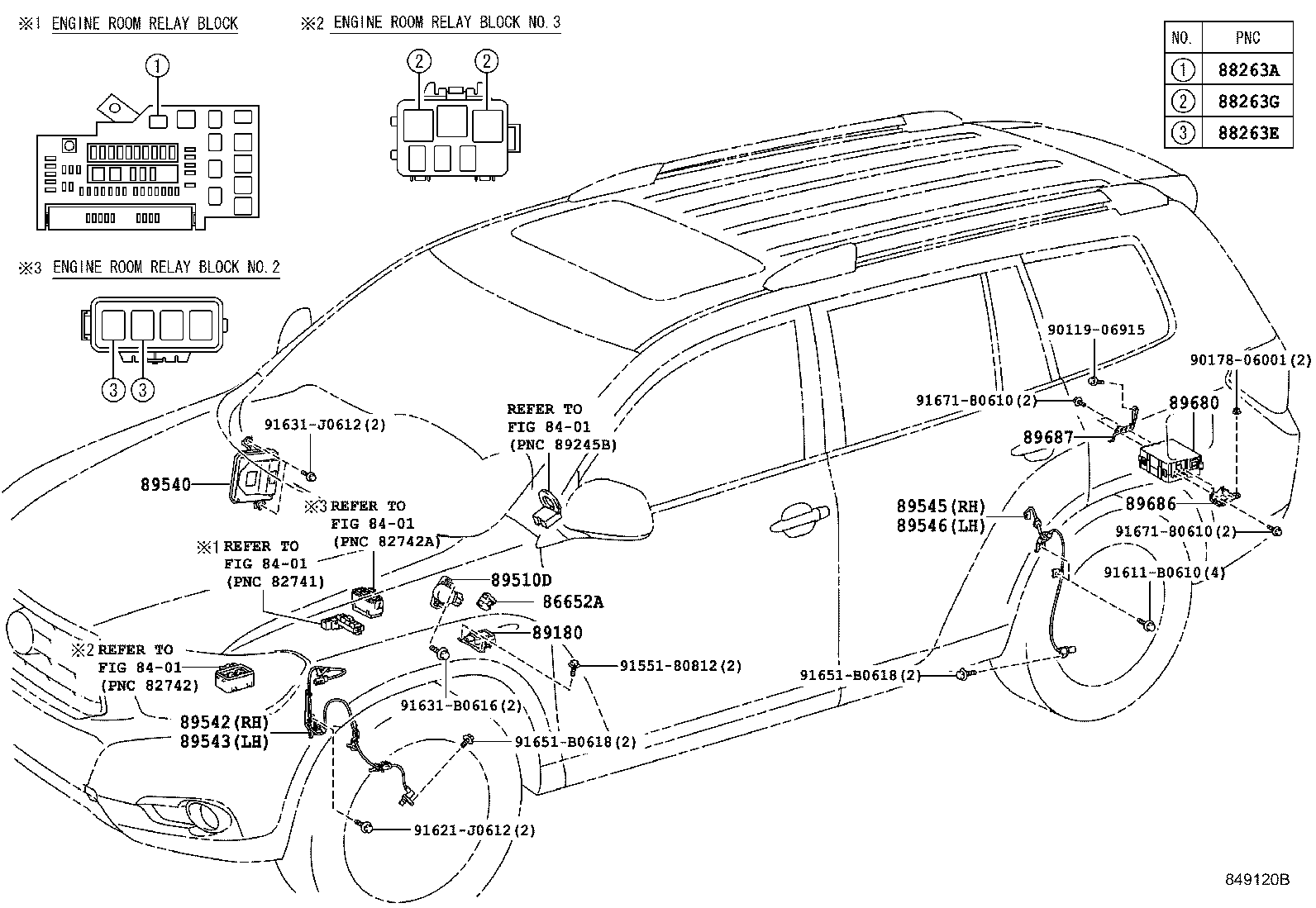

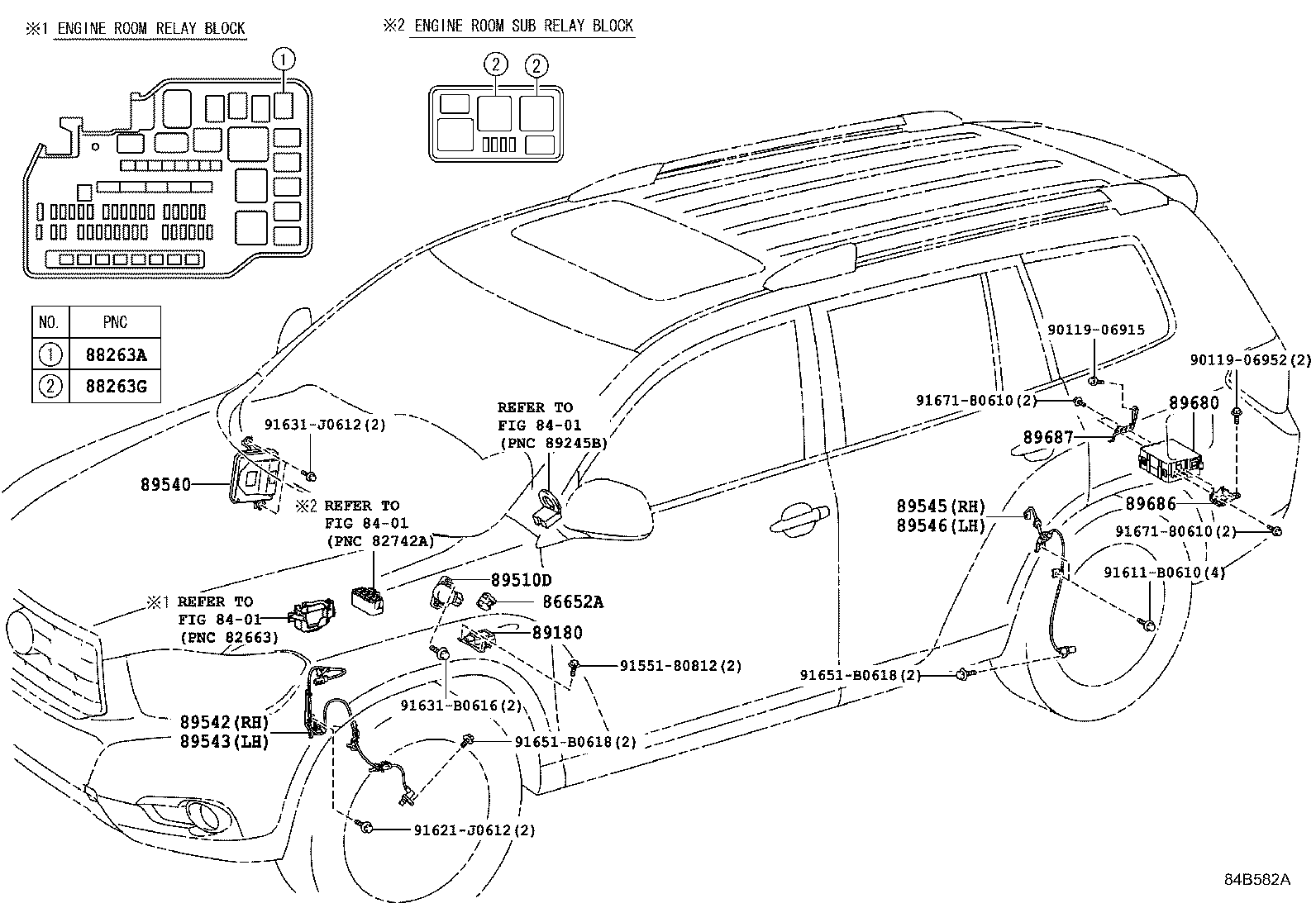

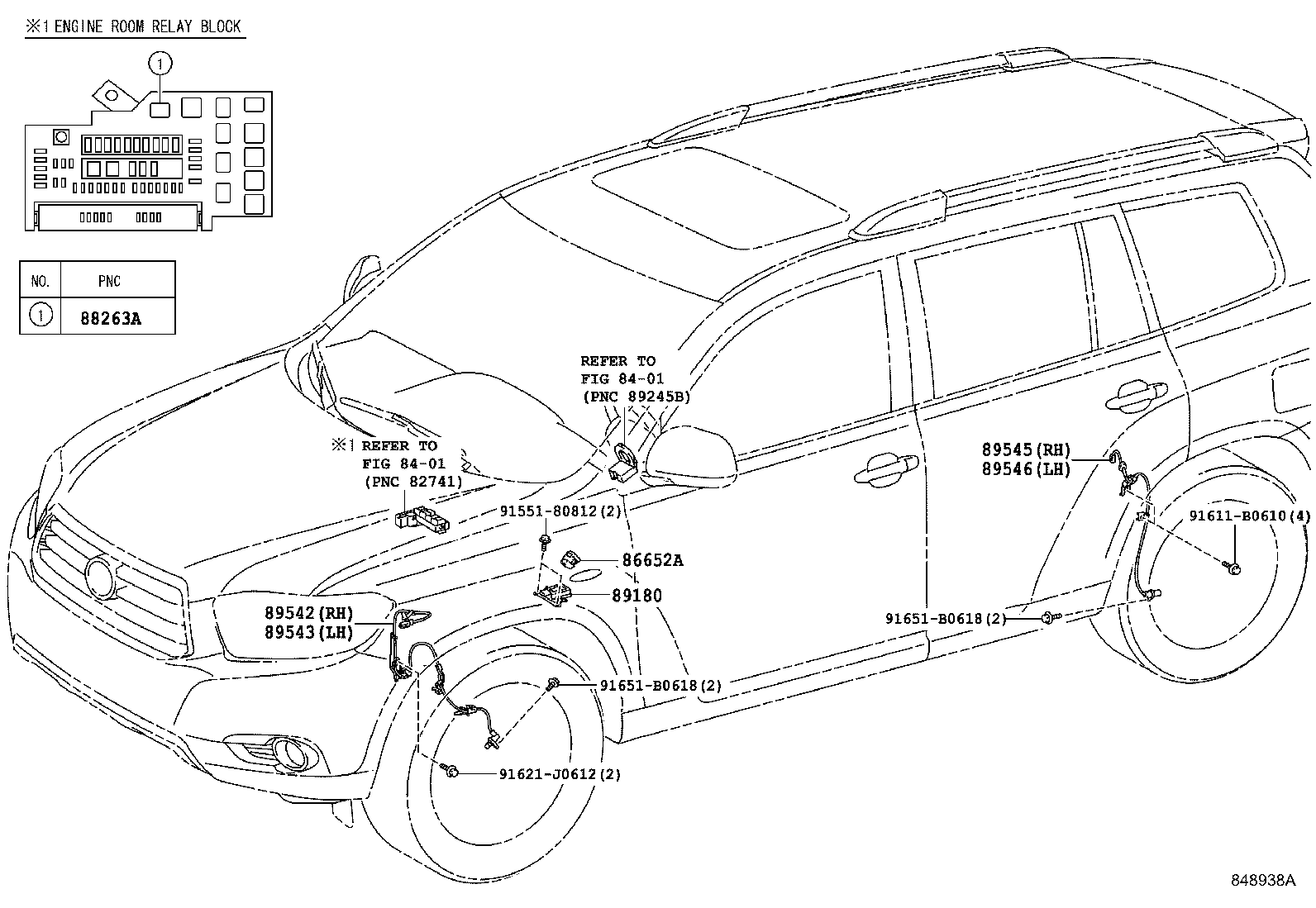

Abs & Vsc
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86652A | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 88263G | Relay, Skid Control |
| 89180 | Sensor Assy, Yawrate |
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89680 | Supply Assy, Brake Control Power |
| 89686 | Bracket, Brake Control Power Supply, NO.1 |
| 89687 | Bracket, Brake Control Power Supply, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
