Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

33 part groups · 6 illustrations

Illustrations

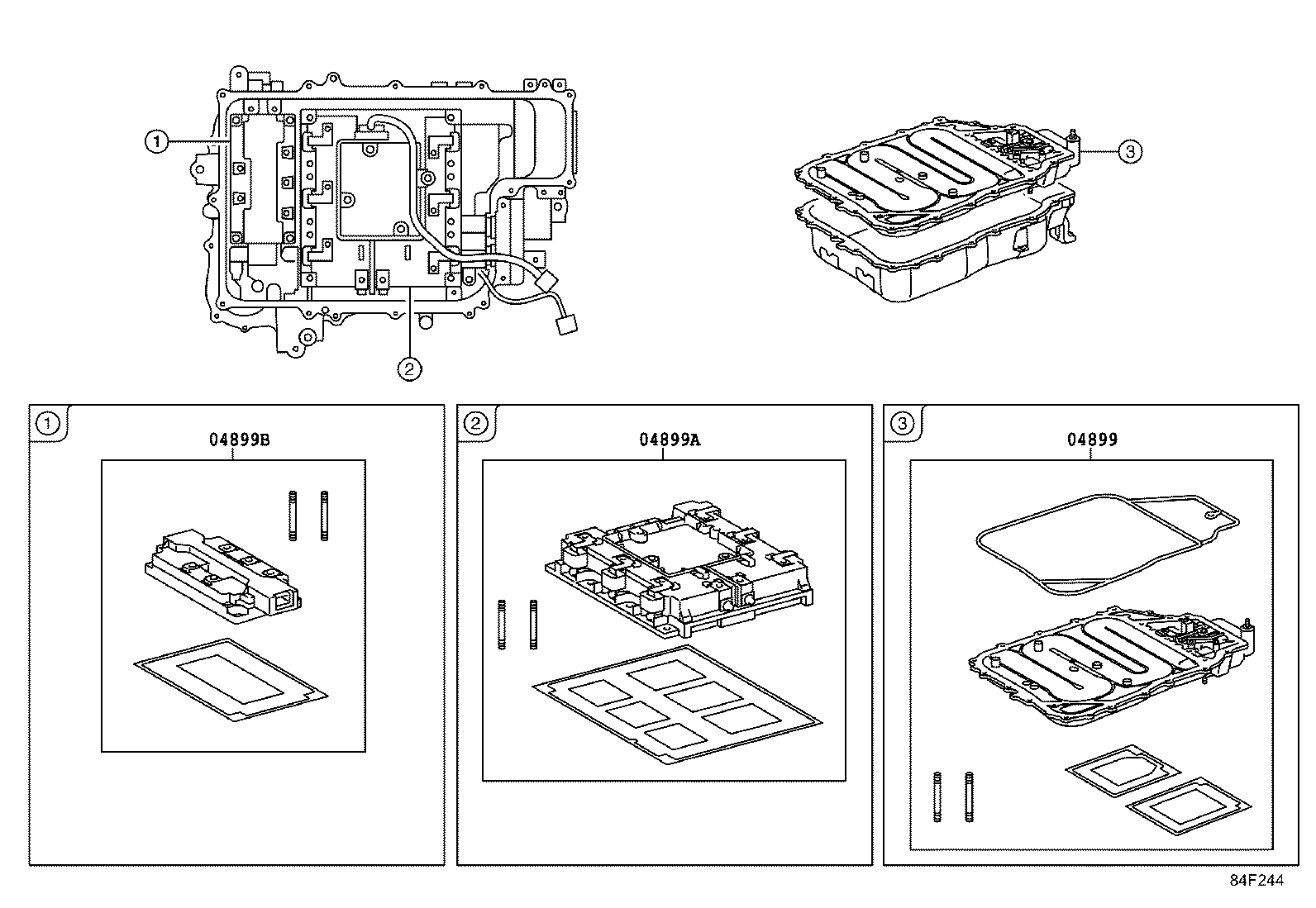

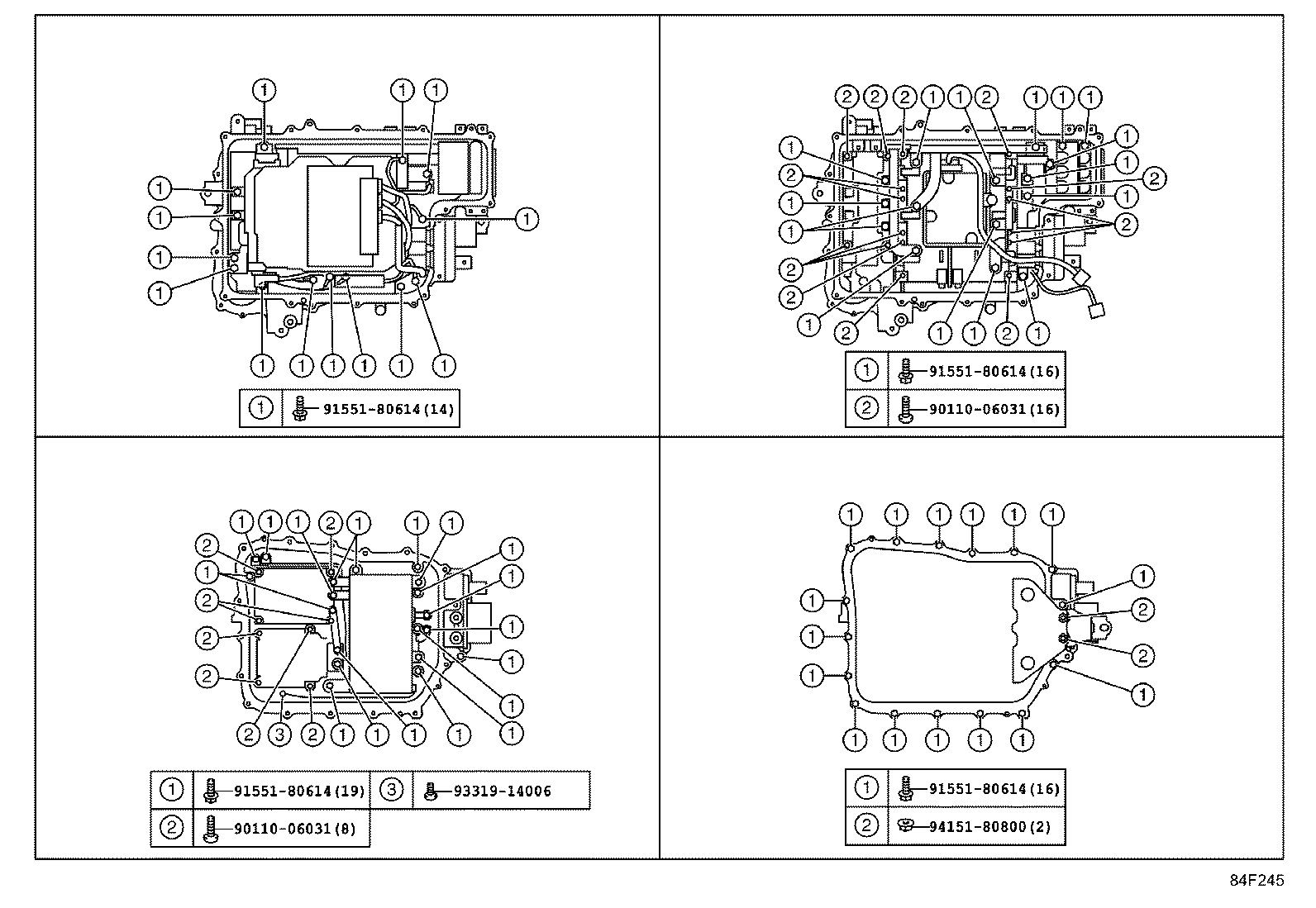

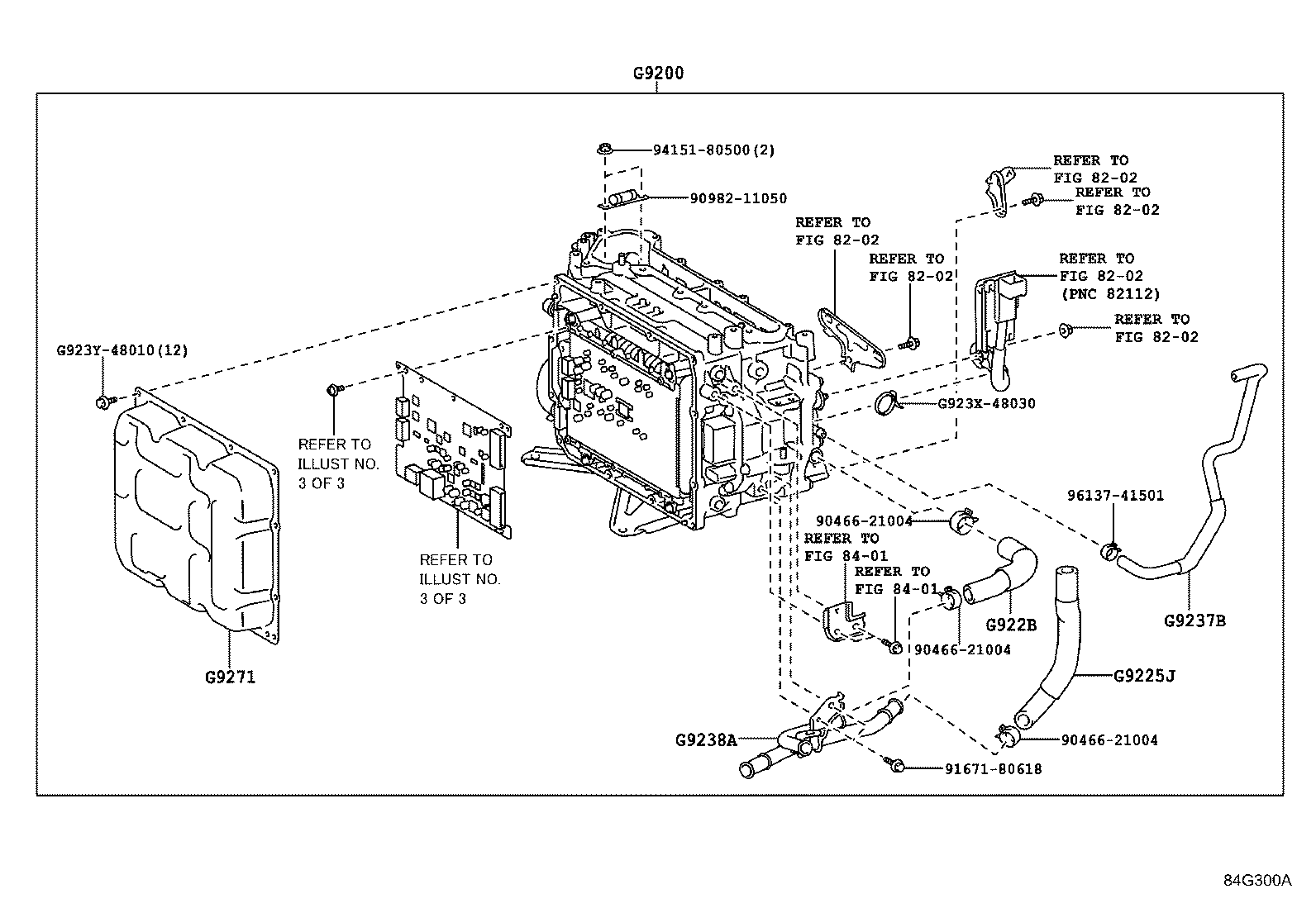

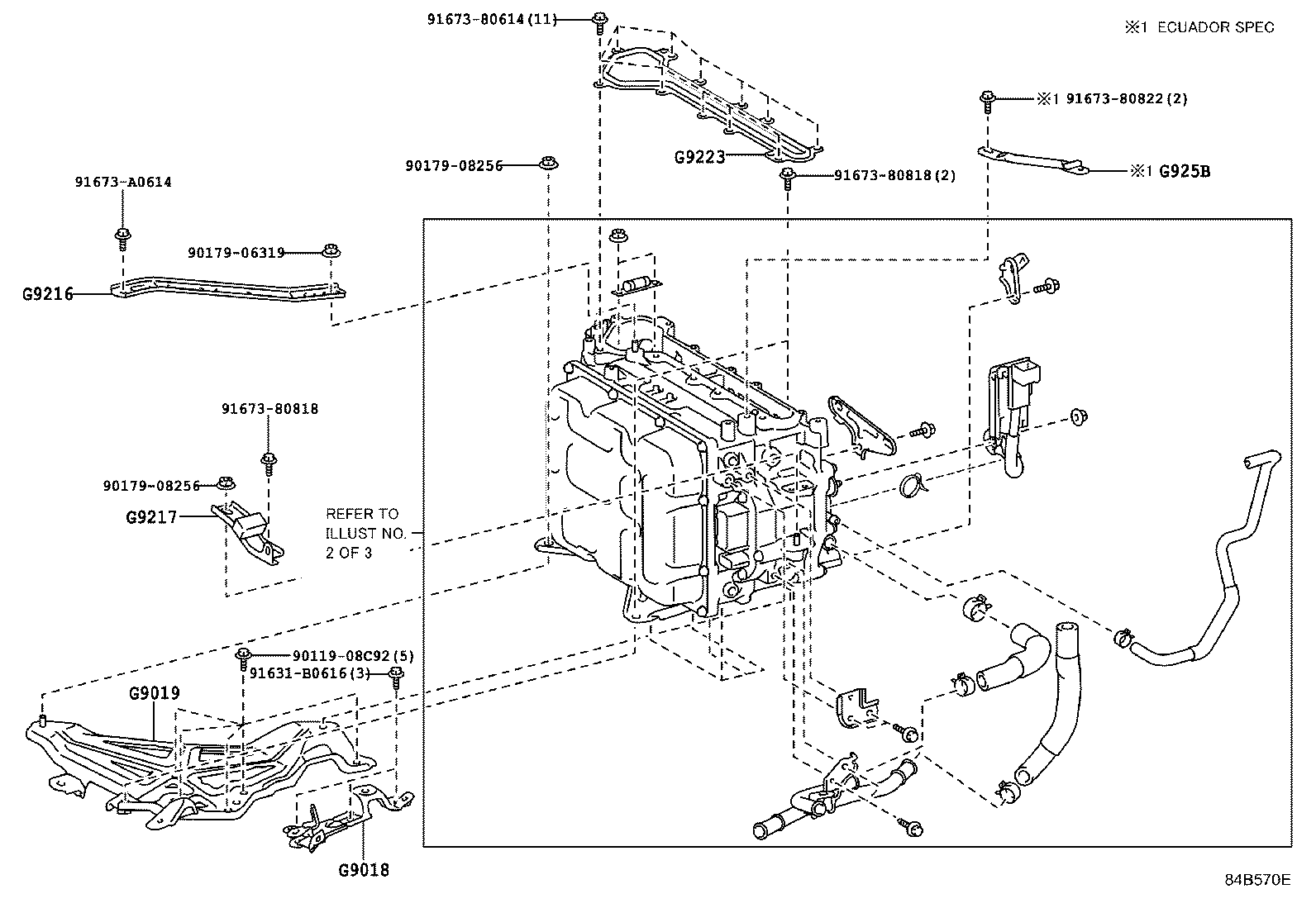

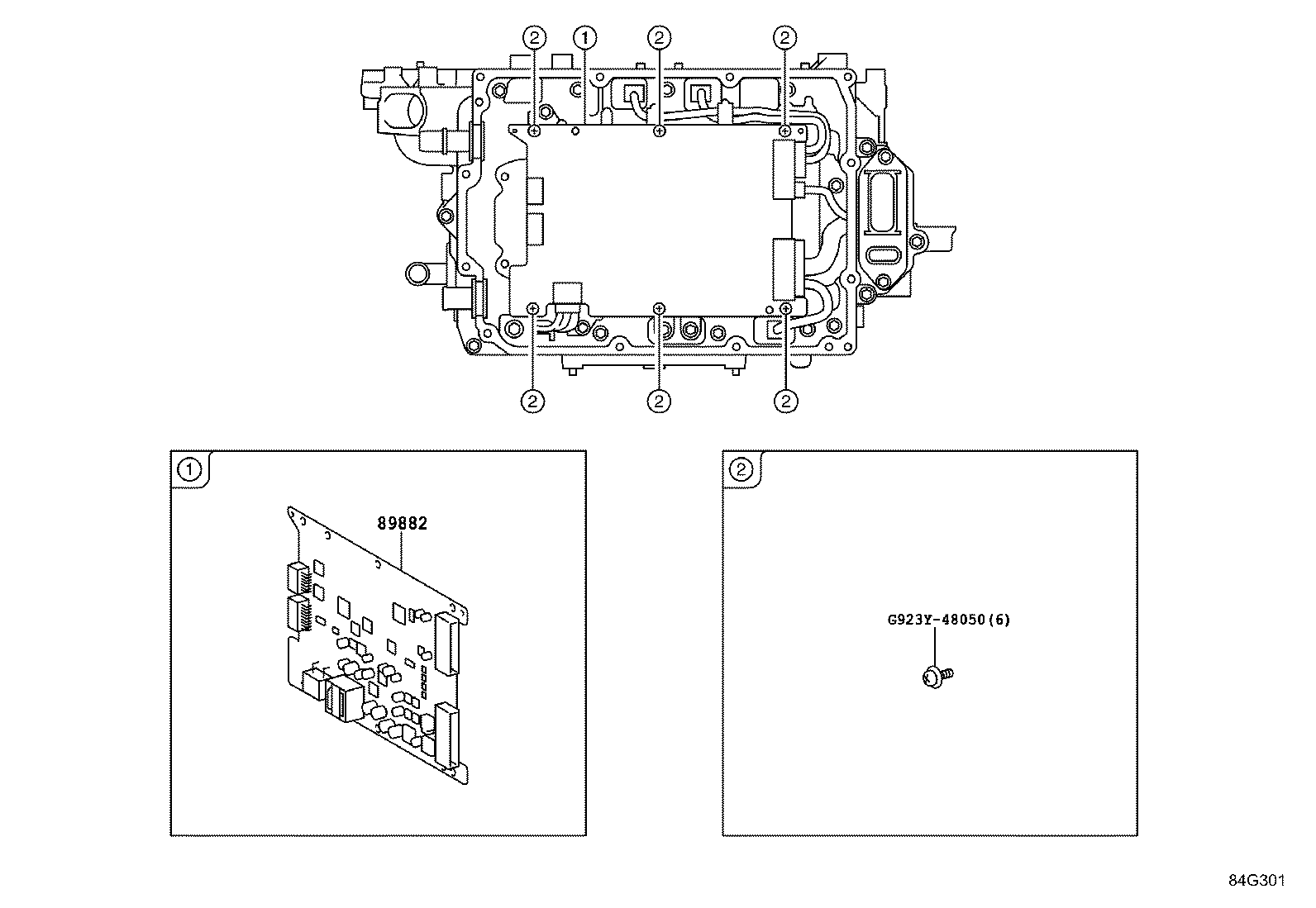

Figure 849119F 849119F 2007-08 → 2010-08 Figure 84F244 84F244 2007-08 → 2010-08 Figure 84F245 84F245 2007-08 → 2010-08 Figure 84B570E 84B570E 2010-08 → — Figure 84G300A 84G300A 2010-08 → — Figure 84G301 84G301 2010-08 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899A Transistor Kit, Power Module Intelligent(FRONT IPM)
04899B Transistor Kit, Power Module Intelligent(REAR IPM)
53796B Cover, Engine Room Side, LH NO.2
82610F Block Assy, Fuse
87245S Hose, Inverter Water, NO.1
87245U Clamp OR Clip (FOR WATER HOSE)
88605X Harness Sub-assy, Wiring Air Conditioner
88605Y Bracket, Cooler
89882 Computer, Motor Generator Control
G3829C Fuse, Electric Vehicle
G4845 Sensor, Circuit Breaker, NO.1
G9018 Bracket Sub-assy, Inverter, NO.5
G9019 Bracket Sub-assy, Inverter Tray
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G9209 Tank Sub-assy, Inverter Reserve
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G9217 Bracket, Inverter, NO.4
G9221 Cover, Inverter
G9223 Cover, Inverter Terminal
G9225J Hose, Inverter Cooling, NO.1
G922B Hose, Inverter Cooling Inlet, NO.2
G9231 Gasket, Inverter Cover
G9237B Hose, Inverter Drain
G9238A Pipe, Inverter Cooling
G9247 Sensor, Inverter Current, NO.1
G9257 Bracket, Inverter, NO.5
G9258A Cap, Inverter Reserve Tank
G925B Bracket, Inverter, NO.6
G9271 Cover, Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
