Toyota Highlander (JPP)

2007-05 → 2014-02 · chassis ASU40,GSU4#,GVU48,MHU48 · catalogue 522420 · United States

Supported model Data version 2014-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

26 part groups · 10 illustrations

Illustrations

Figure 879408B

879408B 2007-05 → —

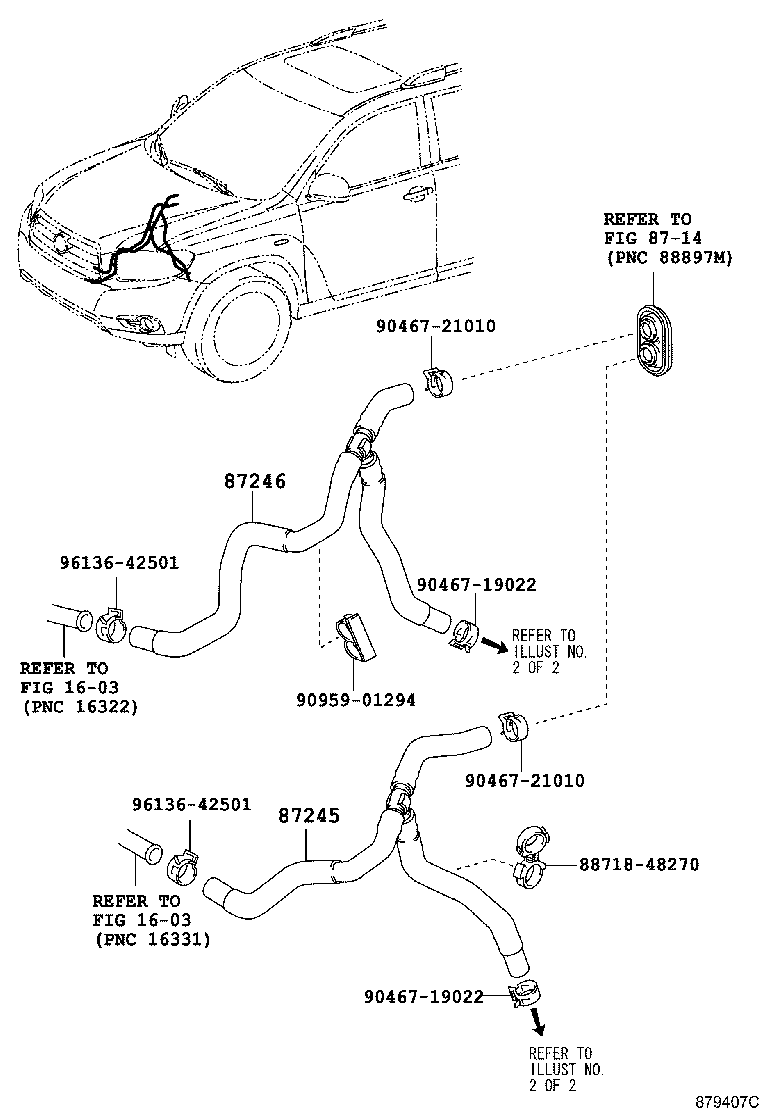

Figure 879407C

879407C 2007-05 → —

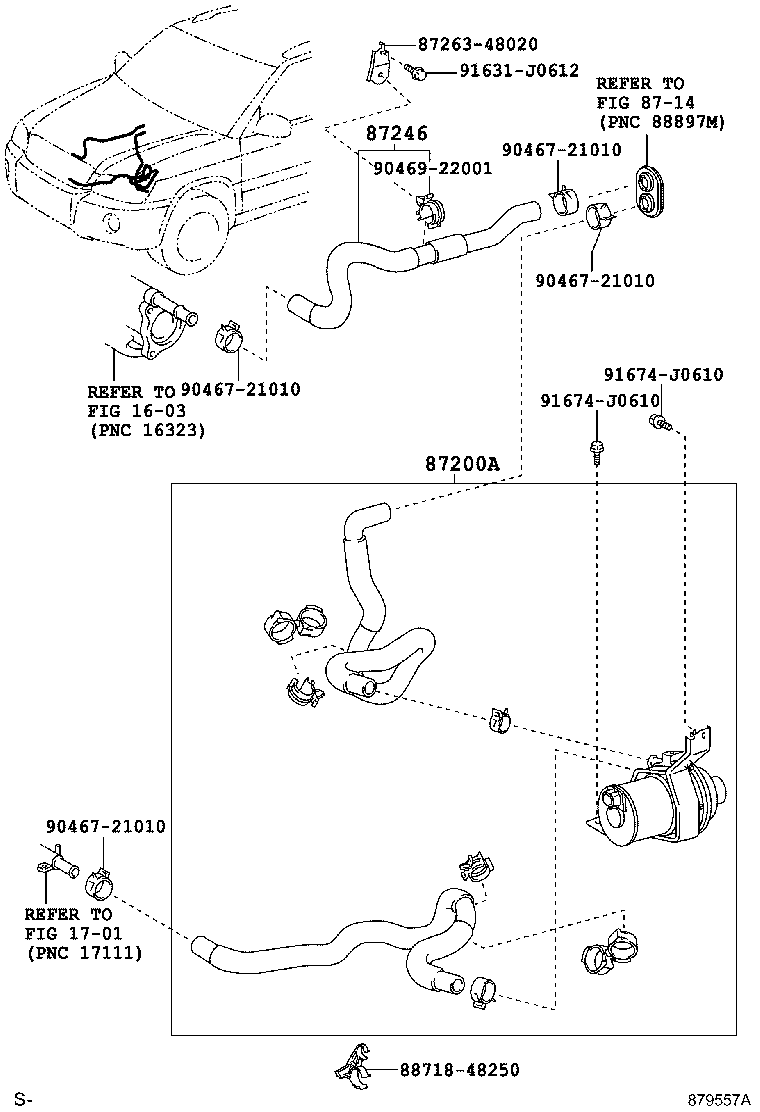

Figure 879557A

879557A 2007-08 → —

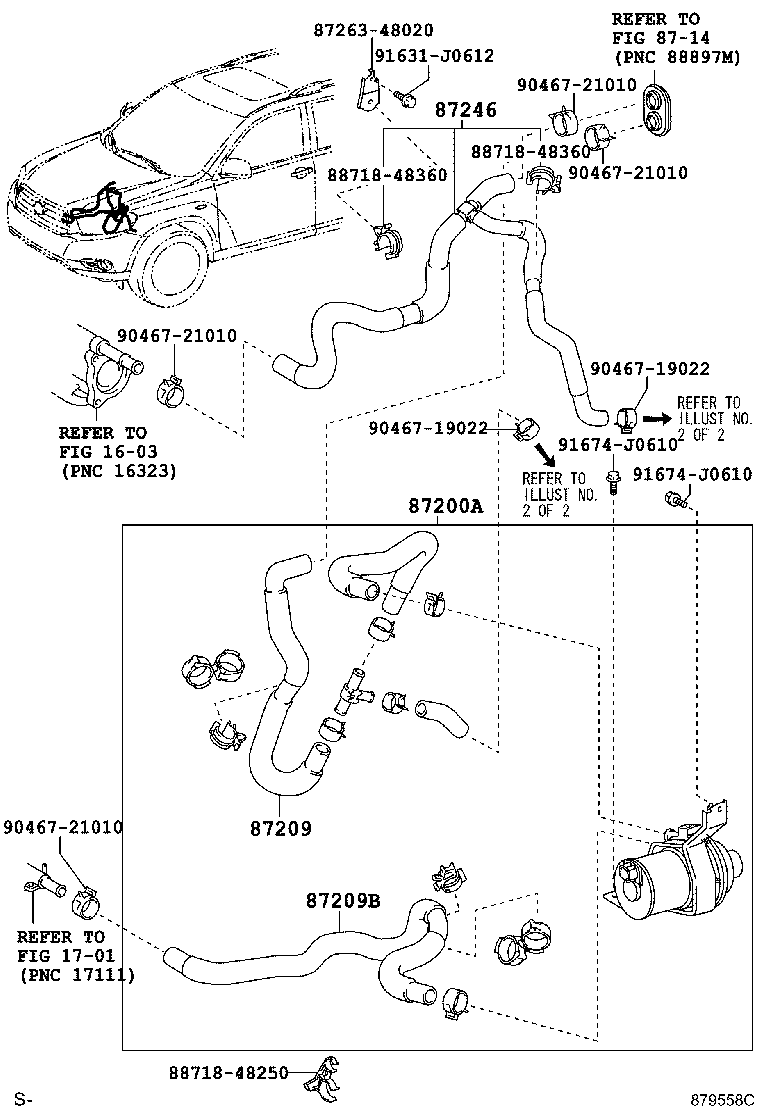

Figure 879558C

879558C 2007-08 → —

Figure 87A666A

87A666A 2008-11 → —

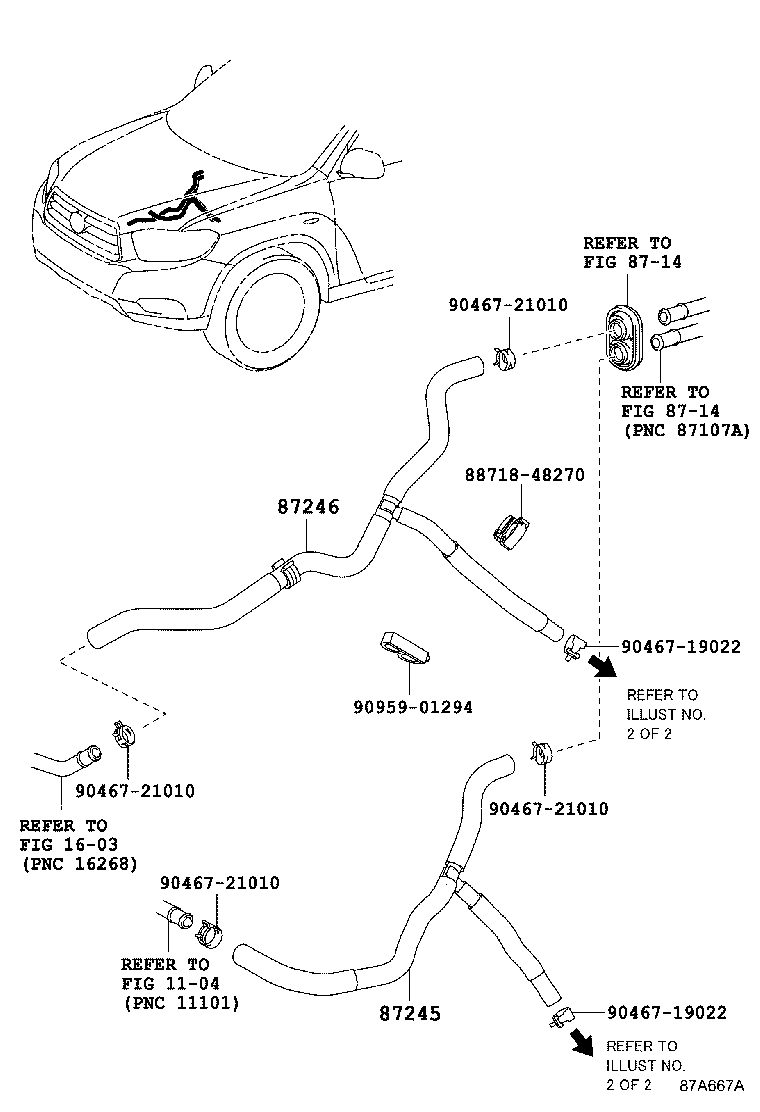

Figure 87A667A

87A667A 2008-11 → —

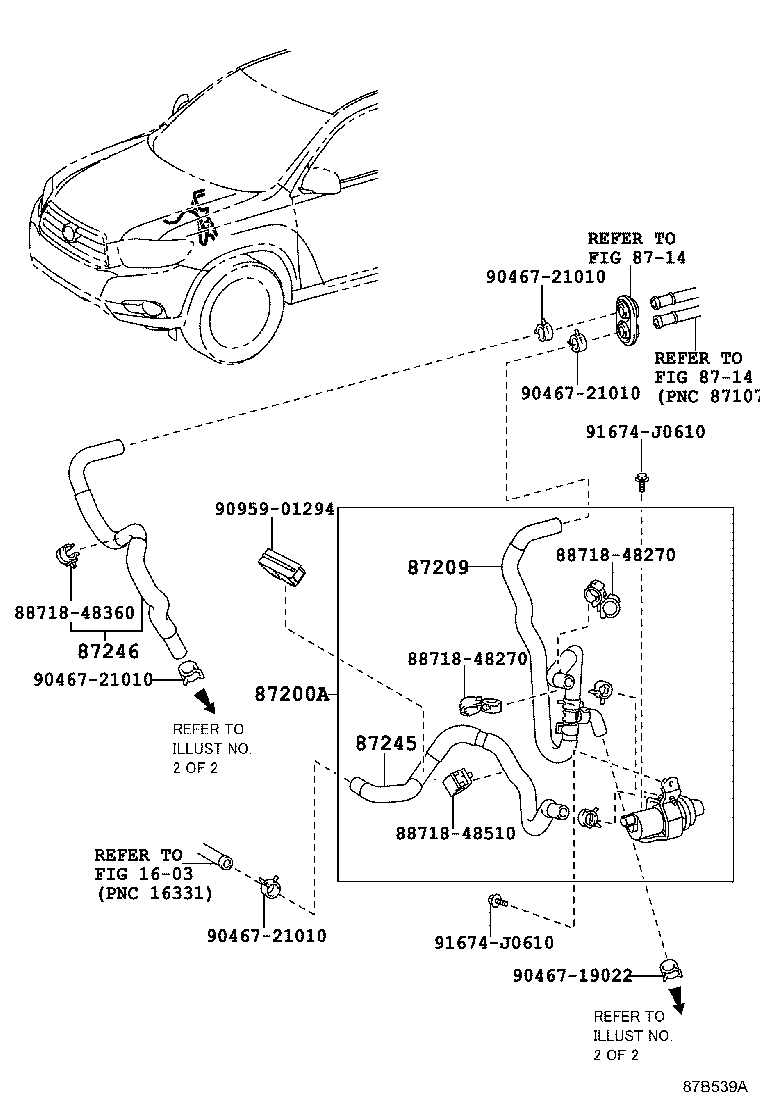

Figure 87B539A

87B539A 2010-08 → —

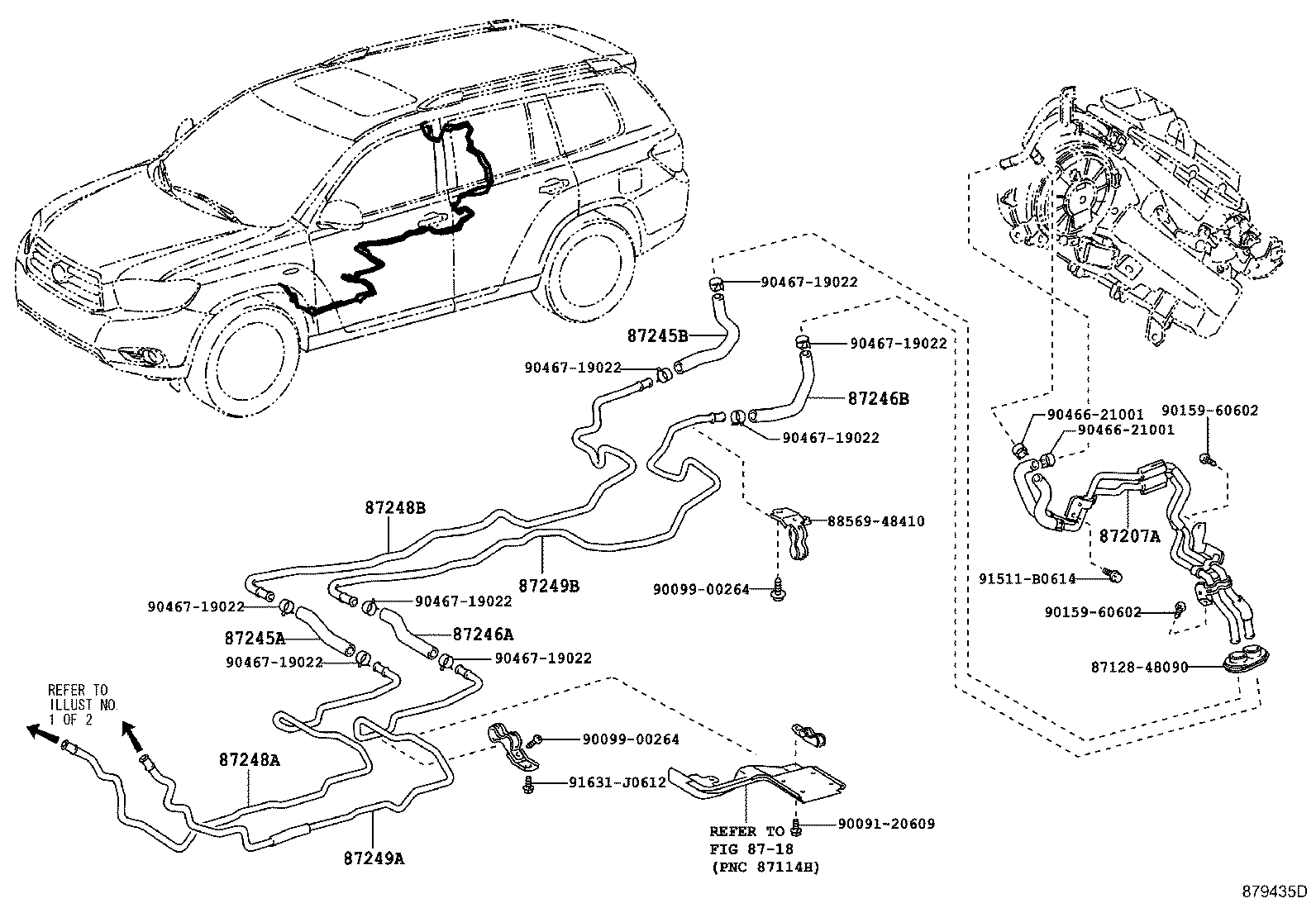

Figure 879435D

879435D 2007-05 → —

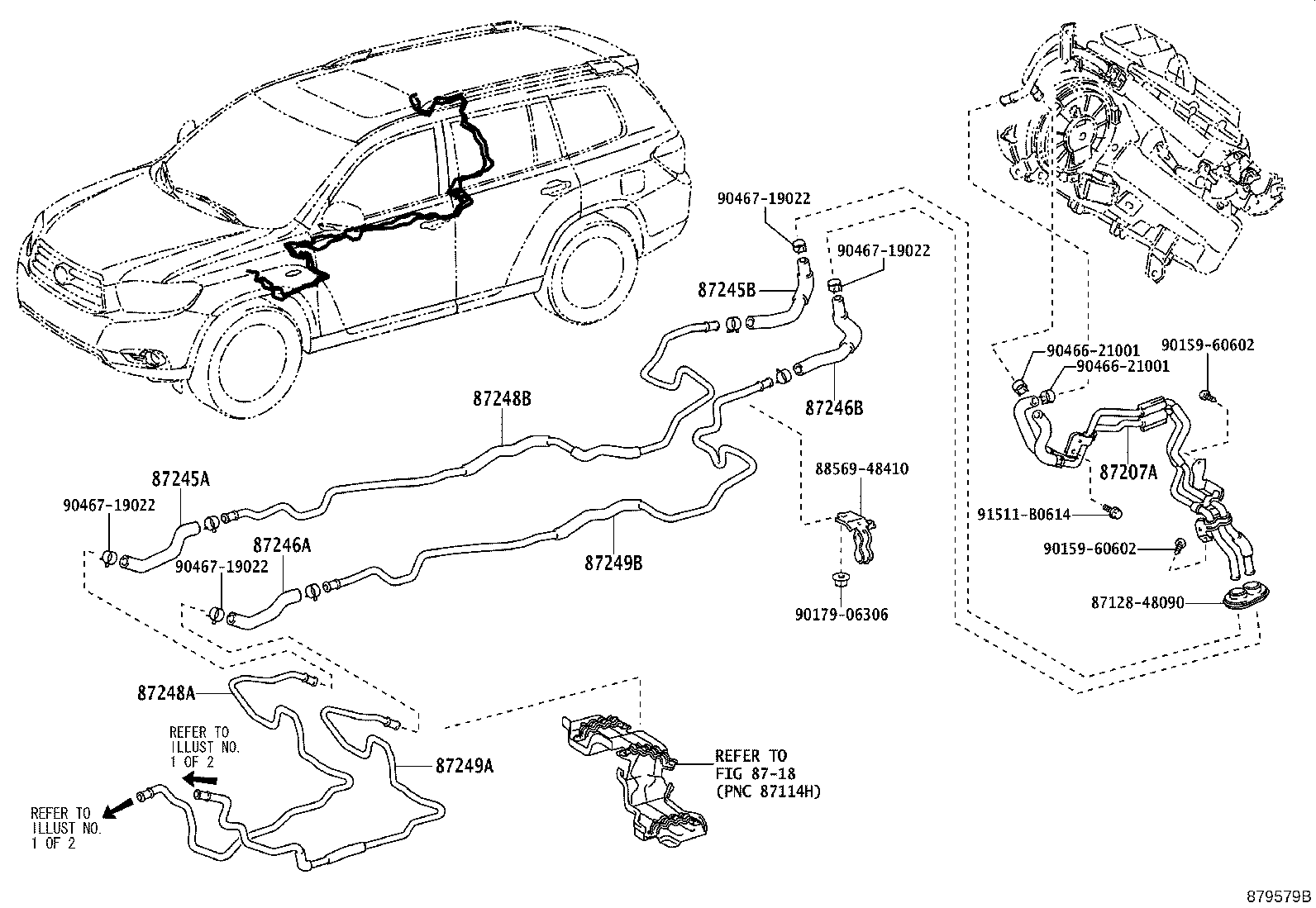

Figure 879579B

879579B 2007-08 → —

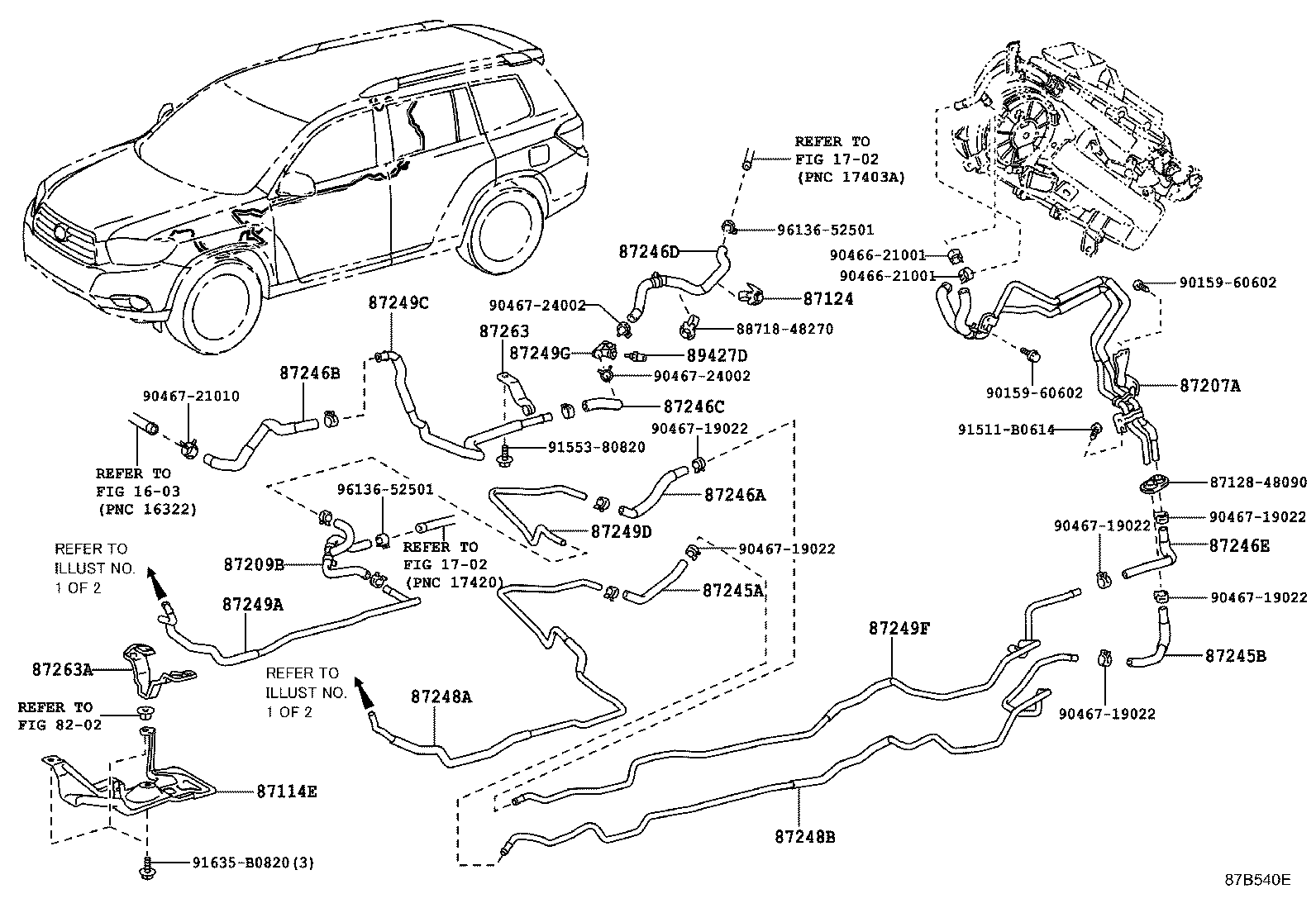

Figure 87B540E

87B540E 2010-08 → —

Part groups

PNC	Description
87114E	Cover, Heater, NO.1
87124	Clamp, Heater
87200A	Pump Assy, Water(FOR HEATER)
87207A	Pipe & Hose Sub-assy, Water A
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87246E	Hose, Heater Water, Outlet E
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C
87249D	Pipe, Heater Water Outlet, D
87249F	Pipe, Heater Water Outlet, F
87249G	Pipe, Heater Water Outlet, G
87263	Bracket, Heater Water Pipe, NO.1
87263A	Bracket, Heater Water Pipe, NO.2
89427D	Switch, Temperature

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
