Heating & Air Conditioning - Cooler Piping

22 part groups · 10 illustrations

Illustrations

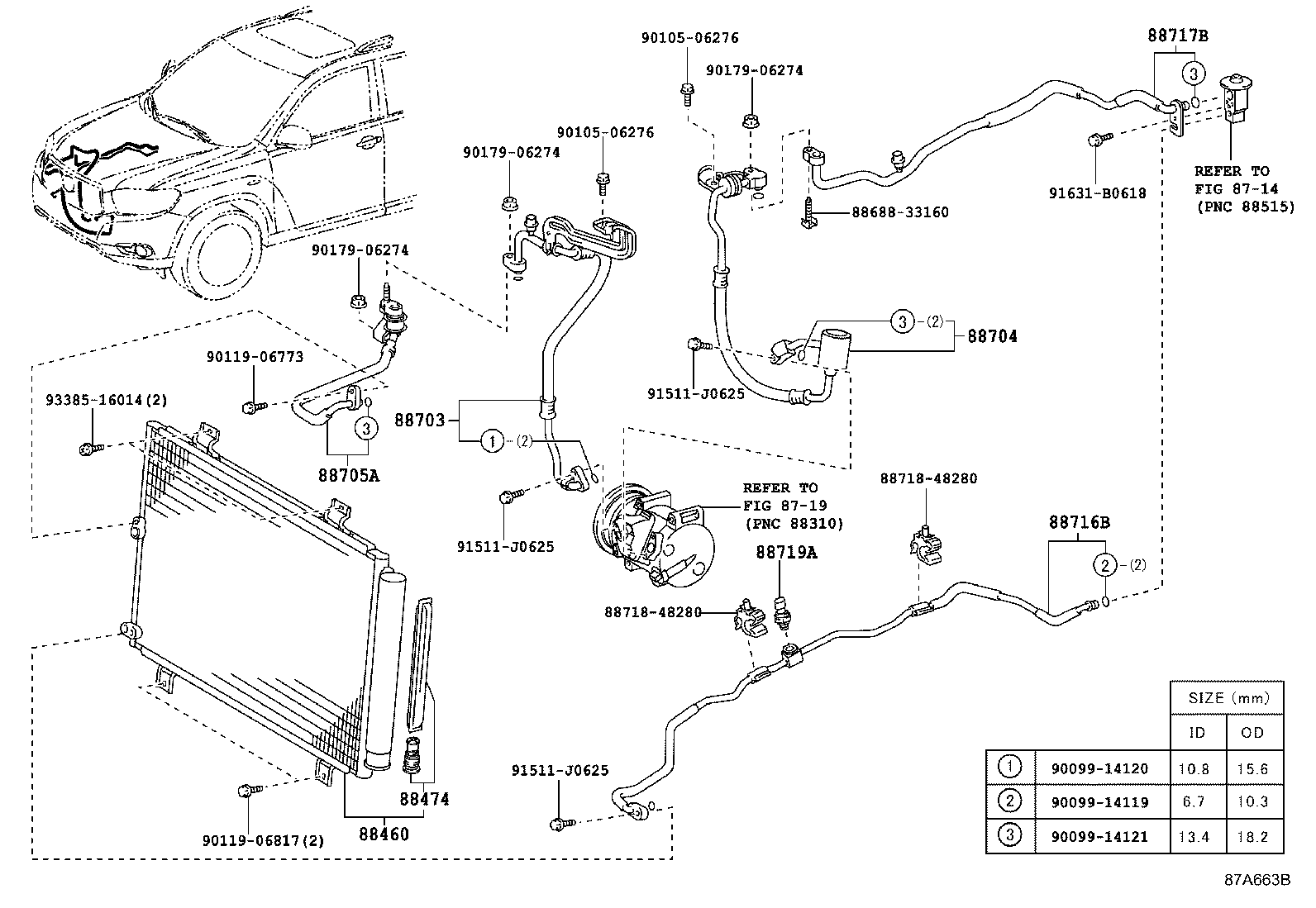

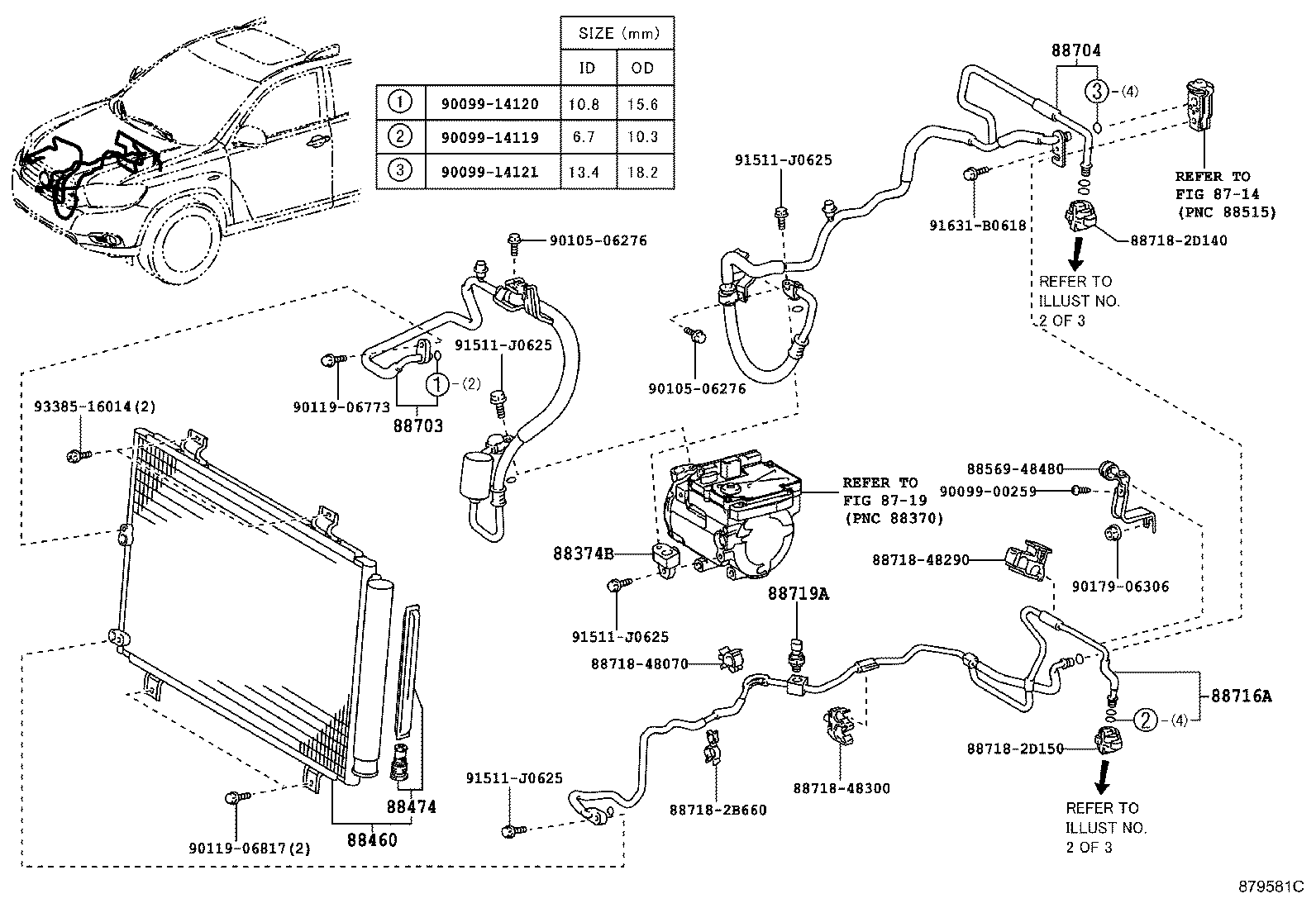

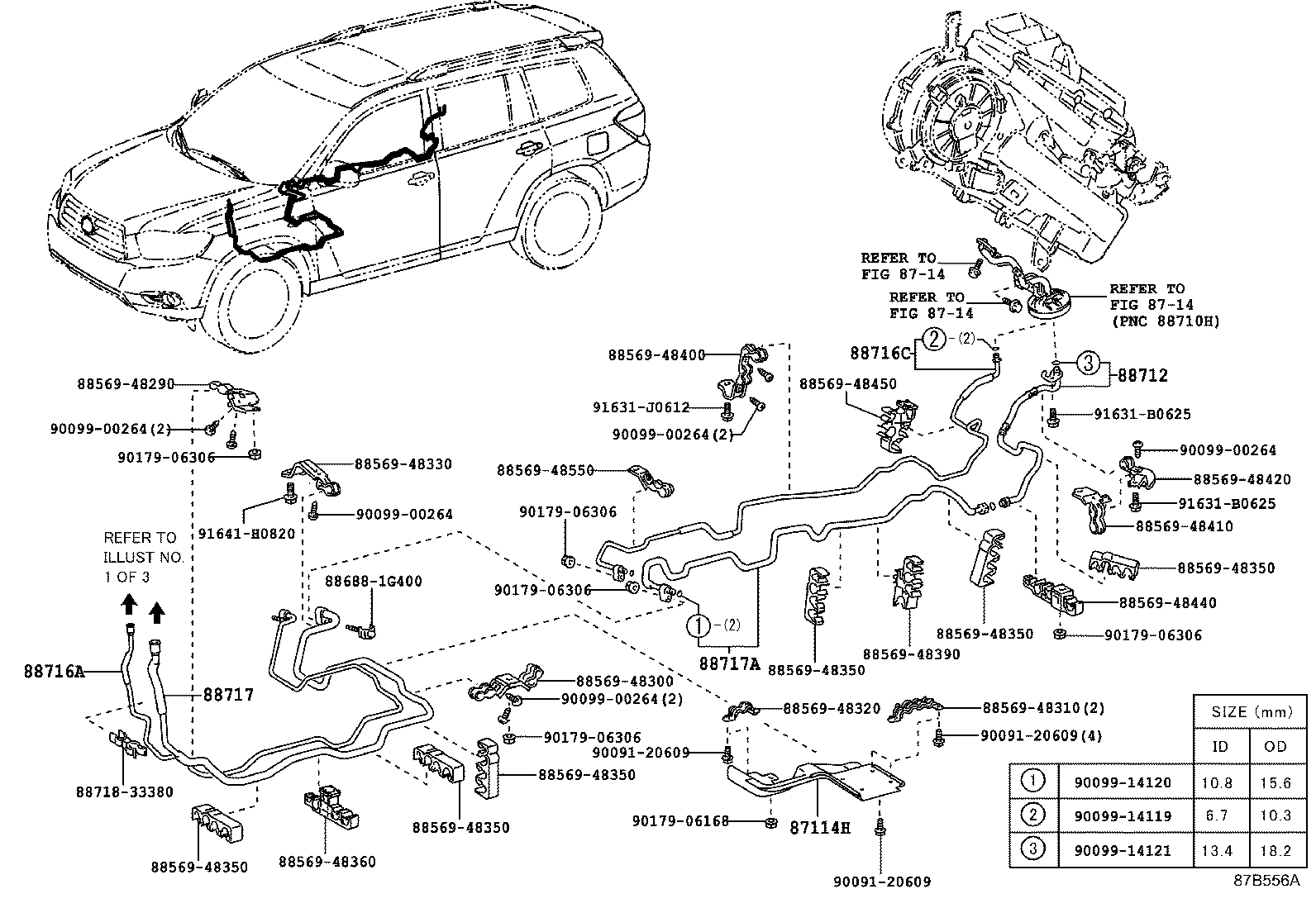

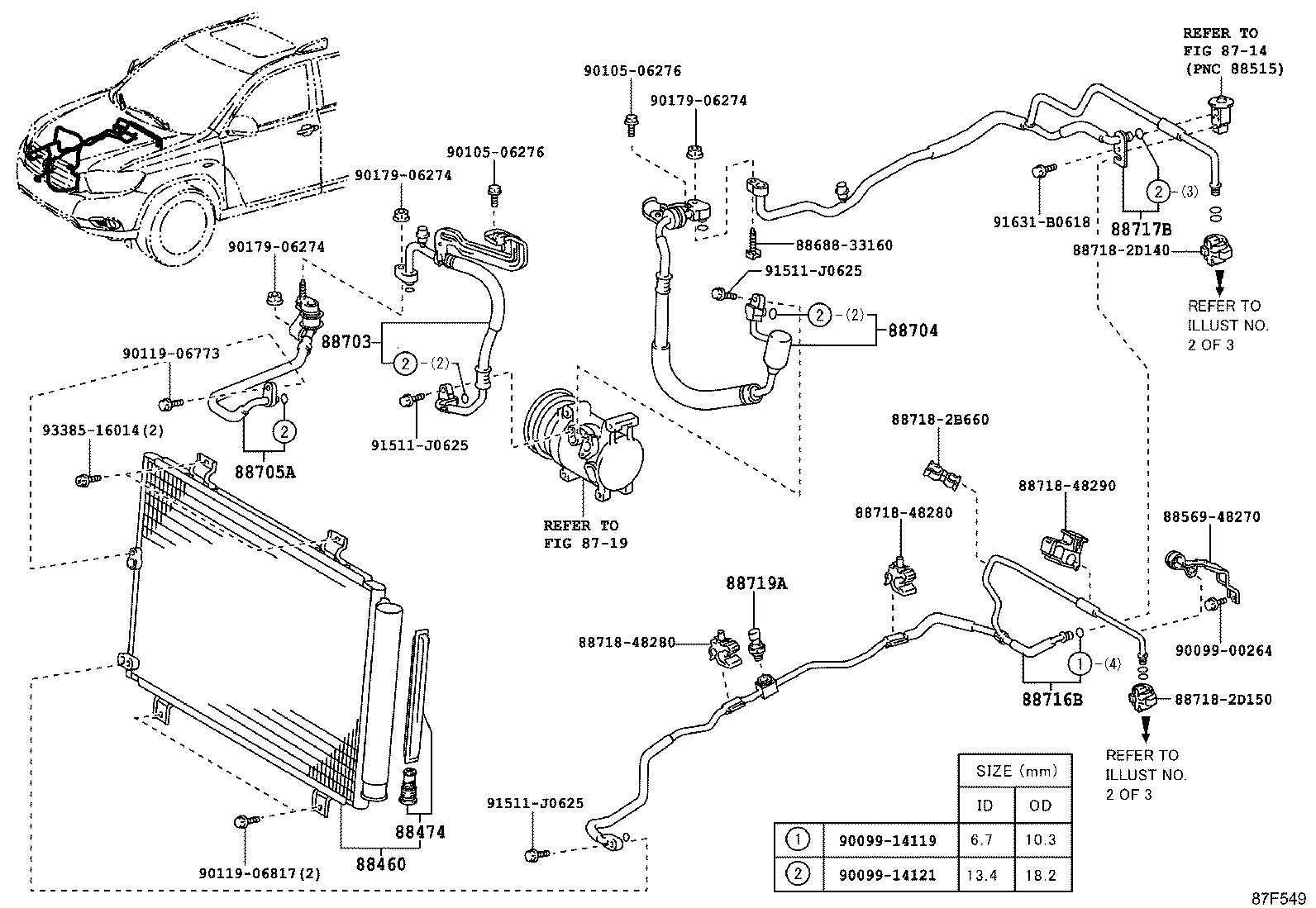

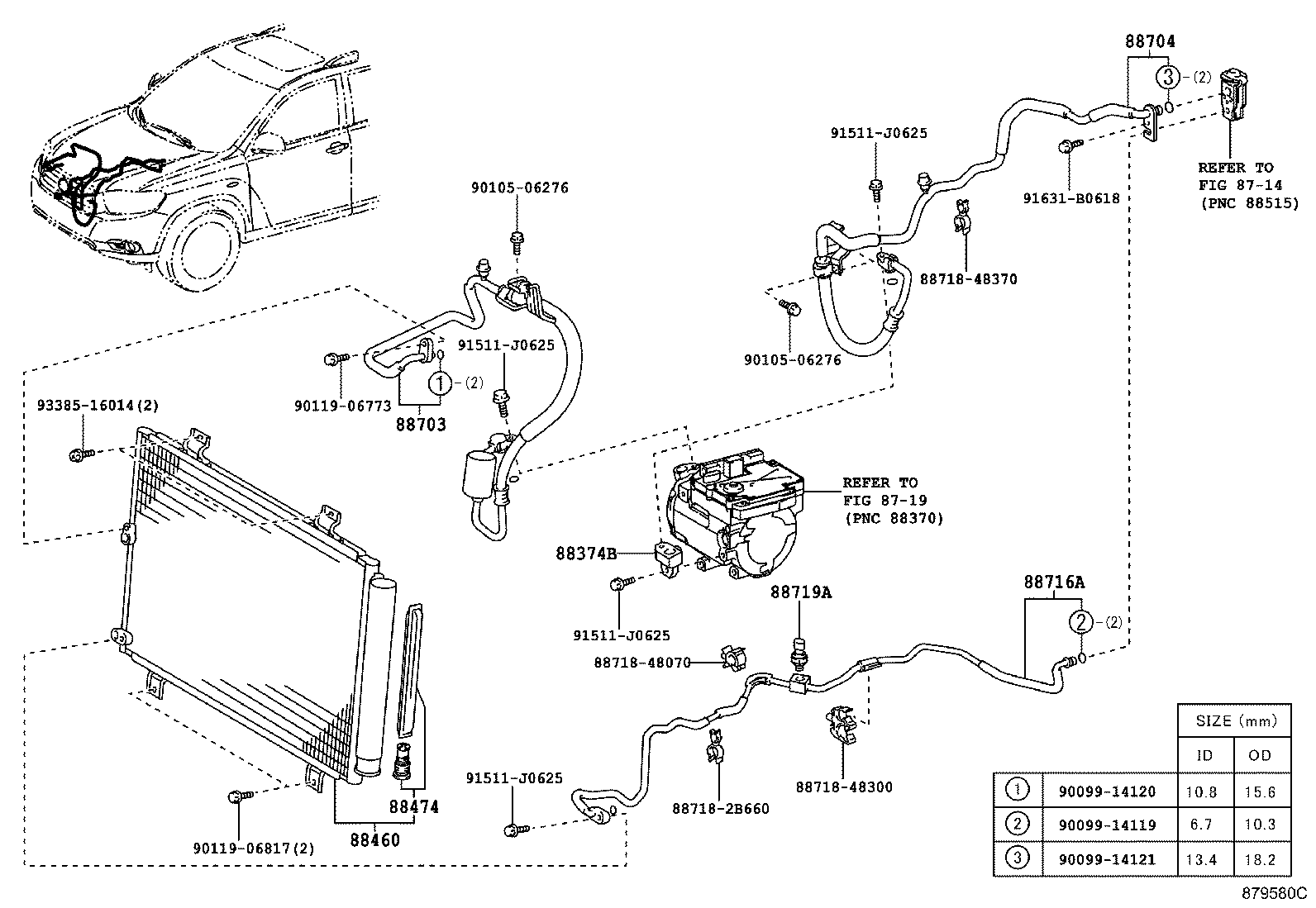

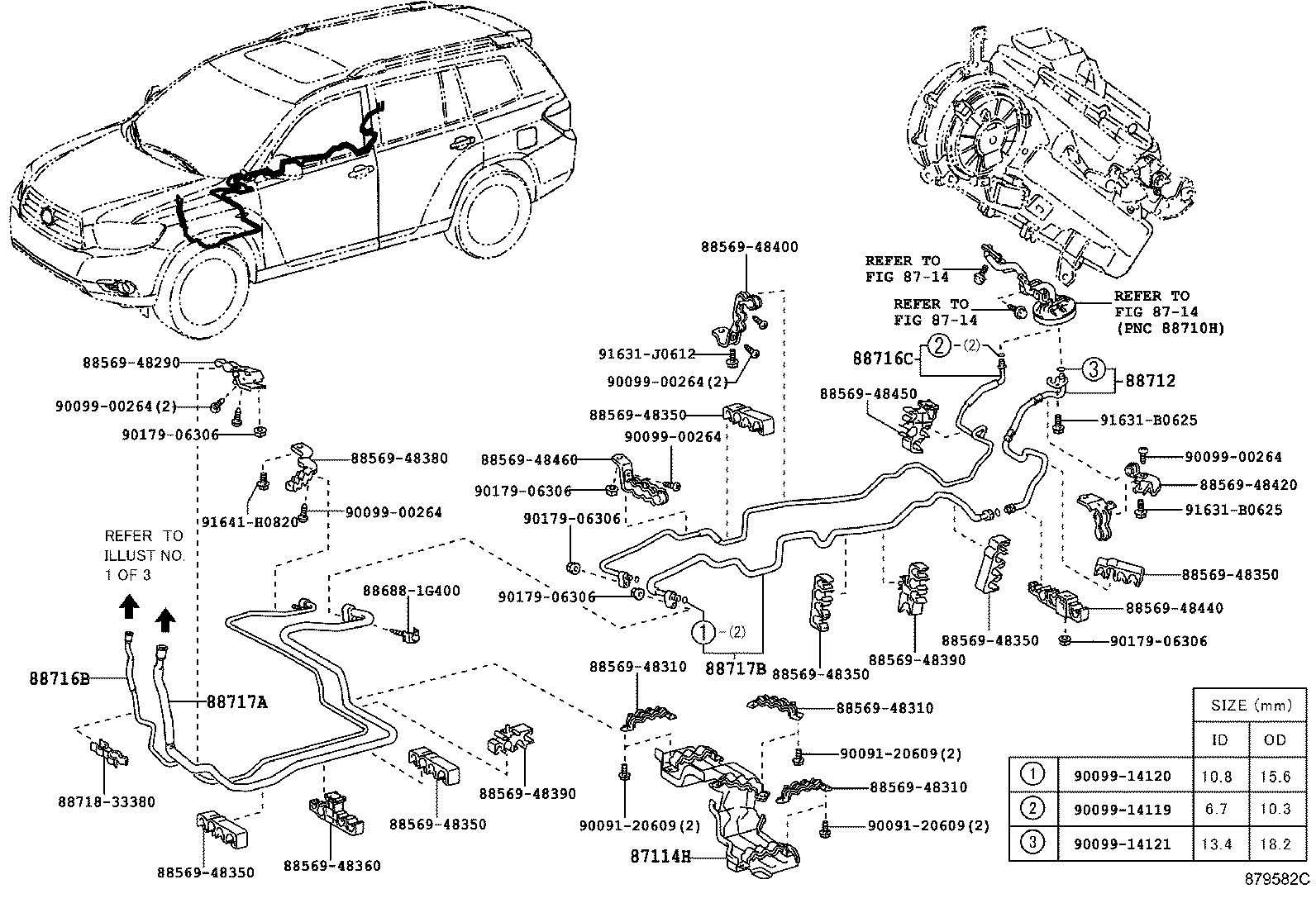

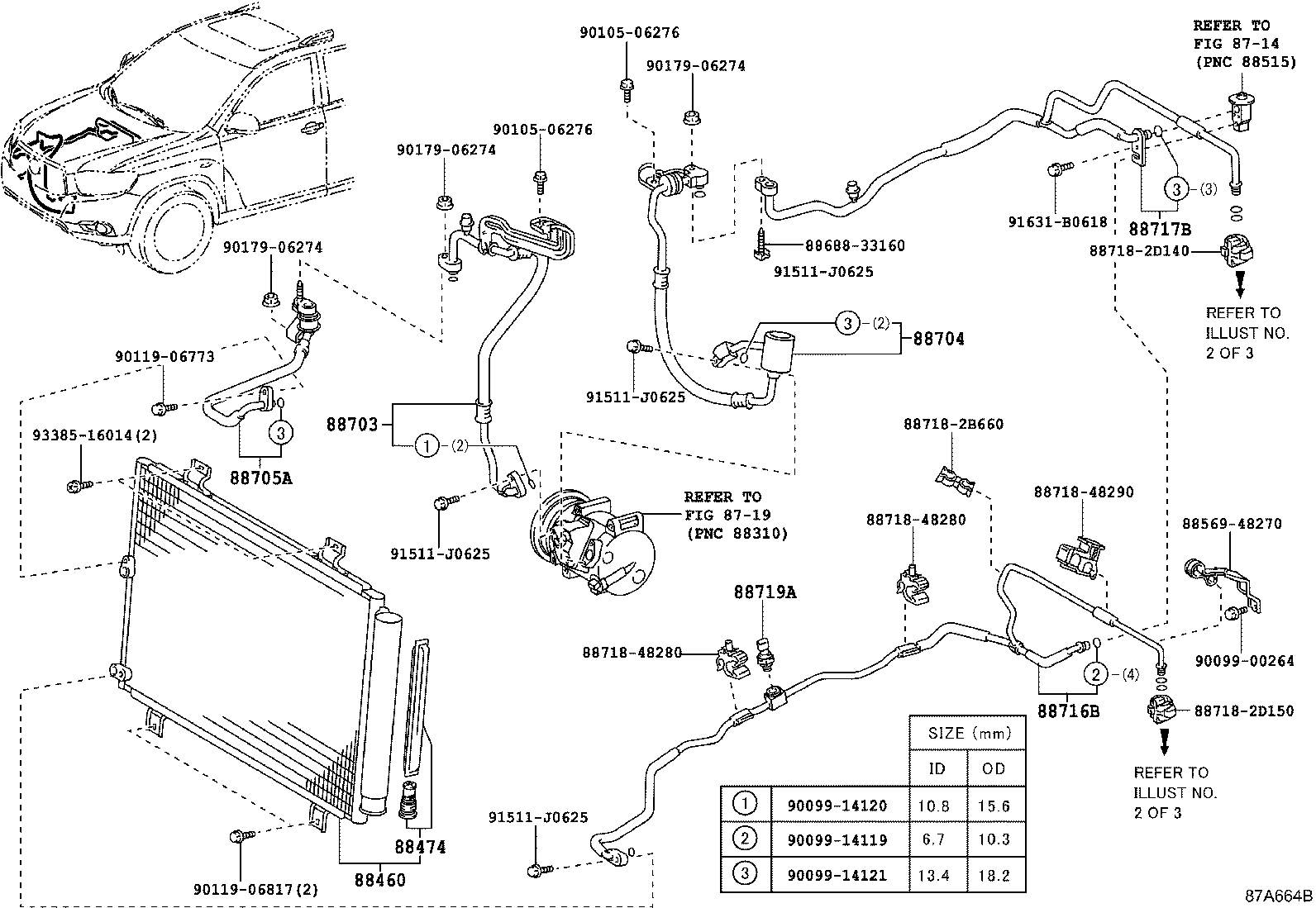

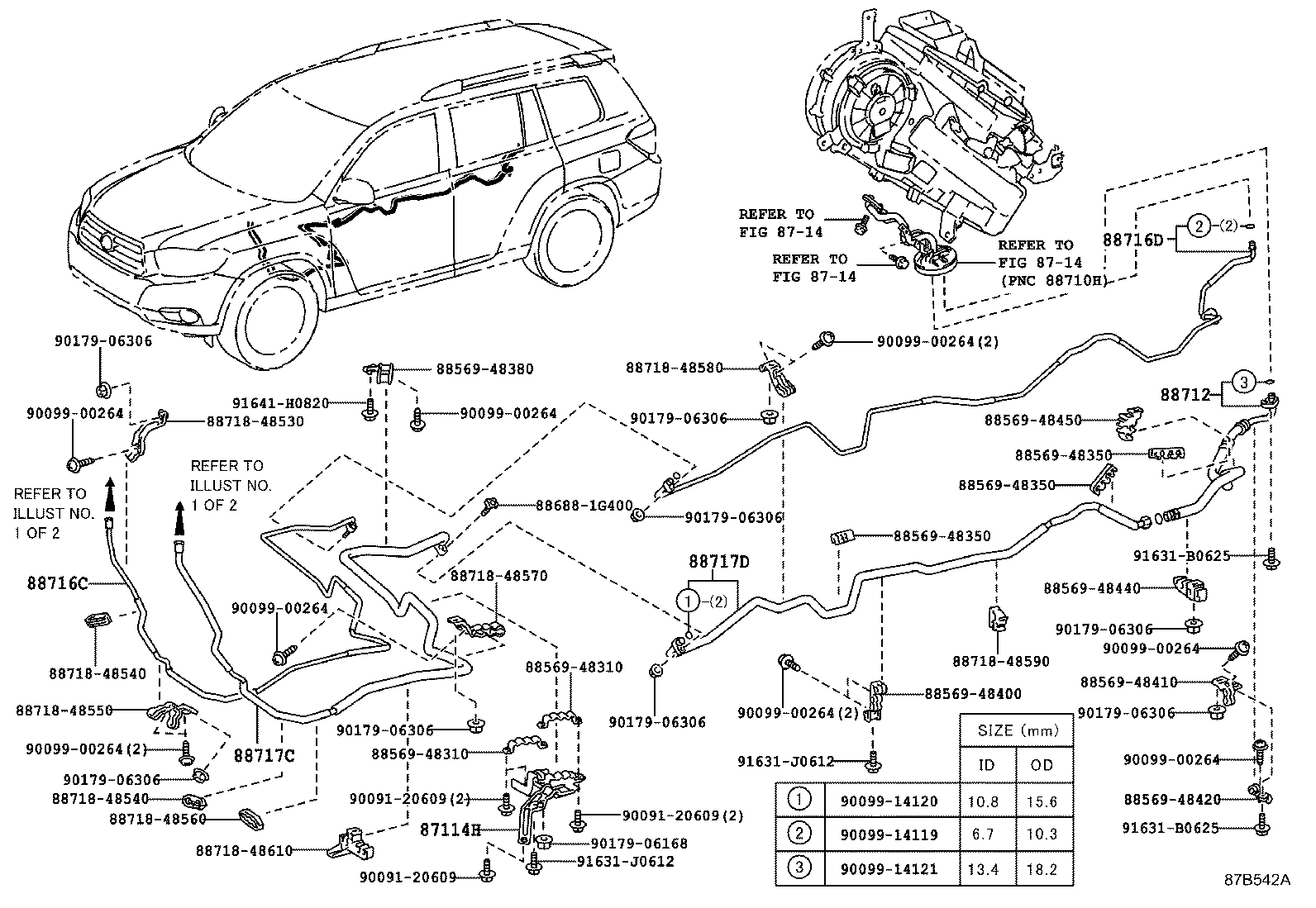

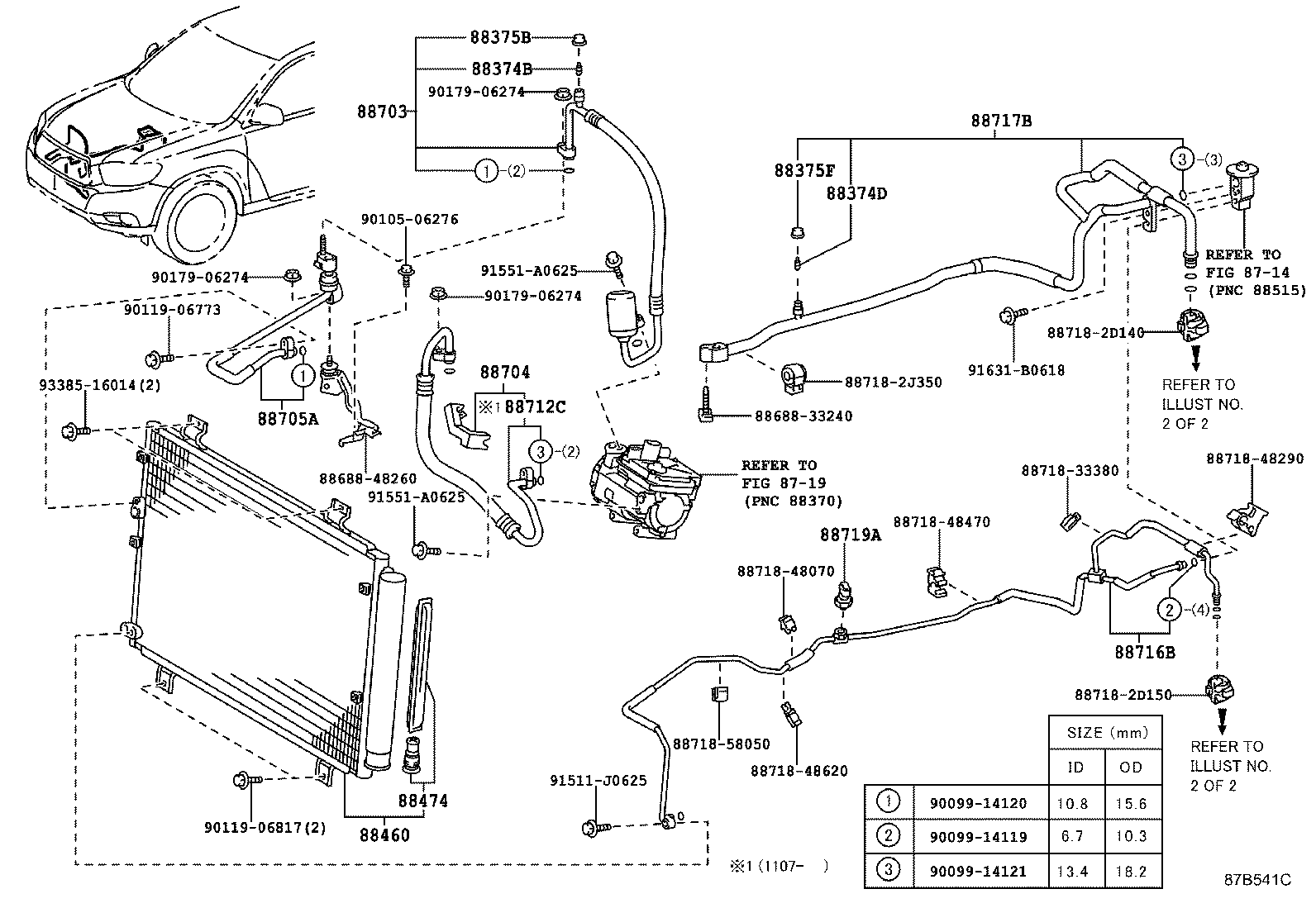

Figure 879437E 879437E 2007-05 → — Figure 87F549 87F549 2007-05 → — Figure 879580C 879580C 2007-08 → — Figure 879581C 879581C 2007-08 → — Figure 87A663B 87A663B 2008-11 → — Figure 87A664B 87A664B 2008-11 → — Figure 87B541C 87B541C 2010-08 → — Figure 87B556A 87B556A 2007-05 → — Figure 879582C 879582C 2007-08 → — Figure 87B542A 87B542A 2010-08 → —

Part groups

PNCDescription
87114H Cover, Heater
88374B Valve, Service, NO.1
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88712 Hose, Cooler Refrigerant Suction, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88719A Sensor, Air Conditioner Pressure
