Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

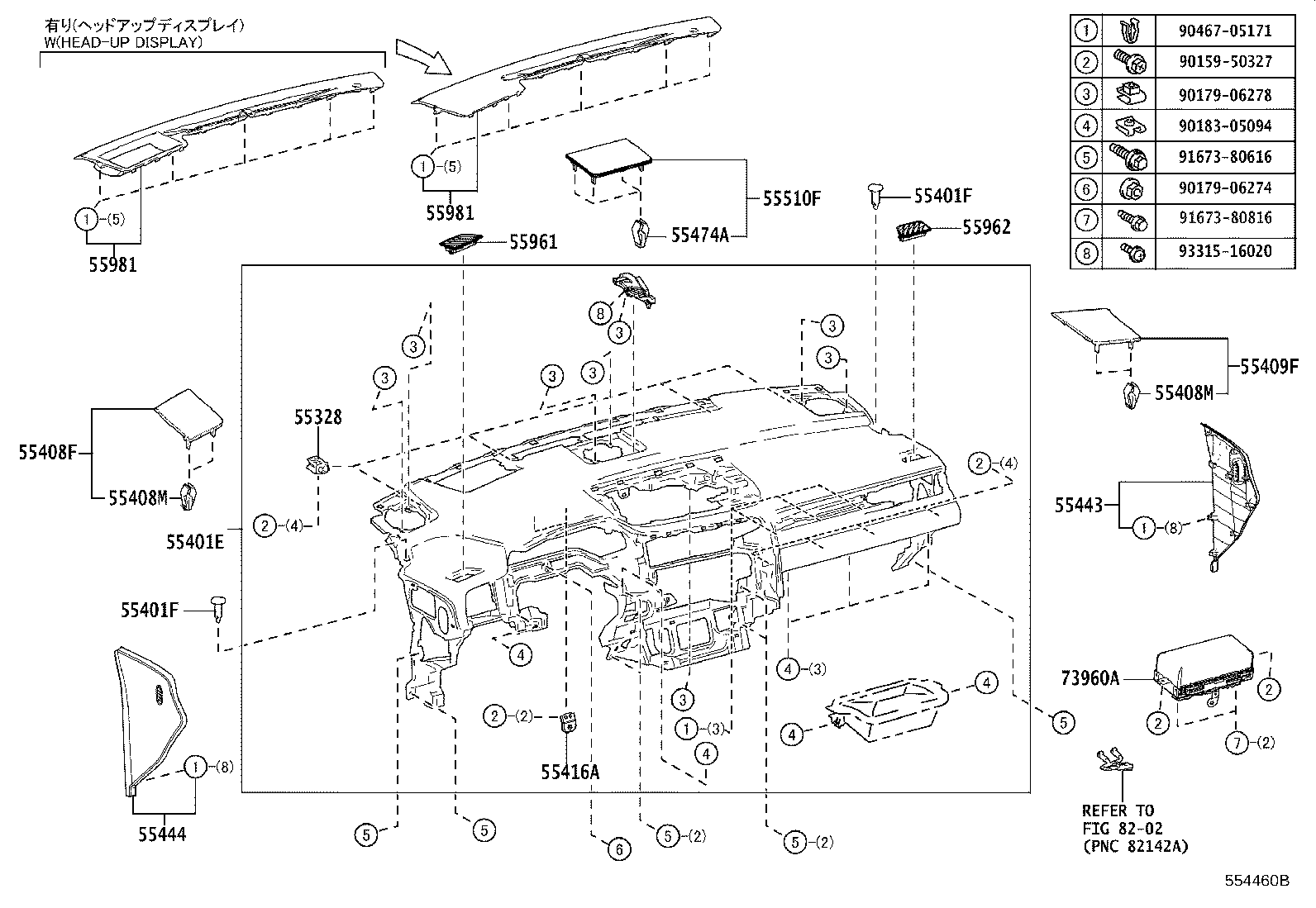

Exploded illustration 554460B 55401E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY (18 parts) 55401F — CLIP(FOR SAFETY PAD) (2 parts) 73960A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR (3 parts) 55328 — PIN, INSTRUMENT PANEL, NO.1 (3 parts) 55401F — CLIP(FOR SAFETY PAD) (2 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (2 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (2 parts) 55510F — COVER ASSY, SPEAKER OPENING, NO.1 (15 parts) 55474A — CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) (2 parts) 55981 — GARNISH, DEFROSTER NOZZLE, NO.1 (10 parts) 55981 — GARNISH, DEFROSTER NOZZLE, NO.1 (10 parts) 55443 — GARNISH, INSTRUMENT PANEL, RH (5 parts) 55444 — GARNISH, INSTRUMENT PANEL, LH (5 parts) 55409F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 (15 parts) 55408M — CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) (2 parts) 55416A — RETAINER, METER HOOD, NO.1 (2 parts) 55408M — CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) (2 parts) 55408F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 (15 parts) 8202 — not listed in this catalogue 9046705171 — not listed in this catalogue 9015950327 — not listed in this catalogue 9017906278 — not listed in this catalogue 9018305094 — not listed in this catalogue 9167380616 — not listed in this catalogue 9017906274 — not listed in this catalogue 9167380816 — not listed in this catalogue 9331516020 — not listed in this catalogue
554460B · 18 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
101 parts on this figure
Part number Description Fitment Price
55328 — Pin, Instrument Panel, NO.1
55328-28130 Pin, Instrument Panel, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55328-12430 Pin, Instrument Panel, NO.1
2021-07 → —
GGL2#,GYL26 —
55328-28130 Pin, Instrument Panel, NO.1
2019-08 → 2021-06 ended
GGL2#,GYL26 —
55401E — Pad Sub-assy, Instrument Panel Safety
55401-48161-C0 note Pad Sub-assy, Instrument Panel Safety
2017-12 → 2019-08 ended
GGL2# —
55401-48161-C1 note Pad Sub-assy, Instrument Panel Safety
2017-12 → 2019-08 ended
GGL2# —
55401-48161-E0 note Pad Sub-assy, Instrument Panel Safety
2017-12 → 2019-08 ended
GGL2# —
55401-48171-C0 note Pad Sub-assy, Instrument Panel Safety
2017-12 → 2019-08 ended
GYL26 —
55401-48171-C1 note Pad Sub-assy, Instrument Panel Safety
2017-12 → 2019-08 ended
GYL26 —
55401-48171-E0 note Pad Sub-assy, Instrument Panel Safety
2017-12 → 2019-08 ended
GYL26 —
55401-48200-C0 note Pad Sub-assy, Instrument Panel Safety
2019-08 → 2020-07 ended
GGL2# —
55401-48200-C0 note Pad Sub-assy, Instrument Panel Safety
2021-07 → —
GGL2# —
55401-48200-C0 note Pad Sub-assy, Instrument Panel Safety
2020-07 → 2021-07 ended
GGL2# —
55401-48200-C1 note Pad Sub-assy, Instrument Panel Safety
2019-08 → —
GGL2# —
55401-48200-C2 note Pad Sub-assy, Instrument Panel Safety
2021-07 → —
GGL2# —
55401-48200-E0 note Pad Sub-assy, Instrument Panel Safety
2019-08 → 2020-07 ended
GGL2# —
55401-48210-C0 note Pad Sub-assy, Instrument Panel Safety
2020-07 → 2021-07 ended
GYL26 —
55401-48210-C0 note Pad Sub-assy, Instrument Panel Safety
2019-08 → 2020-07 ended
GYL26 —
55401-48210-C0 note Pad Sub-assy, Instrument Panel Safety
2021-07 → —
GYL26 —
55401-48210-C1 note Pad Sub-assy, Instrument Panel Safety
2019-08 → —
GYL26 —
55401-48210-C2 note Pad Sub-assy, Instrument Panel Safety
2021-07 → —
GYL26 —
55401-48210-E0 note Pad Sub-assy, Instrument Panel Safety
2019-08 → 2020-07 ended
GYL26 —
55401F — Clip(FOR SAFETY PAD)
52161-16010 Clip(FOR SAFETY PAD)
2017-12 → 2019-08 ended
GGL2#,GYL26 —
52161-16010 Clip(FOR SAFETY PAD)
2019-08 → —
GGL2#,GYL26 —
55408F — Panel Sub-assy, Instrument Panel Speaker, NO.1
55408-48040-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55408-48040-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55408-48050-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55408-48050-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55408-48060-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55408-48060-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55408-48040-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55408-48040-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2020-07 → —
GGL2#,GYL26 —
55408-48040-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55408-48050-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55408-48050-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2020-07 → —
GGL2#,GYL26 —
55408-48050-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55408-48060-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55408-48060-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2020-07 → —
GGL2#,GYL26 —
55408-48060-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55408M — Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
90467-13082-A0 note Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
2017-12 → 2019-08 ended
GGL2#,GYL26 —
90467-13082-A0 note Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
2019-08 → —
GGL2#,GYL26 —
55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2
55409-48040-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55409-48040-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55409-48050-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55409-48050-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55409-48060-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55409-48060-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55409-48040-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55409-48040-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2020-07 → —
GGL2#,GYL26 —
55409-48040-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55409-48050-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55409-48050-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2020-07 → —
GGL2#,GYL26 —
55409-48050-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55409-48060-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55409-48060-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2020-07 → —
GGL2#,GYL26 —
55409-48060-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55416A — Retainer, Meter Hood, NO.1
55416-48050 Retainer, Meter Hood, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55416-48050 Retainer, Meter Hood, NO.1
2019-08 → —
GGL2#,GYL26 —
55443 — Garnish, Instrument Panel, RH
55443-48120-C0 note Garnish, Instrument Panel, RH
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55443-48120-E0 note Garnish, Instrument Panel, RH
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55443-48120-C0 note Garnish, Instrument Panel, RH
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55443-48120-C0 note Garnish, Instrument Panel, RH
2020-07 → —
GGL2#,GYL26 —
55443-48120-E0 note Garnish, Instrument Panel, RH
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55444 — Garnish, Instrument Panel, LH
55444-48070-C0 note Garnish, Instrument Panel, LH
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55444-48070-E0 note Garnish, Instrument Panel, LH
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55444-48070-C0 note Garnish, Instrument Panel, LH
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55444-48070-C0 note Garnish, Instrument Panel, LH
2020-07 → —
GGL2#,GYL26 —
55444-48070-E0 note Garnish, Instrument Panel, LH
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55474A — Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
90467-13082-A0 note Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
2017-12 → 2019-08 ended
GGL2#,GYL26 —
90467-13082-A0 note Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
2019-08 → —
GGL2#,GYL26 —
55510F — Cover Assy, Speaker Opening, NO.1
55510-48070-C0 note Cover Assy, Speaker Opening, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55510-48070-E0 note Cover Assy, Speaker Opening, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55510-48090-C0 note Cover Assy, Speaker Opening, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55510-48090-C0 note Cover Assy, Speaker Opening, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55510-48090-E0 note Cover Assy, Speaker Opening, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55510-48090-E0 note Cover Assy, Speaker Opening, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55510-48070-C0 note Cover Assy, Speaker Opening, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55510-48070-C0 note Cover Assy, Speaker Opening, NO.1
2020-07 → —
GGL2#,GYL26 —
55510-48070-E0 note Cover Assy, Speaker Opening, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55510-48090-C0 note Cover Assy, Speaker Opening, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55510-48090-C0 note Cover Assy, Speaker Opening, NO.1
2020-07 → —
GGL2#,GYL26 —
55510-48090-C0 note Cover Assy, Speaker Opening, NO.1
2020-07 → —
GGL2#,GYL26 —
55510-48090-C0 note Cover Assy, Speaker Opening, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55510-48090-E0 note Cover Assy, Speaker Opening, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55510-48090-E0 note Cover Assy, Speaker Opening, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55961 — Nozzle, Side Defroster, NO.1
55961-48050 Nozzle, Side Defroster, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55961-48050 Nozzle, Side Defroster, NO.1
2019-08 → —
GGL2#,GYL26 —
55962 — Nozzle, Side Defroster, NO.2
55962-48050 Nozzle, Side Defroster, NO.2
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55962-48050 Nozzle, Side Defroster, NO.2
2019-08 → —
GGL2#,GYL26 —
55981 — Garnish, Defroster Nozzle, NO.1
55981-48071-C0 note Garnish, Defroster Nozzle, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55981-48071-E0 note Garnish, Defroster Nozzle, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55981-48081-C0 note Garnish, Defroster Nozzle, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55981-48081-E0 note Garnish, Defroster Nozzle, NO.1
2017-12 → 2019-08 ended
GGL2#,GYL26 —
55981-48071-C0 note Garnish, Defroster Nozzle, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55981-48071-C0 note Garnish, Defroster Nozzle, NO.1
2020-07 → —
GGL2#,GYL26 —
55981-48071-E0 note Garnish, Defroster Nozzle, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55981-48081-C0 note Garnish, Defroster Nozzle, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
55981-48081-C0 note Garnish, Defroster Nozzle, NO.1
2020-07 → —
GGL2#,GYL26 —
55981-48081-E0 note Garnish, Defroster Nozzle, NO.1
2019-08 → 2020-07 ended
GGL2#,GYL26 —
73960A — Airbag Assy, Instrument Panel Passenger W/O Door
73960-0E100 Airbag Assy, Instrument Panel Passenger W/O Door
2017-12 → 2019-08 ended
GGL2#,GYL26 —
73960-0E100 Airbag Assy, Instrument Panel Passenger W/O Door
2019-08 → 2020-10 ended
GGL2#,GYL26 —
73960-0E101 Airbag Assy, Instrument Panel Passenger W/O Door
2020-11 → —
GGL2#,GYL26 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
