Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States
Supported model
Data version 2023-05

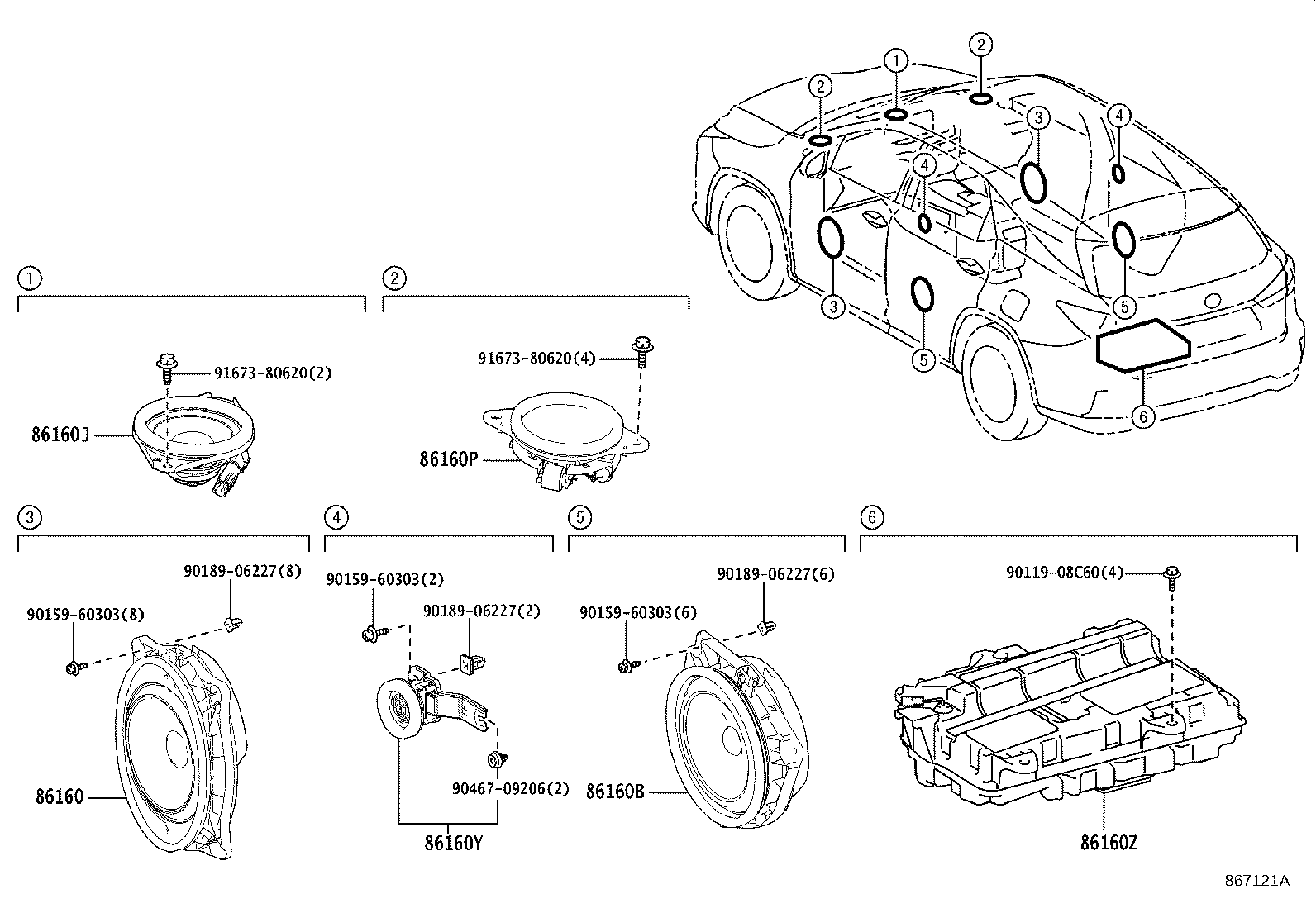

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-0WW00 note |
Speaker Assy, Front NO.1
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-48360 |
Speaker Assy, Front NO.1
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-48370 note |
Speaker Assy, Front NO.1
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-0WW00 note |
Speaker Assy, Front NO.1
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160-48360 |
Speaker Assy, Front NO.1
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160-48370 note |
Speaker Assy, Front NO.1
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-0WW30 note |
Speaker Assy, Rear
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-78040 |
Speaker Assy, Rear
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-78060 note |
Speaker Assy, Rear
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-0WW30 note |
Speaker Assy, Rear
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160-78040 |
Speaker Assy, Rear
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160-78060 note |
Speaker Assy, Rear
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160J — Speaker Assy, Front NO.3 | ||||
| 86160-0WV80 note |
Speaker Assy, Front NO.3
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-30E60 note |
Speaker Assy, Front NO.3
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-78020 |
Speaker Assy, Front NO.3
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-0WV80 note |
Speaker Assy, Front NO.3
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160-30E60 note |
Speaker Assy, Front NO.3
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160-78020 |
Speaker Assy, Front NO.3
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-0WV80 note |
Speaker Assy, Front NO.2
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-48380 note |
Speaker Assy, Front NO.2
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-78030 |
Speaker Assy, Front NO.2
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86160-0WV80 note |
Speaker Assy, Front NO.2
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160-48380 note |
Speaker Assy, Front NO.2
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160-78030 |
Speaker Assy, Front NO.2
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160Y — Speaker Assy, Rear NO.2 | ||||
| 86150-0W380 note |
Speaker Assy, Rear NO.2
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86150-48040 |
Speaker Assy, Rear NO.2
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86150-48050 note |
Speaker Assy, Rear NO.2
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86150-0W380 note |
Speaker Assy, Rear NO.2
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86150-48040 |
Speaker Assy, Rear NO.2
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86150-48050 note |
Speaker Assy, Rear NO.2
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86160Z — Speaker Assy, Rear NO.3 | ||||
| 86150-0W310 note |
Speaker Assy, Rear NO.3
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86150-48030 note |
Speaker Assy, Rear NO.3
2017-12 → 2019-08
ended
|
GGL2#,GYL26 | — | |
| 86150-0W310 note |
Speaker Assy, Rear NO.3
2019-08 → —
|
GGL2#,GYL26 | — | |
| 86150-48030 note |
Speaker Assy, Rear NO.3
2019-08 → —
|
GGL2#,GYL26 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
