Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States
Supported model
Data version 2023-05

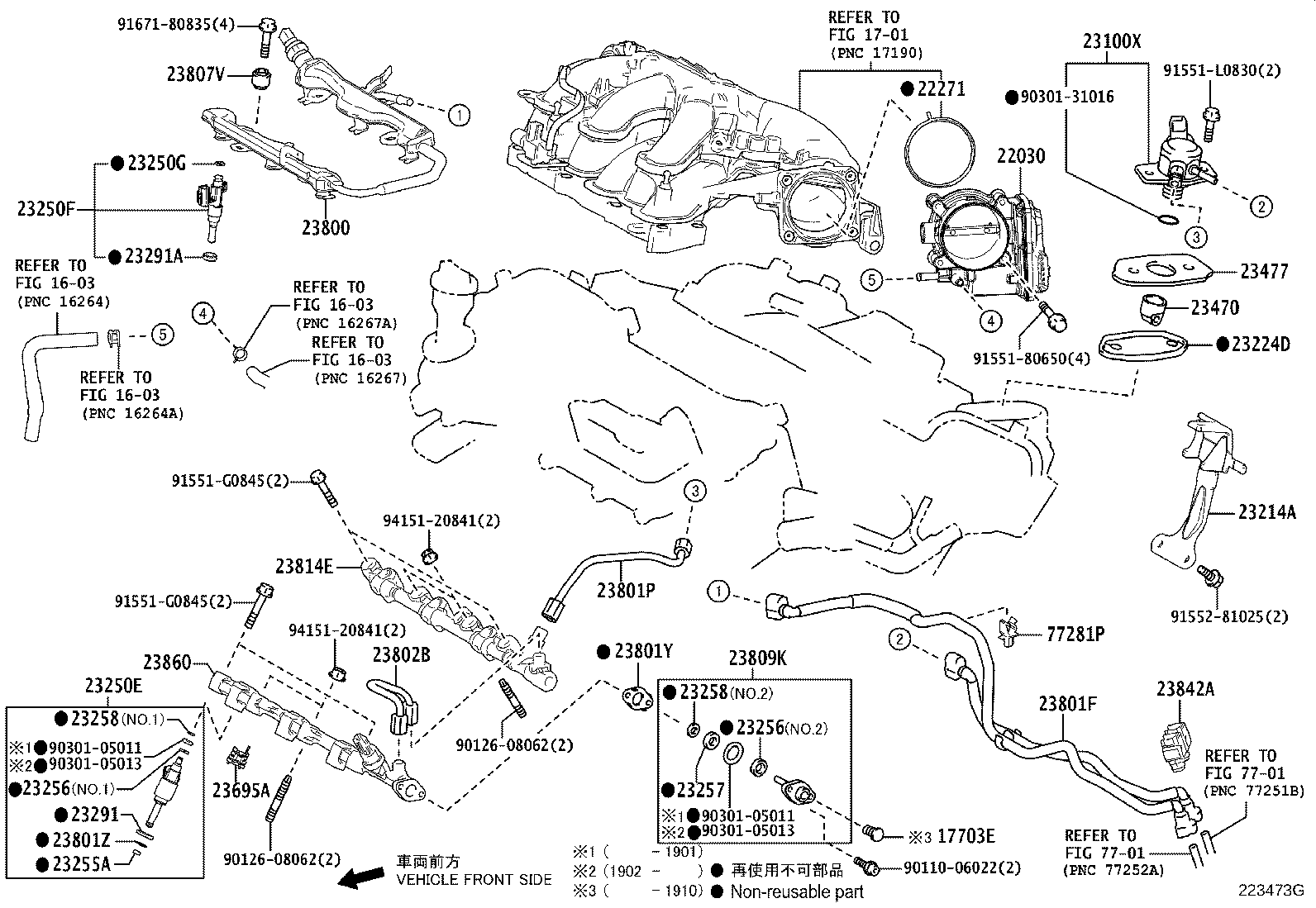

Fuel Injection System
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17703E | Cap Sub-assy, Dust |
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22271 | Gasket, Throttle Body |
| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23214A | Protector, Fuel Pump |
| 23224D | Gasket, Fuel Pump Spacer |
| 23250E | Injector Assy, Fuel(FOR DIRECT) |
| 23250F | Injector Assy, Fuel(FOR PORT) |
| 23250G | Ring, O, NO.2(FOR FUEL INJECTOR) |
| 23255A | Seal, Fuel Injector |
| 23256 | Ring, Fuel Injector Back-up, NO.1 |
| 23257 | Ring, Fuel Injector Back-up, NO.2 |
| 23258 | Ring, Fuel Injector Back-up, NO.3 |
| 23291 | Insulator, Injector Vibration |
| 23291A | Insulator, Injector Vibration |
| 23470 | Lifter Assy, Fuel Pump |
| 23477 | Guide, Fuel Pump Lifter |
| 23695A | Clamp, Nozzle Holder |
| 23800 | Pipe Assy, Fuel Delivery W/Sensor |
| 23801F | Hose, Fuel, NO.1 |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23801Y | Gasket |
| 23801Z | Ring, Snap(FOR FUEL PIPE) |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23809K | Plug Sub-assy, Fuel Pipe |
| 23814E | Pipe, Fuel Delivery, RH |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23860 | Pipe Assy, Fuel Delivery W/Sensor, LH |
| 77281P | Clamp, Fuel Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
