Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States
Supported model
Data version 2023-05

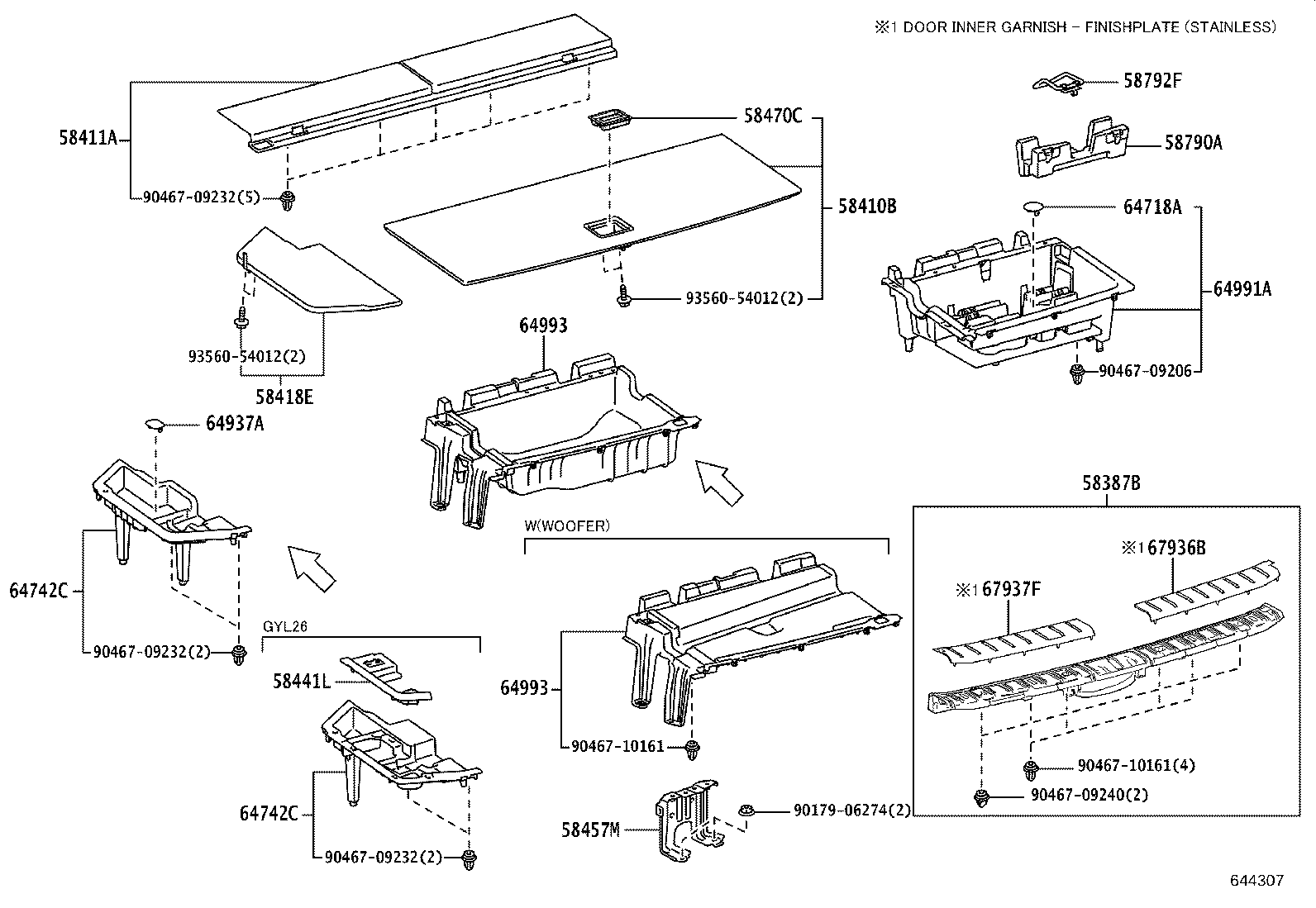

Deck Board & Deck Trim Cover
36 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58410B | Board Assy, Deck |
| 58411A | Board, Deck, NO.1 |
| 58418E | Board, Rear Floor, NO.4 |
| 58441L | Cover, Battery Service Hole |
| 58457M | Bracket, Deck Floor, NO.2 LH |
| 58470C | Handle Assy, Deck Board |
| 58790A | Carrier Assy, Jack |
| 58792F | Support, Jack Carrier |
| 62521C | Cover, Quarter Trim RH |
| 62522B | Cover, Quarter Trim LH |
| 63610A | Register Assy, Air Outlet, RH |
| 63620A | Register Assy, Air Outlet, LH |
| 64328A | Cover, Package Tray Trim Clamp |
| 64348A | Knob, Package Tray Trim |
| 64716D | Cover, Deck Trim, Rear |
| 64718A | Cover, Deck Trim Service Hole |
| 64718D | Cover, Deck Trim Service Hole |
| 64719C | Cover, Deck Trim Pocket |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64742C | Box, Deck Side Trim, LH |
| 64910J | Cover Assy, Tonneau |
| 64933A | Bracket, Tonneau Cover Holder, RH |
| 64937A | Cap, Tonneau Cover Holder, NO.1 |
| 64938 | Hook, Tonneau Cover, A |
| 64946 | Hook, Tonneau Cover, B |
| 64991A | Box, Deck Floor, FR |
| 64993 | Box, Deck Floor, Rear |
| 66310H | Hook Assy, Rope |
| 66319E | Bracket, Rope Hook, RH |
| 67936B | Cover, Back Door Scuff Side, RH |
| 67937F | Cover, Back Door Scuff Side, LH |
| 88571F | Grille, Cooler Air Outlet, RH |
| 88571G | Grille, Cooler Air Outlet, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
