Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States
Supported model
Data version 2023-05

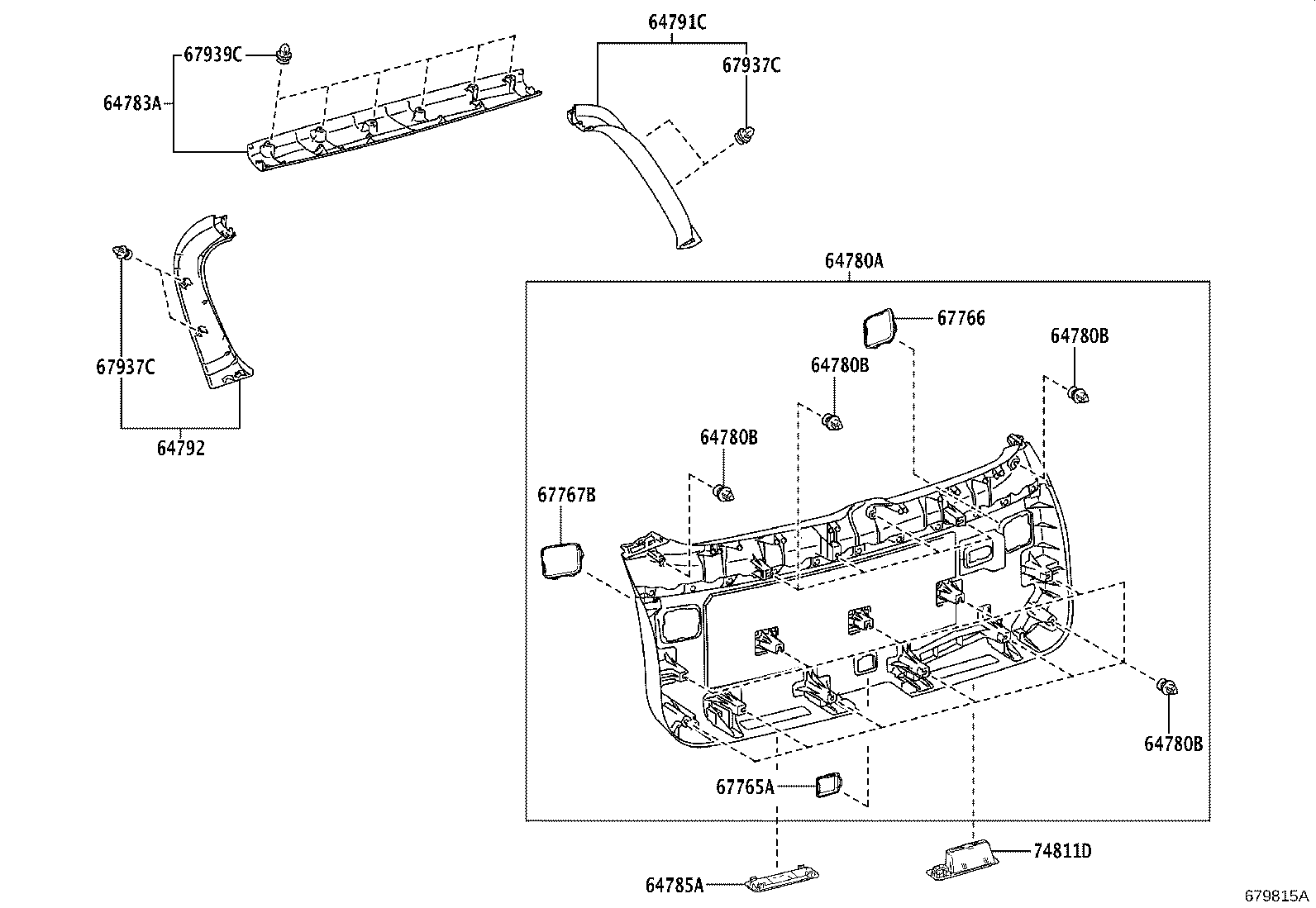

Back Door Panel & Glass
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64780A | Panel Assy, Back Door Trim |
| 64780B | Clip(FOR BACK DOOR TRIM PANEL) |
| 64783A | Trim, Back Window Panel, Upper |
| 64785A | Base, Back Door Trim |
| 64791C | Cover, Back Door Trim, RH |
| 64792 | Cover, Back Door Trim, LH |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67179A | Retainer, License Plate |
| 67188 | Reinforcement, Back Door Stay, RH |
| 67189 | Reinforcement, Back Door Stay, LH |
| 67195 | Reinforcement, Back Door Stay, Lower RH |
| 67196 | Reinforcement, Back Door Stay, Lower LH |
| 67281G | Stopper, Back Door, Lower RH |
| 67282F | Stopper, Back Door, Lwr LH |
| 67372A | Weight, Back Door |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67837L | Seal, Door Dust Proof |
| 67837N | Seal, Back Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 69478 | Cushion, Back Door Lower Stopper |
| 74811D | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75575D | Moulding, Back Window, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
