Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

159 part groups · 10 illustrations

Illustrations

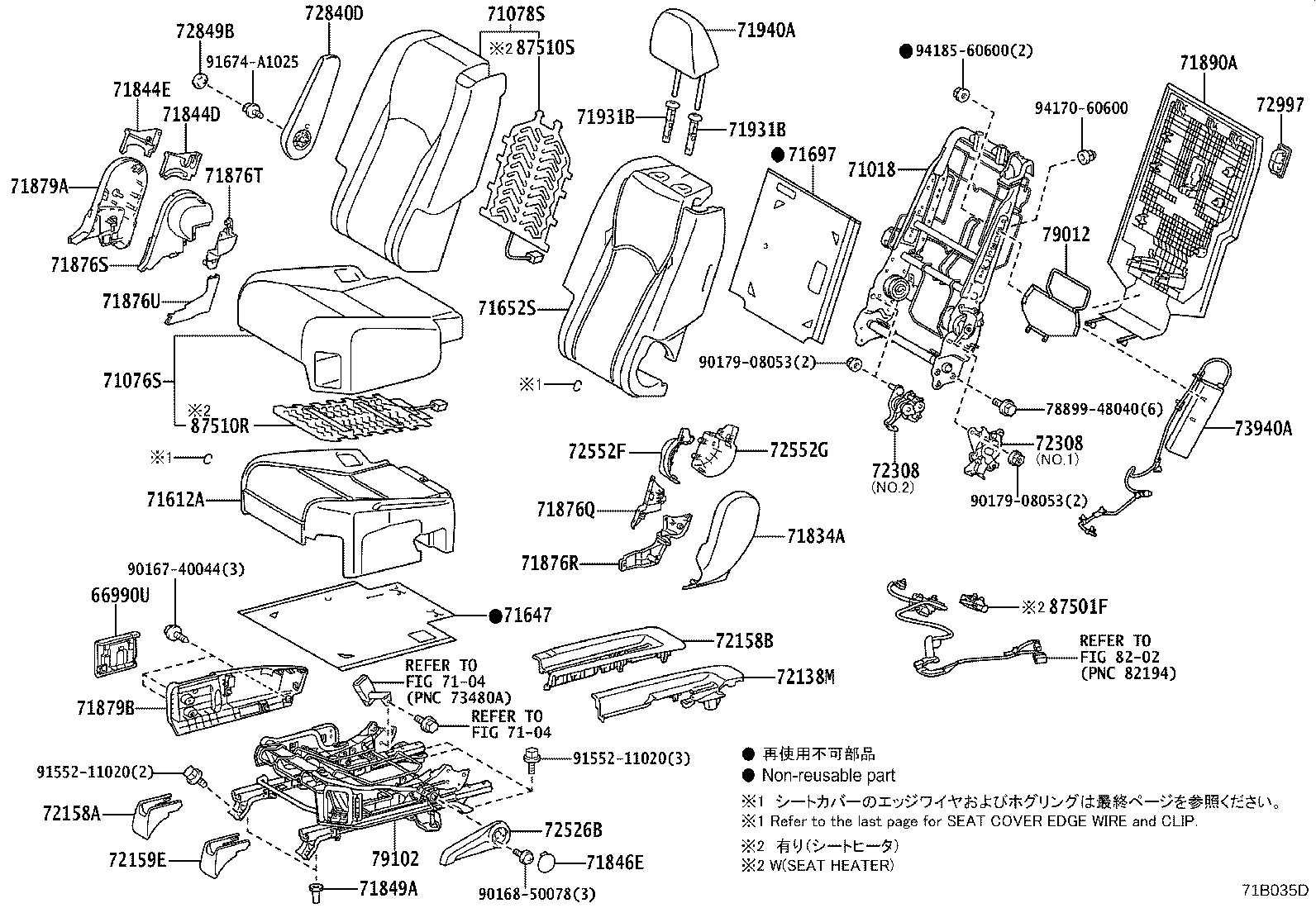

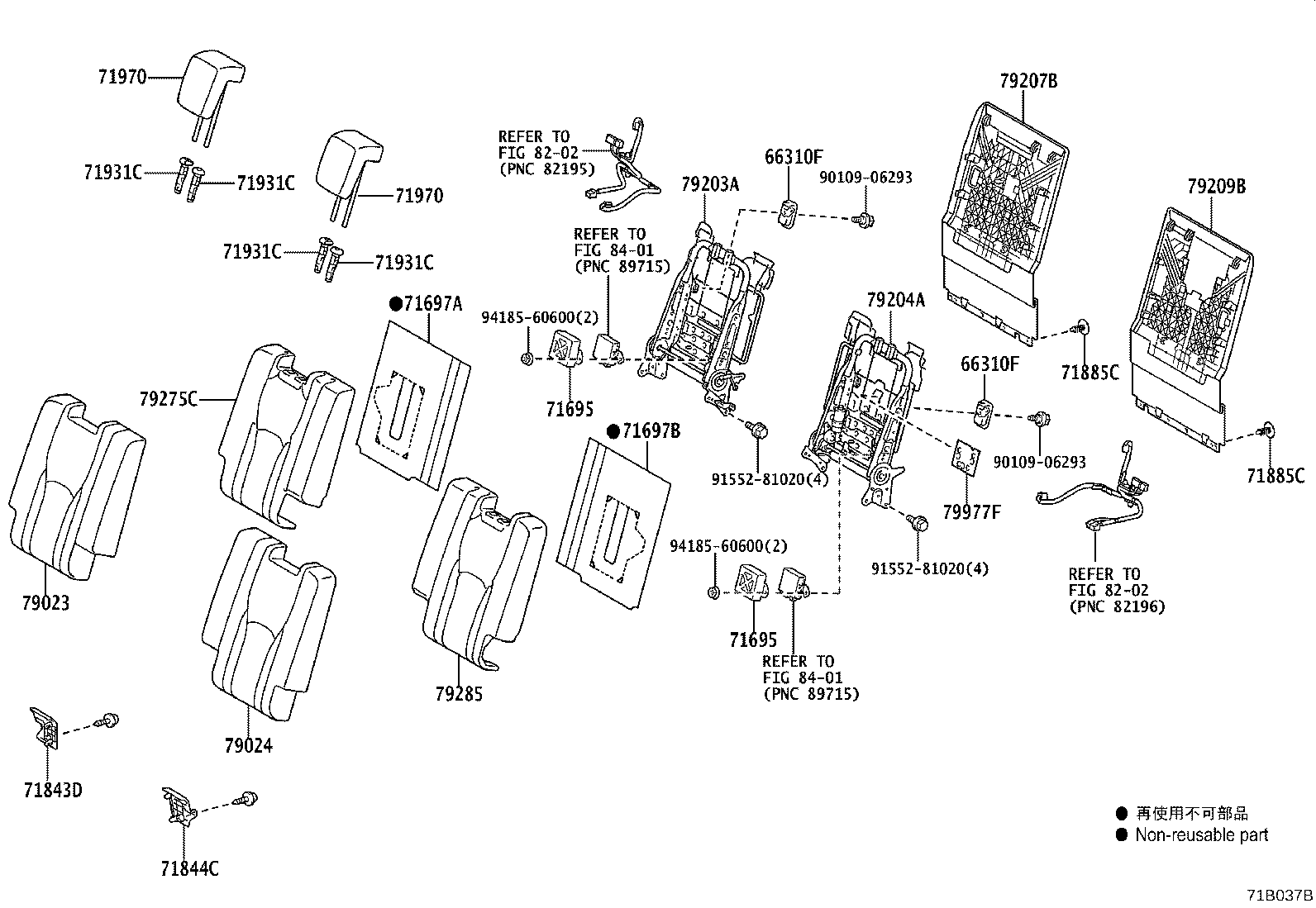

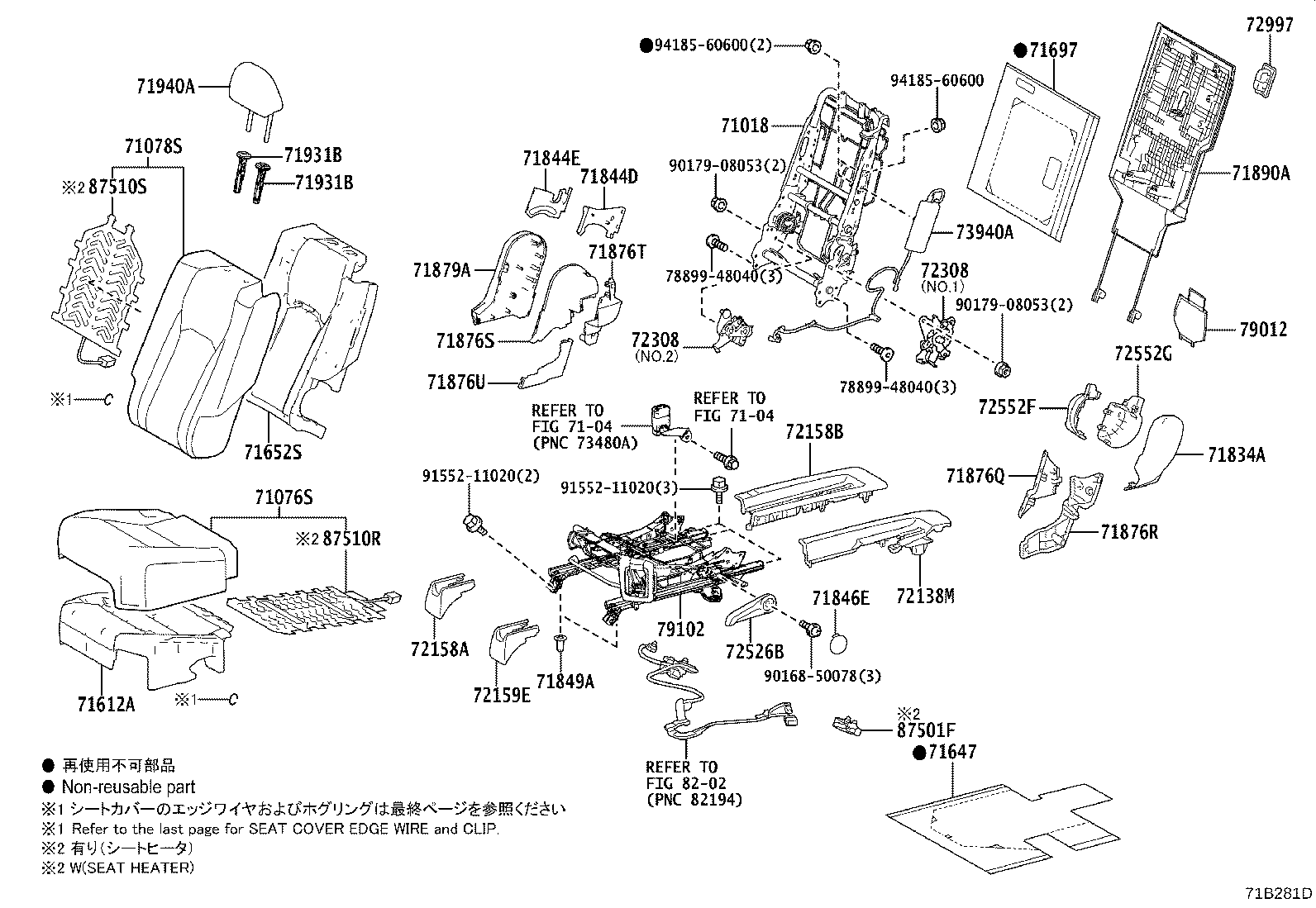

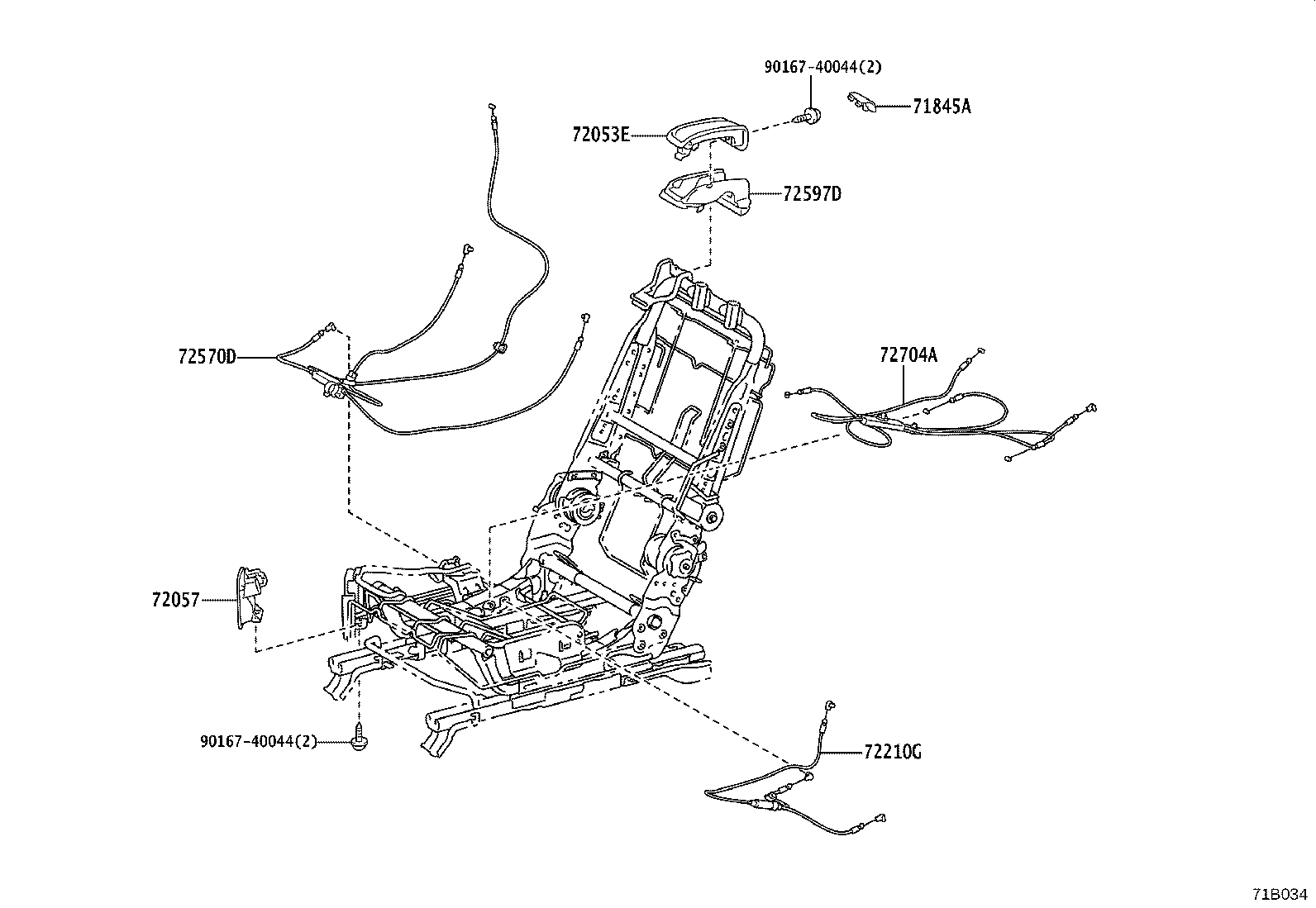

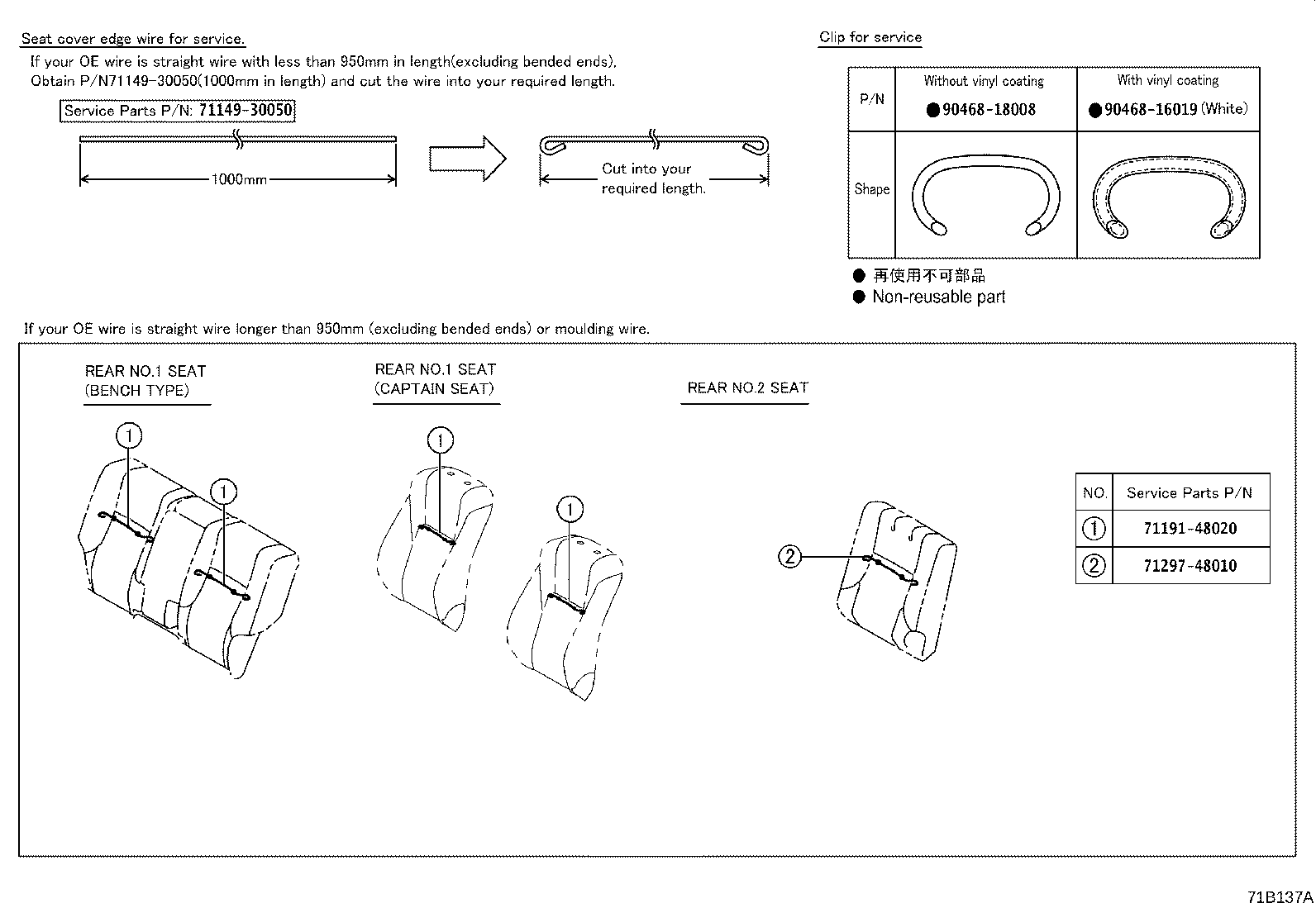

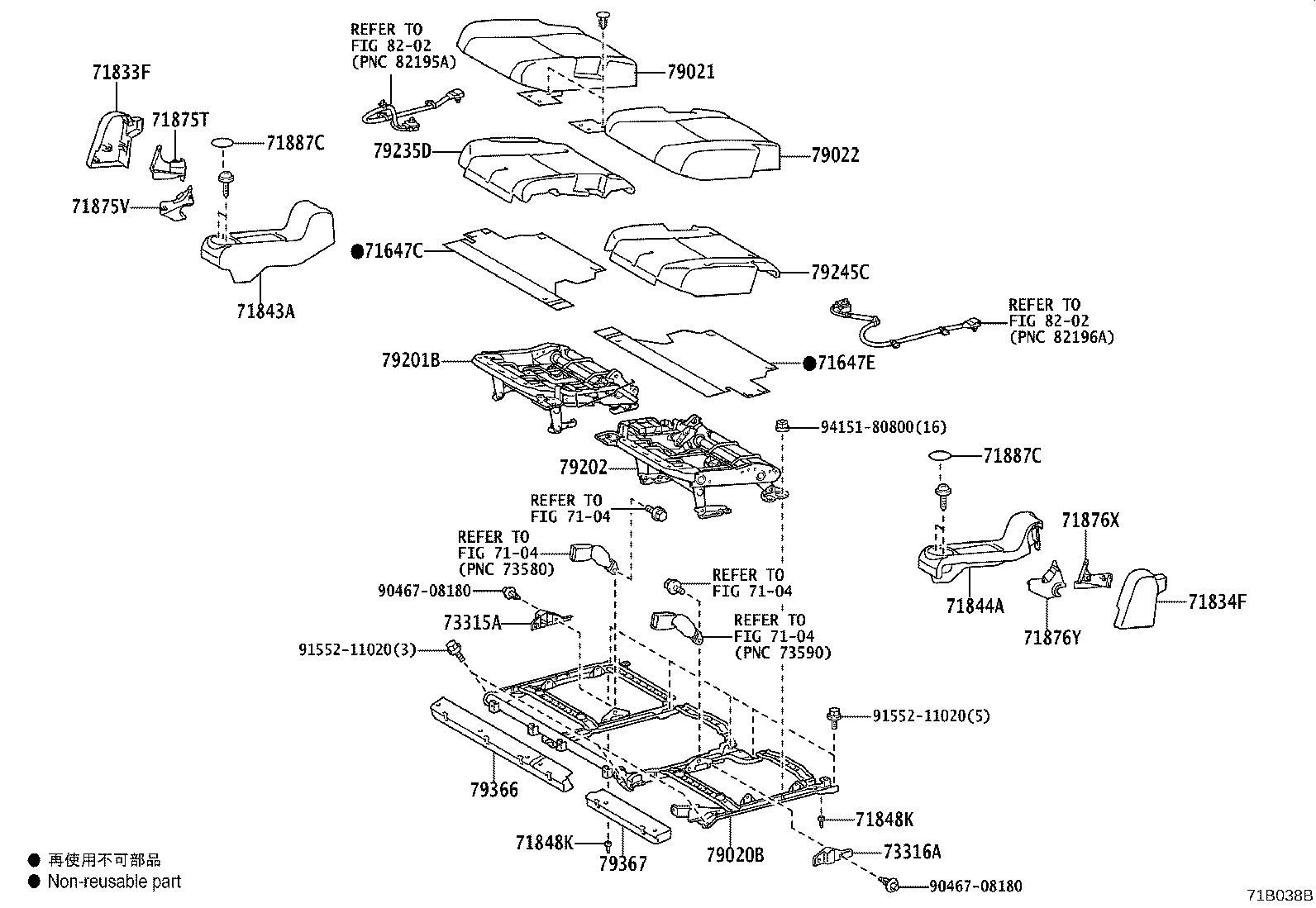

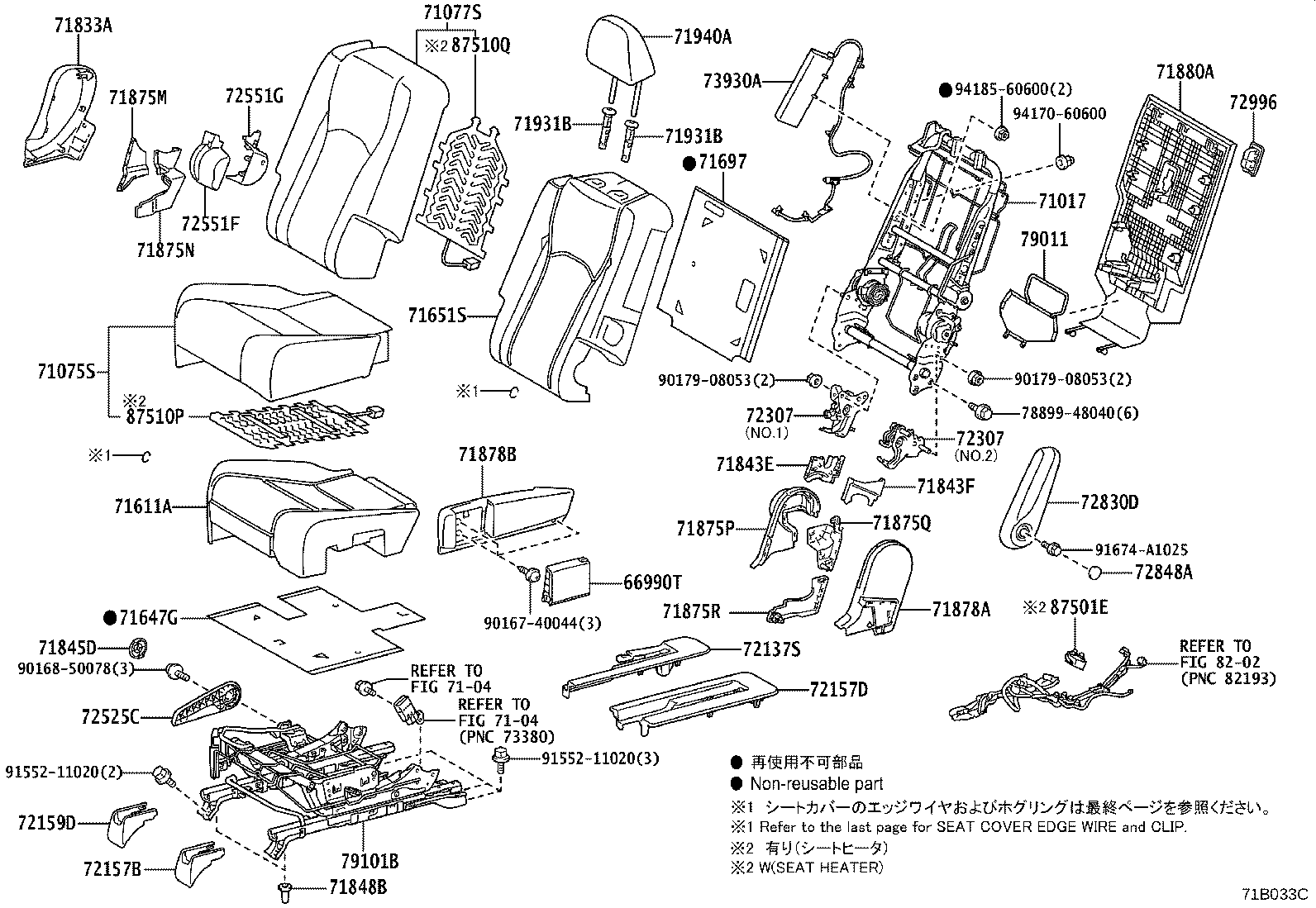

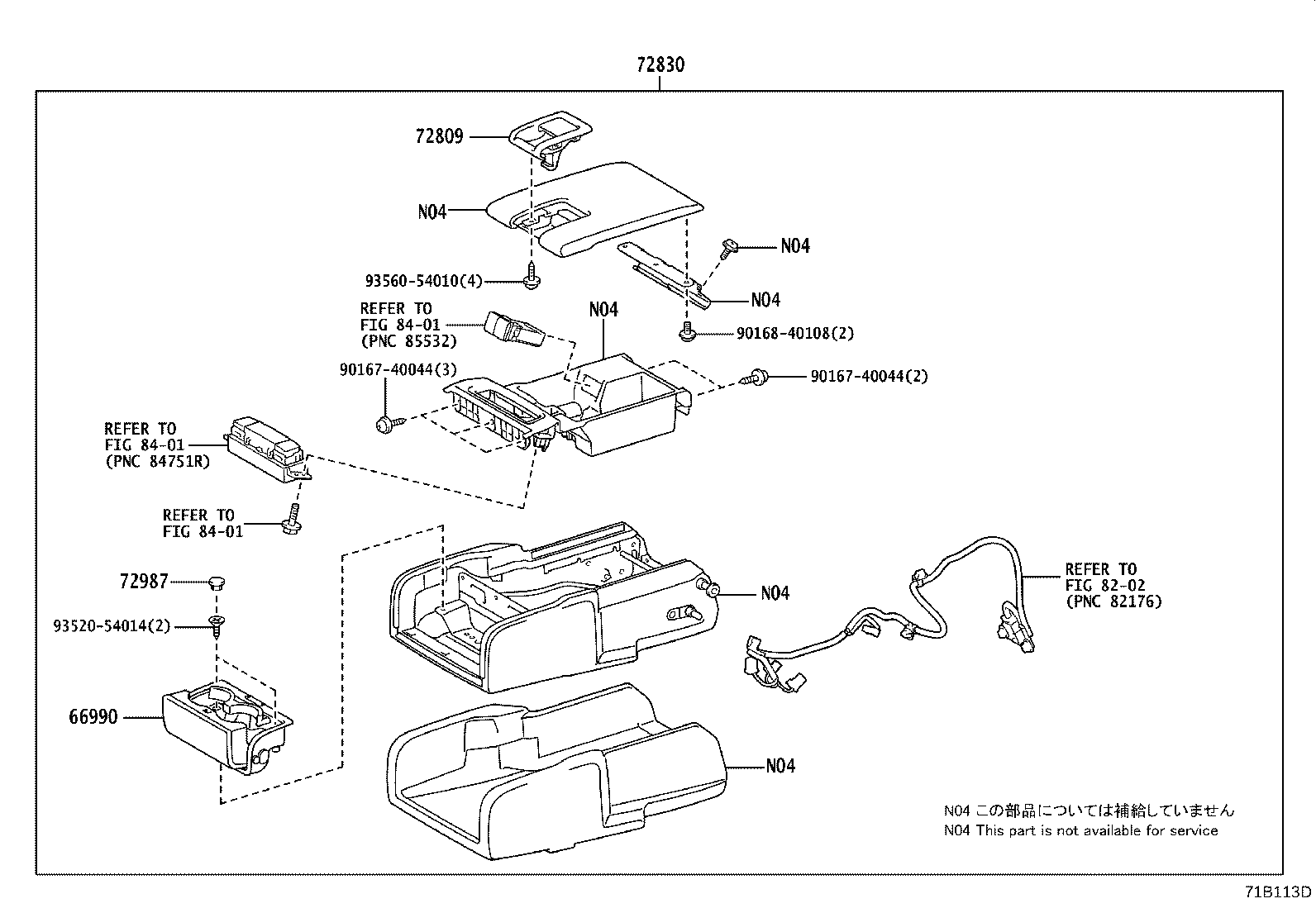

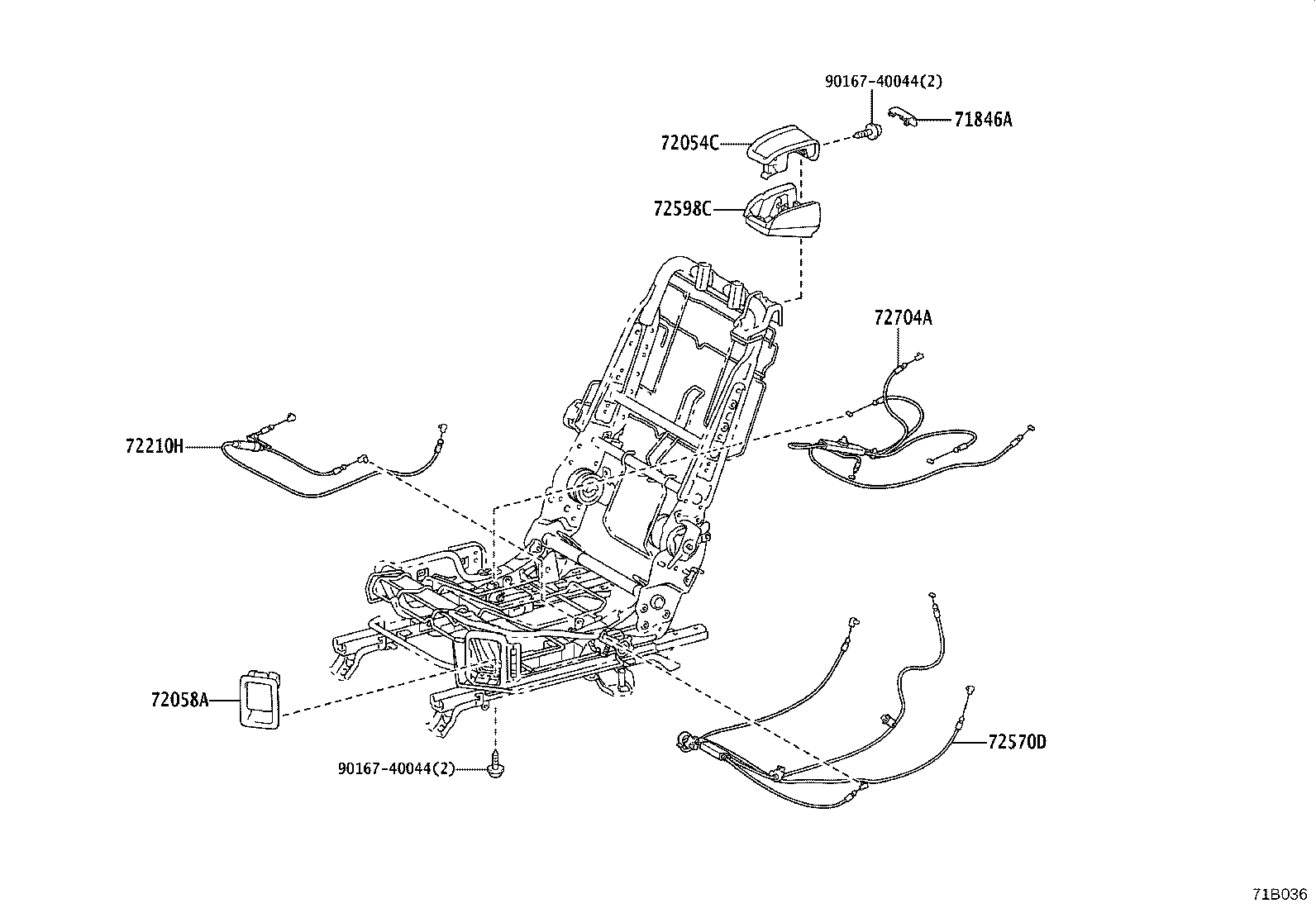

Figure 71B111I 71B111I 2017-12 → — Figure 71B033C 71B033C 2017-12 → — Figure 71B281D 71B281D 2017-12 → — Figure 71B035D 71B035D 2017-12 → — Figure 71B034 71B034 2017-12 → — Figure 71B036 71B036 2017-12 → — Figure 71B113D 71B113D 2017-12 → — Figure 71B037B 71B037B 2017-12 → — Figure 71B038B 71B038B 2017-12 → — Figure 71B137A 71B137A 2017-12 → —

Part groups

PNCDescription
66310F Hook Assy, Rope
66990 Holder Assy, Cup
66990T Holder Assy, Cup
66990U Holder Assy, Cup
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087 Board Sub-assy, Rear Seatback
71097 Cover Sub-assy, Rear Center Seat Cushion
71305A Hinge Sub-assy, Rear Seatback, Center
71305S Frame Sub-assy, Center Seatback
71345 Hinge, Rear Seatback
71395C Cover, Center Seat Hinge, RH
71396G Cover, Center Seat Hinge, LH
71499J Damper, Rear Seat Cushion Spring, RH
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71647 Protector, Rear Seat Cushion Edge
71647C Protector, Rear Seat Cushion Edge,Outer RH
71647E Protector, Rear Seat Cushion Edge, Outer LH
71647G Protector, Rear Seat Cushion Edge
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71695 Protector, Rear Seatback
71697 Protector, Rear Seatback Edge
71697A Protector, Rear Seat, NO.3 RH
71697B Protector, Rear Seat, NO.3 LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833F Cover, Rear NO.2 Seat Reclining, Outer RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834F Cover, Rear NO.2 Seat Reclining, Outer LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71843D Cover, Rear Seat Reclining, NO.2 RH
71843E Cover, Rear Seat Reclining, RH (FOR RH SEAT)
71843F Cover, Rear Seat Reclining, LH (FOR RH SEAT)
71844A Cover, Rear Seat Reclining, NO.2 LH
71844C Cover, Rear Seat Reclining, NO.2 LH
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71844E Cover, Rear Seat Reclining, RH (FOR LH SEAT)
71845A Cover, Rear Seat Reclining, Upper RH
71845D Cap, Rear Seat Cover, RH
71846A Cover, Rear Seat Reclining, Upper LH
71846E Cap, Rear Seat Cover, LH
71848B Cap, Seat Adjuster Cover, RH
71848K Cap, Seat Adjuster Cover
71849A Cap, Seat Adjuster Cover, LH
71875M Cover, Reclining Adjuster Inside, RH (FOR REAR NO.1 SEAT)
71875N Cover, Reclining Adjuster Inside, RH (FOR REAR NO.1 SEAT)
71875P Cover, Reclining Adjuster Inside, RH (FOR REAR NO.1 SEAT)
71875Q Cover, Reclining Adjuster Inside, RH (FOR REAR NO.1 SEAT)
71875R Cover, Reclining Adjuster Inside, RH (FOR REAR NO.1 SEAT)
71875T Cover, Reclining Adjuster Inside, RH (FOR REAR NO.2 SEAT)
71875V Cover, Reclining Adjuster Inside, RH
71876Q Cover, Reclining Adjuster Inside, LH (FOR REAR NO.1 SEAT)
71876R Cover, Reclining Adjuster Inside, LH (FOR REAR NO.1 SEAT)
71876S Cover, Reclining Adjuster Inside, LH (FOR REAR NO.1 SEAT)
71876T Cover, Reclining Adjuster Inside, LH (FOR REAR NO.1 SEAT)
71876U Cover, Reclining Adjuster Inside, LH (FOR REAR NO.1 SEAT)
71876X Cover, Reclining Adjuster Inside, LH (FOR REAR NO.2 SEAT)
71876Y Cover, Reclining Adjuster Inside, LH
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71879B Cover, Rear Seat Reclining, Inner LH
71880A Carpet Assy, Rear Seatback Board, RH
71885C Clip(FOR REAR SEATBACK CARPET)
71887C Carpet, Rear Seat Cushion
71890A Carpet Assy, Rear Seatback Board, LH
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
71970B Support Assy, Rear Seat Headrest, RH
71990A Support Assy, Rear Seat Headrest, LH
72053E Lever Sub-assy, Reclining Remote Control, RH
72054C Lever Sub-assy, Reclining Remote Control, LH
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72087A Cover Sub-assy, Rear Seat Center Armrest
72137S Cover, Seat Track Bracket, Outer Rear RH
72138M Cover, Seat Track Bracket, Outer Rear LH
72157B Cover, Rear Seat Track Bracket, Inner RH
72157D Cover, Seat Track Bracker, Inner RH
72158A Cover, Rear Seat Track Bracket, Inner LH
72158B Cover, Seat Track Bracket, Inner LH
72159D Cover, Rear Seat Track Bracket, Outer RH
72159E Cover, Rear Seat Track Bracket, Outer LH
72210G Cable Assy, Rear NO.1 Seat Track Control, RH
72210H Cable Assy, Rear NO.1 Seat Track Control, LH
72307 Link Sub-assy, Reclining Control, RH
72308 Link Sub-assy, Reclining Control, LH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72551F Cover, Reclining Link, RH NO.1
72551G Cover, Reclining Link, RH NO.2
72552F Cover, Reclining Link, LH NO.1
72552G Cover, Reclining Link, LH NO.2
72570D Cable Assy, Reclining Adjusting
72597D Bezel, Reclining Remote Control, RH
72598C Bezel, Reclining Remote Control, LH
72630C Lock Assy, Rear Seatback, RH
72661G Lever, Rear Seatback Lock
72704A Cable, Rear Seat Reclining Control
72749B Spacer, Rear Seat Reclining, NO.1
72749C Spacer, Rear Seat Reclining, NO.2
72809 Lock Sub-assy, Center Armrest
72810B Armrest Assy, NO.1 Seat
72830 Armrest Assy, Rear Seat, Center
72830D Armrest Assy, Rear Seat, RH
72830G Cushion
72831B Plate, Rear Seat Center Armrest, NO.1
72840D Armrest Assy, Rear Seat, LH
72848A Cap, Seat Armrest, NO.1
72849B Cap, Seat Armrest, NO.1
72868 Cover, Center Armrest Hinge, RH
72869 Cover, Center Armrest Hinge, LH
72978 Cover, NO.2 Center Seatback
72987 Cover, Rear Seat Center Armrest
72996 Cover, Rear Seatback, RH
72996A Cover, Rear Seatback
72997 Cover, Rear Seatback, LH
73315A Cover, RR Seat Belt, Inner RH
73316A Cover, RR Seat Belt, Inner LH
73930A Airbag Assy, Rear Seat, RH
73940A Airbag Assy, Rear Seat, LH
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79020B Leg Assy, NO.2 Seat
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79157 Cover, NO.1 Seatback
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79203A Frame Sub-assy, NO.2 Seatback, RH
79204A Frame Sub-assy, NO.2 Seatback, LH
79207B Board Sub-assy, NO.2 Seatback, RH
79209B Board Sub-assy, NO.2 Seatback, LH
79235D Pad, NO.2 Seat Cushion, RH
79245C Pad, NO.2 Seat Cushion, LH
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79366 Cover, NO.3 Seat Leg, NO.1
79367 Cover, NO.3 Seat Leg, NO.2
79873 Wire, Fold Seatback
79977F Felt, Seatback, LH
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
87510R Heater Assy, Seat
87510S Heater Assy, Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
