Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

71 part groups · 15 illustrations

Illustrations

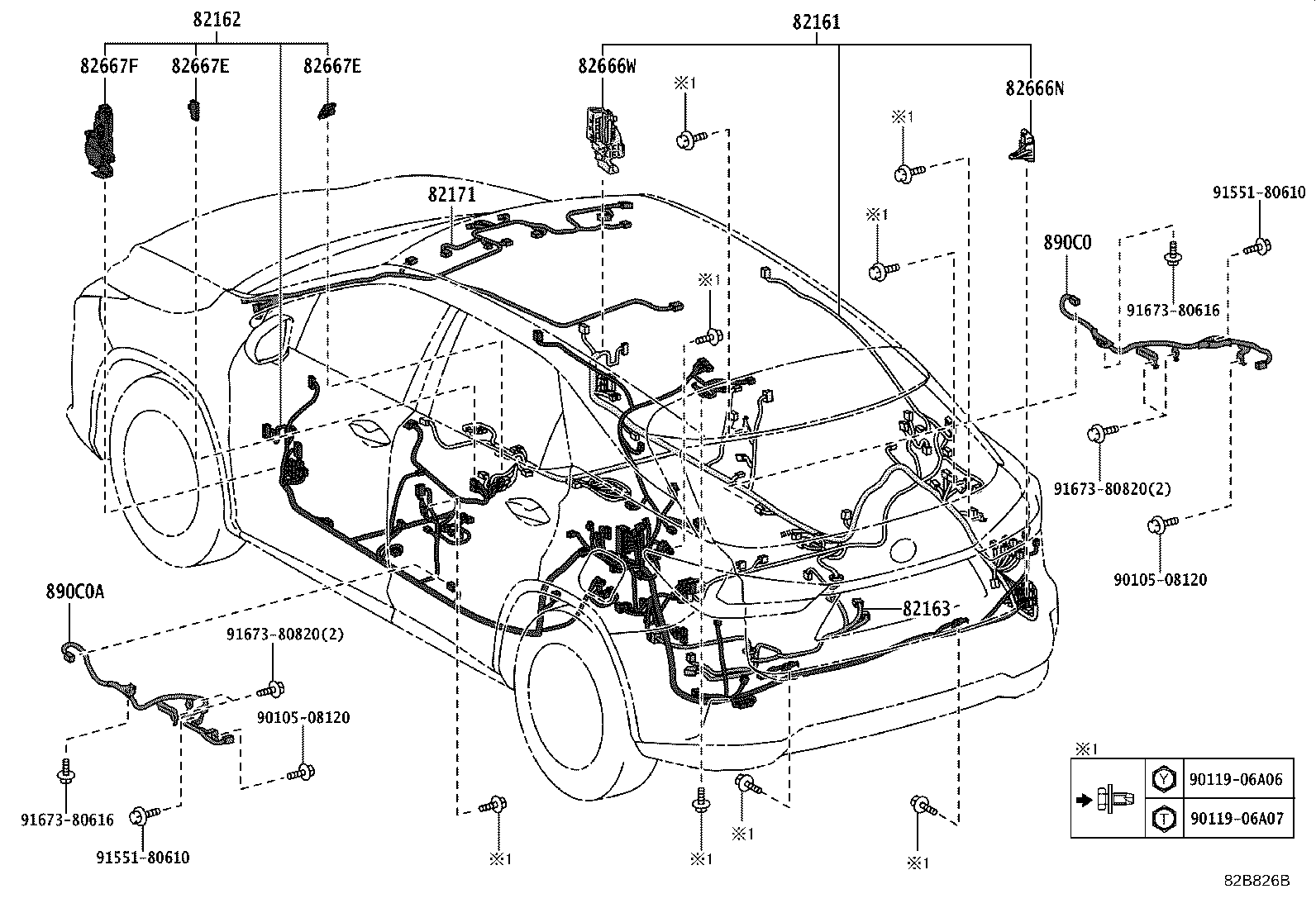

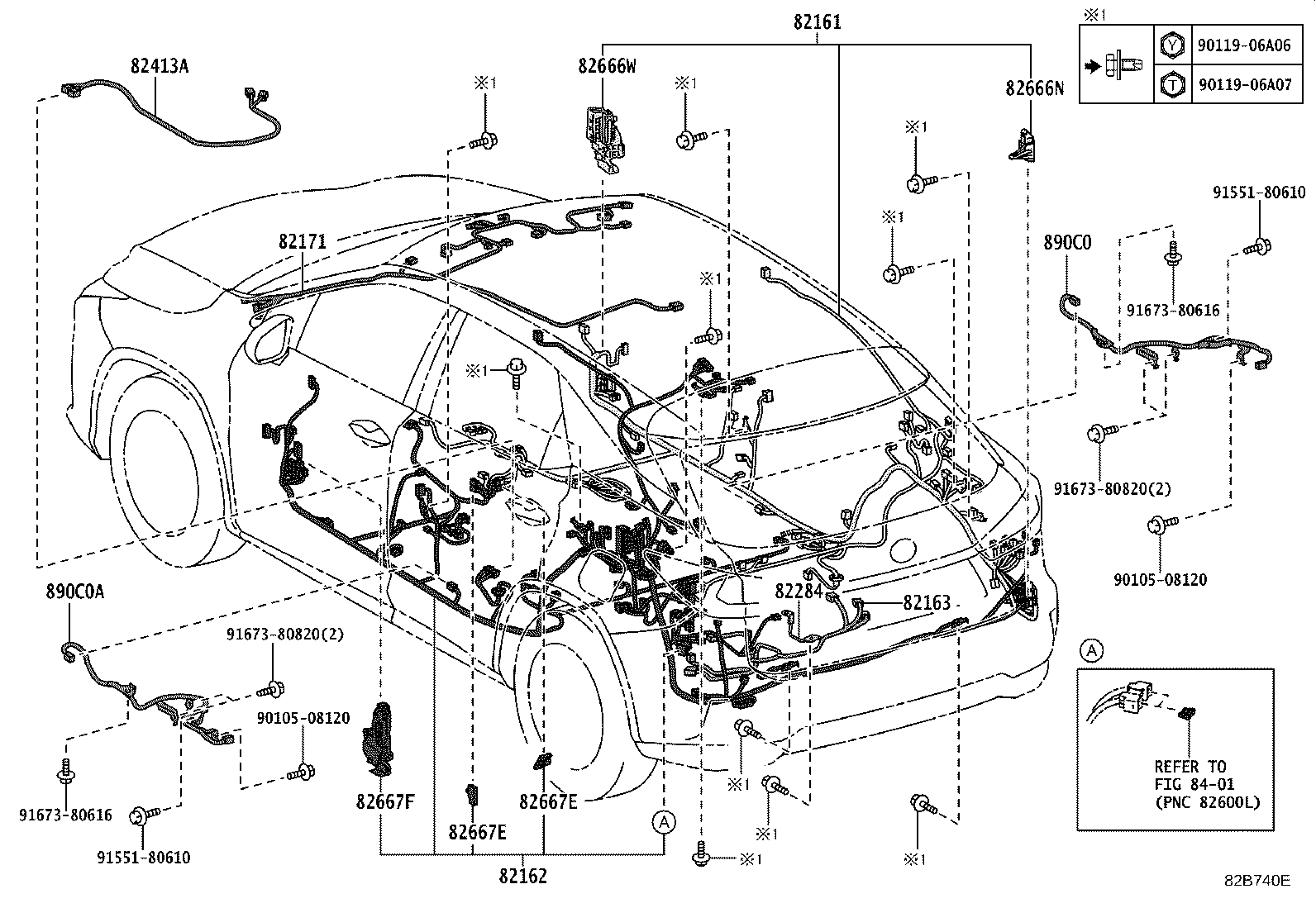

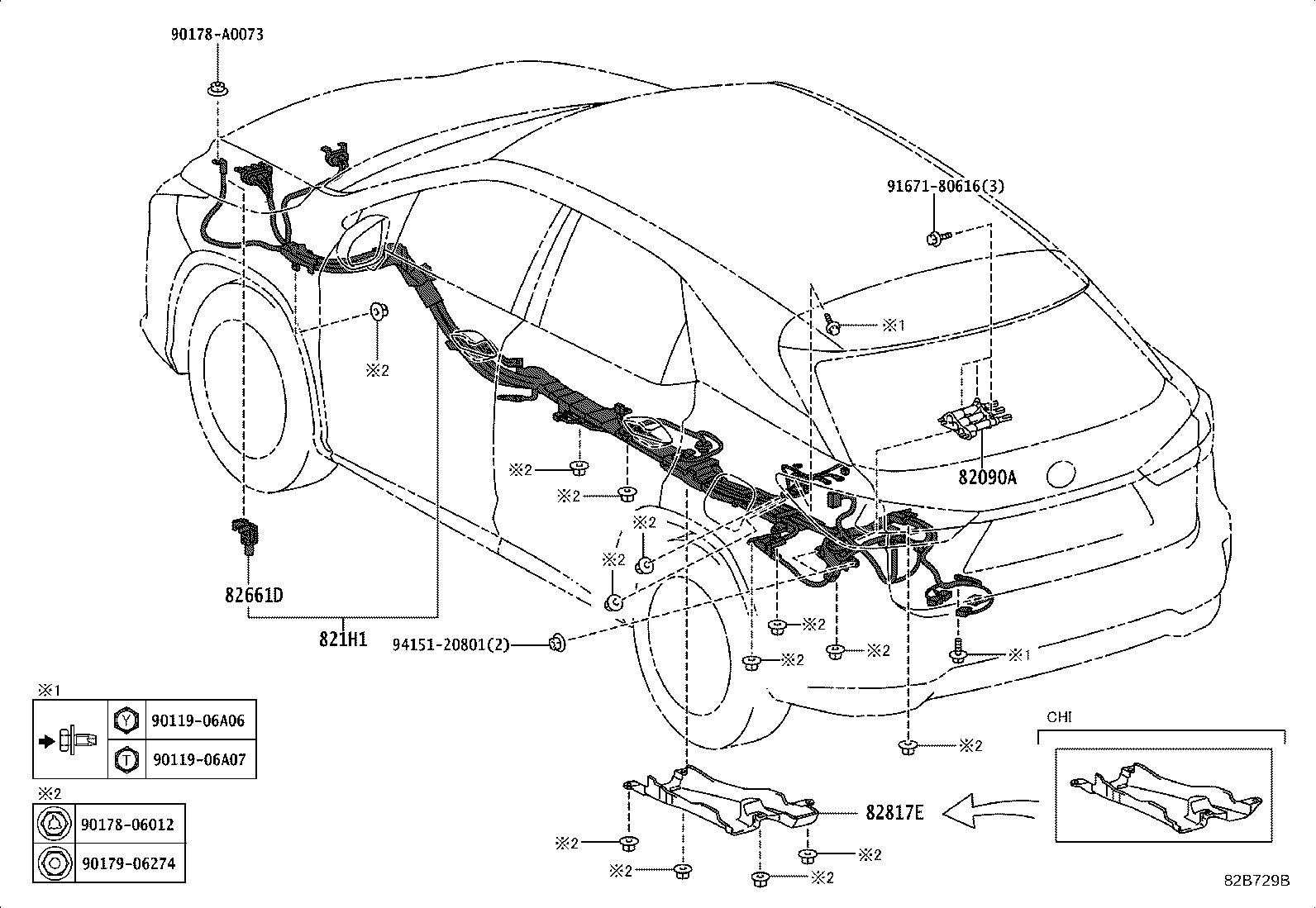

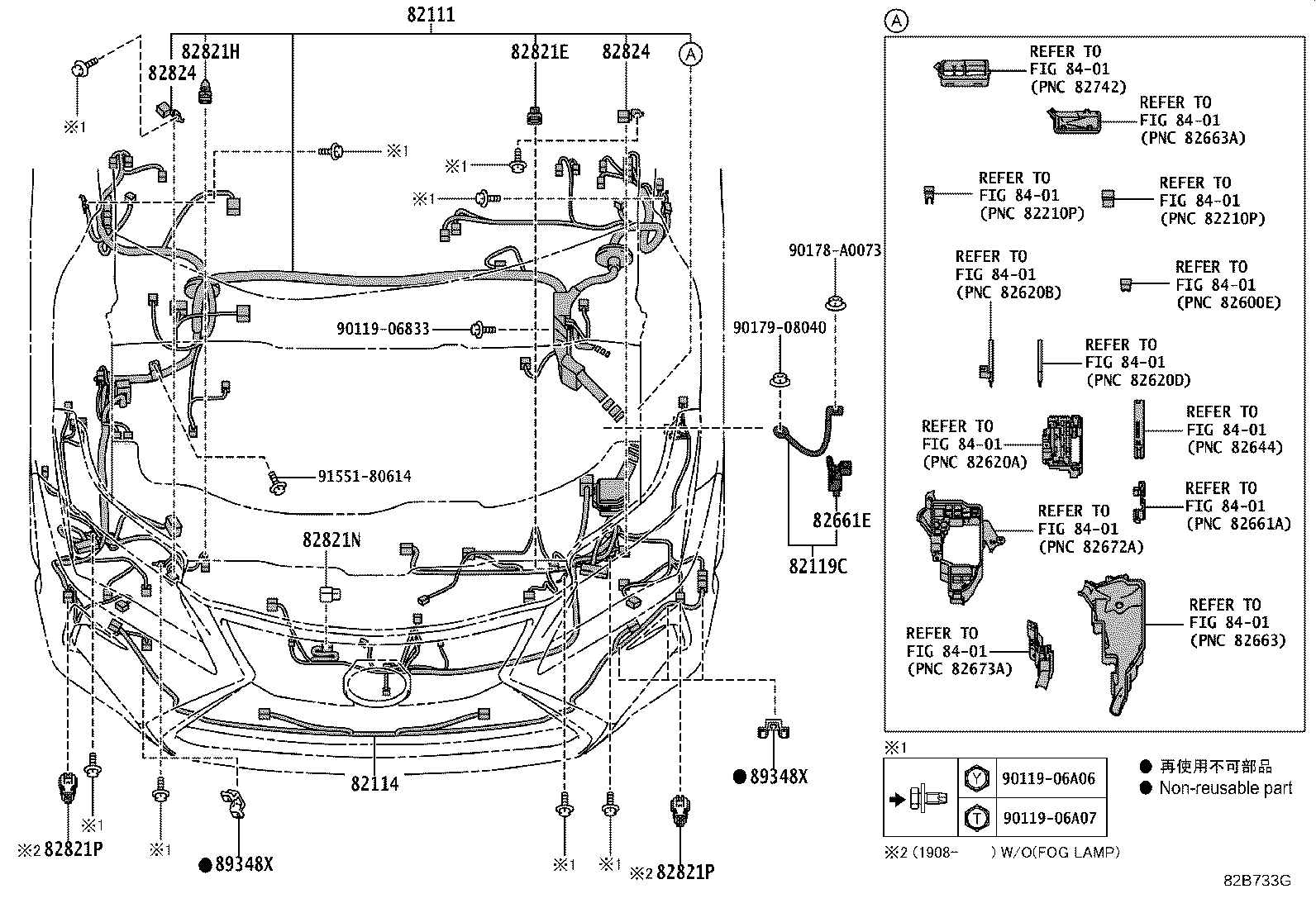

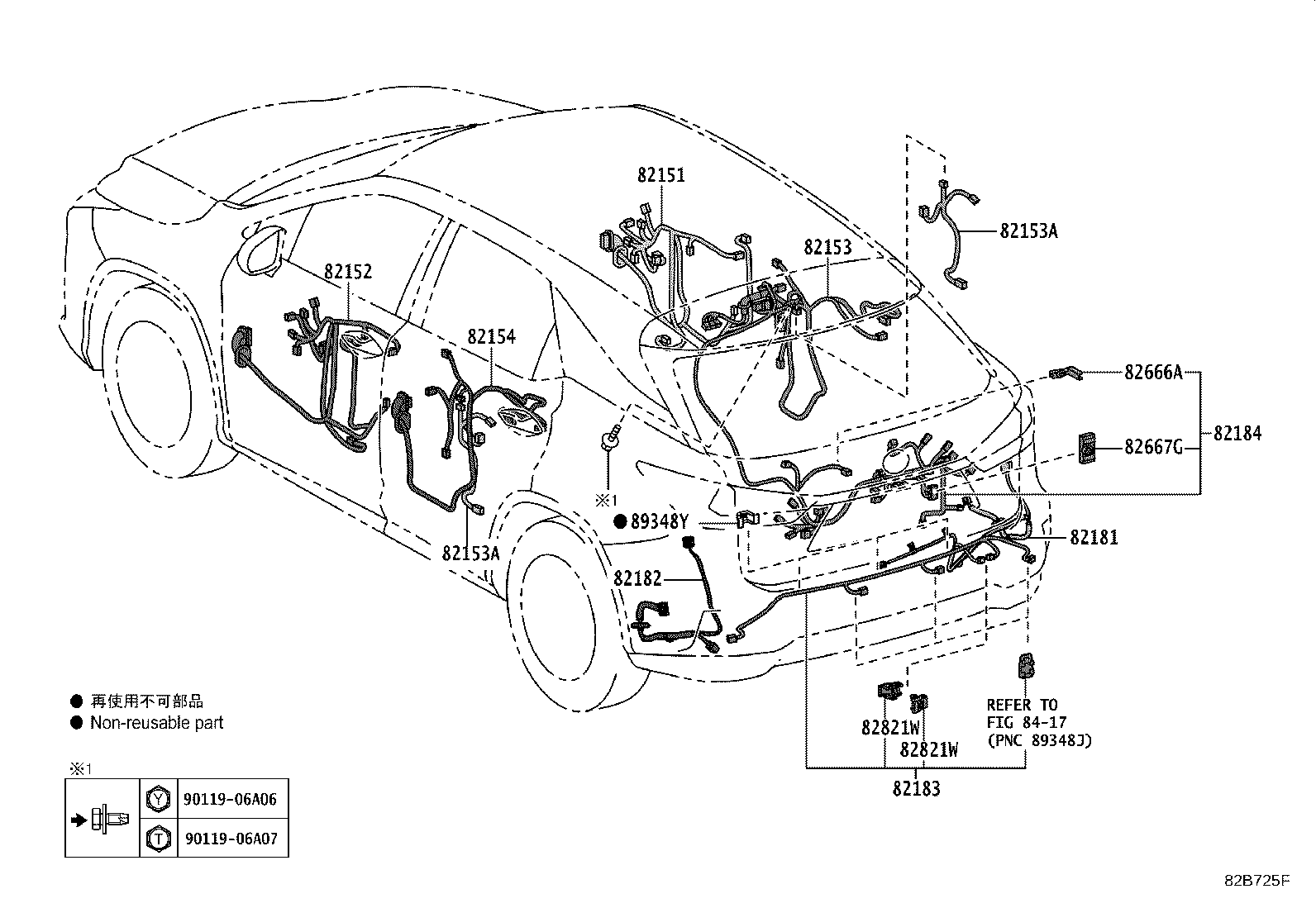

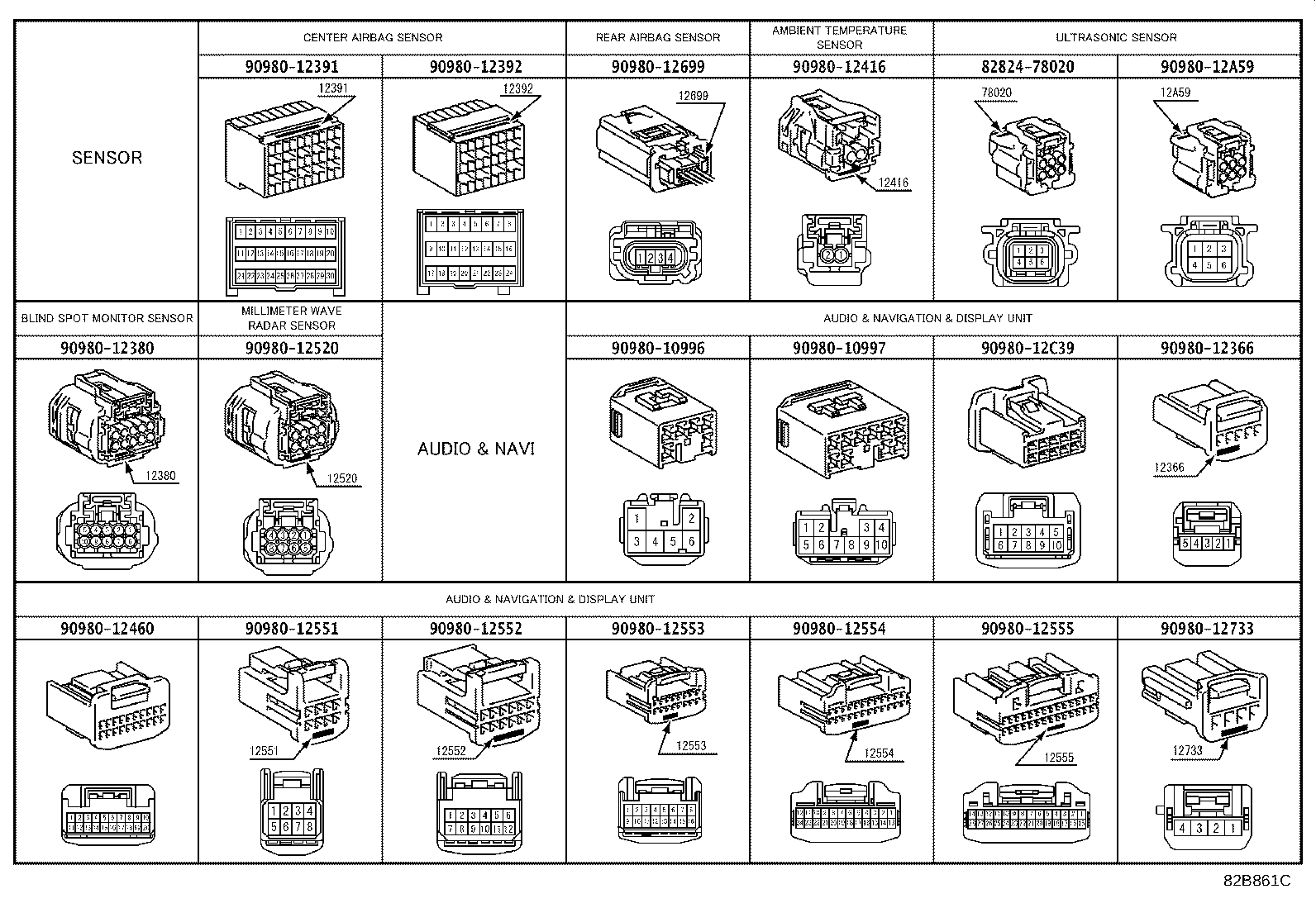

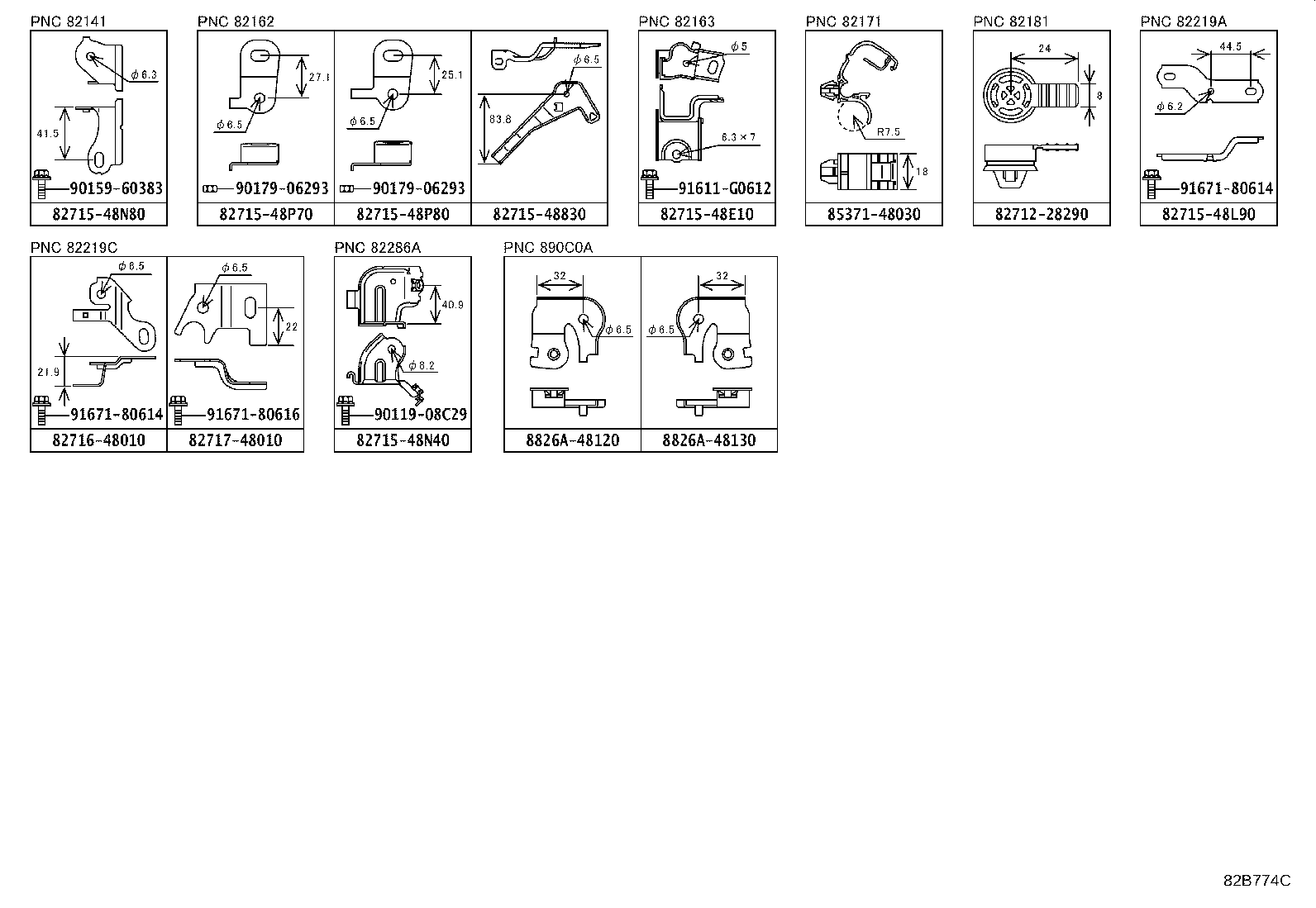

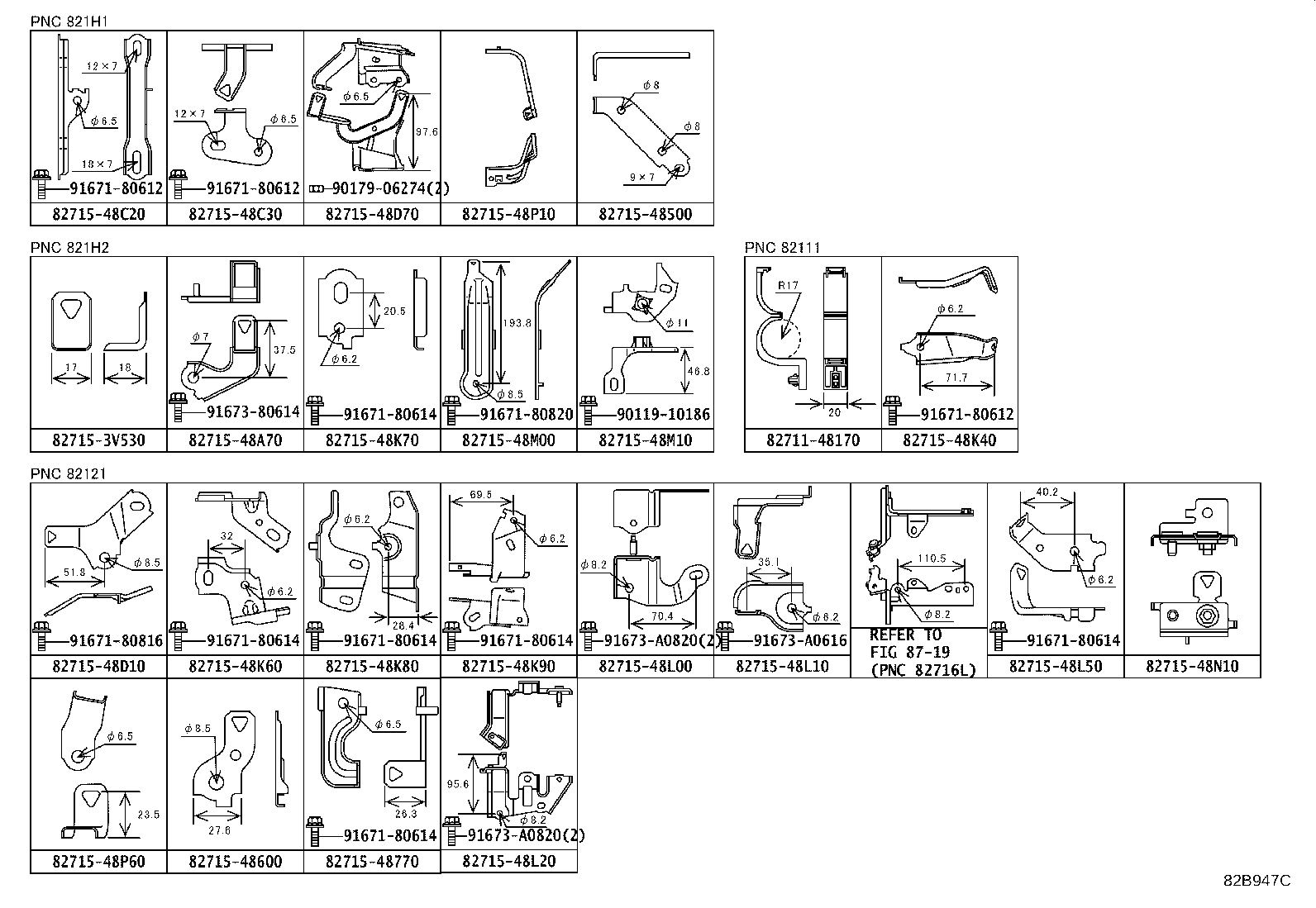

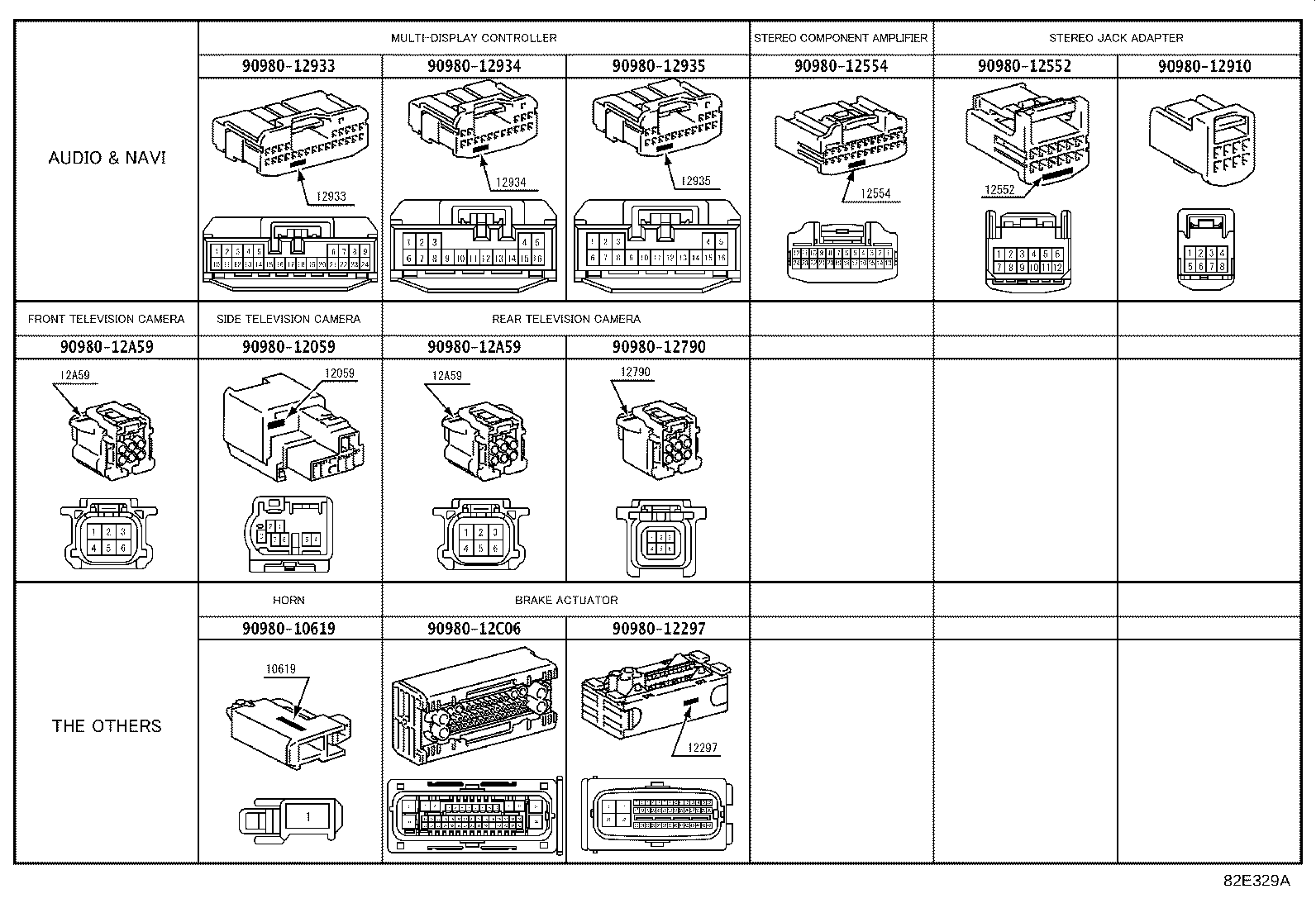

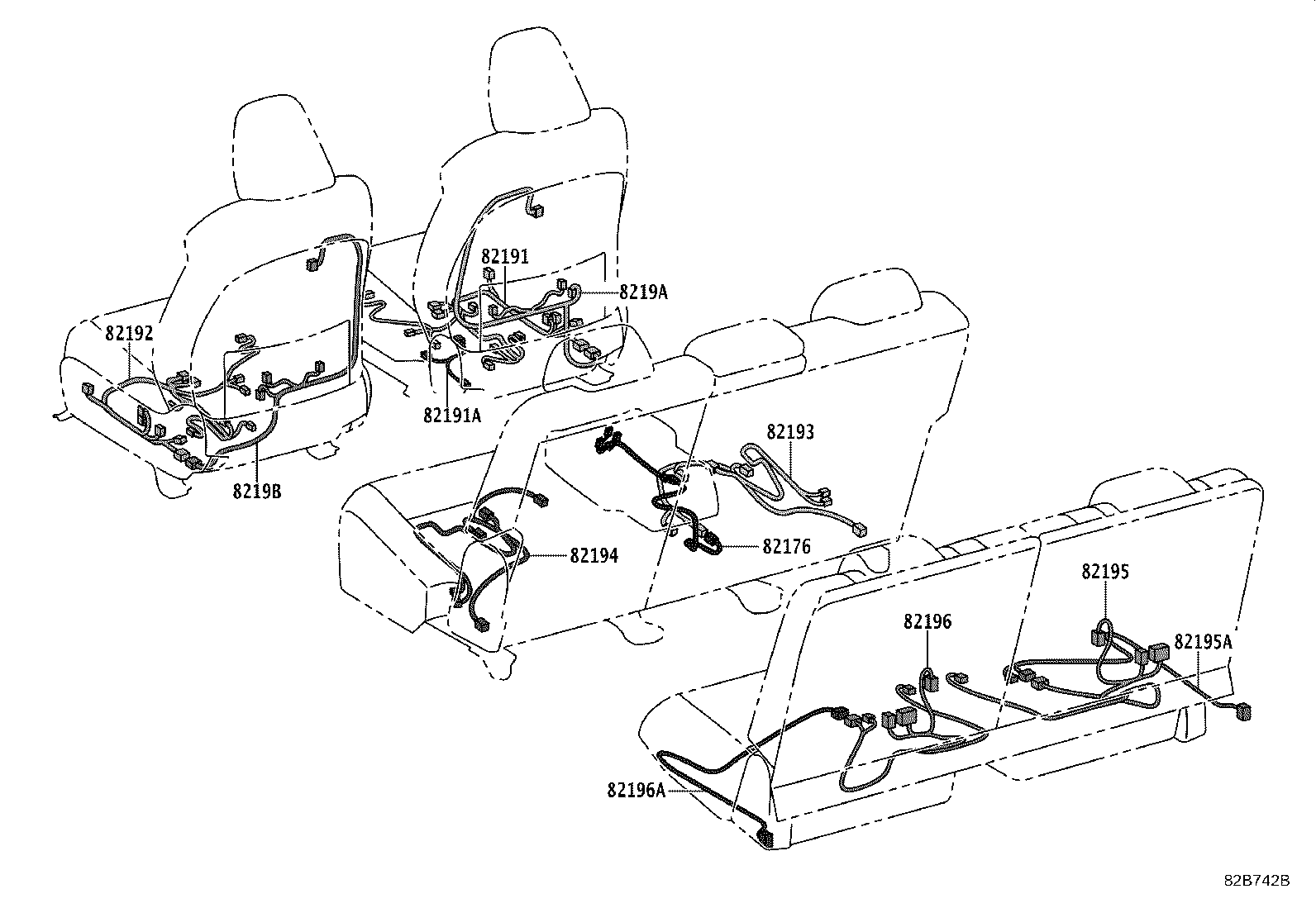

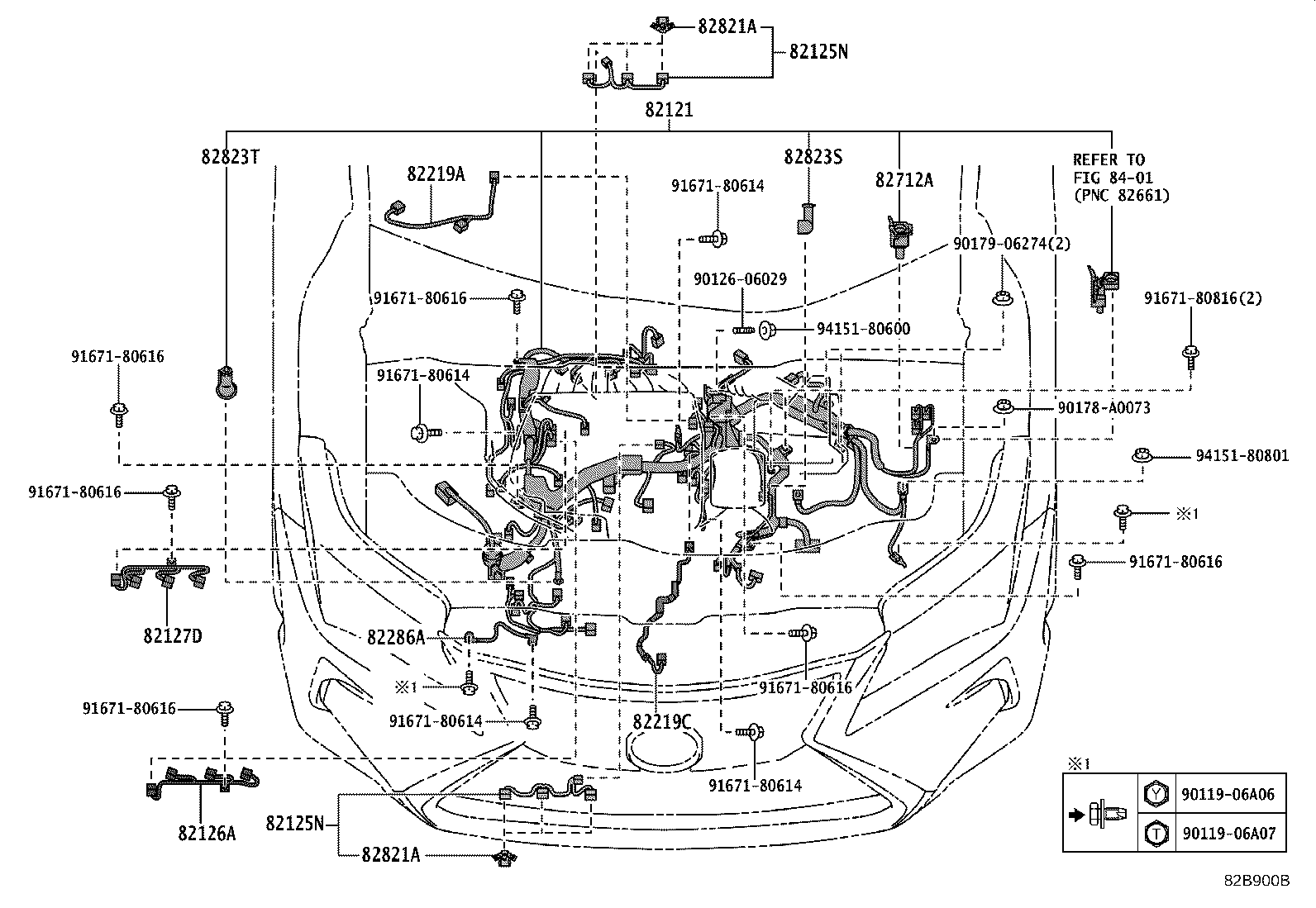

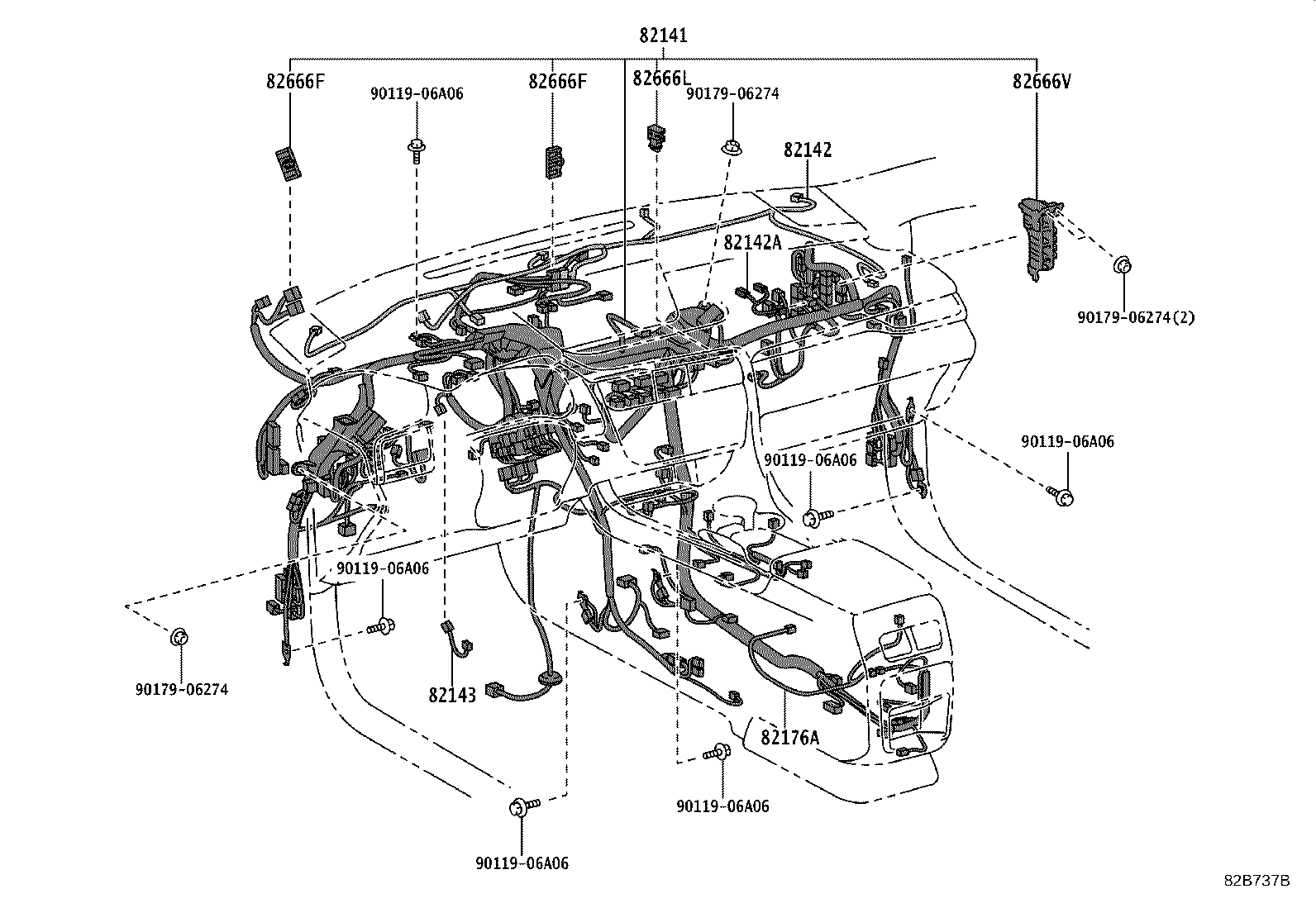

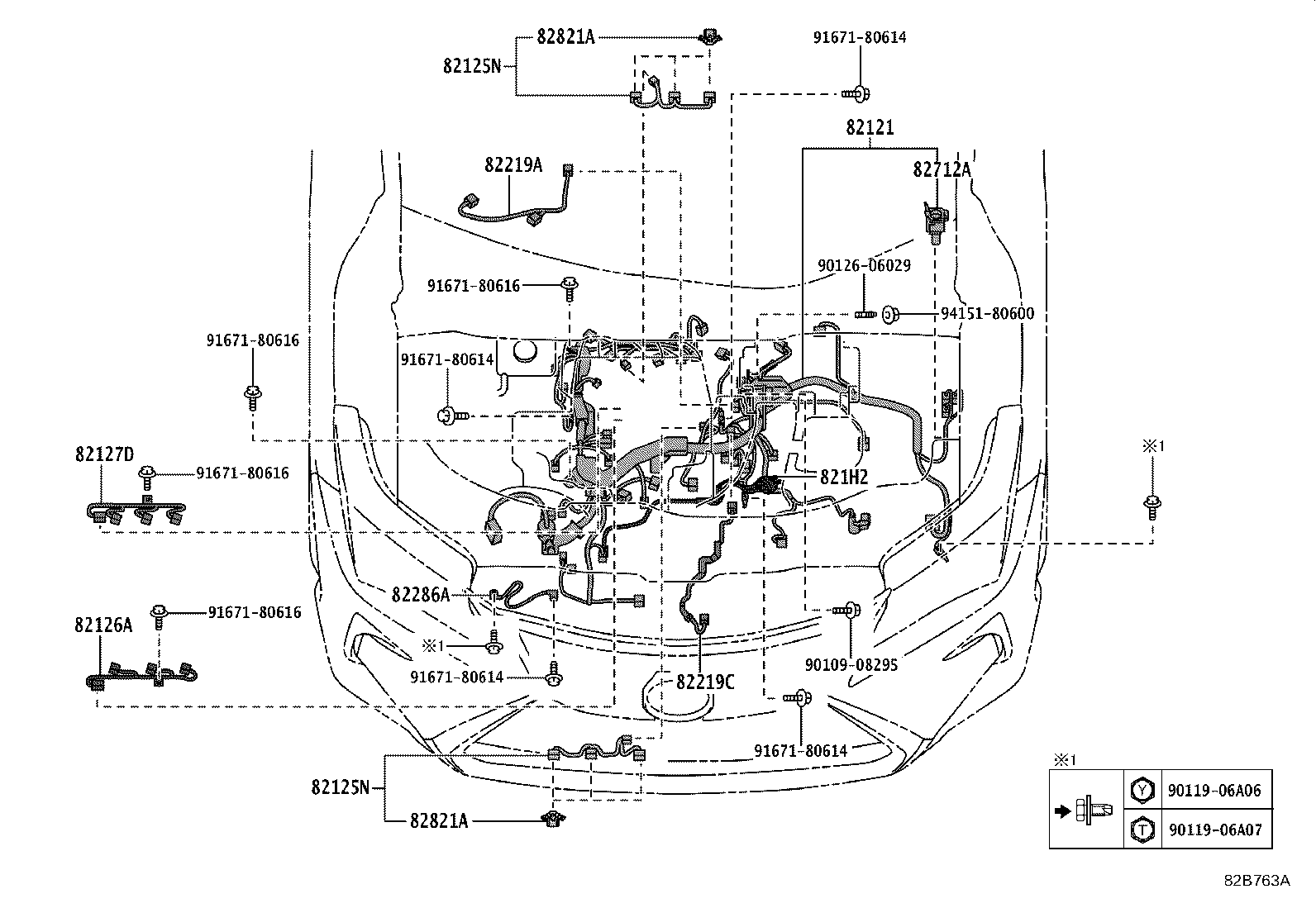

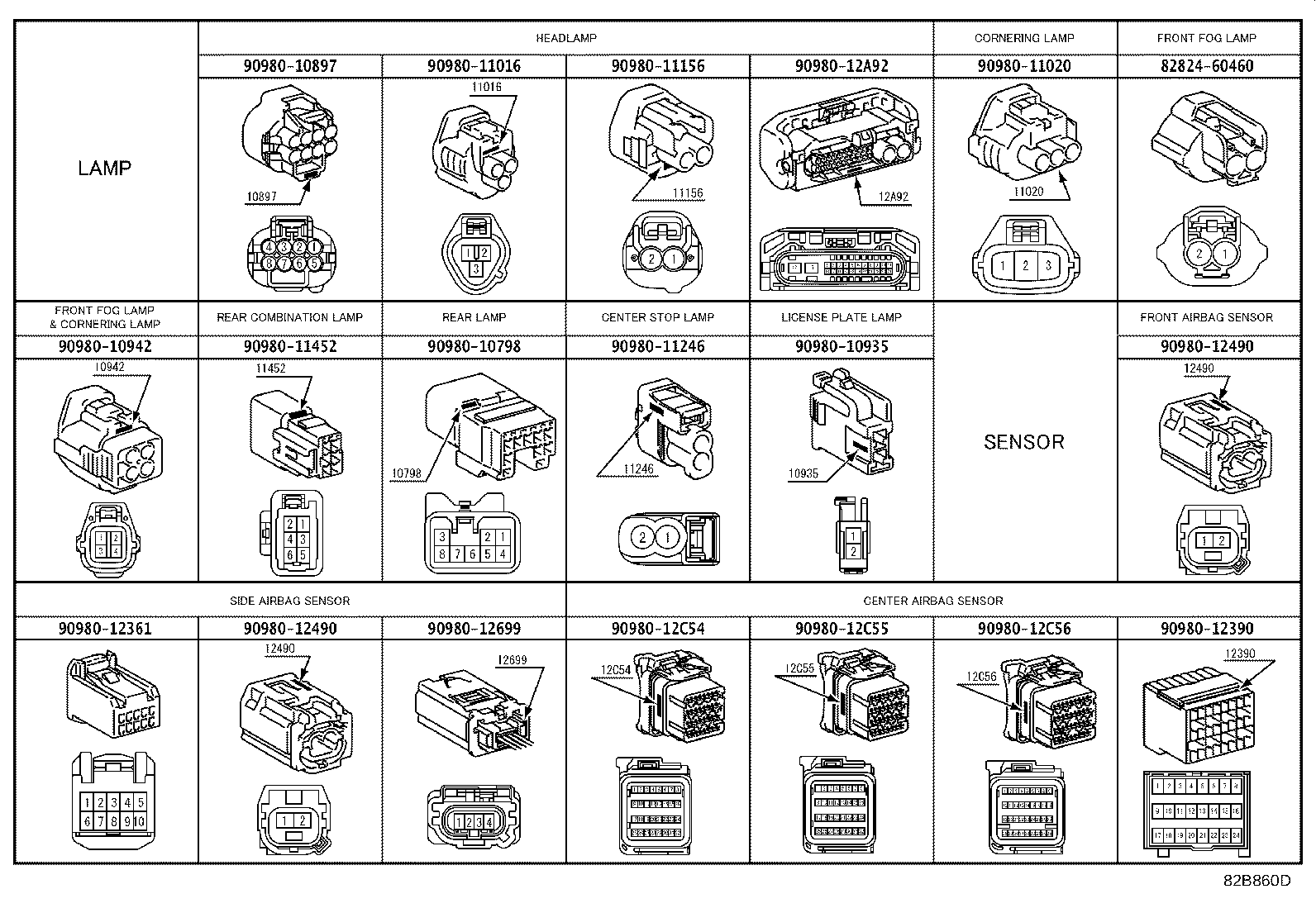

Figure 82B732I 82B732I 2017-12 → — Figure 82B733G 82B733G 2017-12 → — Figure 82B900B 82B900B 2017-12 → — Figure 82B763A 82B763A 2017-12 → — Figure 82B737B 82B737B 2017-12 → — Figure 82B725F 82B725F 2017-12 → — Figure 82B826B 82B826B 2017-12 → — Figure 82B740E 82B740E 2017-12 → — Figure 82B729B 82B729B 2017-12 → — Figure 82B742B 82B742B 2017-12 → — Figure 82B947C 82B947C 2017-12 → — Figure 82B774C 82B774C 2017-12 → — Figure 82B860D 82B860D 2017-12 → — Figure 82B861C 82B861C 2017-12 → — Figure 82E329A 82E329A 2017-12 → —

Part groups

PNCDescription
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82176A Wire, Rear Console Box, NO.2
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82195A Wire, Rear Seat, RH NO.3
82196 Wire, Rear Seat, LH NO.2
82196A Wire, Rear Seat, LH NO.3
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219A Wire, Sensor
82219C Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82413A Wire, Fuel Tank
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82666A Holder, Connector NO.2
82666F Holder, Connector NO.7
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82667E Holder, Connector, NO.20
82667F Holder, Connector, NO.21
82667G Holder, Connector, NO.22
82712A Support, Wiring Harness
82817E Protector, Wiring Harness, NO.6
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821W Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348X Clip, Ultrasonic Sensor, Front
89348Y Clip, Ultrasonic Sensor, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
