Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

132 part groups · 16 illustrations

Illustrations

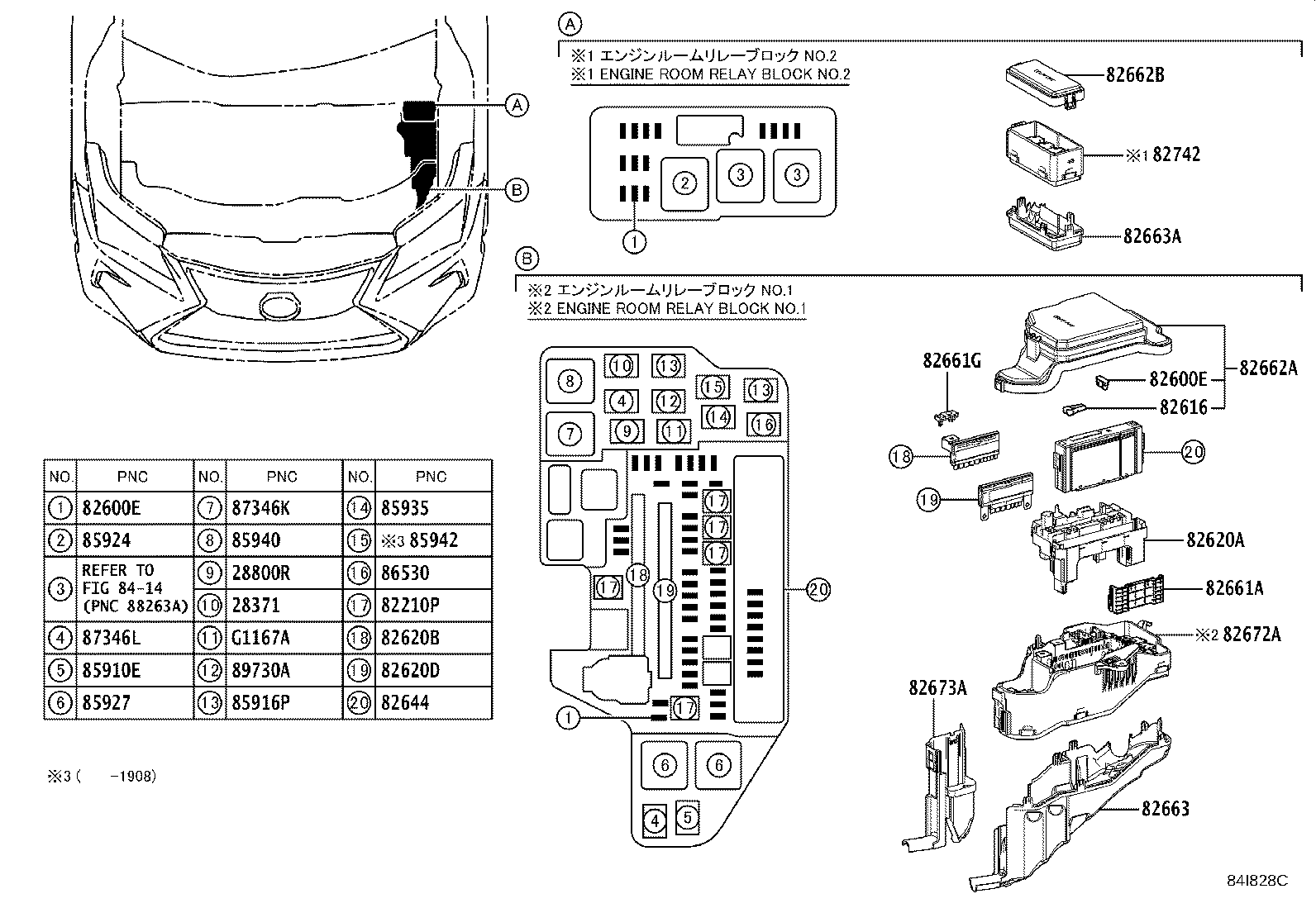

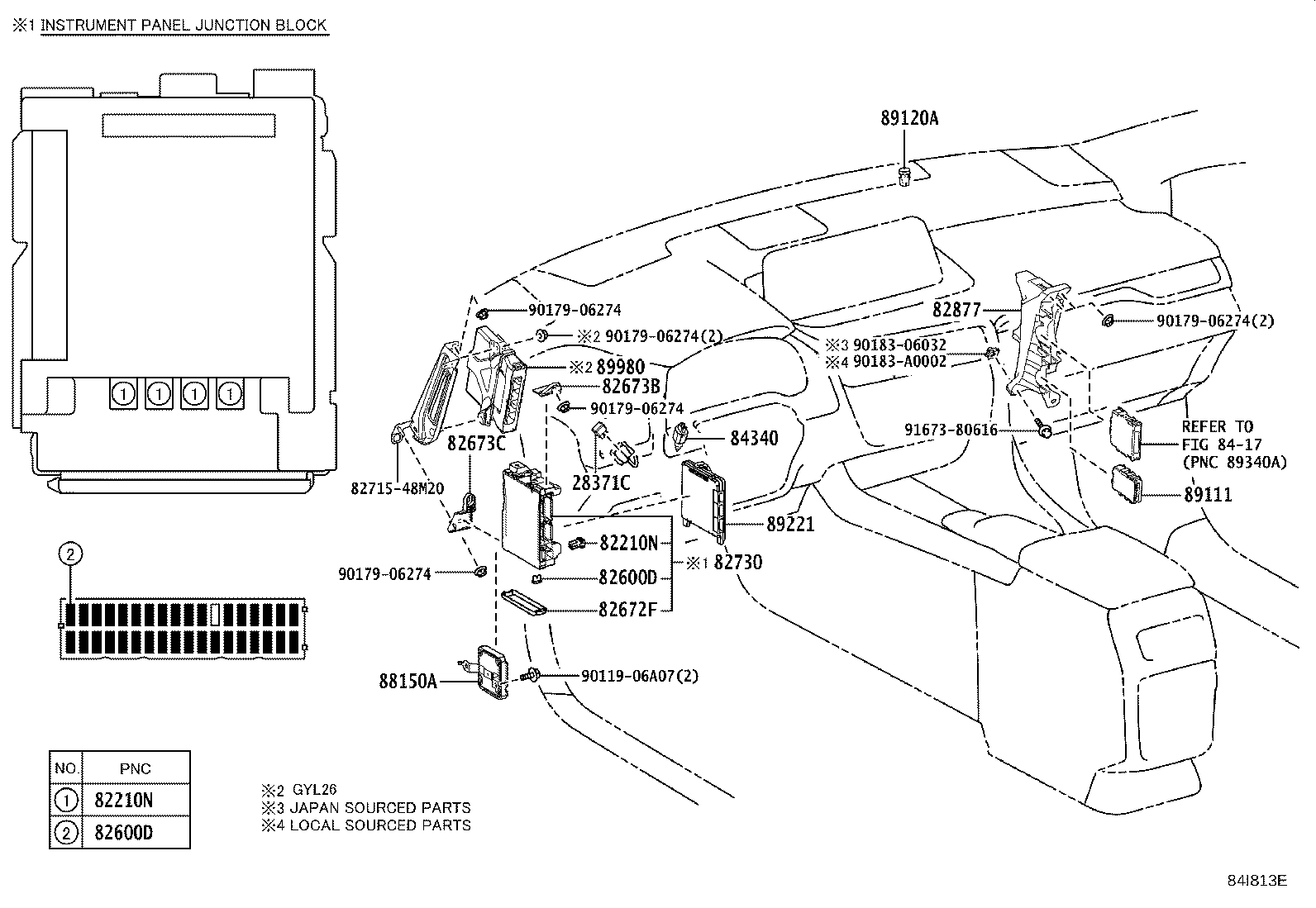

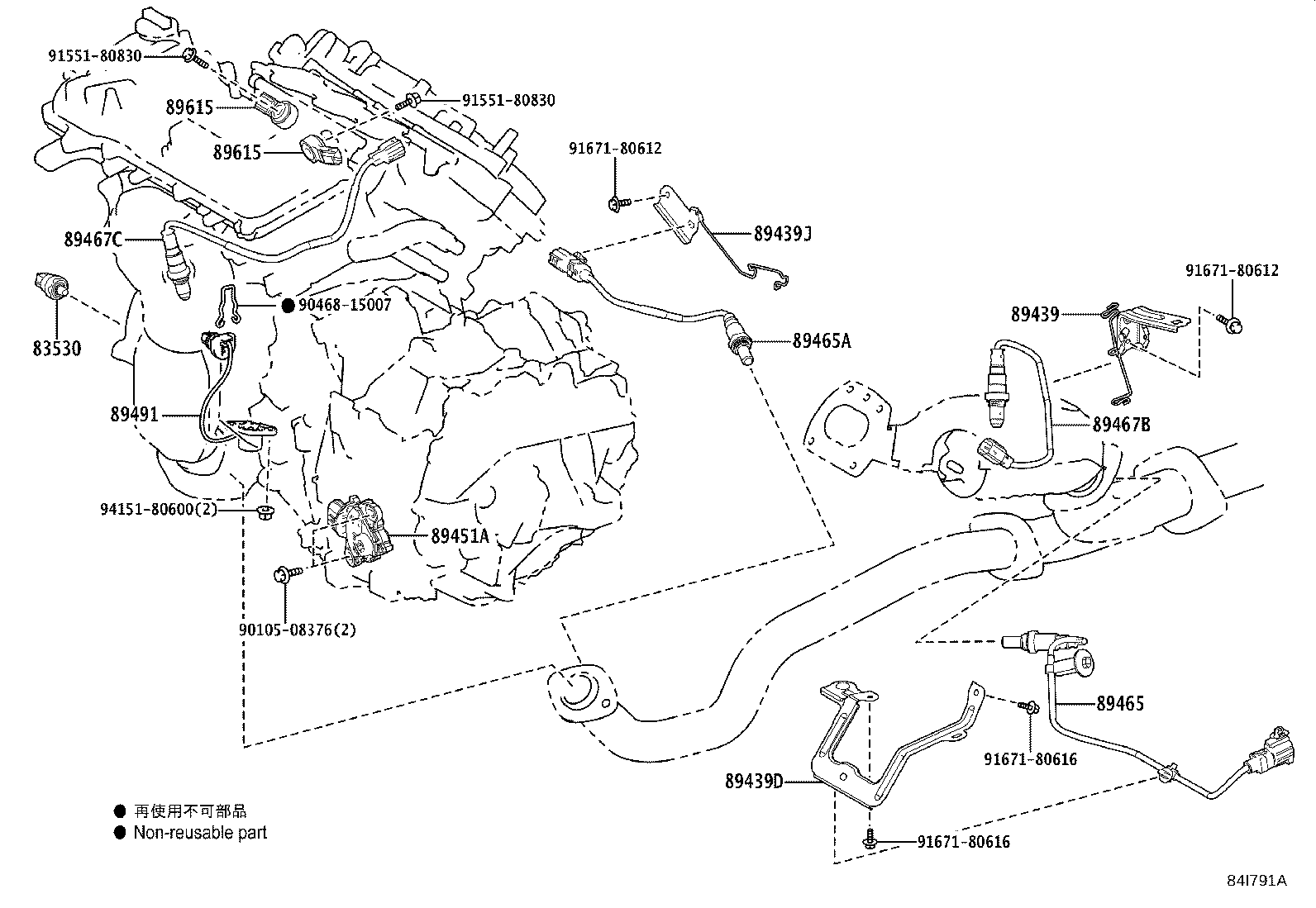

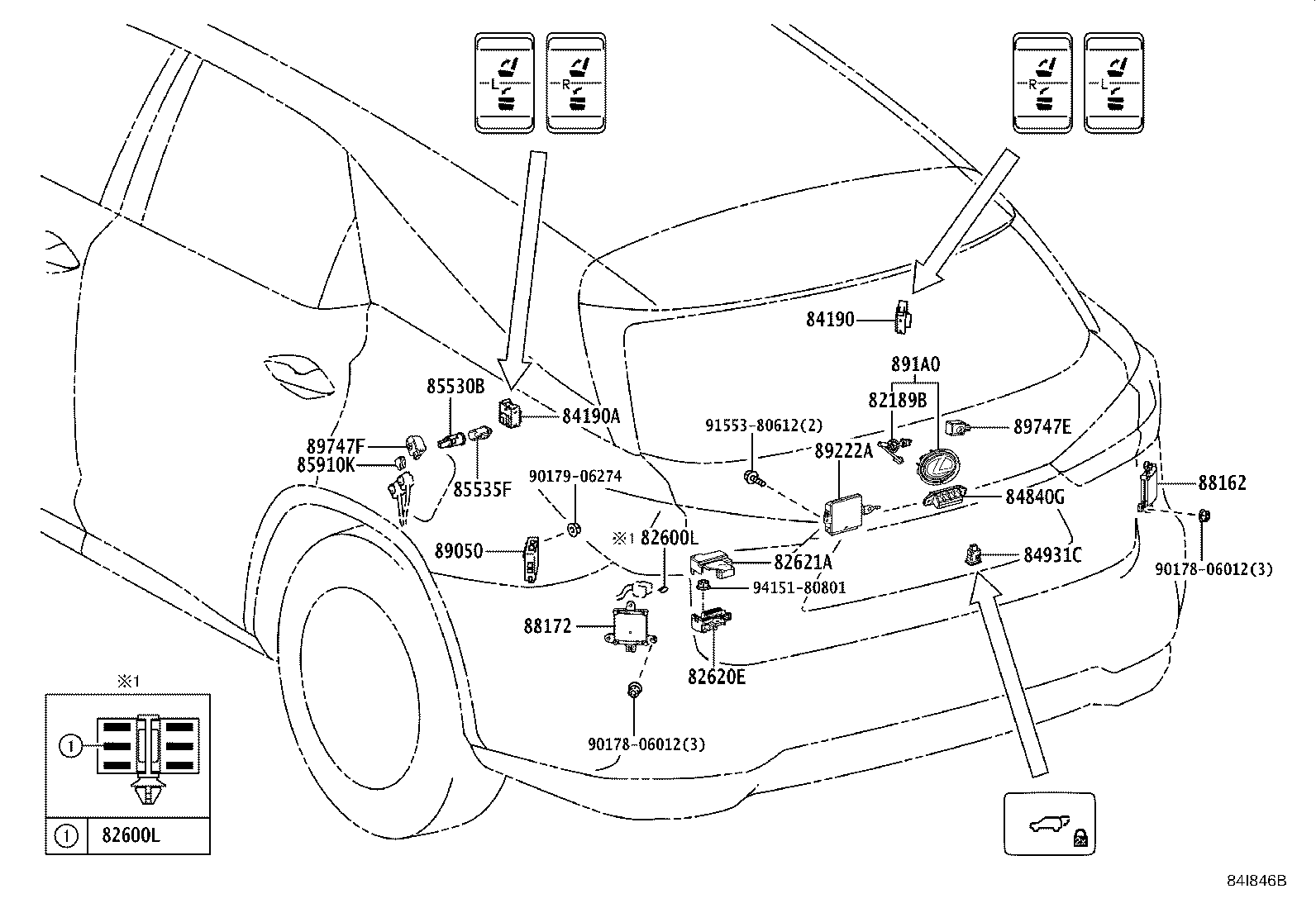

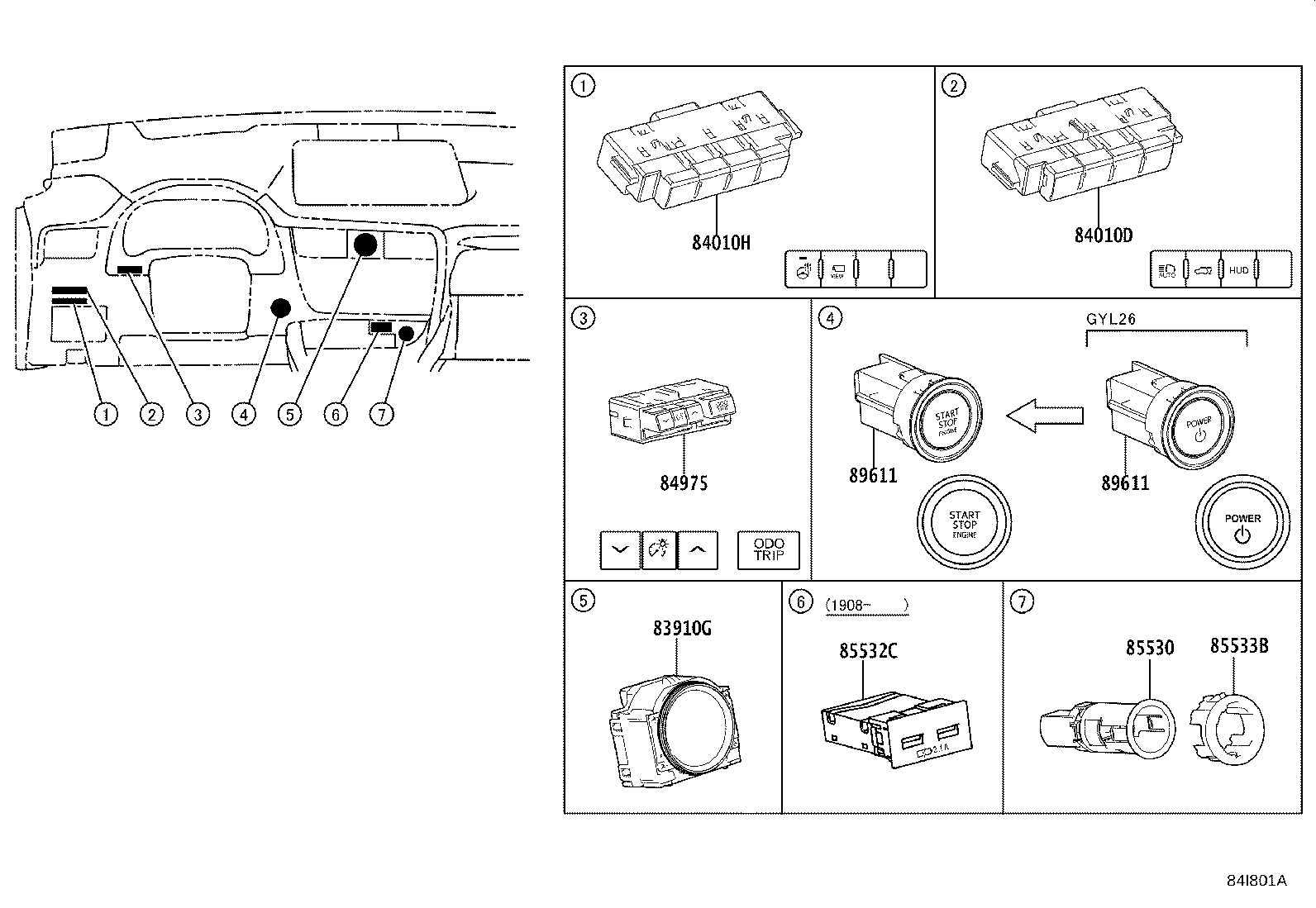

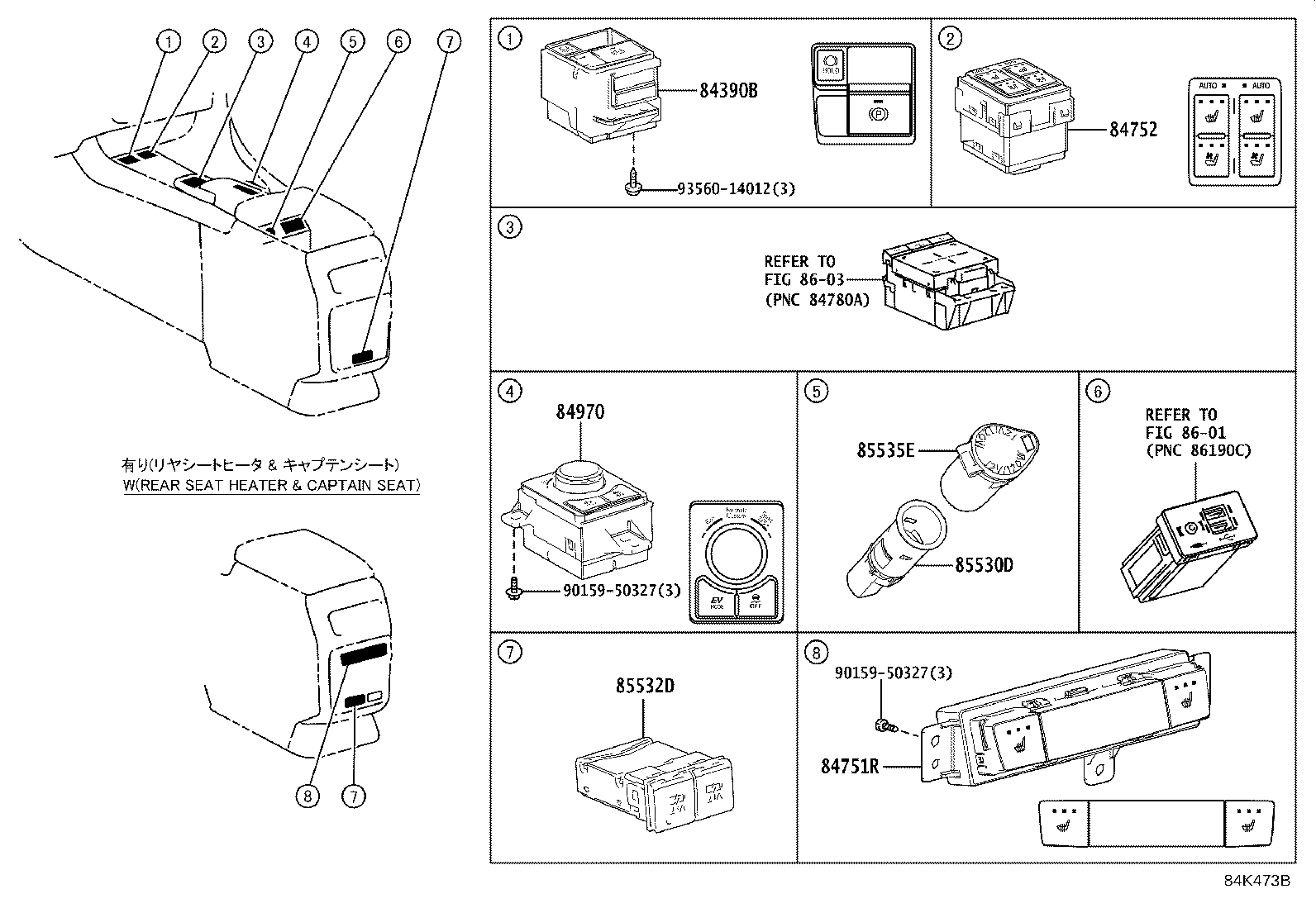

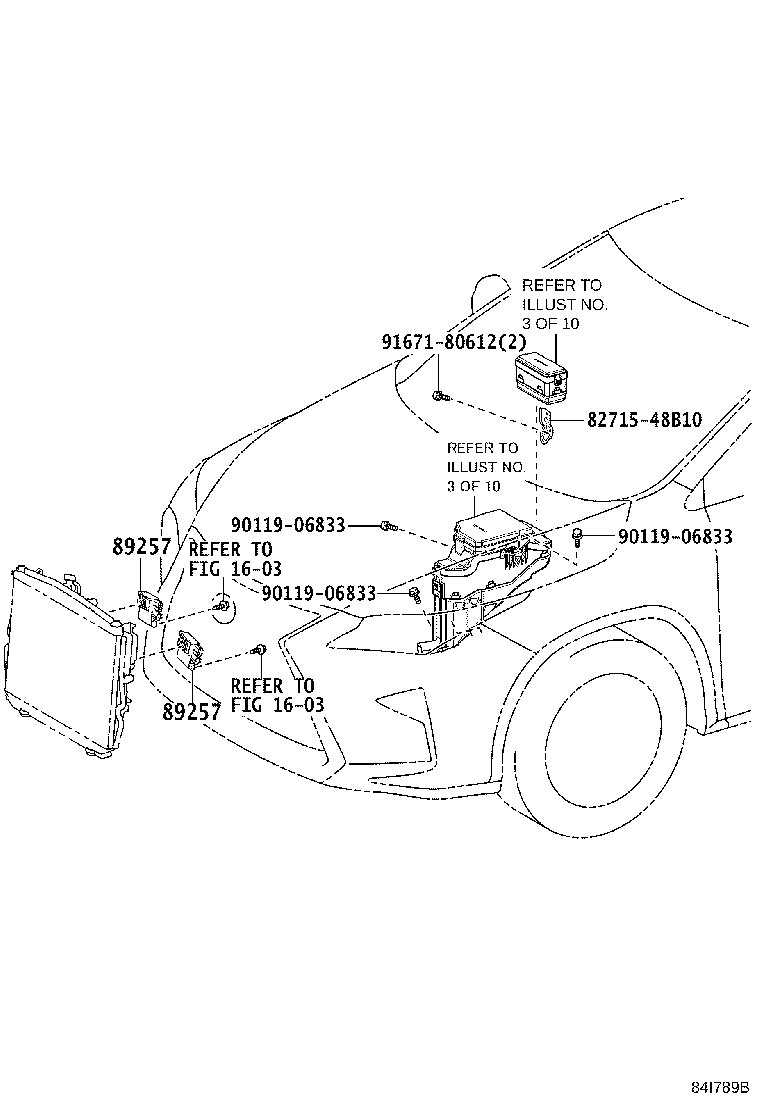

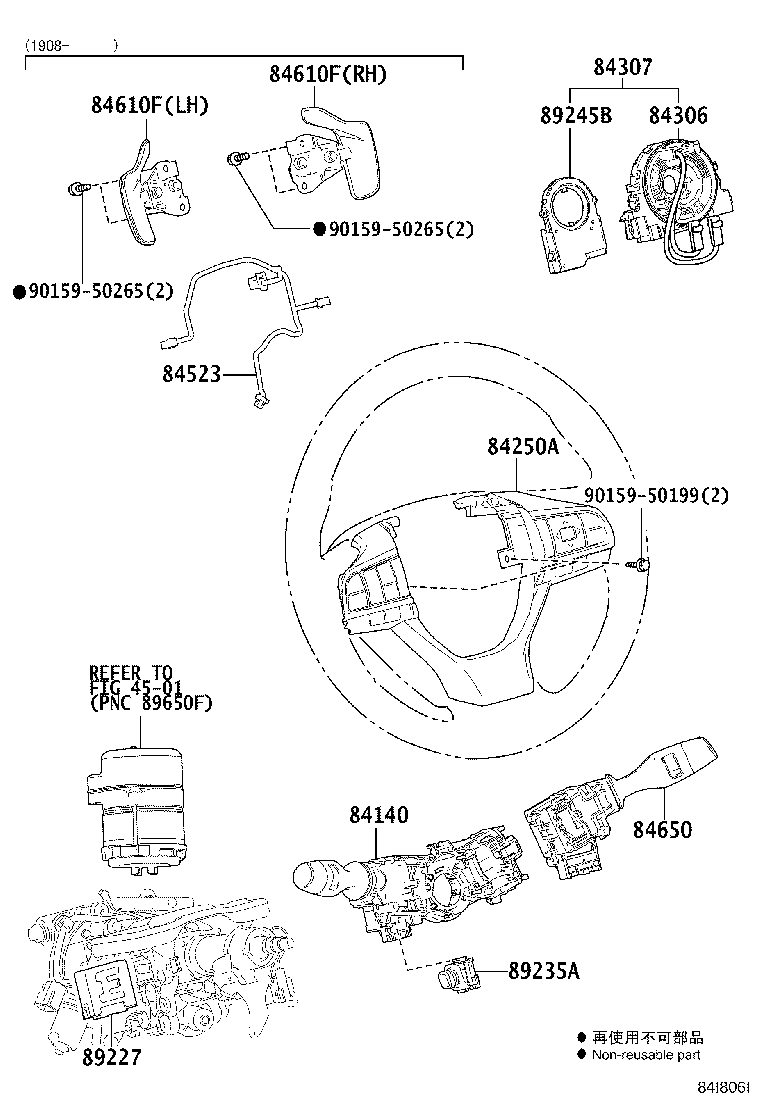

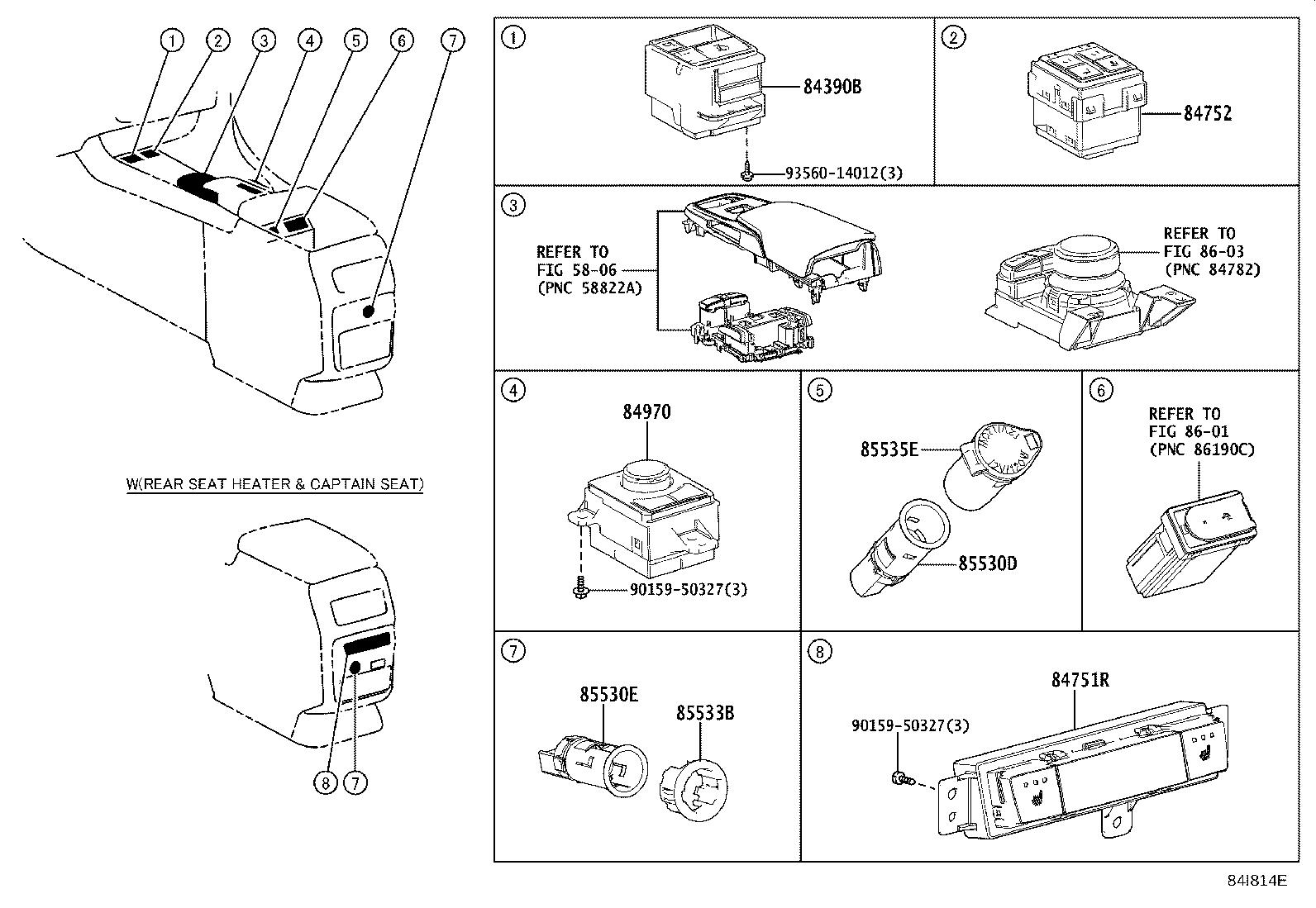

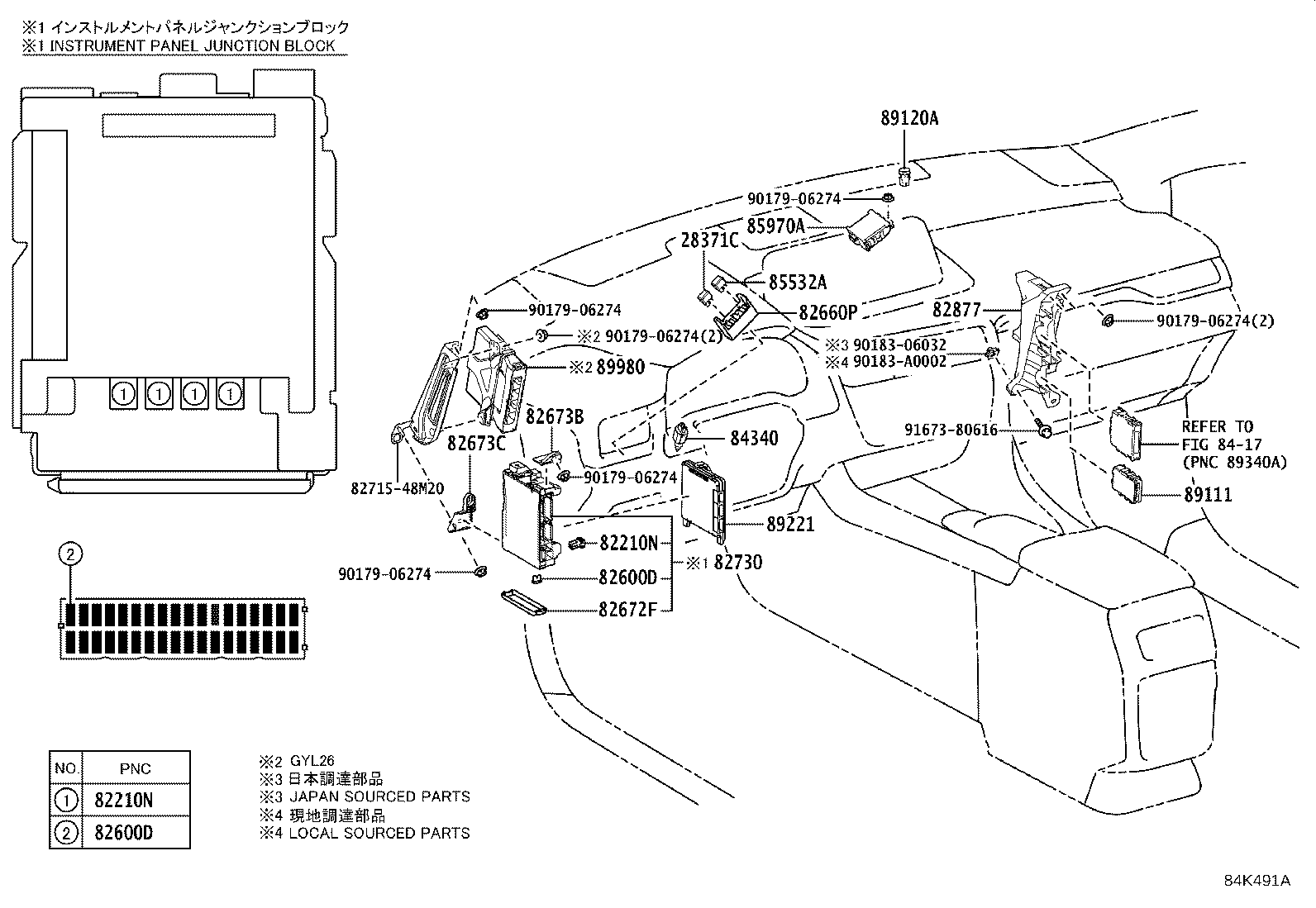

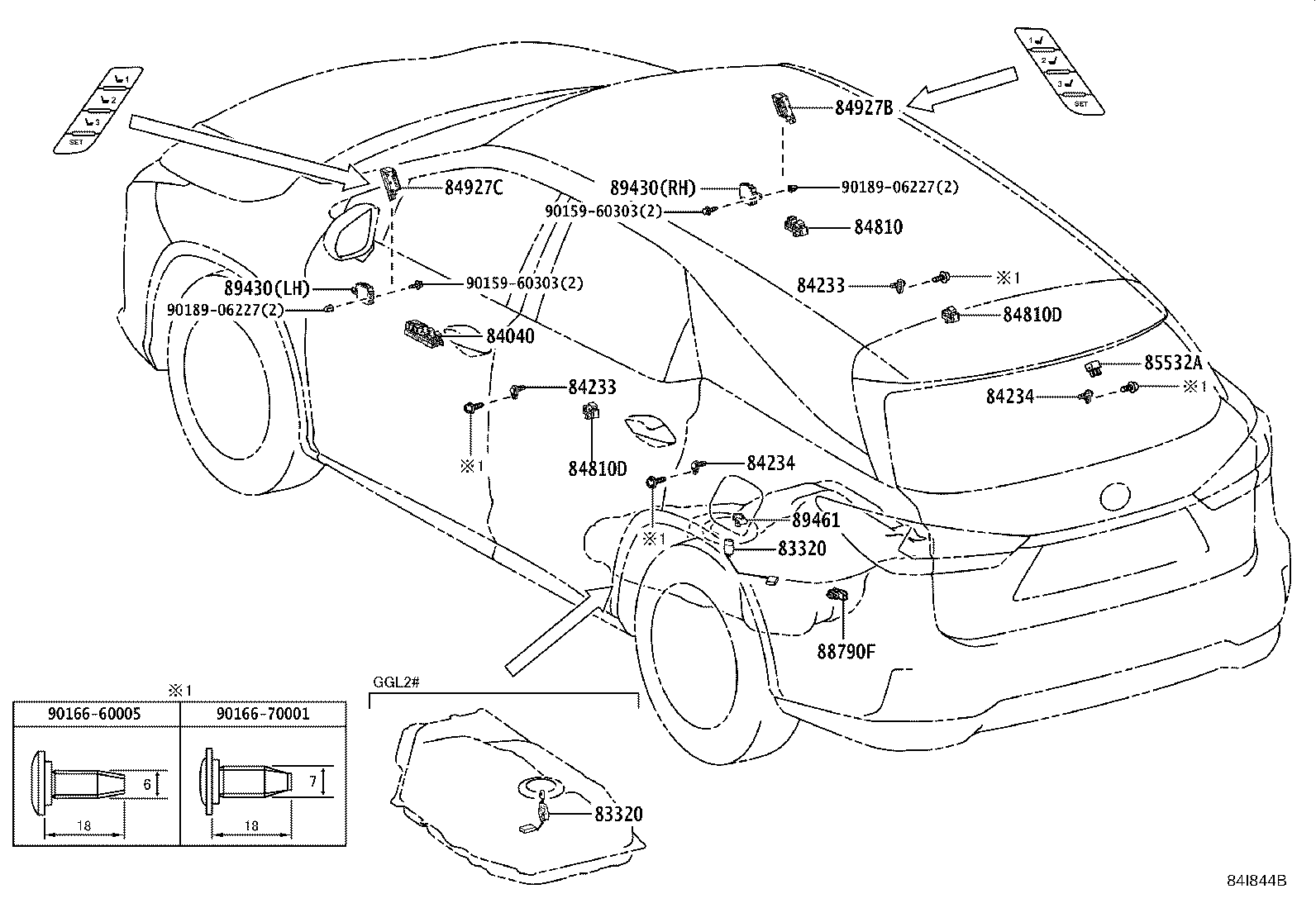

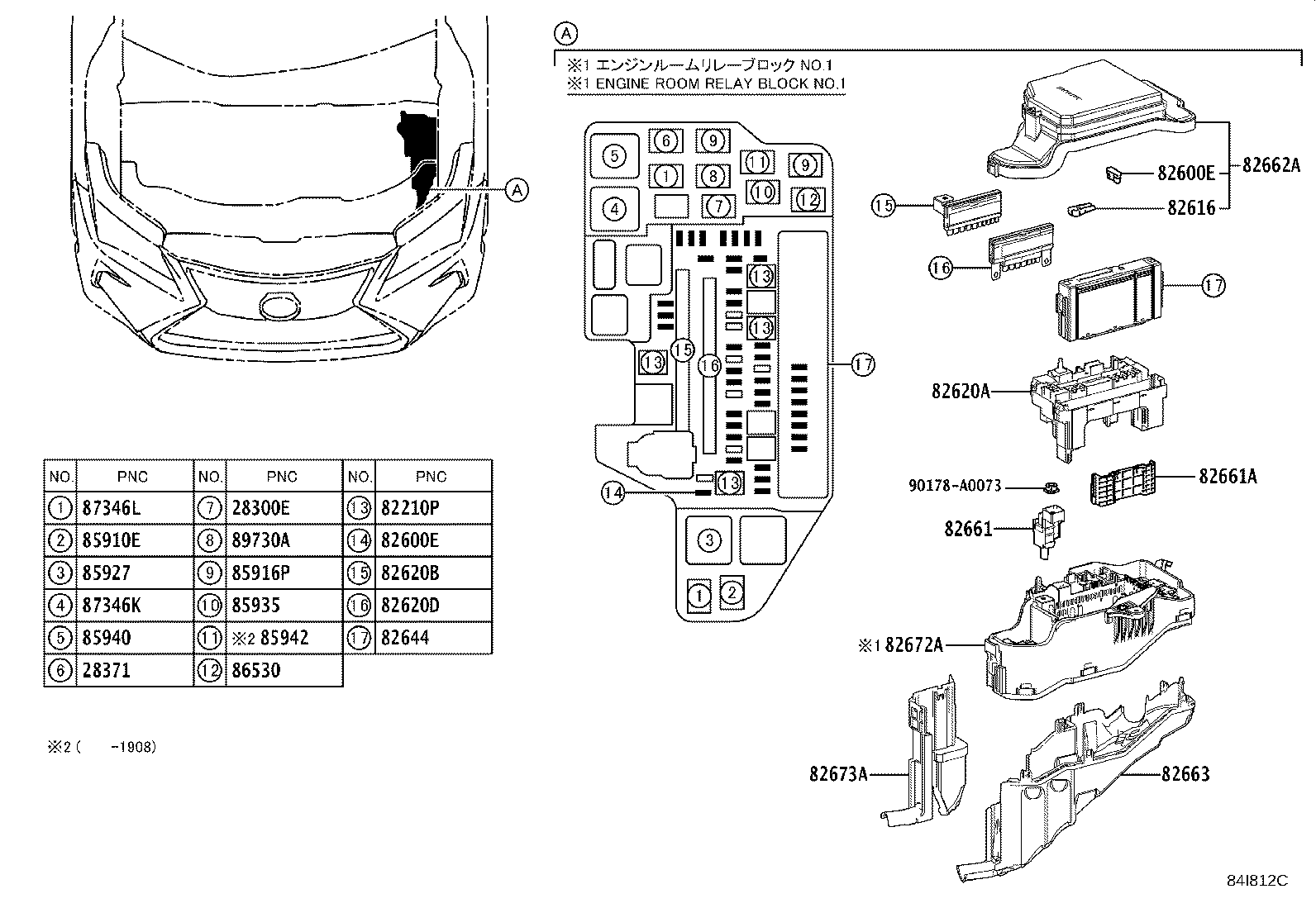

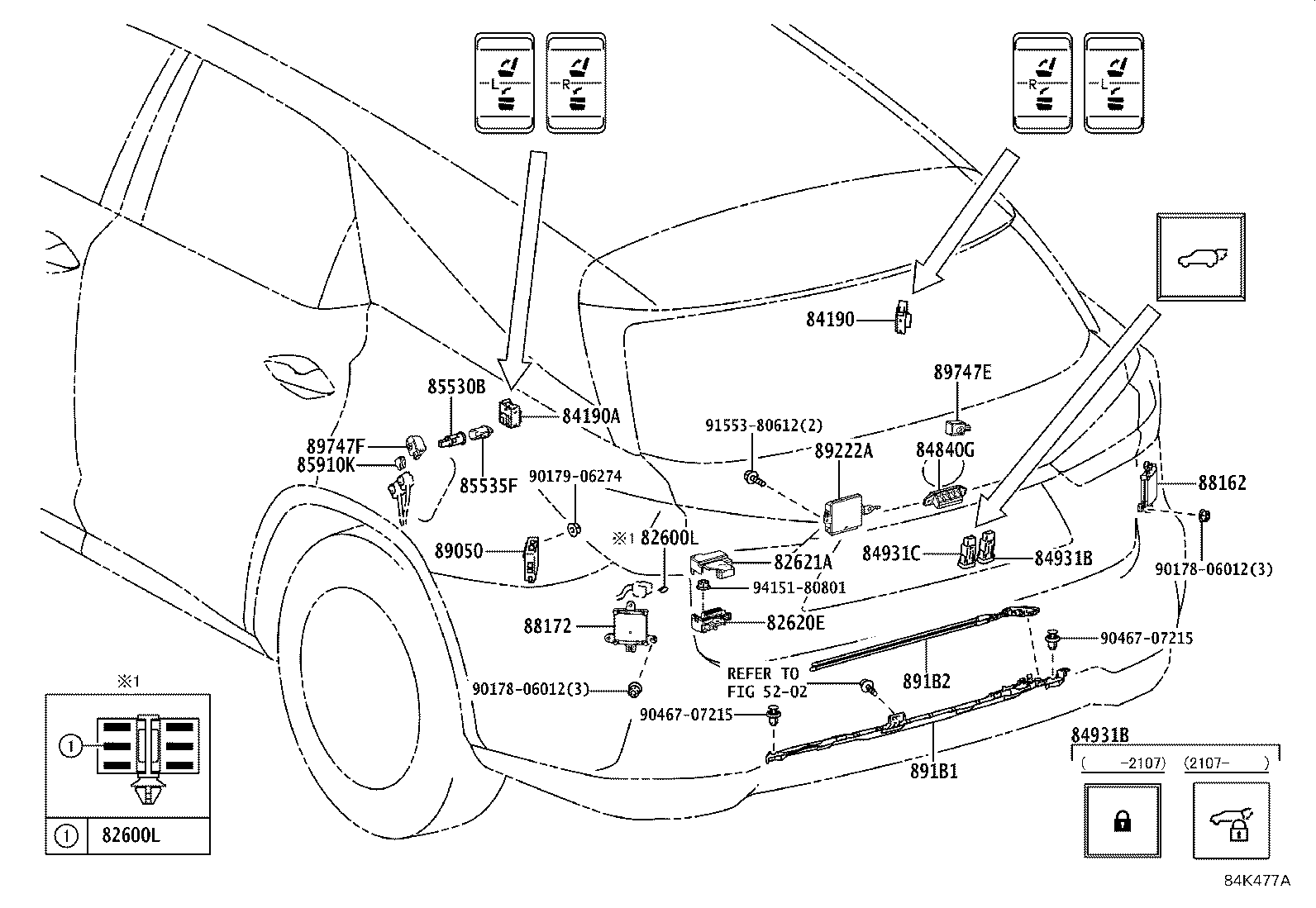

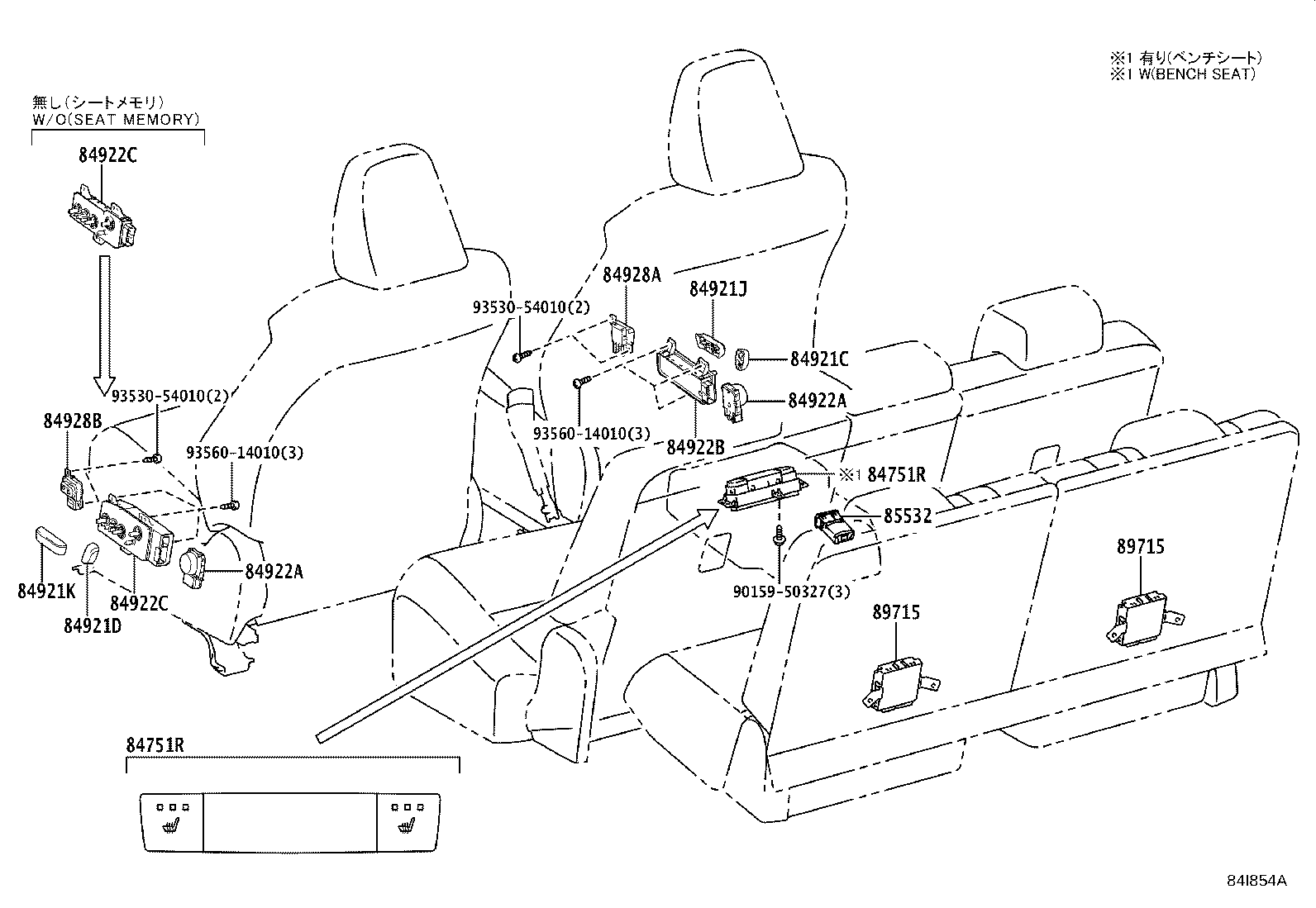

Figure 84I792A 84I792A 2017-12 → — Figure 84I791A 84I791A 2017-12 → — Figure 84I790B 84I790B 2017-12 → — Figure 84I789B 84I789B 2017-12 → — Figure 84I812C 84I812C 2017-12 → — Figure 84I828C 84I828C 2017-12 → — Figure 84I813E 84I813E 2017-12 → 2019-08 Figure 84K491A 84K491A 2019-08 → — Figure 84I801A 84I801A 2017-12 → — Figure 84I814E 84I814E 2017-12 → 2019-08 Figure 84K473B 84K473B 2019-08 → — Figure 84I806I 84I806I 2017-12 → — Figure 84I854A 84I854A 2017-12 → — Figure 84I844B 84I844B 2017-12 → — Figure 84I846B 84I846B 2017-12 → 2019-08 Figure 84K477A 84K477A 2019-08 → —

Part groups

PNCDescription
28300E Relay Assy, Starter, NO.1
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28800R Relay, Battery Fan
82189B Wire, Back Door, NO.4
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82621A Cover, Fusible Link
82644 Computer, Semiconductor Power Integration
82660P Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82661G Cover, Booster Terminal
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82672F Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82742 Block, Engine Room Relay, NO.2
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
84010D Control & Panel Assy, Integration
84010H Control & Panel Assy, Integration
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84190 Switch Assy, Fold Seat
84190A Switch Assy, Fold Seat, NO.1
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84390B Switch Assy, Electric Parking Brake
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84751R Switch, Seat Heater(REAR)
84752 Switch, Refreshing Seat
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927B Switch, Seat Memory, RH
84927C Switch, Seat Memory, LH
84928A Switch, Seat Cushion, RH
84928B Switch, Seat Cushion, LH
84931B Switch, Door Control
84931C Switch, Back Door Control
84970 Switch Assy, Combination
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85532 Socket, Usb Charger
85532A Relay, Usb
85532C Socket, Usb Charger, NO.2
85532D Socket, Usb Charger, NO.3
85533B Lens, Power Outlet Socket
85535E Cover, Power Outlet Socket, NO.2
85535F Cover, Power Outlet Socket, Rear
85910E Relay, Injector
85910K Relay, Rear Seat Heater
85916P Relay, Headlamp
85924 Relay, Ignition Control
85927 Relay, Cooling Fan
85935 Relay, Fuel Pump
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
86530 Relay Assy, Horn
87346K Relay, Ptc Heater
87346L Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88790F Thermistor Assy
89050 Computer Assy, Parking Brake
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891A0 Sensor Assy, Rear Emblem
891B1 Bracket, Kick Door Control
891B2 Sensor, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89430 Computer Assy, Outer Mirror Control
89439 Bracket, Sensor
89439D Bracket, Sensor, NO.1
89439J Bracket, Sensor, NO.2
89439K Bracket, Sensor, NO.3
89451A Sensor, Shift Lever Position
89461 Sensor, Vapor Pressure
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89491 Sensor, Engine Oil Level
89611 Switch, Push Start
89615 Sensor, Knock Control
89715 Computer, Fold Seat Control
89730A Relay(FOR SECURITY WARNING)
89747E Buzzer, Power Back Door Warning
89747F Buzzer, Blind Spot Monitor
89980 Computer Assy, Hybrid Vehicle Control
G1167A Relay (FOR OIL PUMP MOTOR)
