Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

10 part groups · 2 illustrations

Illustrations

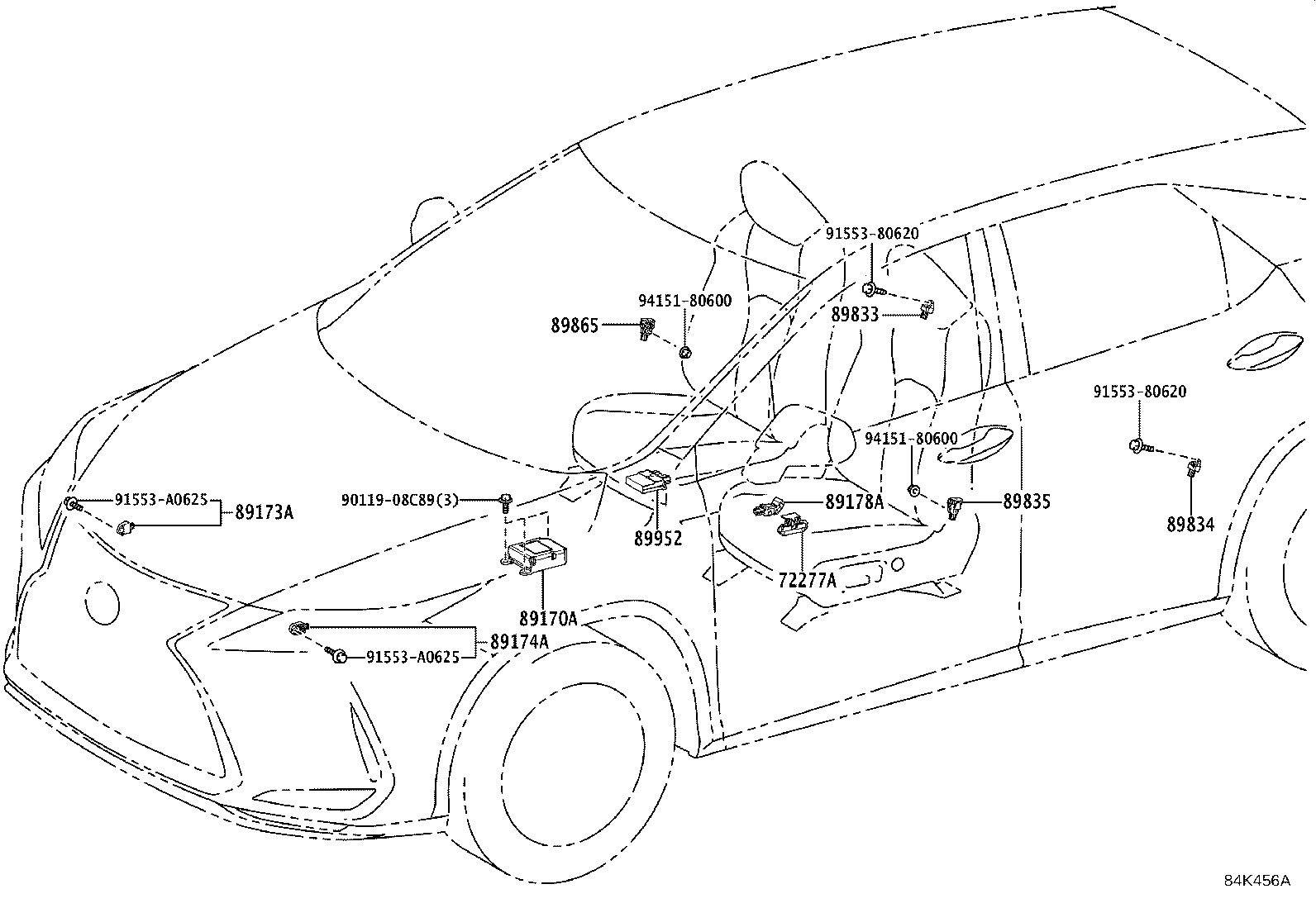

Figure 84I669A 84I669A 2017-12 → 2019-08 Figure 84K456A 84K456A 2019-08 → —

Part groups

PNCDescription
72277A Protector, Seat Slide Position Sensor
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89178A Sensor, Seat Position Airbag
89833 Sensor, Airbag, Rear RH
89834 Sensor, Airbag, Rear LH
89835 Sensor, Door Side Airbag, LH
89865 Sensor, Door Side Airbag, RH
89952 Computer, Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
