Toyota Lexus RX450HL/350L
2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States
Supported model
Data version 2023-05
Radio Receiver & Amplifier & Condenser
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

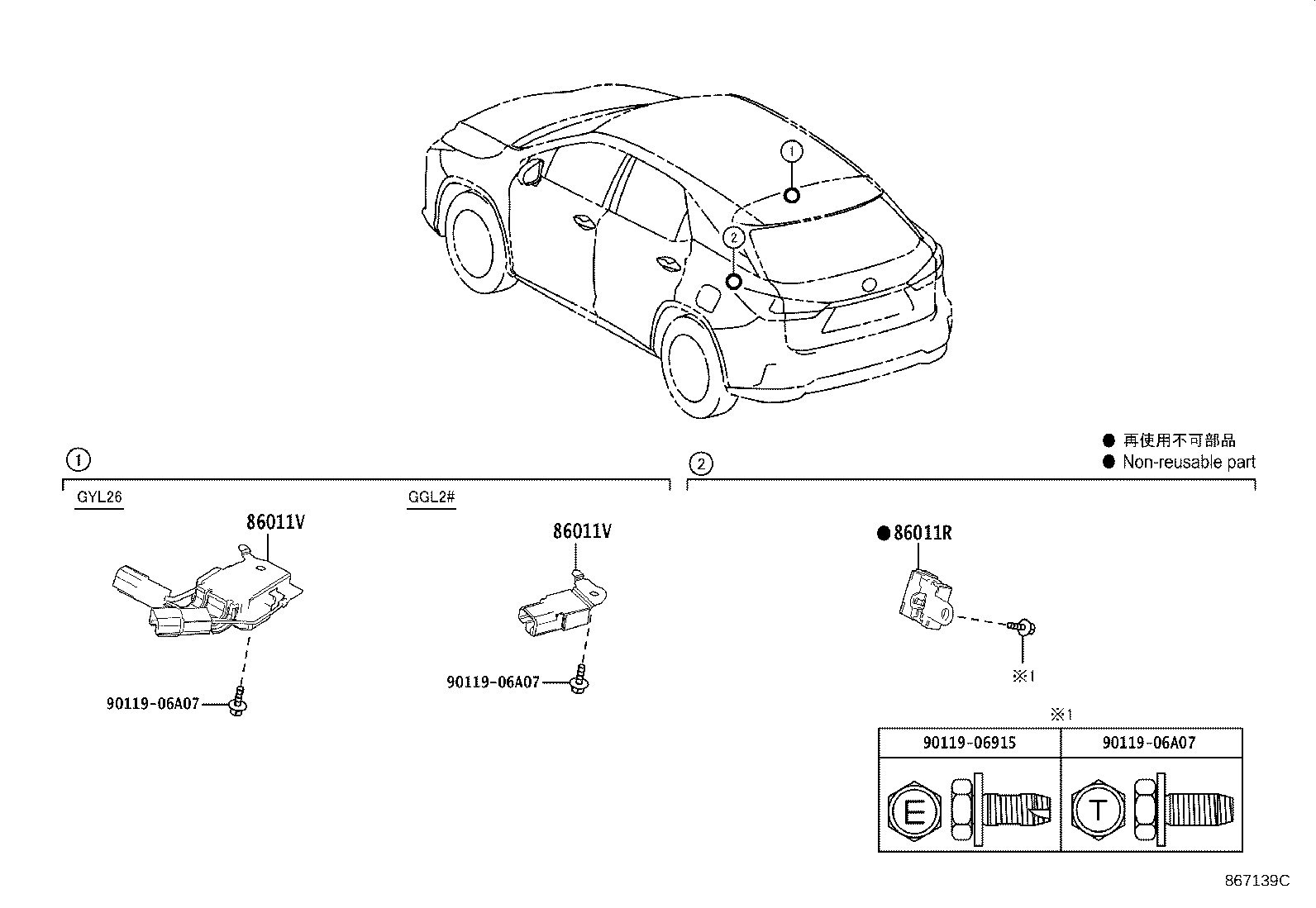

| 86011R | Condenser, Radio Setting |
| 86011V | Condenser, Radio Setting |

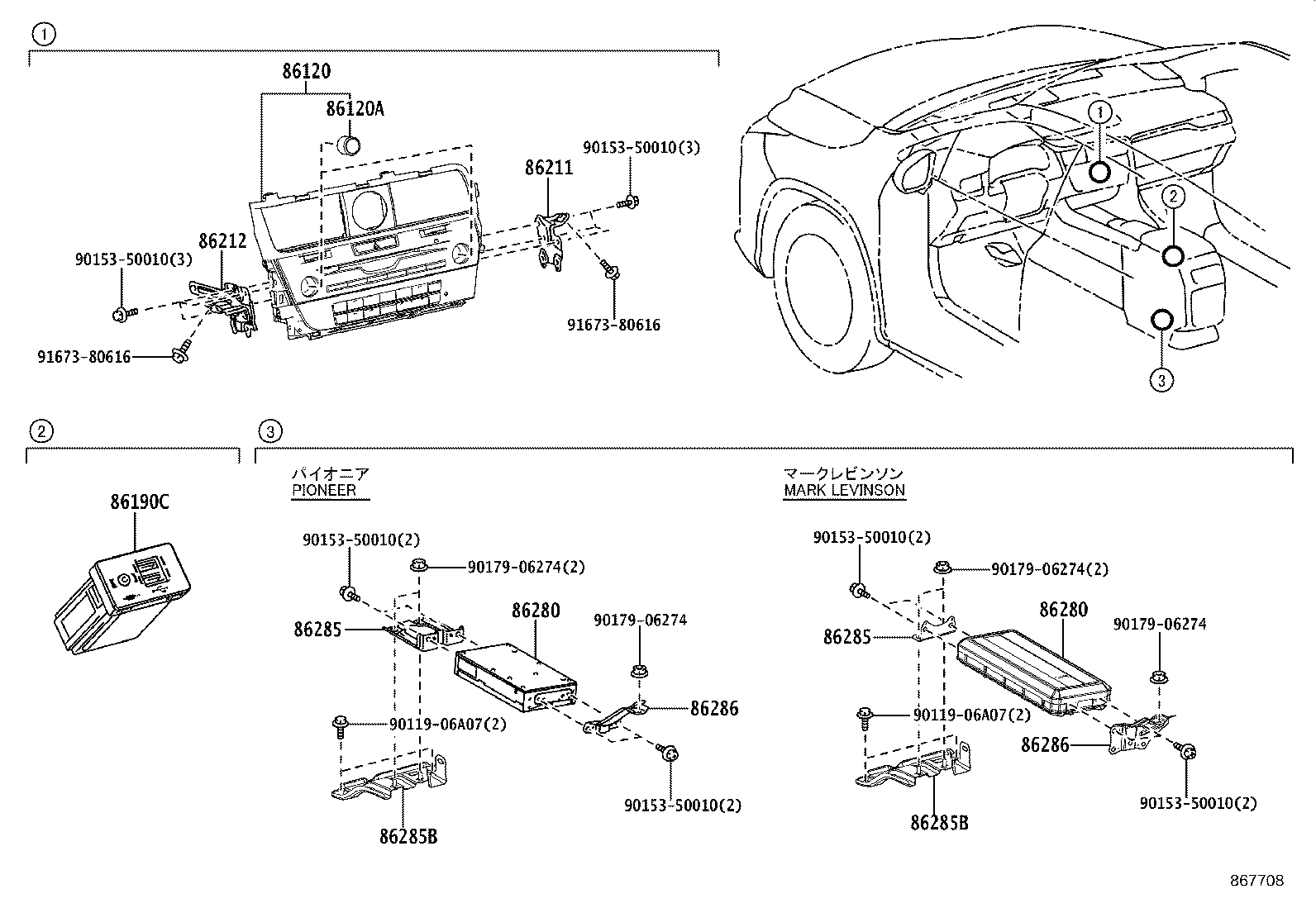

| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86285B | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
