Toyota Lexus RX450HL/350L

2017-12 → 2022-09 · chassis GGL2#,GYL26 · catalogue 522430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

6 part groups · 2 illustrations

Illustrations

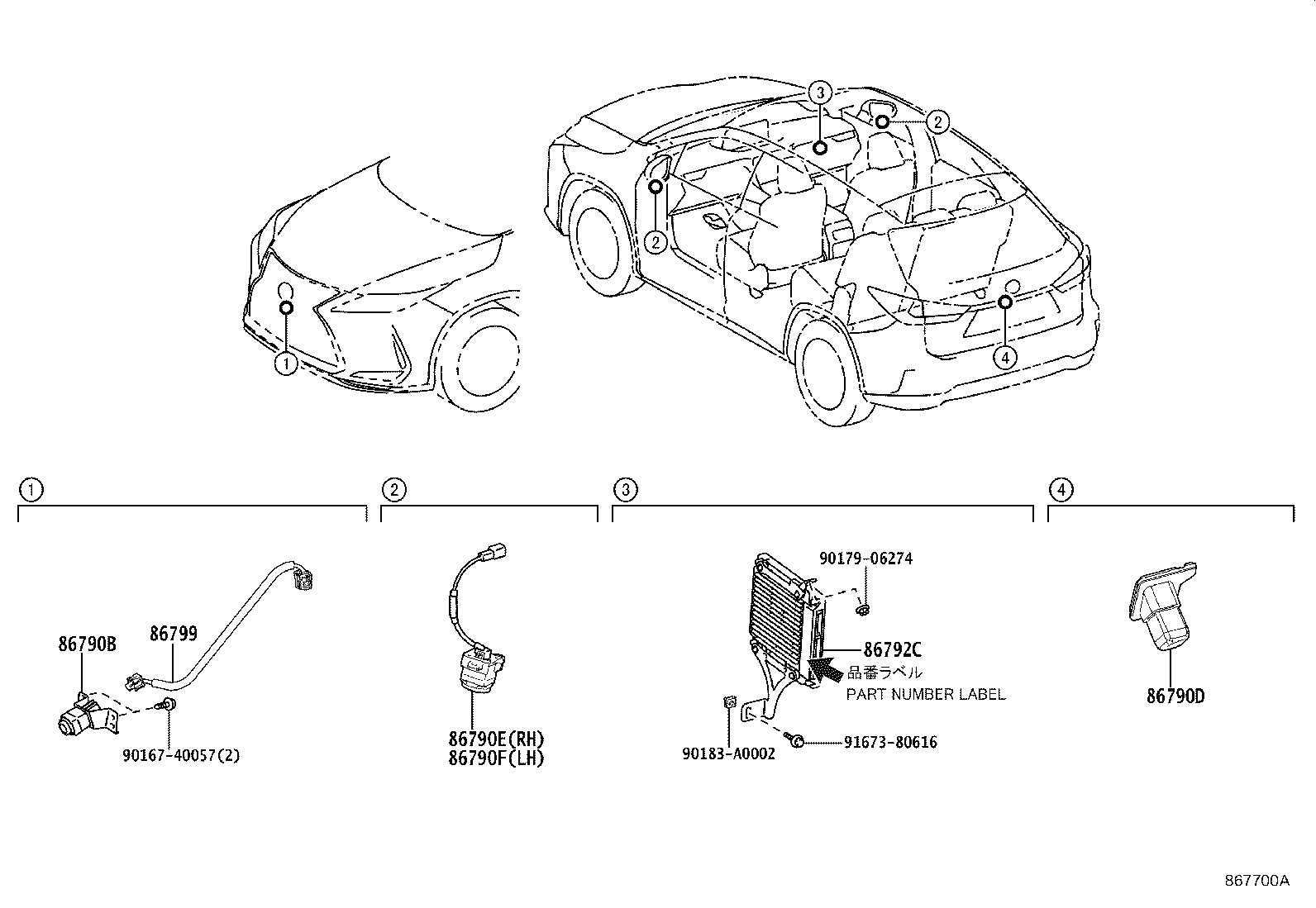

Figure 867109 867109 2017-12 → 2019-08 Figure 867700A 867700A 2019-08 → —

Part groups

PNCDescription
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
86799 Wire, Television Camera
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
