Toyota Lexus RX330/350(NAP)

2003-09 → 2009-01 · chassis MCU3#,GSU3# · catalogue 523410 · United States

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

16 part groups · 2 illustrations

Illustrations

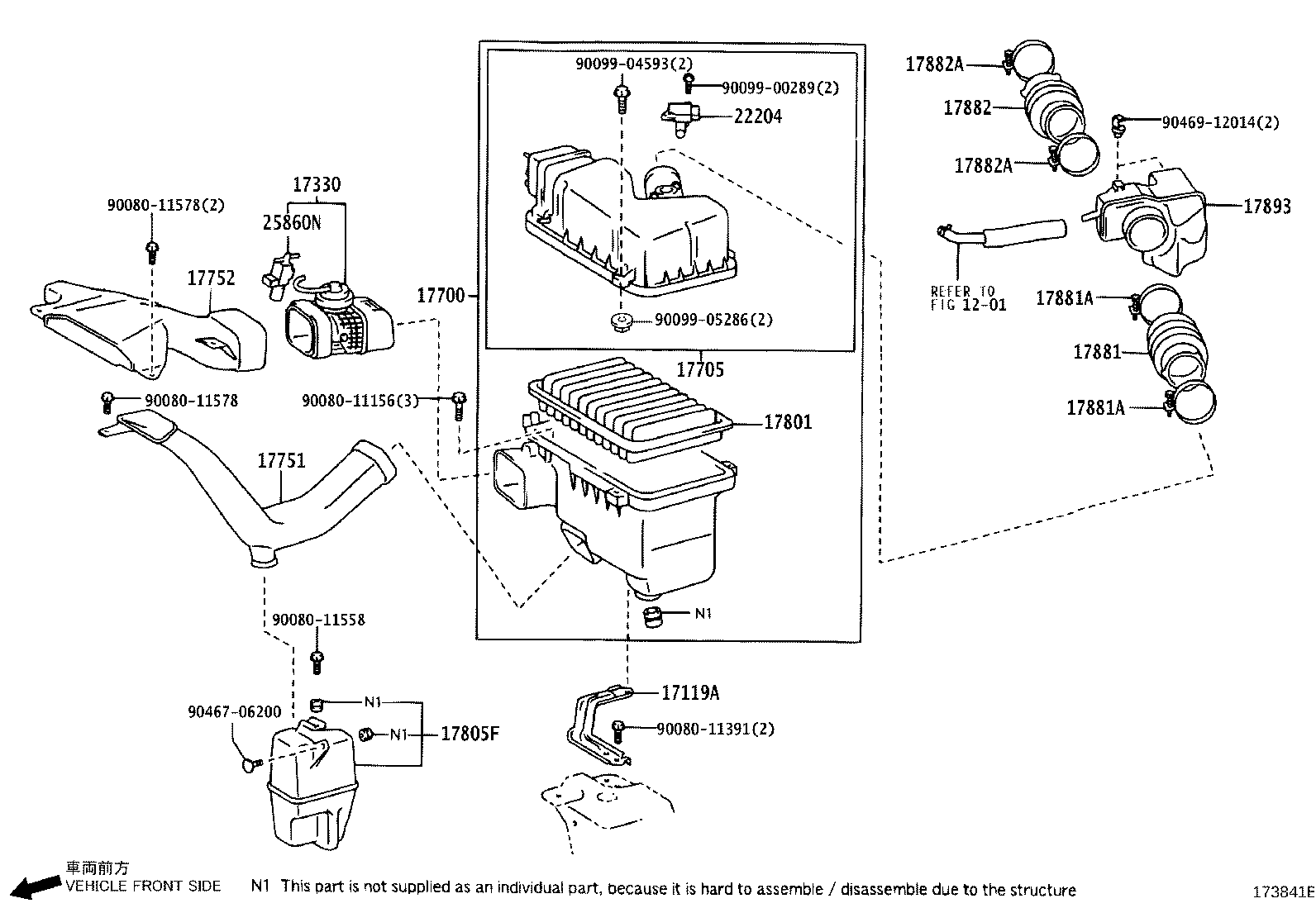

Figure 174832D 174832D 2006-02 → — Figure 173841B 173841B 2003-09 → —

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17330 Valve Assy, Intake Air Control, NO.3
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17805F Resonator Sub-assy, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
22204 Meter Sub-assy, Intake Air Flow
25860N Valve Assy, Vacuum Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
