Toyota Lexus RX330/350(NAP)
2003-09 → 2009-01 · chassis MCU3#,GSU3# · catalogue 523410 · United States
Supported model
Data version 2009-07

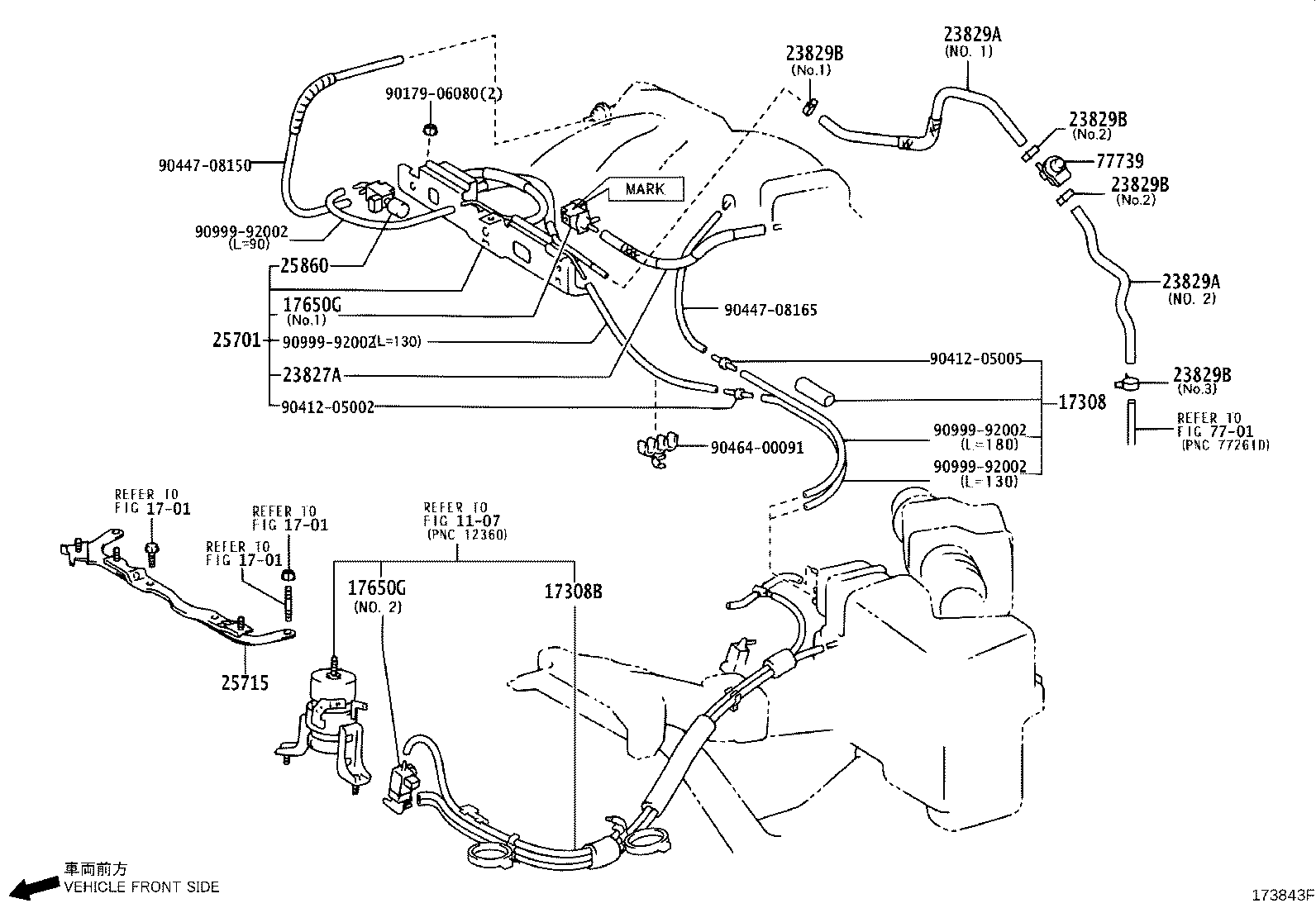

Vacuum Piping
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17308B | Hose Sub-assy, Vacuum |
| 17650G | Valve, Duty Vacuum Switching |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25701 | Valve Set, Emission Control |
| 25715 | Bracket, Emission Control Valve |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860A | Valve, Vacuum Switching, NO.1 |
| 77739 | Valve, Evap Service Port |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
