Toyota Lexus RX330/350(NAP)

2003-09 → 2009-01 · chassis MCU3#,GSU3# · catalogue 523410 · United States

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

11 part groups · 2 illustrations

Illustrations

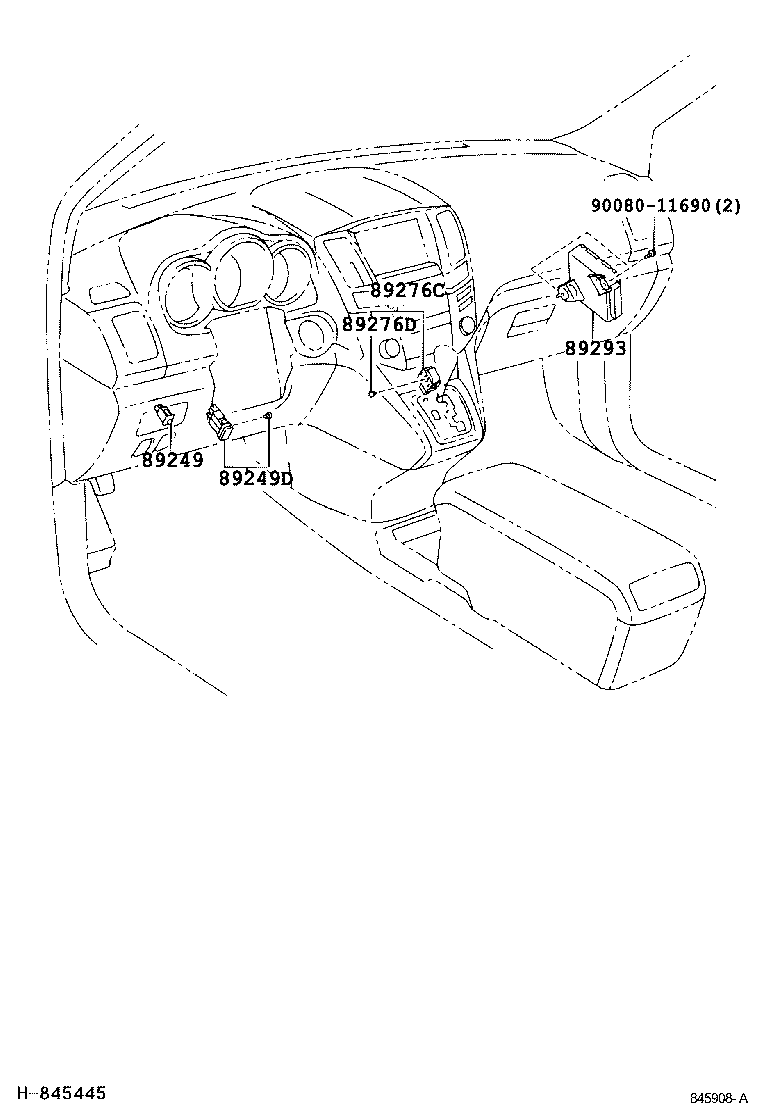

Figure 845907B 845907B 2003-09 → — Figure 845908A 845908A 2003-09 → —

Part groups

PNCDescription
89244 Wire, Absorber Control, Rear
89249 Switch, Absorber Control
89249D Switch, Absorber Control NO.2
89276C Switch, Height Control
89276D Bulb, (FOR HEIGHT CONTROL SWITCH)
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89405B Sensor Sub-assy, Height Control, Front RH
89406 Sensor Sub-assy, Height Control, Front LH
89407B Sensor Sub-assy, Height Control, Rear RH
89408D Sensor Sub-assy, Height Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
