Toyota Lexus RX330/350(NAP)

2003-09 → 2009-01 · chassis MCU3#,GSU3# · catalogue 523410 · United States

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 6 illustrations

Illustrations

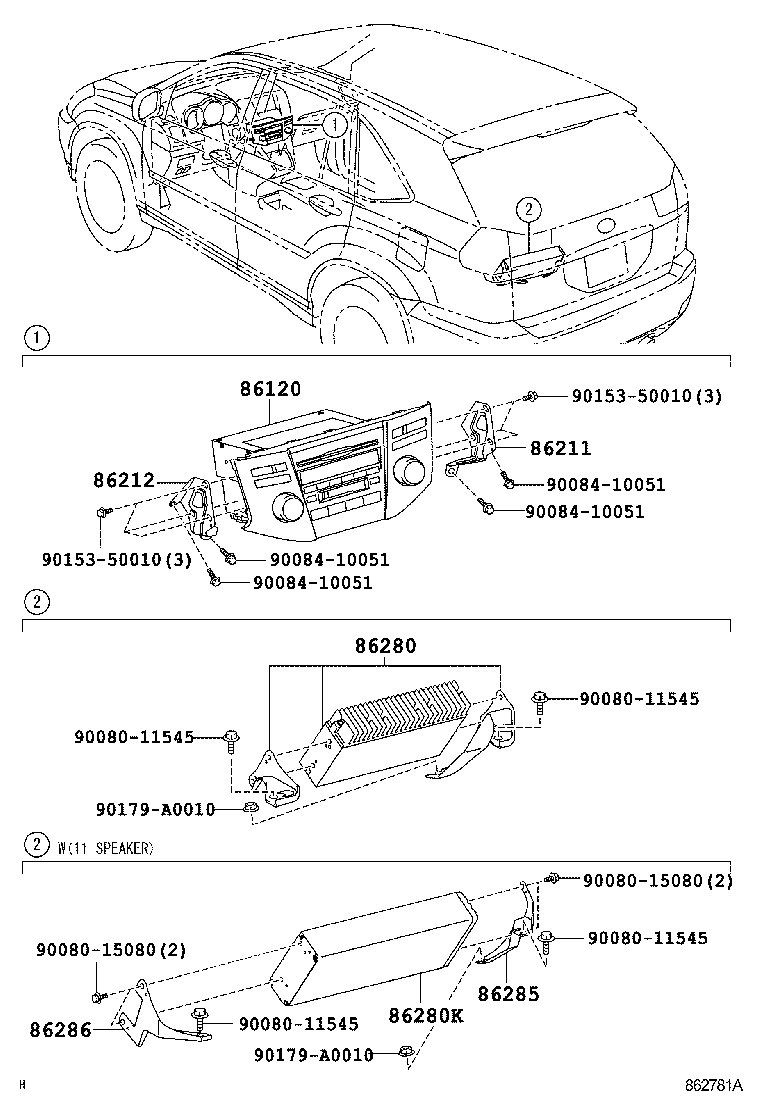

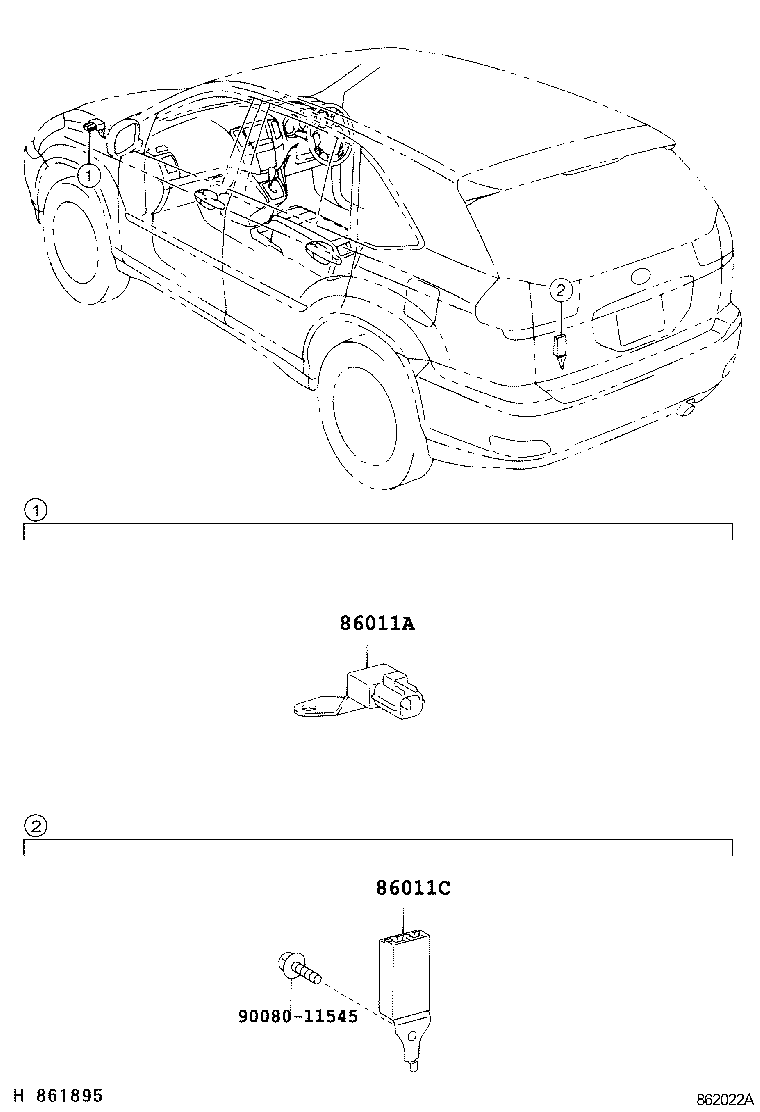

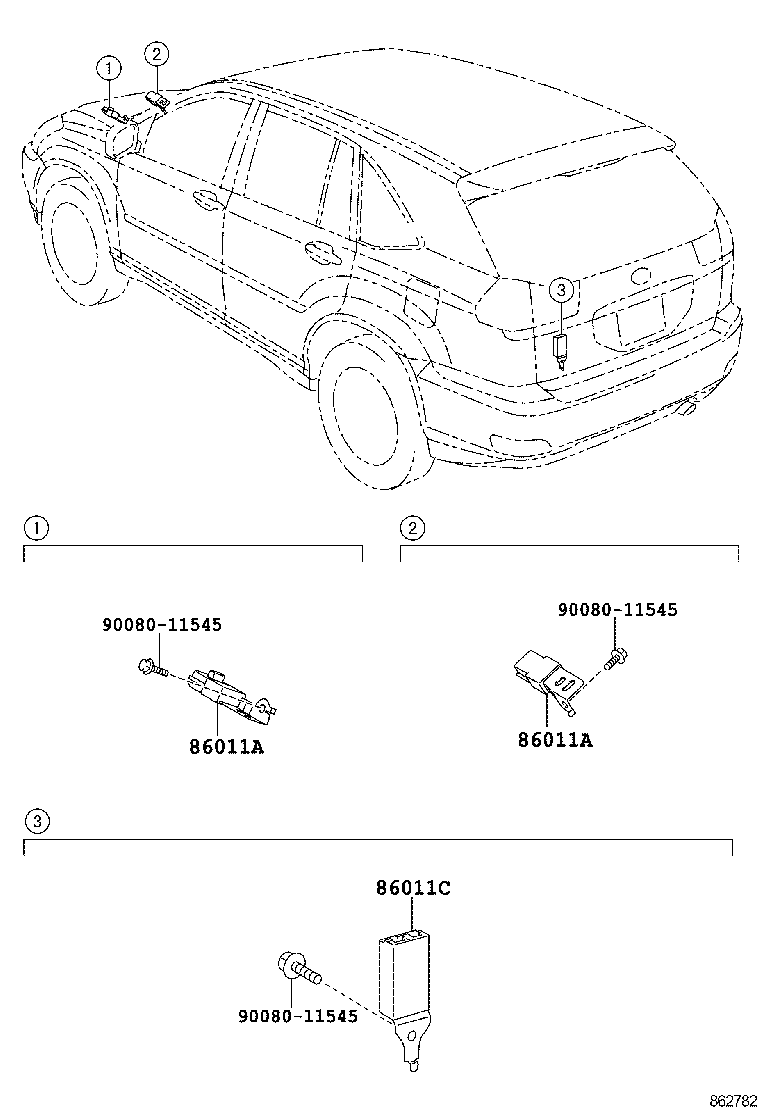

Figure 862020B 862020B 2003-09 → 2006-02 Figure 862021B 862021B 2003-09 → 2006-02 Figure 862022A 862022A 2003-09 → 2006-02 Figure 862781A 862781A 2006-02 → — Figure 862783A 862783A 2006-02 → — Figure 862782 862782 2006-02 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86280K Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
