Toyota Lexus RX330/350(NAP)

2003-09 → 2009-01 · chassis MCU3#,GSU3# · catalogue 523410 · United States

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

8 part groups · 3 illustrations

Illustrations

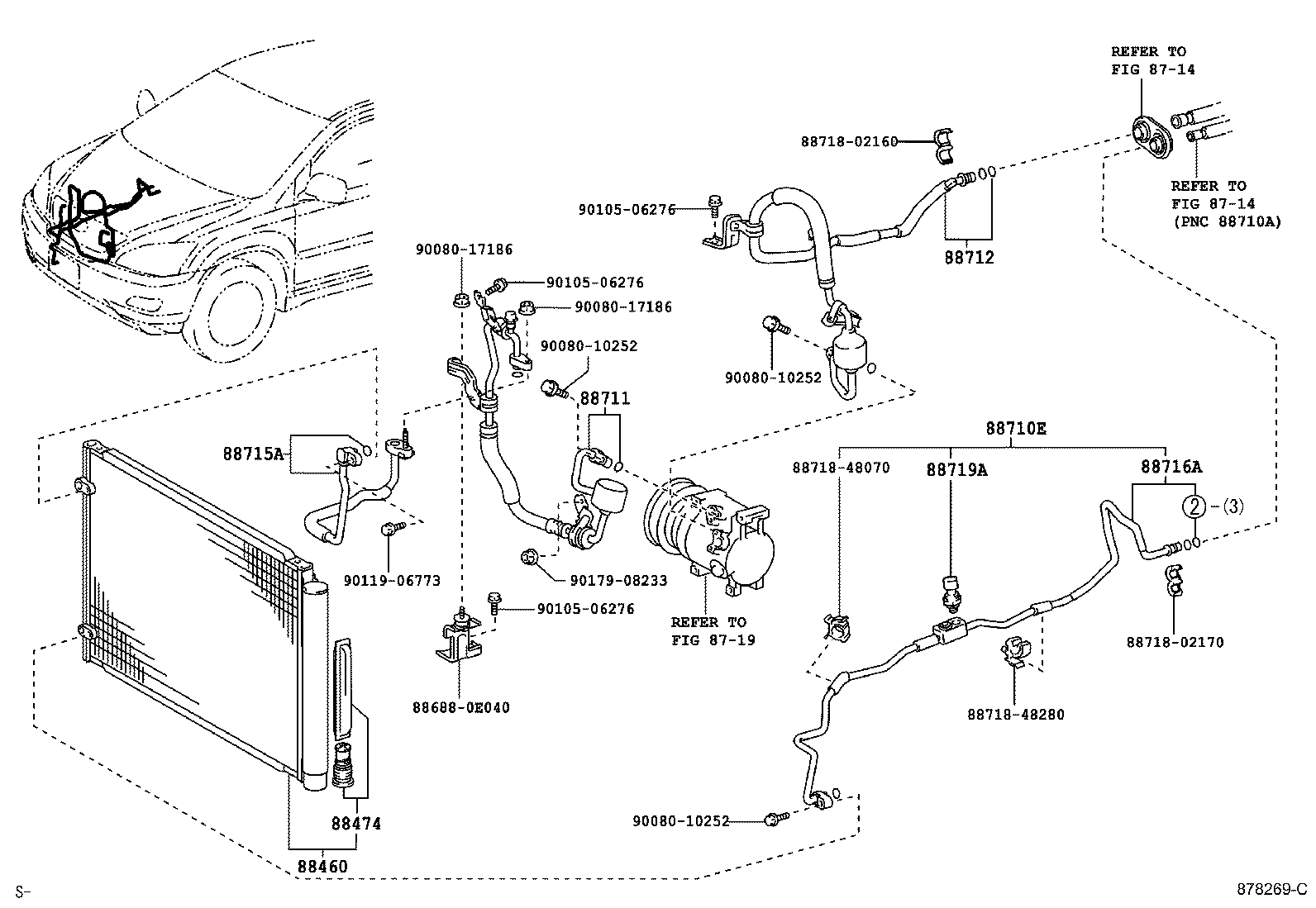

Figure 876521D 876521D 2003-09 → 2006-02 Figure 878269C 878269C 2006-02 → — Figure 876516C 876516C 2003-09 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
