Toyota Lexus RX350/450H(Nap

2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

5 part groups · 2 illustrations

Illustrations

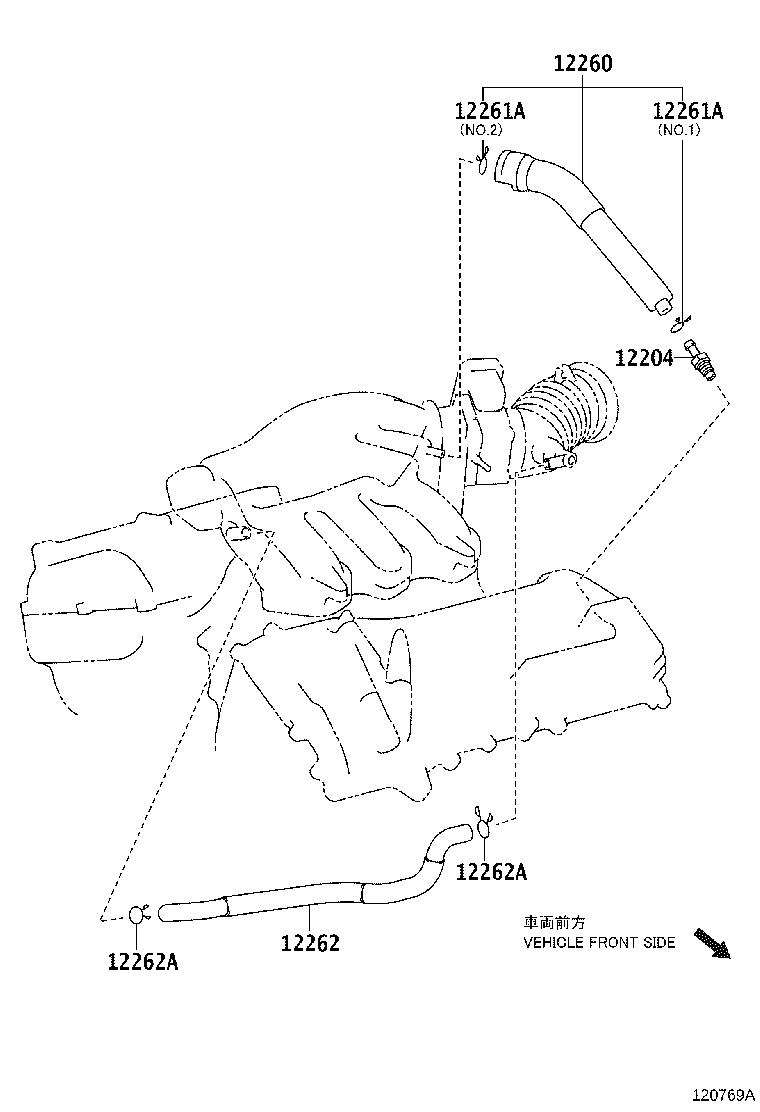

Figure 120659B 120659B 2009-01 → — Figure 120769A 120769A 2014-03 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12260 Hose Assy, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
