Oil Cooler & Tube (ATM)

14 part groups · 3 illustrations

Illustrations

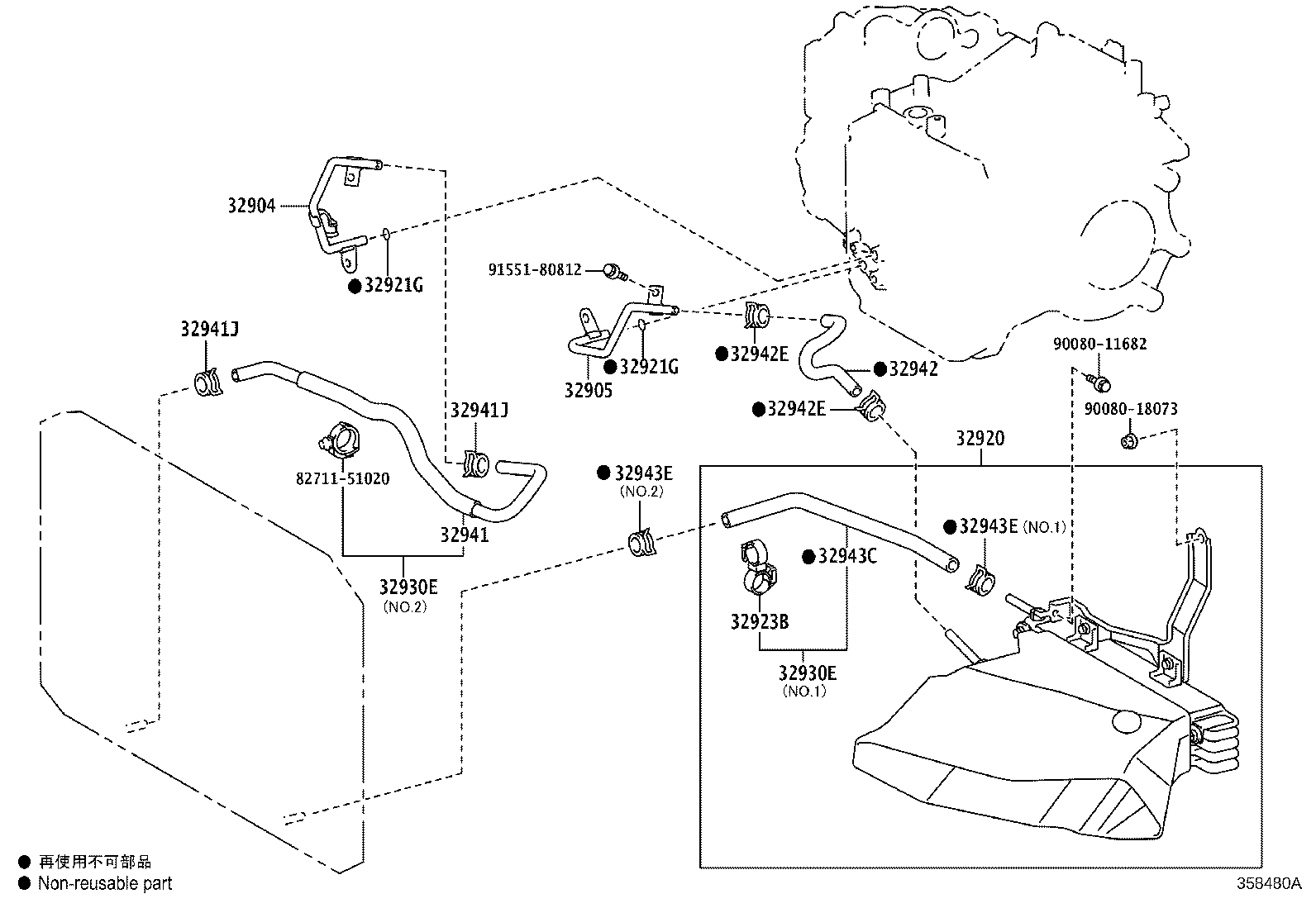

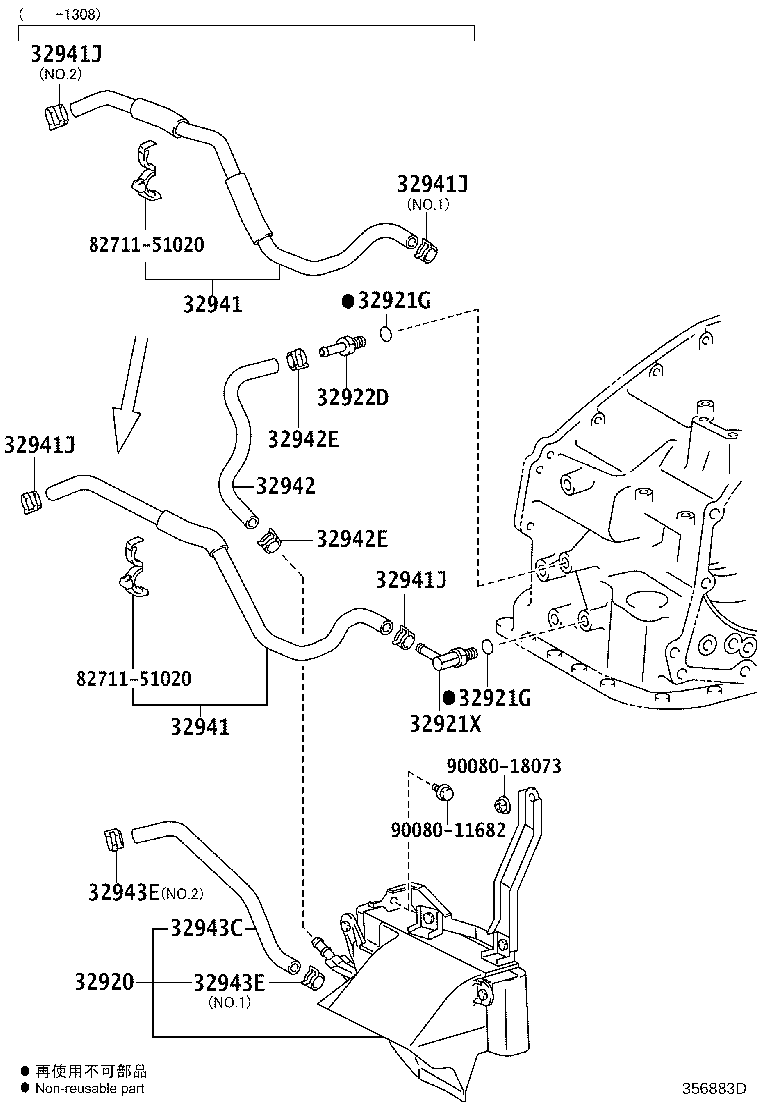

Figure 356882D 356882D 2009-01 → — Figure 356883D 356883D 2009-01 → — Figure 358480A 358480A 2012-07 → —

Part groups

PNCDescription
32904 Tube Sub-assy, Oil Cooler Inlet, NO.1
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32920 Cooler Assy, Oil W/Hose
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921X Union OR Elbow, Oil Cooler Inlet
32922D Union OR Elbow, Oil Cooler Outlet
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32930E Hose Assy, Transmission Oil Cooler, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943C Hose, Transmission Oil Cooler, NO.3
32943E Clip, NO.3(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
