Toyota Lexus RX350/450H(Nap
2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States
Supported model
Data version 2016-03

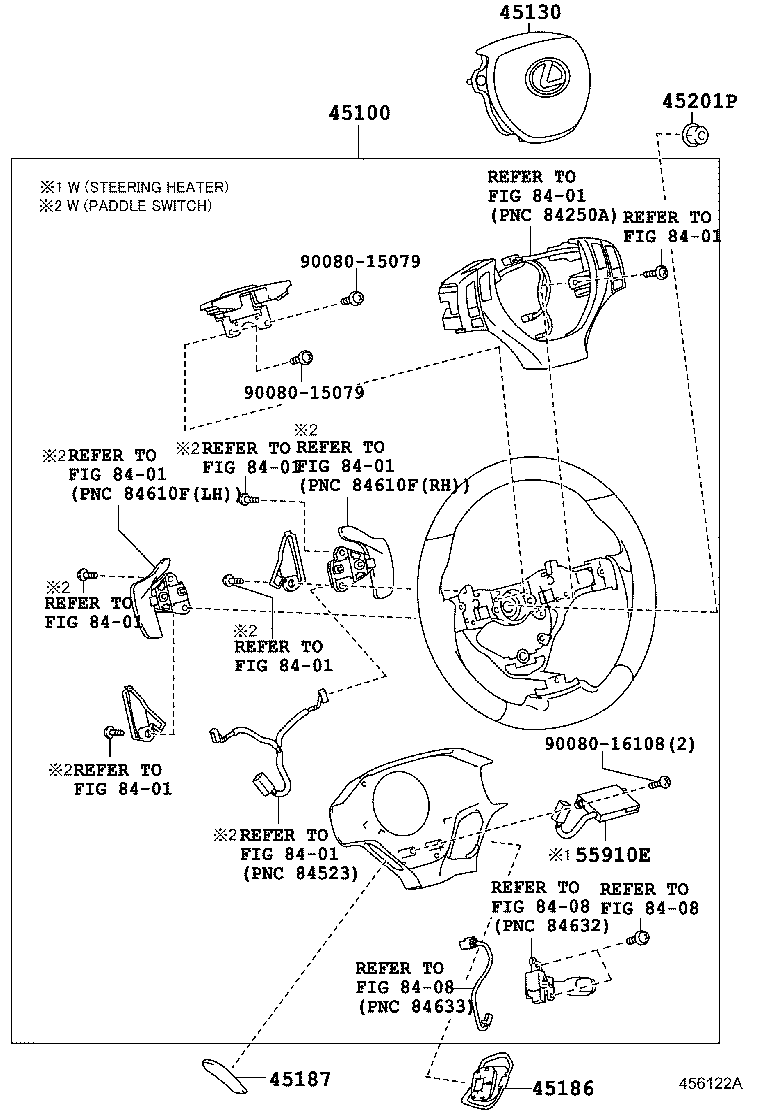

Steering Wheel
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45130 | Button Assy, Horn |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 45188 | Screw, Steering Wheel Pad Attaching |
| 45201P | Nut, Steering Wheel Set |
| 55910E | Control Assy, Steering Wheel Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
