Toyota Lexus RX350/450H(Nap
2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States
Supported model
Data version 2016-03

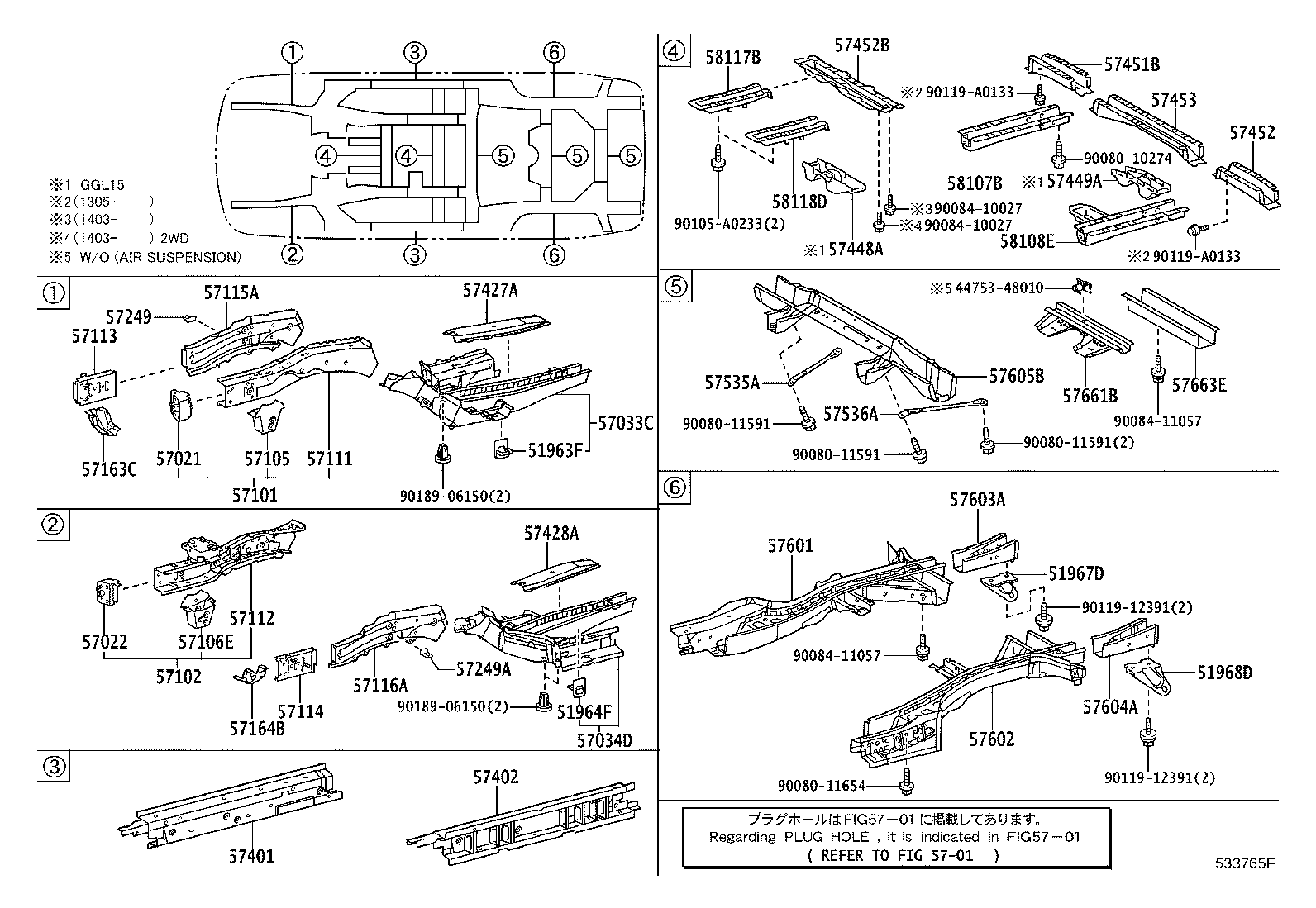

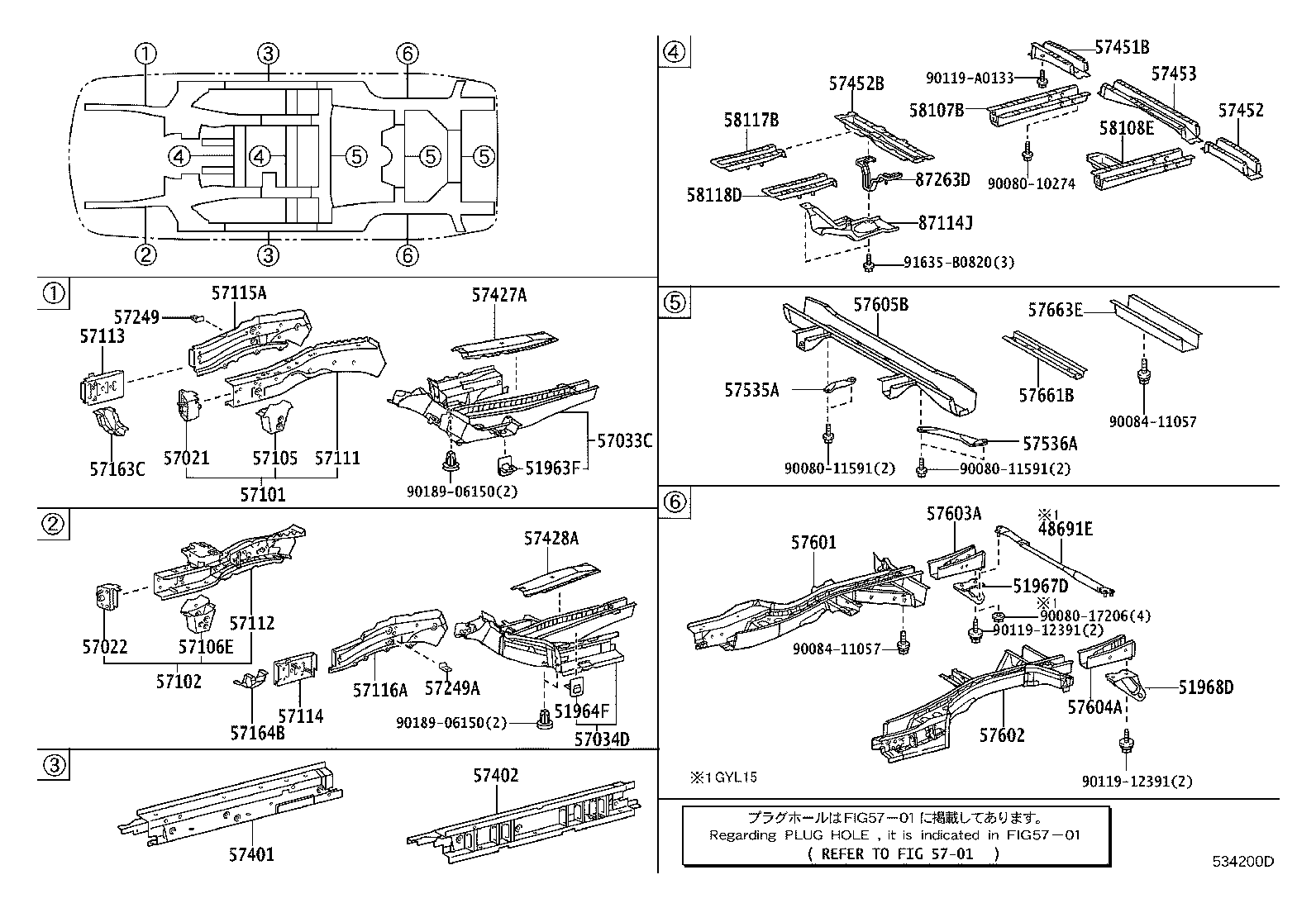

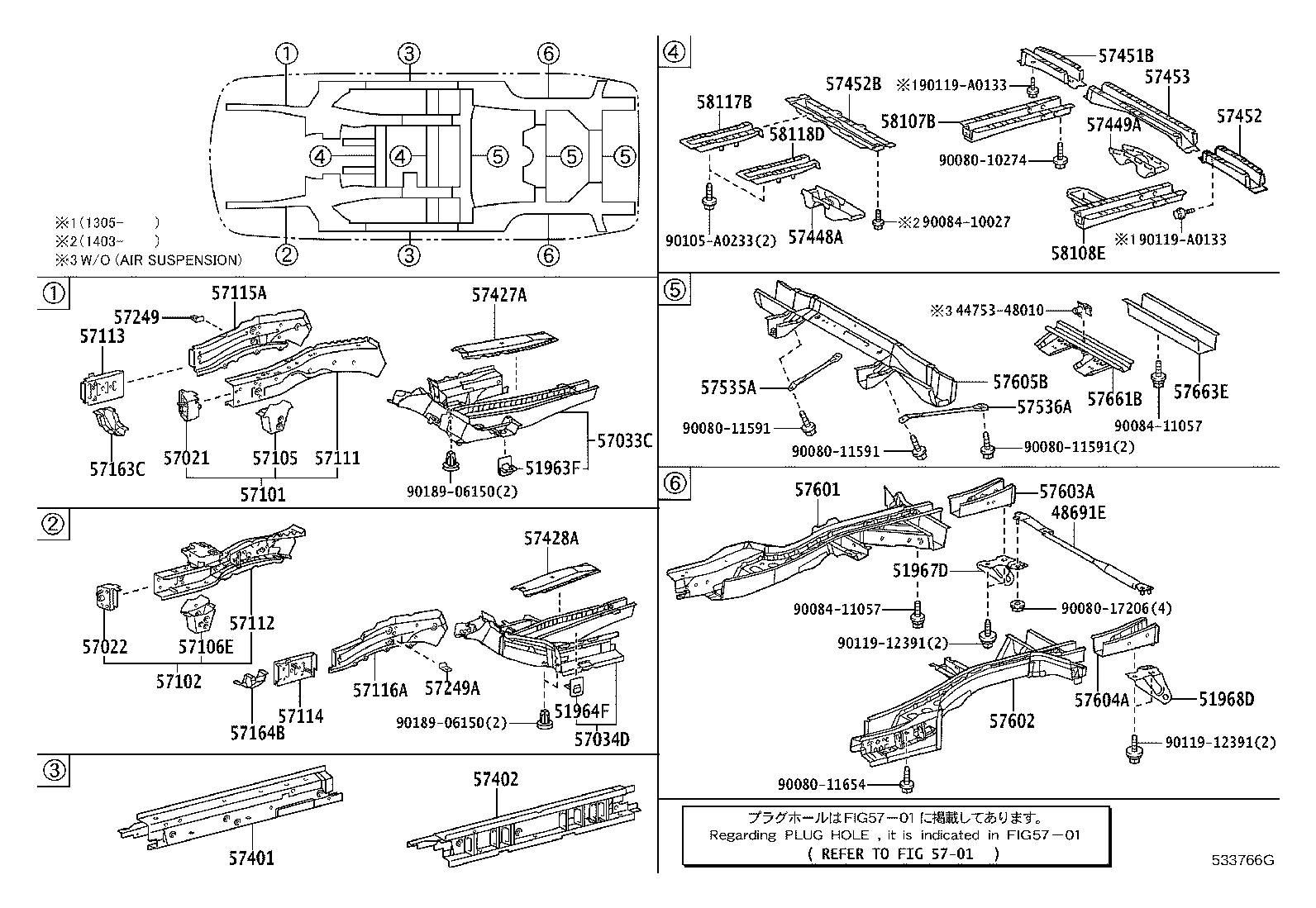

Floor Side Member
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 48691E | Damper, Suspension Tower |
| 51963F | Hook, Transport |
| 51964F | Hook, Transport, LH |
| 51967D | Hook Sub-assy,Rear |
| 51968D | Hook, Transport, Rear LH |
| 57021 | Bracket Sub-assy, Body Mounting, NO.1 RH |
| 57022 | Bracket Sub-assy, Body Mounting, NO.1 LH |
| 57033C | Reinforce Sub-assy, Front Side Member, NO.3 RH |
| 57034D | Reinforce Sub-assy, Front Side Menber, NO.3 LH |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57105 | Bracket Sub-assy, Front Suspension Member Mounting, Front RH |
| 57106E | Bracket Sub-assy, Front Suspension Member Mounting, Front LH |
| 57111 | Member, Front Side, RH |
| 57112 | Member, Front Side, LH |
| 57113 | Extension, Front Side Member, RH |
| 57114 | Extension, Front Side Member, LH |
| 57115A | Plate, Front Side Member, Outer RH |
| 57116A | Plate, Front Side Member, Outer LH |
| 57117B | Reinforcement, Front Bumper Mounting, RH |
| 57118A | Reinforcement, Front Bumper Mounting, LH |
| 57163C | Reinforcement, Front Crossmember, NO.1 RH |
| 57164B | Reinforcement, Front Crossmember, NO.1 LH |
| 57249 | Bracket, Flexible Hose, NO.1 |
| 57249A | Bracket, Frexible House, NO.1, LH |
| 57401 | Member Sub-assy, Main Floor Side, RH |
| 57402 | Member Sub-assy, Main Floor Side, LH |
| 57427A | Reinforcement, Front Floor, NO.3 RH |
| 57428A | Reinforcement, Front Floor, NO.3 LH |
| 57448A | Bracket, Diff Lock Lever Mount, NO.1 |
| 57449A | Bracket, Diff Lock Lever Mount, NO.2 |
| 57451B | Member, Front Floor Cross, RH |
| 57452 | Member, Front Floor Cross, LH |
| 57452B | Member, Front Floor Cross, NO.2 |
| 57453 | Member, Front Floor Cross, NO.3 |
| 57535A | Brace, Front Floor, RH |
| 57536A | Brace, Front Floor, LH |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57603A | Member Sub-assy, Rear Floor Side, Rear RH |
| 57604A | Member Sub-assy, Rear Floor Side, Rear LH |
| 57605B | Member Sub-assy, Rear Floor Cross, NO.1 |
| 57661B | Member, Rear Floor Cross, Front |
| 57663E | Member, Rear Floor Cross, Center |
| 58107B | Reinforcement Sub-assy, Front Cross TO Front Panel, RH |
| 58108E | Reinforce Sub-assy, Front Cross TO Front Panel, LH |
| 58117B | Reinforcement, Front Floor Side, RH |
| 58118D | Reinforcement, Front Floor Side, LH |
| 87114J | Cover, Heater |
| 87263D | Bracket, Water Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
