Toyota Lexus RX350/450H(Nap
2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States
Supported model
Data version 2016-03

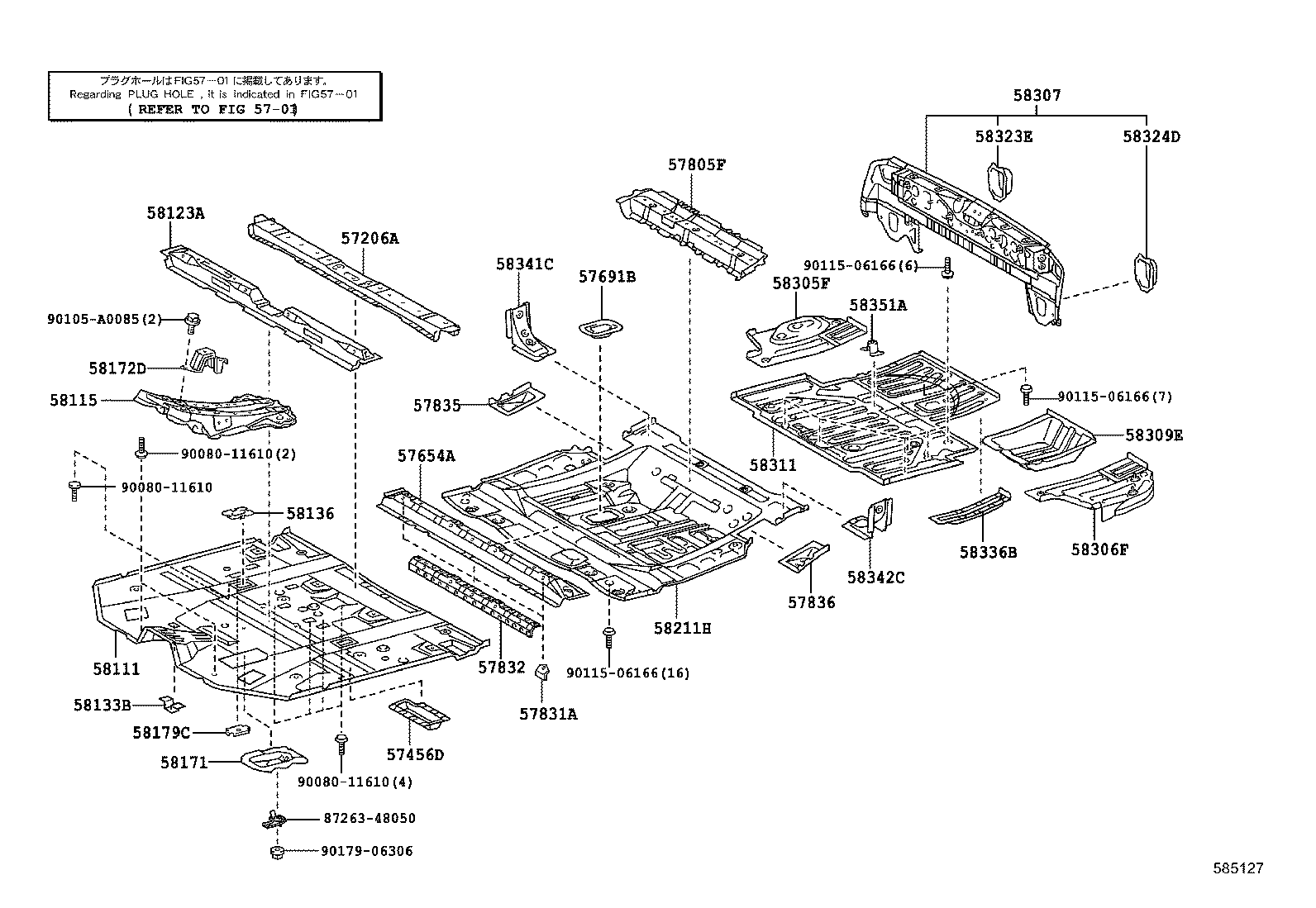

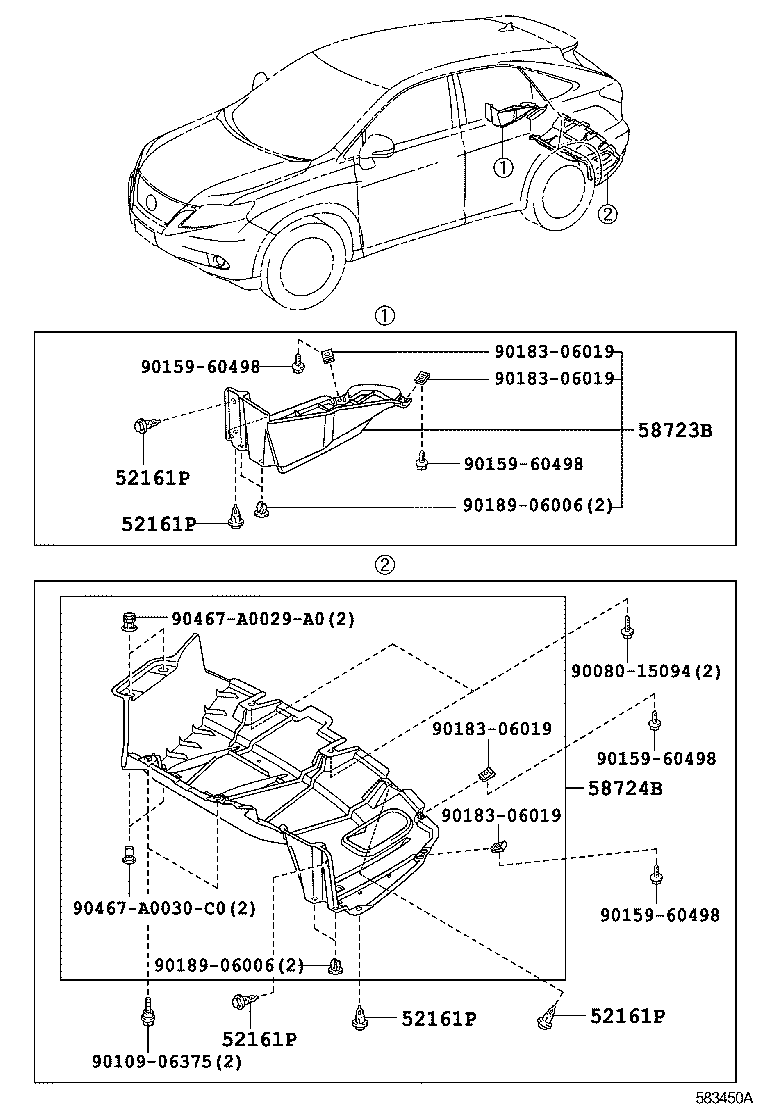

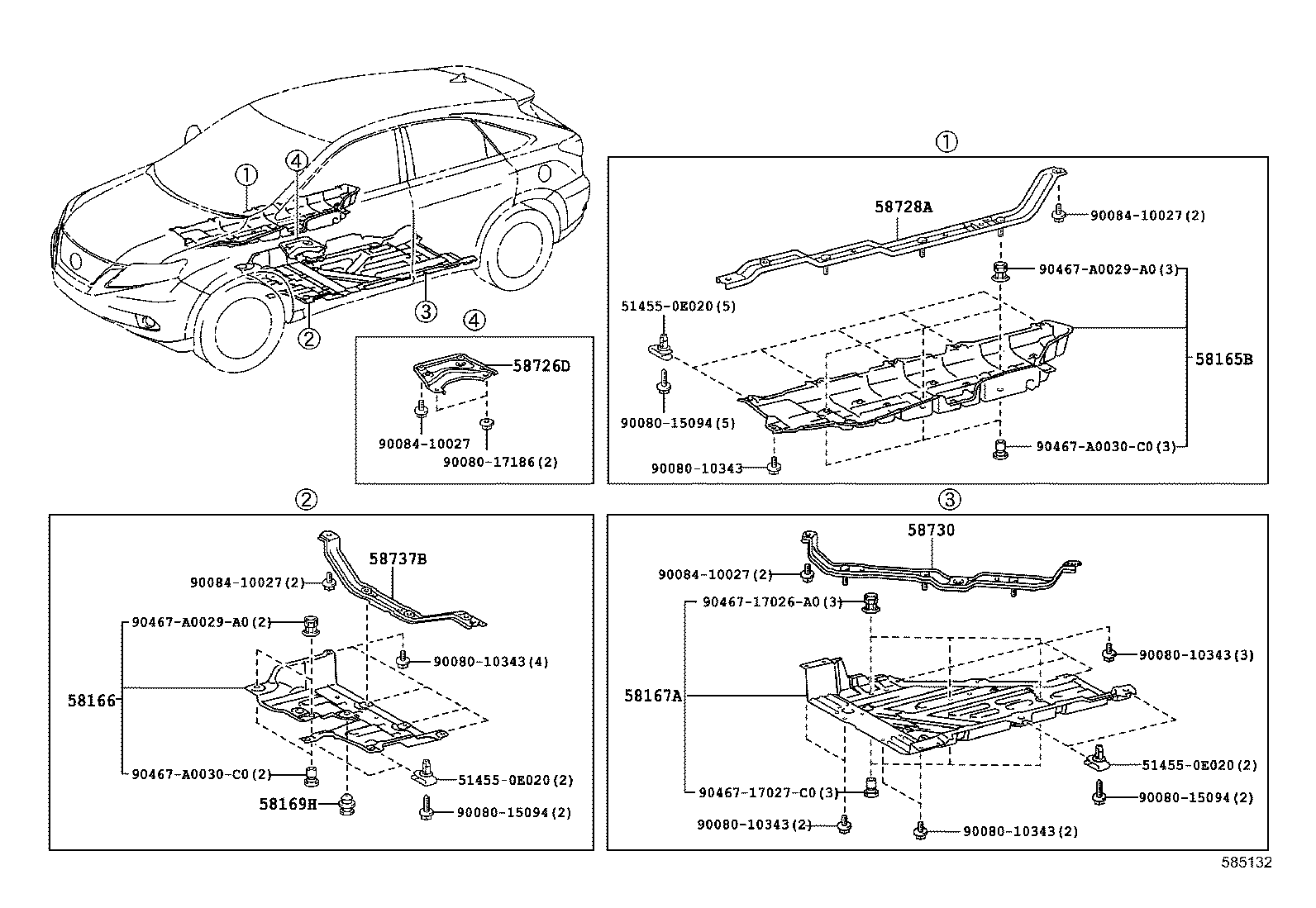

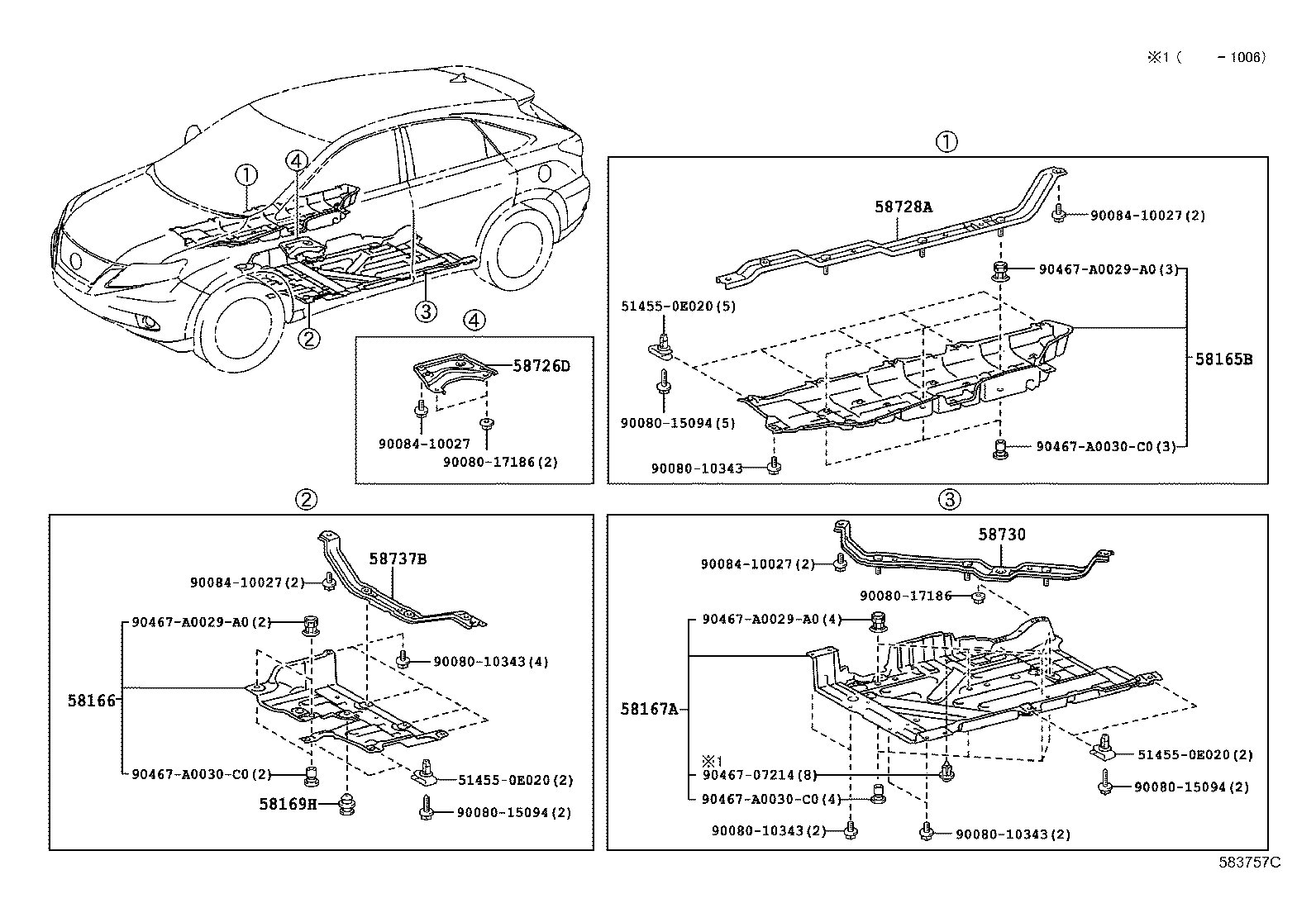

Floor Pan & Lower Back Panel
44 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161P | Piece, Rear Bumper |
| 57206A | Member Sub-assy, Front Floor Cross, NO.2 |
| 57456D | Plate, Front Floor Crossmember, NO.3 LH |
| 57654A | Member, Rear Floor Cross, NO.3 |
| 57691B | Bracket, Fuel Tank Mounting, Front Center |
| 57805F | Reinforcement Sub-assy, Belt Anchor, NO.1 |
| 57831A | Reinforcement, Rear NO.1 Seat Leg, Front NO.1 |
| 57832 | Reinforcement, Rear NO.1 Seat Leg, Front NO.2 |
| 57835 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.1 |
| 57836 | Reinforcement, Rear NO.1 Seat Leg, Rear NO.2 |
| 58111 | Pan, Front Floor |
| 58115 | Reinforcement, Front Floor Panel, Front |
| 58123A | Support, Shift & Select Lever |
| 58133B | Bracket, Front Floor Heat Insulator, NO.3 |
| 58136 | Cover, Front Floor Hole |
| 58165B | Cover, Front Floor, RH |
| 58166 | Cover, Front Floor, LH |
| 58167A | Cover, Front Floor, Center |
| 58169H | Patch, Front Floor, Rear |
| 58171 | Reinforcement, Parking Brake Base |
| 58172D | Bracket, Computer Mounting, NO.4 |
| 58179C | Bracket, Clamp Floor |
| 58211H | Pan, Center Floor |
| 58212C | Pan, Center Floor, Front |
| 58249H | Bracket, Center Floor Board Support |
| 58279C | Protector, Fuel Tank, Upper NO.2 |
| 58305F | Panel Sub-assy, Rear Floor Side, RH |
| 58306F | Panel Sub-assy, Rear Floor Side, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58309E | Plate Sub-assy, Rear Floor |
| 58311 | Pan, Rear Floor |
| 58323E | Reinforcement, Rear Bumper Arm Support, RH |
| 58324D | Reinforcement, Rear Bumper Arm Support, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58336B | Reinforcement, Rear Floor Pan |
| 58341C | Bracket, Rear Absorber Mounting, NO.1 RH |
| 58342C | Bracket, Rear Absorber Mounting, NO.1 LH |
| 58351A | Bracket, Spare Wheel Carrier |
| 58723B | Protector, Luggage Compartment Side Cover, NO.1 |
| 58724B | Protector, Luggage Compartment Side Cover, NO.2 |
| 58726D | Stay, Engine Service Cover Catch, Rear LH |
| 58728A | Plate, Engine Service Cover, NO.2 |
| 58730 | Cover Assy, Engine Service, Rear |
| 58737B | Bracket, Engine Service Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
